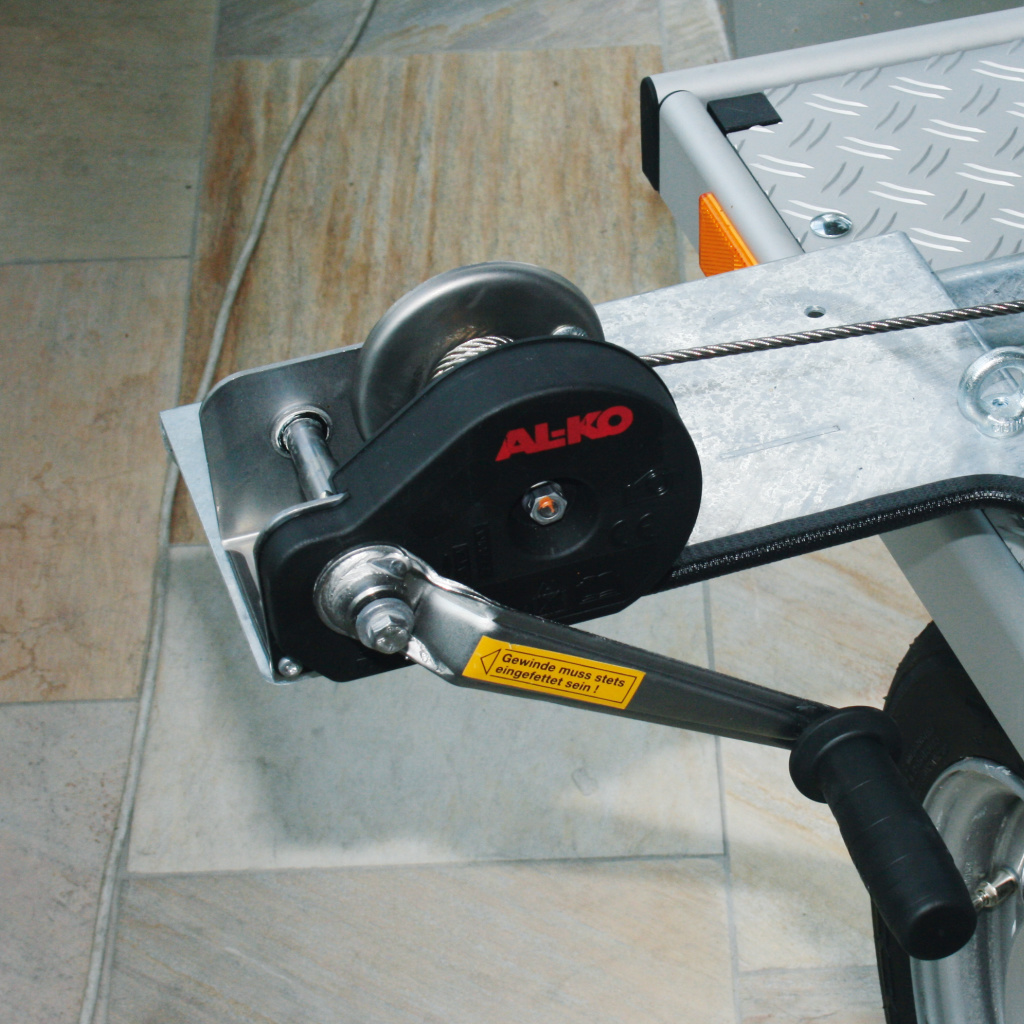

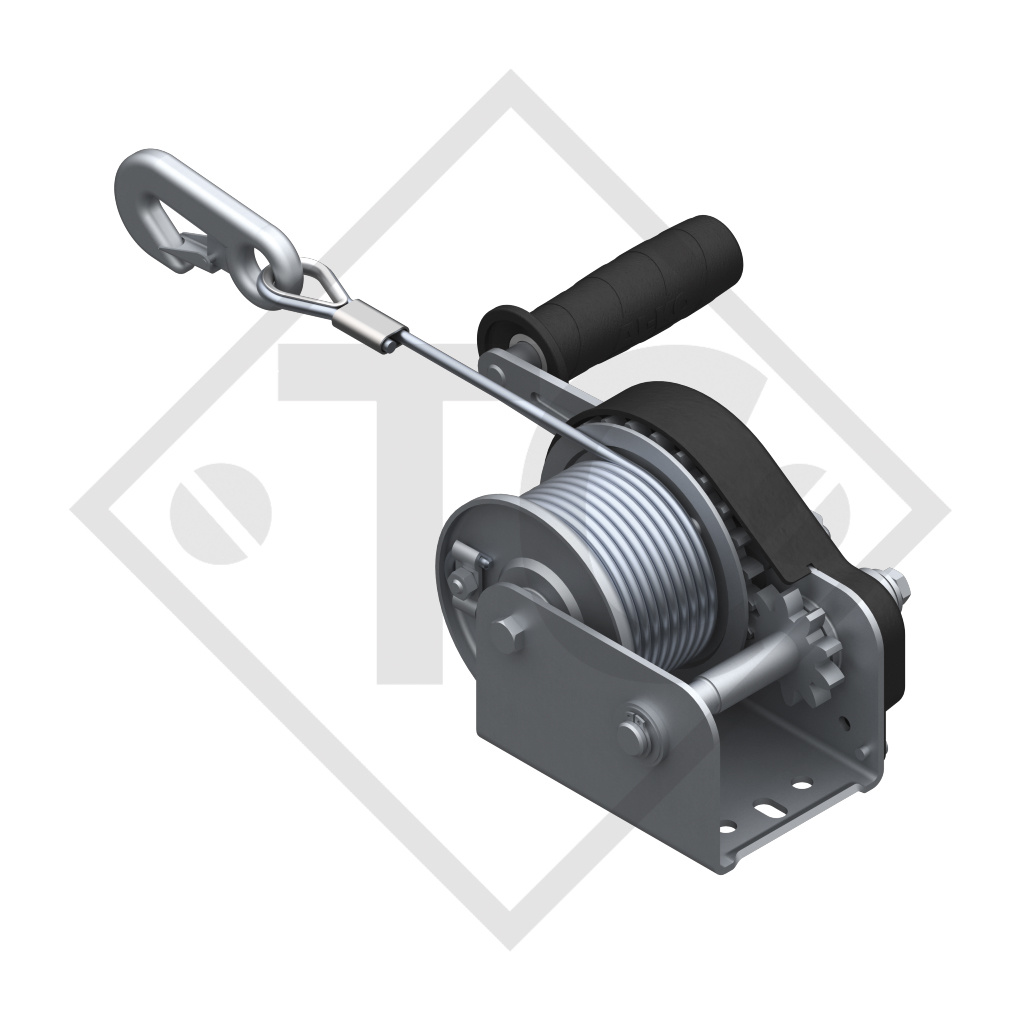

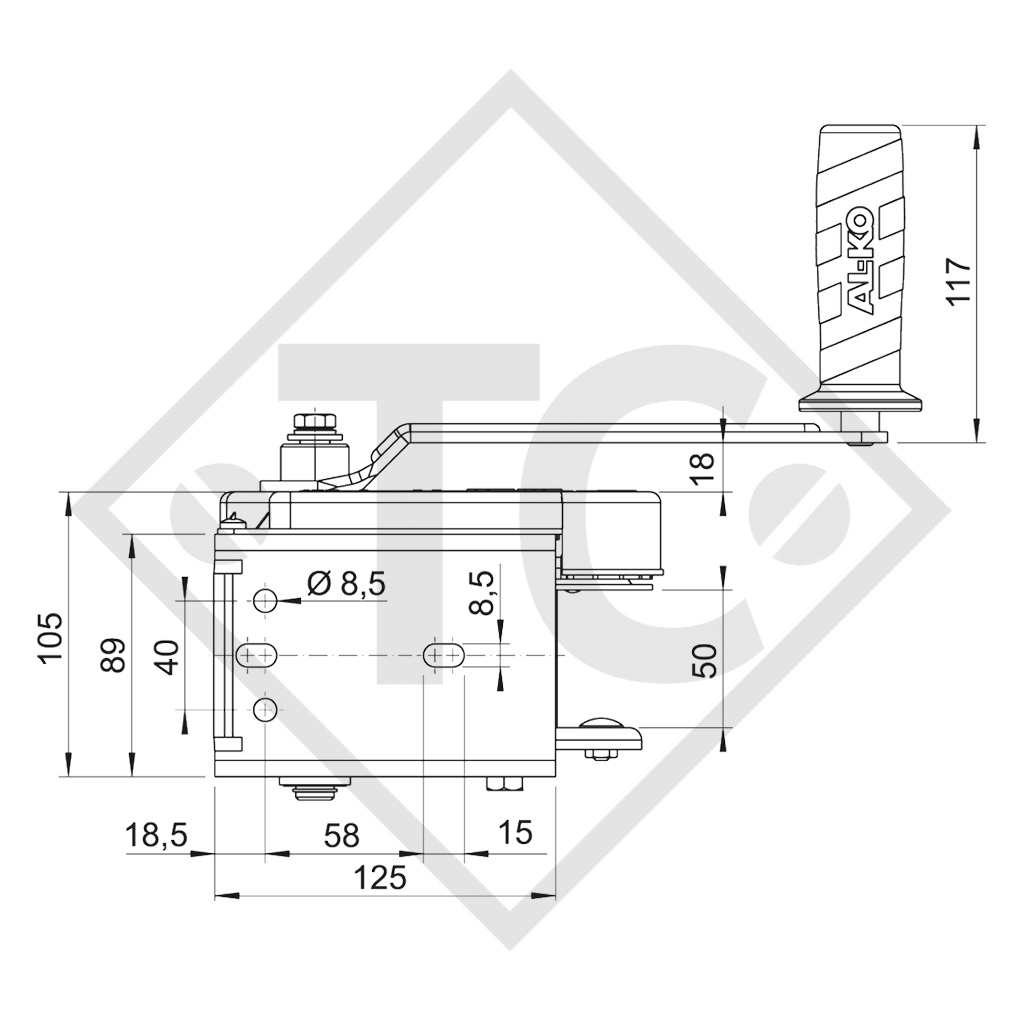

Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / Cable winch PLUS 350kg, type 351 with automatic weight brake, without automatic unwinder, fitted with 10 meter cable for lifting
manual force 200N, minimum load 25kg, reduction 2.50 : 1, lift per crank rotation from 53-100mm, drum capacity for cable ⌀4mm: 15 meter, drum capacity for towing band: 4 meter. Read more...
Part no. 1225999 fitted with 10 m cable for lifting
| Cable winch braked - type 351 PLUS |
| Tensile load max. lowest cable position | 350 kg |
| Manual force | 200 N |
| Minimum load | 25 kg |
| Reduction | 2,50 : 1 |
| Lift per crank rotation | From 53 - 100 mm |
| Drum capacity for 4 mm ø cable |
15 m |
| Drum capacity for towing band | 4 m |
| PLUS cable winch 350 kg | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 350 kg | 250 kg | 150 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
600 kg 500 kg 450 kg |
400 kg 350 kg 300 kg |
250 kg 200 kg 150 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
2.300 kg 1.400 kg 1.100 kg |
1.600 kg 1.000 kg 800 kg |
800 kg 500 kg 400 kg |
INSTRUCTION BOOK
SPARE PART LIST 811716
SPARE PART LIST 811716A or
SPARE PART LIST 811716B
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg
SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test
CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
