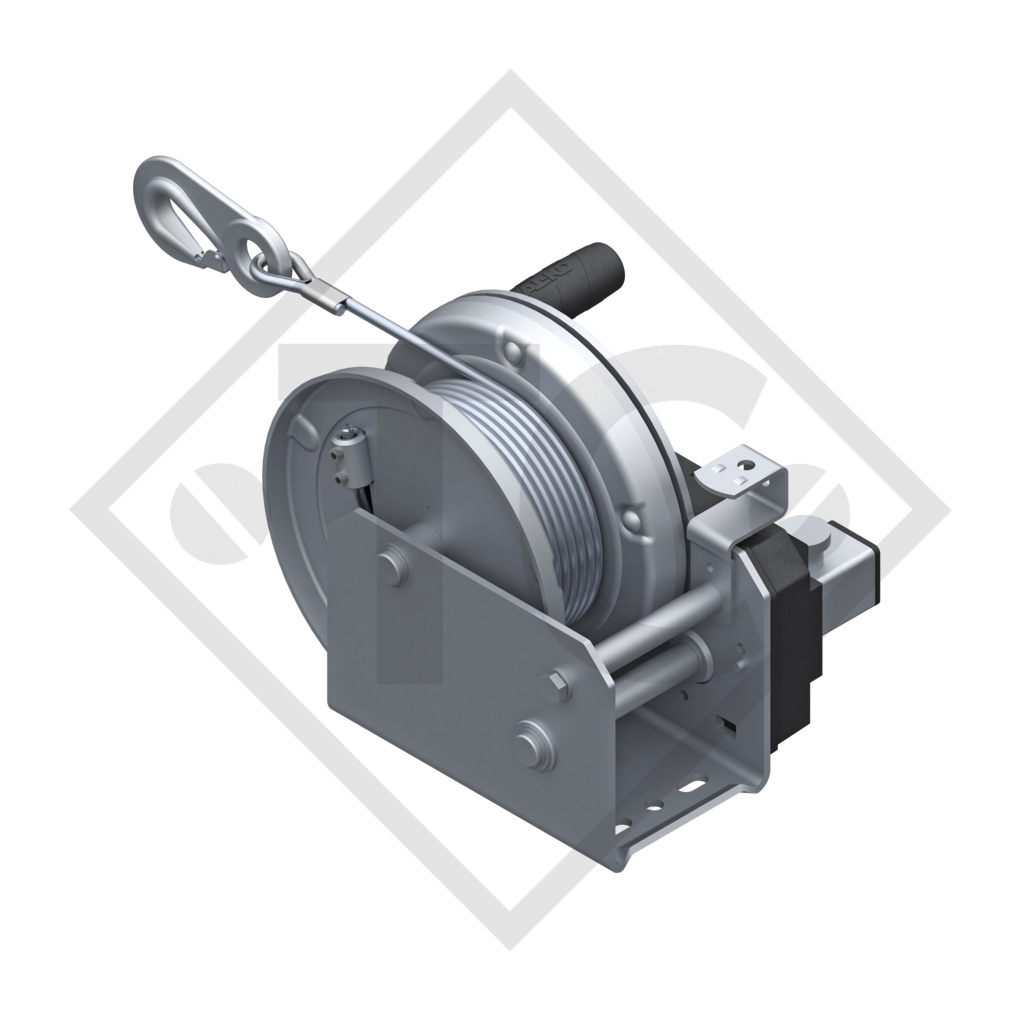

Home / Cable winch PLUS 1150kg, type 1201 with automatic weight brake, with automatic unwinder, fitted with 12.5 meter cable for lifting
manual force 200N, minimum load 25kg, reduction 10.5 : 1, lift per crank rotation from 23-57mm, drum capacity for cable ⌀7mm: 25 meter, drum capacity for towing band: 12.5 meter. Read more...
Part no. 1730019 fitted with 12,5 m cable for lifting

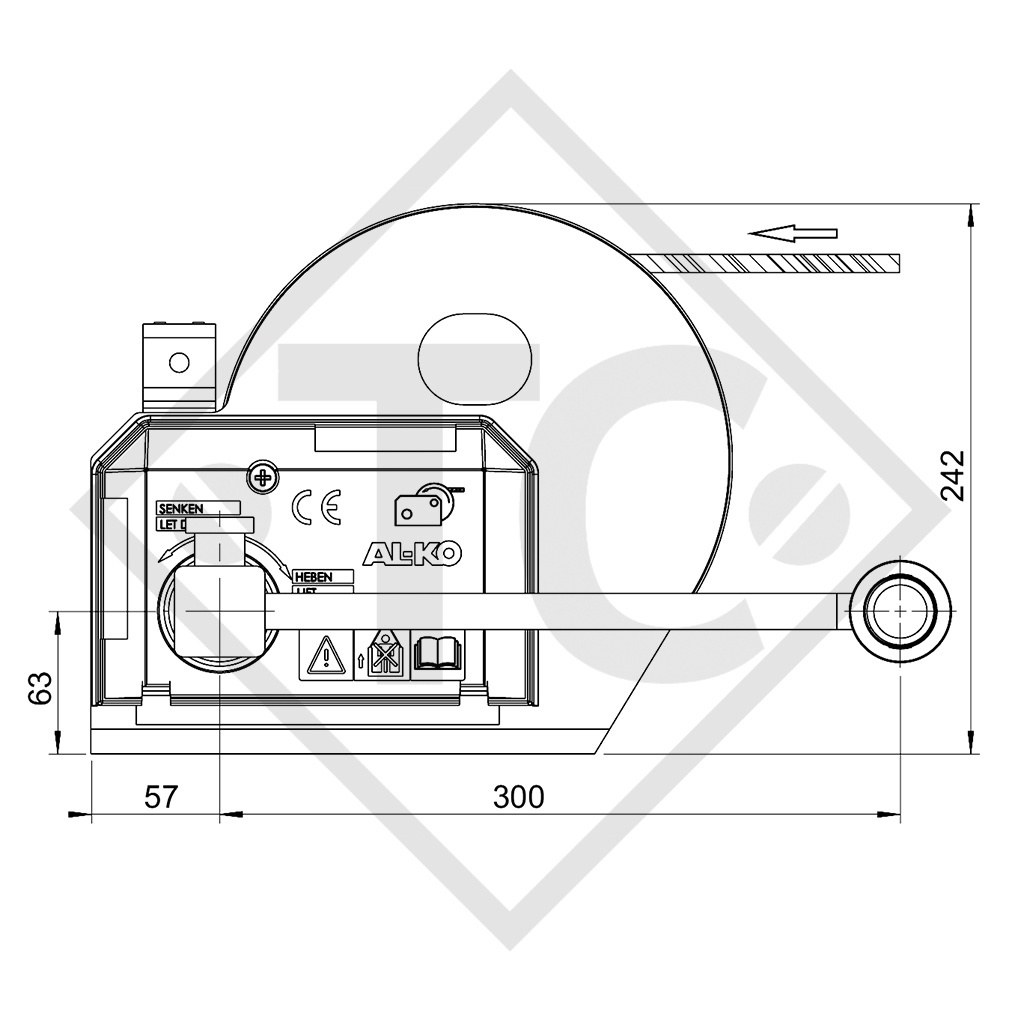

| Cable winch braked - type 1201 PLUS with automatic unwinder |
| Tensile load max. lowest cable position | 1150 kg |
| Manual force | 200 N |
| Minimum load | 25 kg |
| Reduction | 10,5 : 1 |
| Lift per crank rotation | From 23 - 57 mm |
| Drum capacity for 7 mm ø cable |
25 m |
| Drum capacity for towing band | 12,5 m |
| Cable winch PLUS 1,150 kg with automatic unwinder | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 1.150 kg | 830 kg | 500 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
2.000 kg 1.700 kg 1.500 kg |
1.400 kg 1.250 kg 1.100 kg |
850 kg 750 kg 650 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
7.400 kg 4.800 kg 3.500 kg |
5.300 kg 3.300 kg 2.500 kg |
3.200 kg 2.000 kg 1.500 kg |
INSTRUCTION BOOK
SPARE PART LIST 811717
SPARE PART LIST 811717A
SPARE PART LIST 811717B
SPARE PART LIST 811717C or
SPARE PART LIST 811717D
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Modern design
High-quality corrosion protection
Automatic load pressure brake
Cable drum with plain bearing
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 350 / 500 / 900 / 1150 kg
SURFACE TREATMENT
High-quality zinc-nickel coating approx. 400 hours salt spray test
CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction

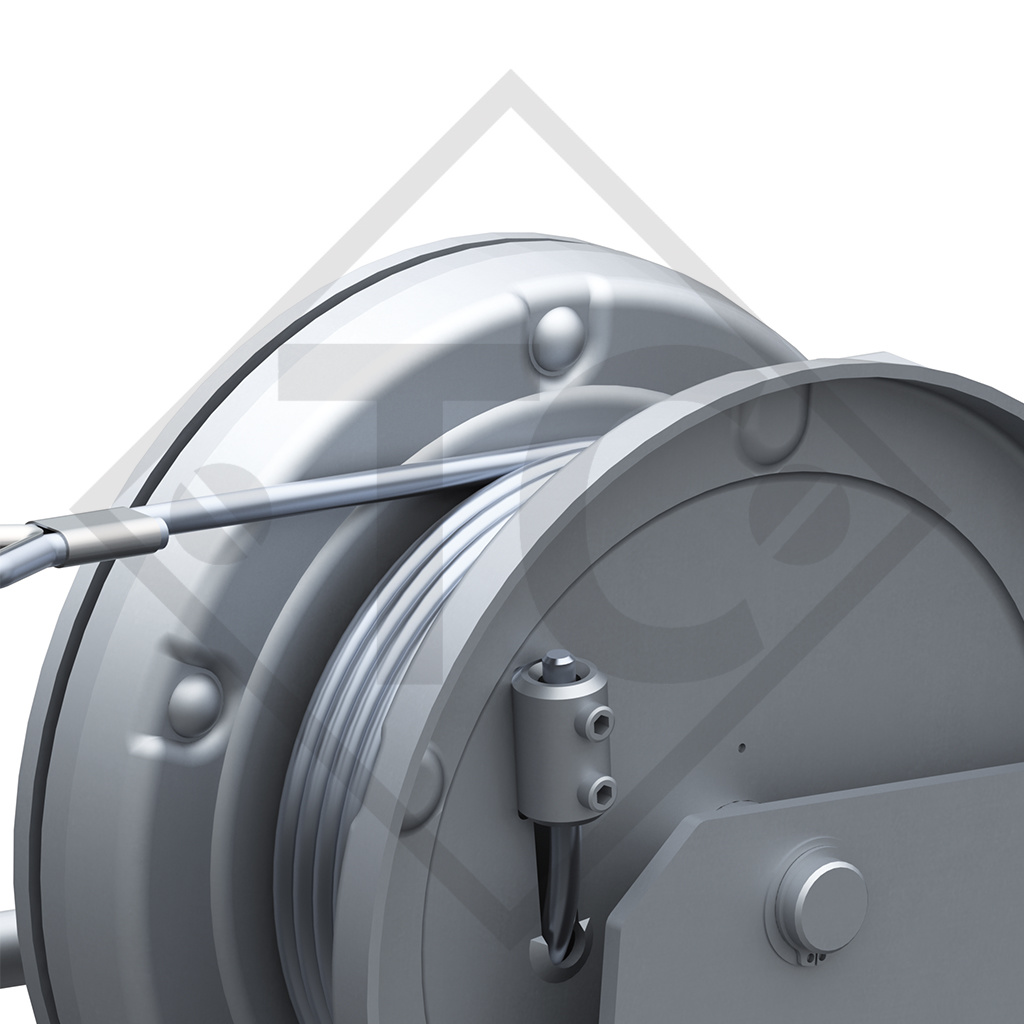

AUTOMATIC UNWINDER OPERATION
1. Turn the hand crank in a counter-clockwise for one rotation, this will cause the load pressure brake to be deactivated

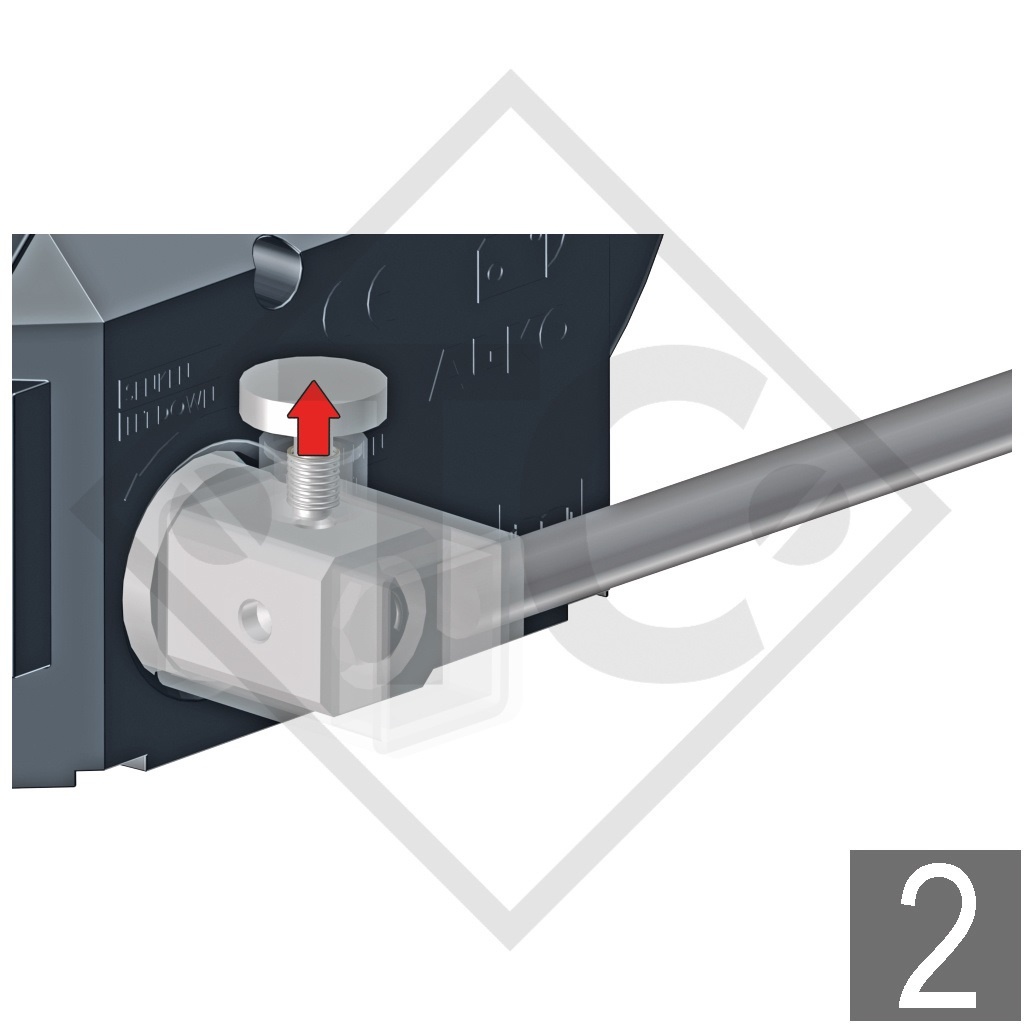

2. Pull up locking sleeve

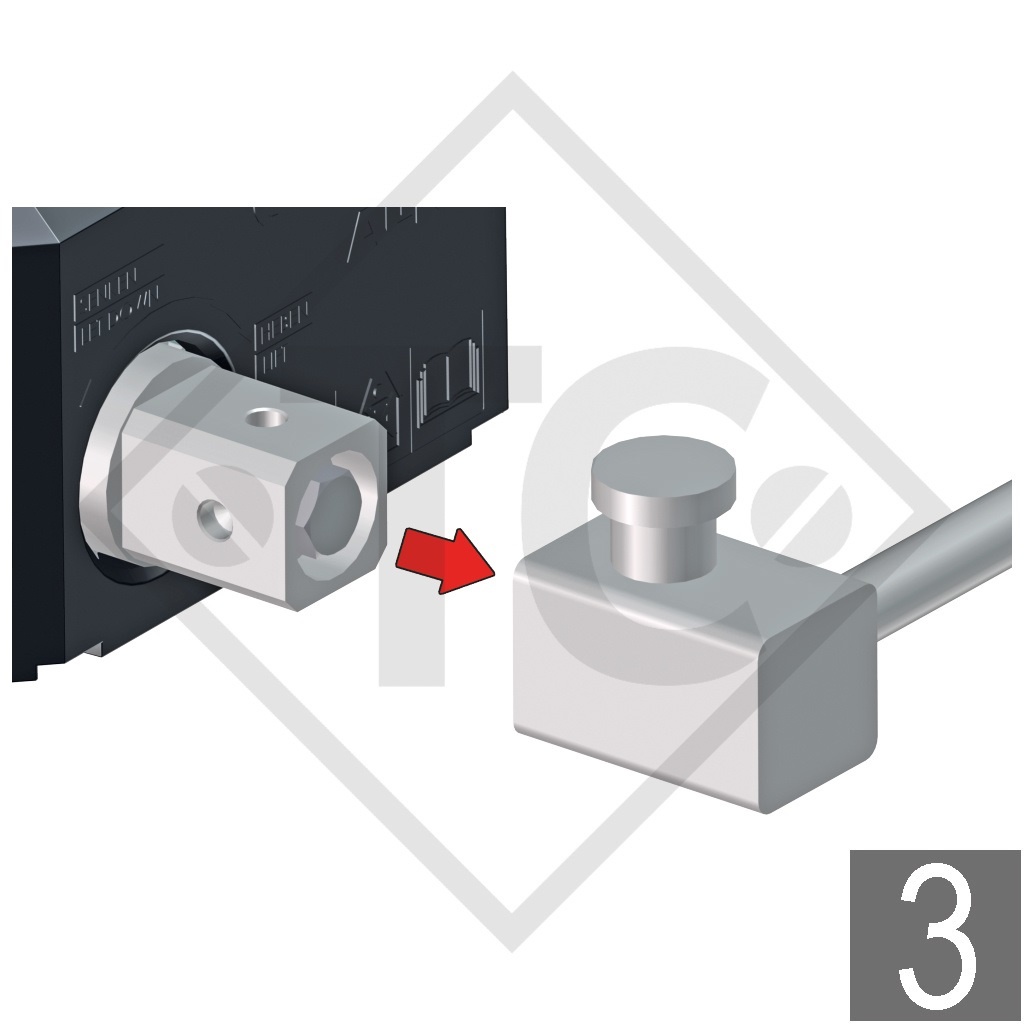

3. Remove crank

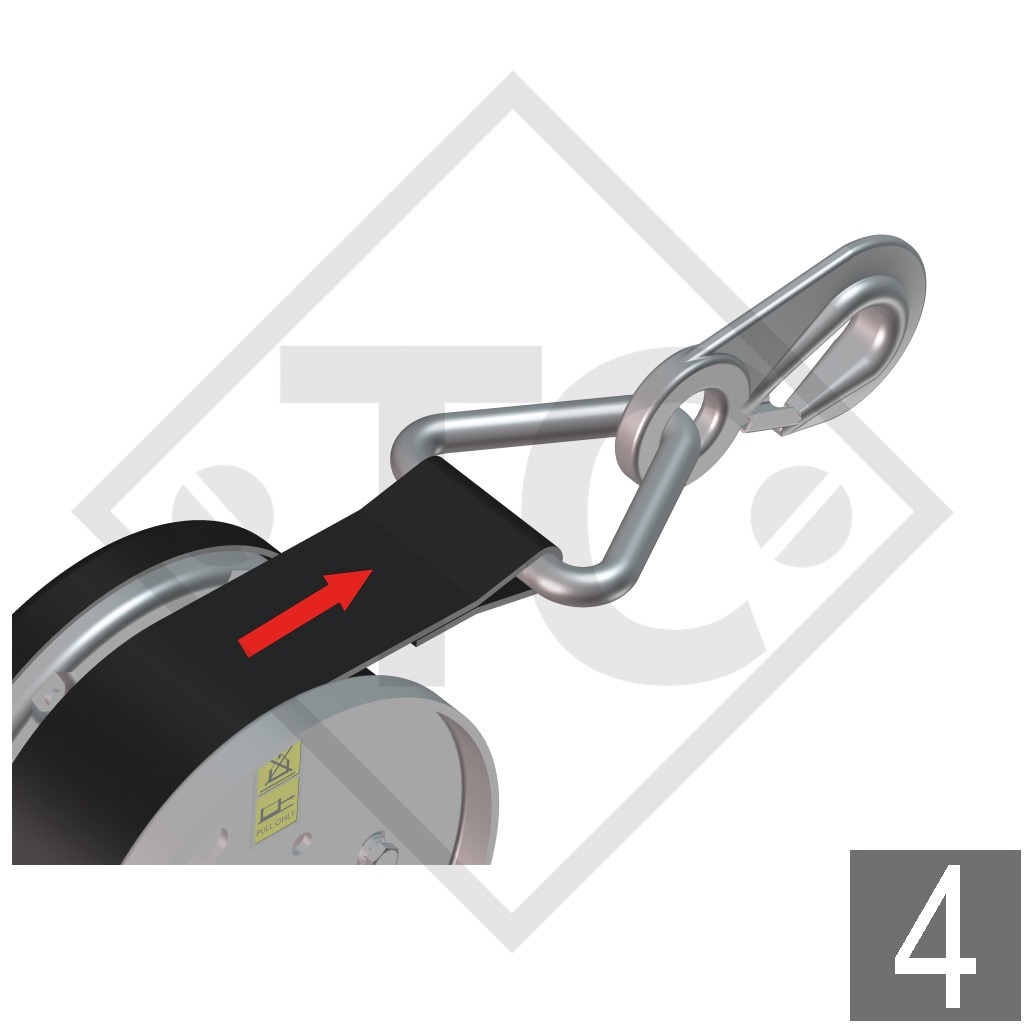

4. The band or cable can now be removed
