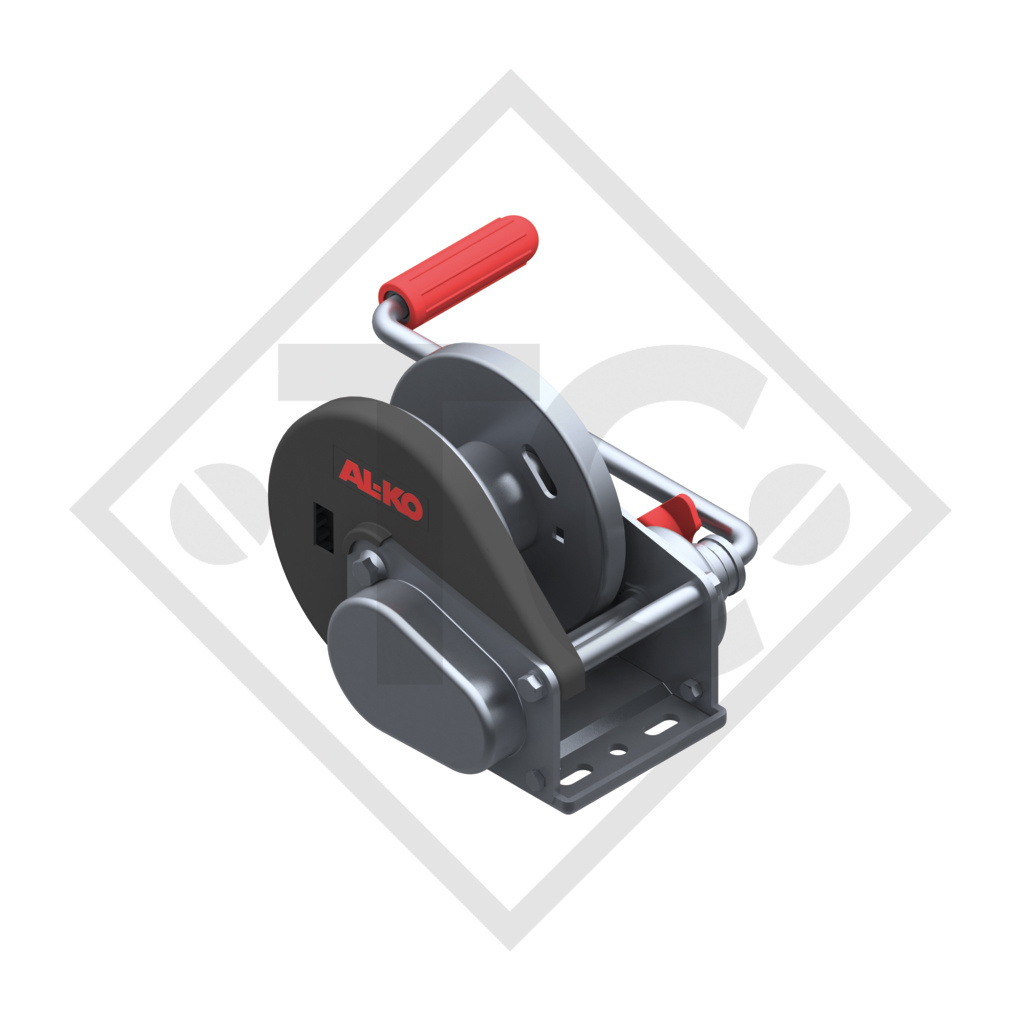

Home / Cable winch BASIC 900kg, type 900 A Basic with automatic weight brake, with automatic unwinder, without cable/band
manual force 230N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-53mm, drum capacity for cable ⌀7mm: 17 meter, drum capacity for towing band: 7 meter. Read more...
Part no. 1225301 with automatic unwinder, without cable/band

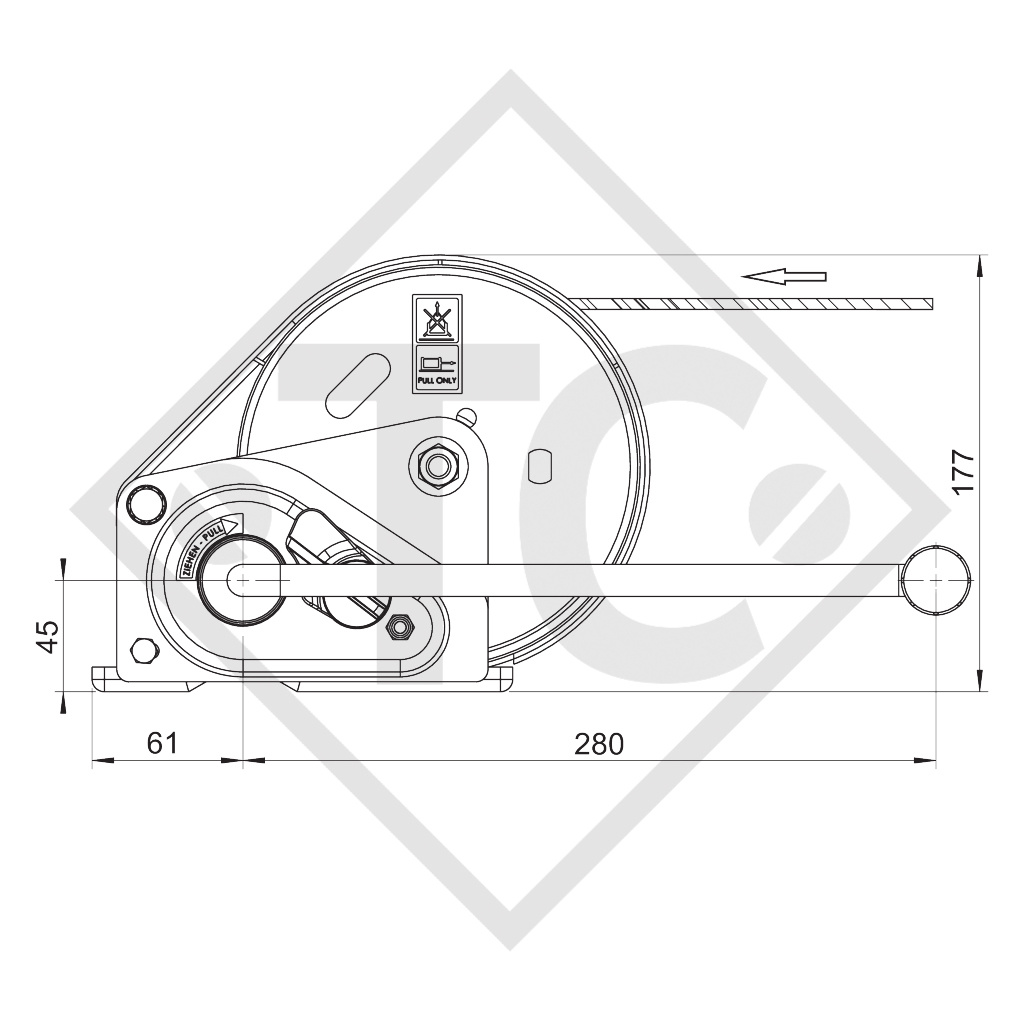

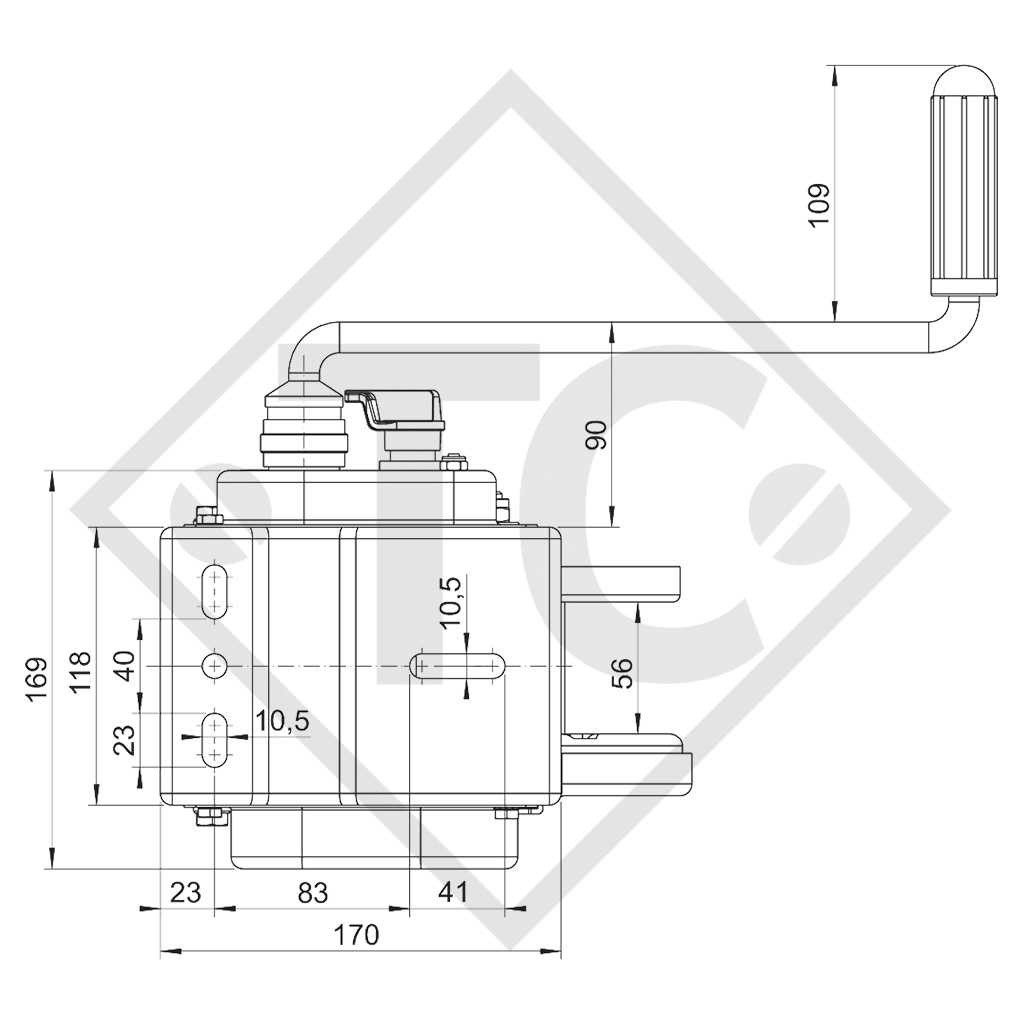

| Cable winch type 900 Compact braked with automatic unwinder |
| Tensile load max. lowest cable position | 900 kg |
| Manual force | 230 N |
| Minimum load | 25 kg |
| Reduction | 8,75 : 1 |
| Lift per crank rotation | From 25 - 53 mm |
| Drum capacity for 7 mm ø cable |
17 m |
| Drum capacity for towing band | 7 m |
| BASIC cable winch 900 kg | Slope | Lowest cable position | Middle cable position | Highest cable position |
| Vertical lifting of loads – (guidance values) | - | 900 kg | 600 kg | 330 kg |
|
Horizontal and angled pulling of a (non-rolling) load (guidance values) friction factor approx. 0.5 |
10% (6°) 20% (11°) 30% (17°) |
1.500 kg 1.300 kg 1.150 kg |
1.000 kg 900 kg 800 kg |
550 kg 500 kg 400 kg |
| Angled pulling of a rolling load (guidance values) |
10% (6°) 20% (11°) 30% (17°) |
5.800 kg 3.600 kg 2.700 kg |
3.900 kg 2.400 kg 1.800 kg |
3.900 kg 2.400 kg 1.800 kg |
INSTRUCTION BOOK
SPARE PART LIST 811646
CABLE WINCHES
with automatic load pressure brake
LOAD PRESSURE BRAKE
Automatic
YOUR ADVANTAGE
Automatic load pressure brake
Automatic unwinder for rope or band (optional)
Removable crank (optional)
Plastic gear cover
Range: 450 and 900 kg
Surface treatment:
Galvanised with thick layer passivation, salt spray test approx. 200 hours
CABLE WINCH OPERATION
Lifting: Turn the hand crank in a clockwise direction
Stopping: Let go of the hand crank in any position (automatic load pressure brake)
Lowering: Turn the hand crank in a counter-clockwise direction

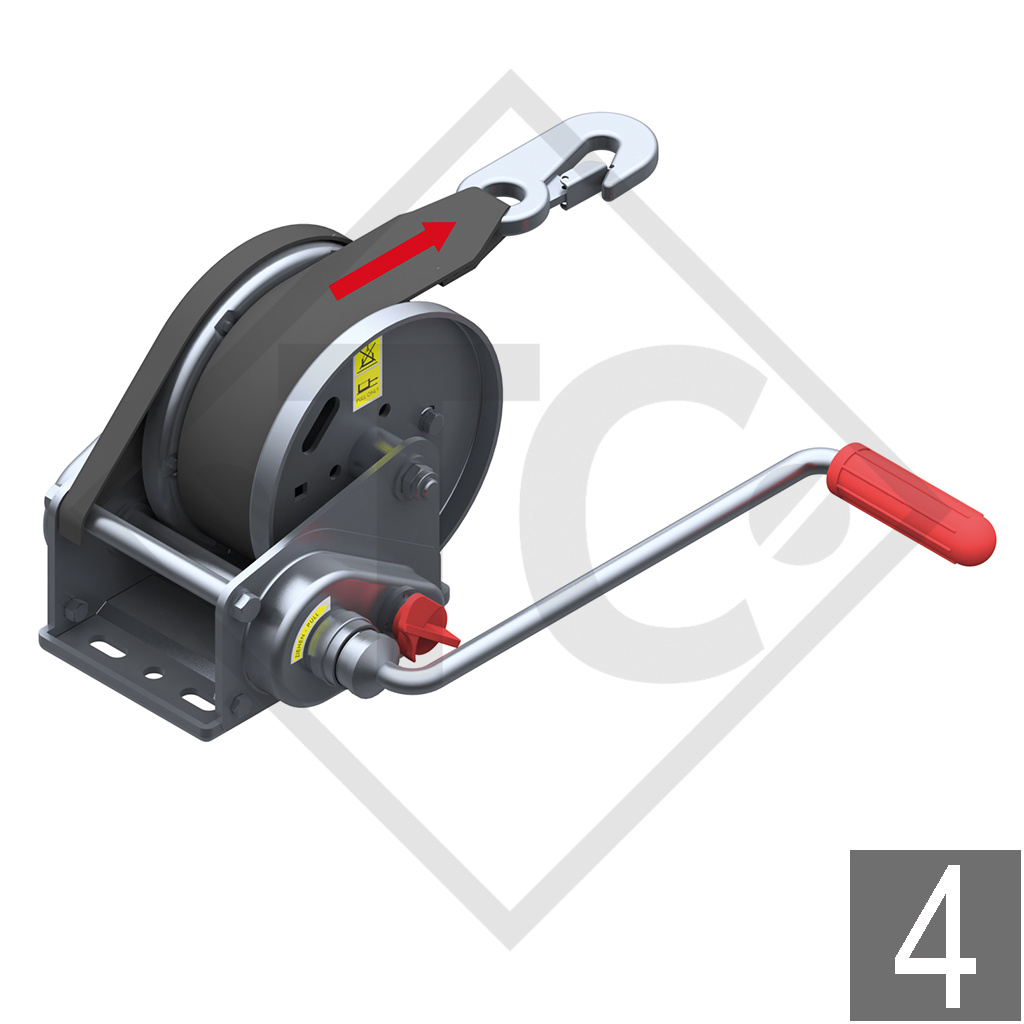

AUTOMATIC UNWINDER OPERATION

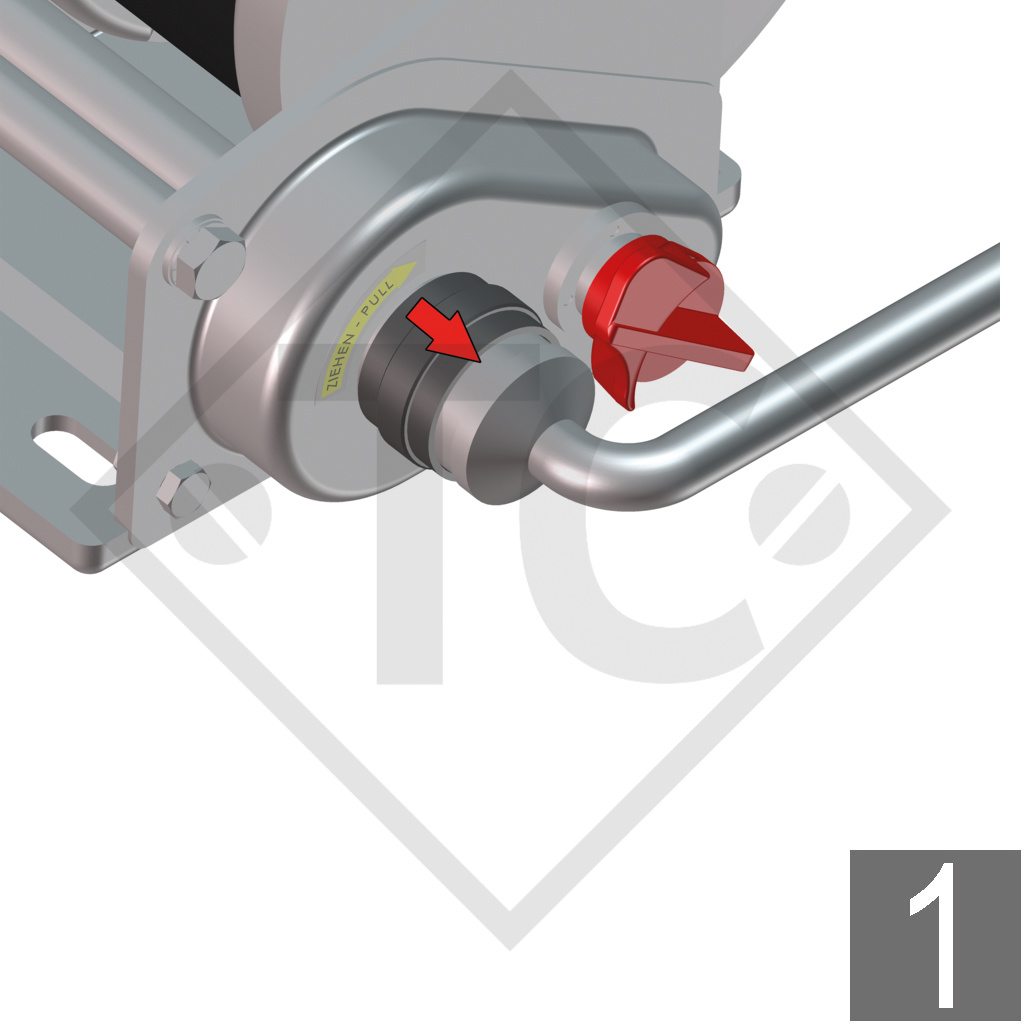

1. Pull up locking sleeve

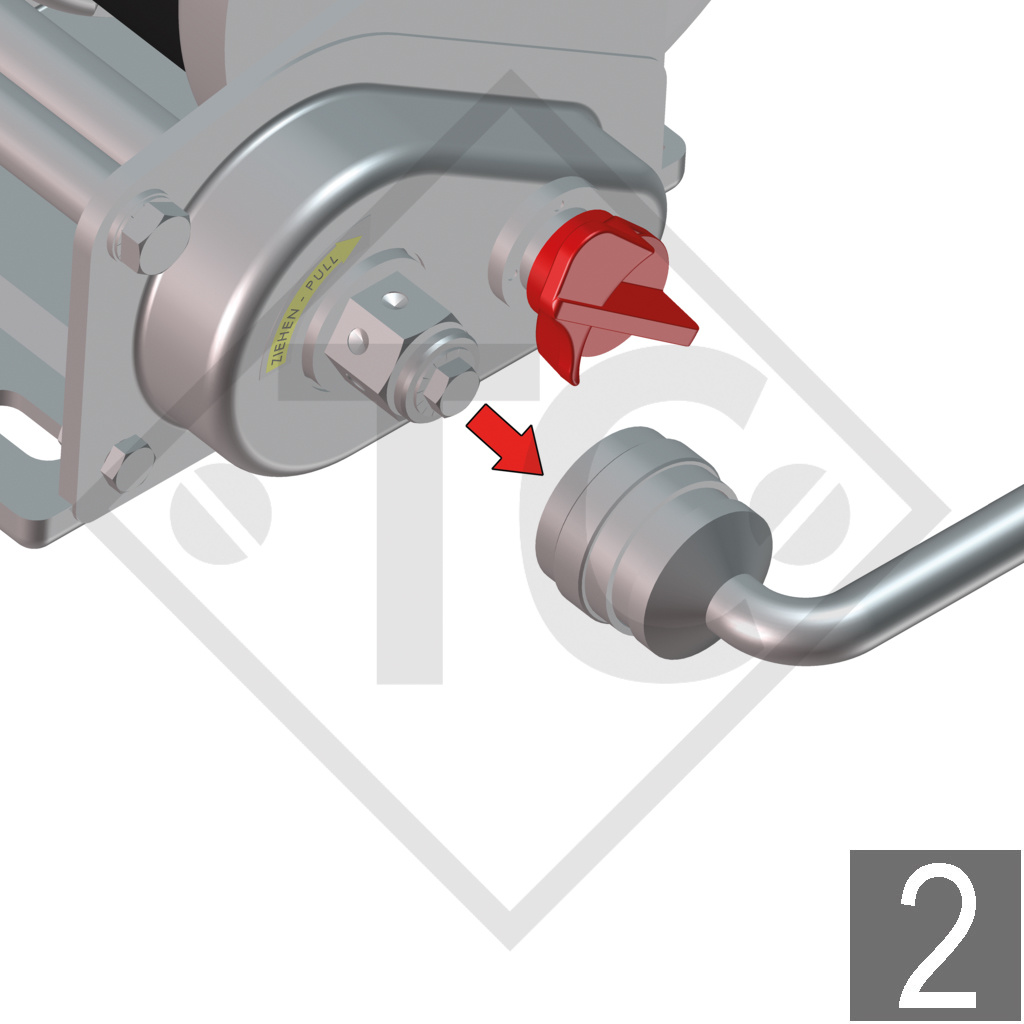

2. Remove crank

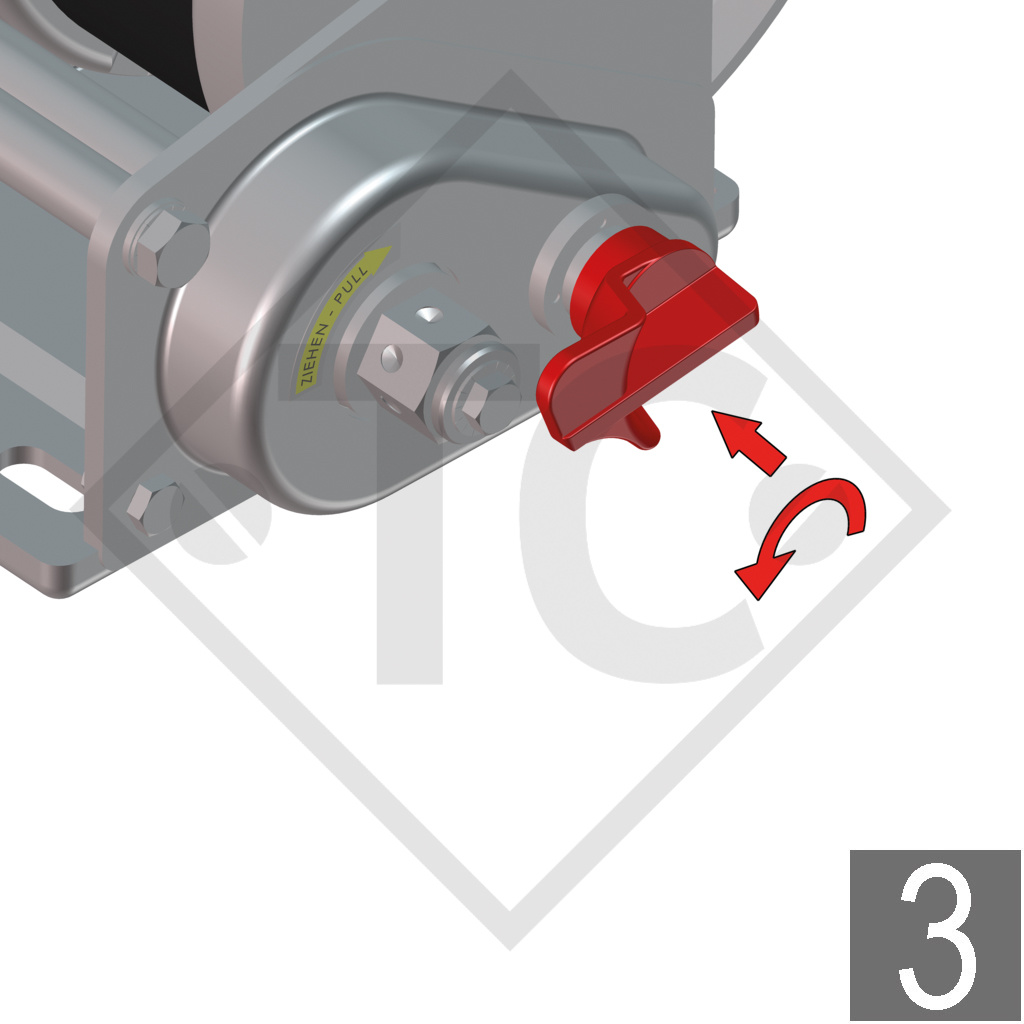

3. Press red lever and turn (deactivate load pressure brake)
4. The cable or band can now be pulled off
