AL-KO

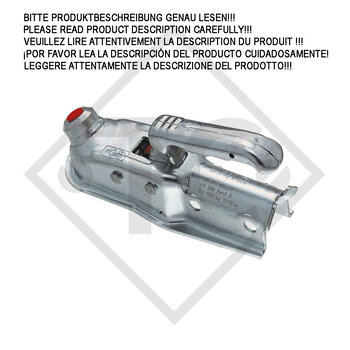

Coupling head AK 160 B / AK 161 Compact
drawbar ⌀45+50mm, holes (screw connection) horizontal + cross 12mm, hole distance horizontal 50-54mm, perm. gross weight 1600kg, nose load 120kg, material: steel.
Price 139,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg BASIC axle type B 850-10
BC: dimension A 750mm, OHF: dimension C 1200mm, wheel connection 100x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5.
Price 624,00 EUR Incl. tax Excl. Shipping costs
Retrofit set AAA for wheel brake 2051, version with toothed profile with 4 holes
can be used with wheel brake 2051 from year of manufacture 1999, version with toothed profile with 4 holes, for one axle (2 wheel brakes left + right).
Price 262,00 EUR Incl. tax Excl. Shipping costs
Electronic corner steady system UP4
UP4, the new electronic support system for caravans up to 2.5 t.
Price 1.705,00 EUR Incl. tax Excl. Shipping costs
AIR SPRING SZ 103-102 P01
Price 575,00 EUR Incl. tax Excl. Shipping costs
Replacement kit compact bearing ⌀39/72/37mm
incl. compact bearing, bearing no. 581169, circlip and flange nut, size ⌀39/72/37mm, suitable for brake drum with casting number 1367099, 581063, 583928 or 564829.
Price 35,90 EUR Incl. tax Excl. Shipping costs
Axle BTR 1800 bis 2120kg without brakes AMC / FPC
EAB 1420mm, LG Corps 1484mm, width 1744mm, without brakes. Scope of delivery corresponds to the technical drawing.
Price 4.295,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1500kg EURO1 axle type DELTA SIN 14-1
BC: dimension A 1570mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 0°, axle profile 97mm.
Price 1.450,00 EUR Incl. tax Excl. Shipping costs
Brake shoe kit for wheel brake type 2051, brake size 200x50mm
consisting of brake shoes, pressure springs, tension springs, cover plates, spread hinge lock, (scope of delivery - see illustration), casting number brake shoes 384294 or 1807779, for one axle (2 wheel brakes left + right).
Price 209,00 EUR Incl. tax Excl. Shipping costs
Stabiliser AKS 3004 with spacers ø35/40/45mm and fixing bolts
drawbar ⌀35/40/45/50mm round, holes (screw connection) horizontal + cross 12.1mm, hole distance horizontal 47-54mm, cross 40mm, perm. gross weight 3000kg, nose load 150kg, material: cast iron.
Price 369,90 EUR Incl. tax Excl. Shipping costs
Brake shoes, wheel brake 2361, brake size 230x60mm
consisting of brake shoes, pressure springs, tension springs, cover plates, spread hinge lock, (scope of delivery - see illustration), casting number brake shoes 384509 or 1808747, for one axle (2 wheel brakes left + right).
Price 377,00 EUR Incl. tax Excl. Shipping costs
Cable winch BASIC 900kg, type 900 Compact with automatic weight brake, without automatic unwinder, without cable/band
manual force 230N, minimum load 25kg, reduction 8.75 : 1, lift per crank rotation from 25-53mm, drum capacity for cable ⌀7mm: 17 meter, drum capacity for towing band: 7 meter.
Price 185,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1000kg Euro axle type B 1000-3
BC: dimension A 1650mm, OHF: dimension C 2100mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 825,00 EUR Incl. tax Excl. Shipping costs
Coupling head AK 160 A / AK161 Compact
drawbar ⌀35mm, holes (screw connection) horizontal 12mm, hole distance horizontal 54mm, perm. gross weight 1600kg, nose load 120kg, material: steel.
Price 79,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg BASIC axle type B 1200-6
BC: dimension A 720mm, OHF: dimension C 1170mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 654,00 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg BASIC axle type 700-5
BC: dimension A 900mm, OHF: dimension C 1330mm, wheel connection 100x4, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5.
Price 247,00 EUR Incl. tax Excl. Shipping costs
Leaf spring for straight axle 1500kg
surface treatment primed
Price 63,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1350kg BASIC axle type CB1350
BC: dimension A 800mm, OHF: dimension B 1250mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
Price 590,00 EUR Incl. tax Excl. Shipping costs
Braked axle 1800kg EURO1 axle type DELTA SI 18-1 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1550mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361 AAA, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5.
Price 2.050,00 EUR Incl. tax Excl. Shipping costs
Replacement kit compact bearing ⌀30/60/37mm
incl. compact bearing, bearing no. 581736, circlip and flange nut, size ⌀30/60/37mm, suitable for brake drum with casting number 581311 or 606260.
Price 32,90 EUR Incl. tax Excl. Shipping costs
Braked axle 1300kg EURO1 axle type B 1200-5
BC: dimension A 1430mm, OHF: dimension C 1995mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.117,90 EUR Incl. tax Excl. Shipping costs
Braked tandem axle unit 2000kg BASIC axle type 2xB 1000
BC: dimension A 1550mm, OHF: dimension C 2000mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-40mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
Price 1.573,00 EUR Incl. tax Excl. Shipping costs
Unbraked axle 750kg BASIC axle type 700-5
dimension A 600mm, dimension C 1030mm, wheel connection 112x5, offset (ET) 27-45mm, taper-head wheel bolts M12x1.5.
Price 247,00 EUR Incl. tax Excl. Shipping costs
Braked axle 800kg EURO1 axle type B 850-3
BC: dimension A 1250mm, OHF: dimension C 1790mm, wheel connection 112x5, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm.
Price 1.295,00 EUR Incl. tax Excl. Shipping costs
