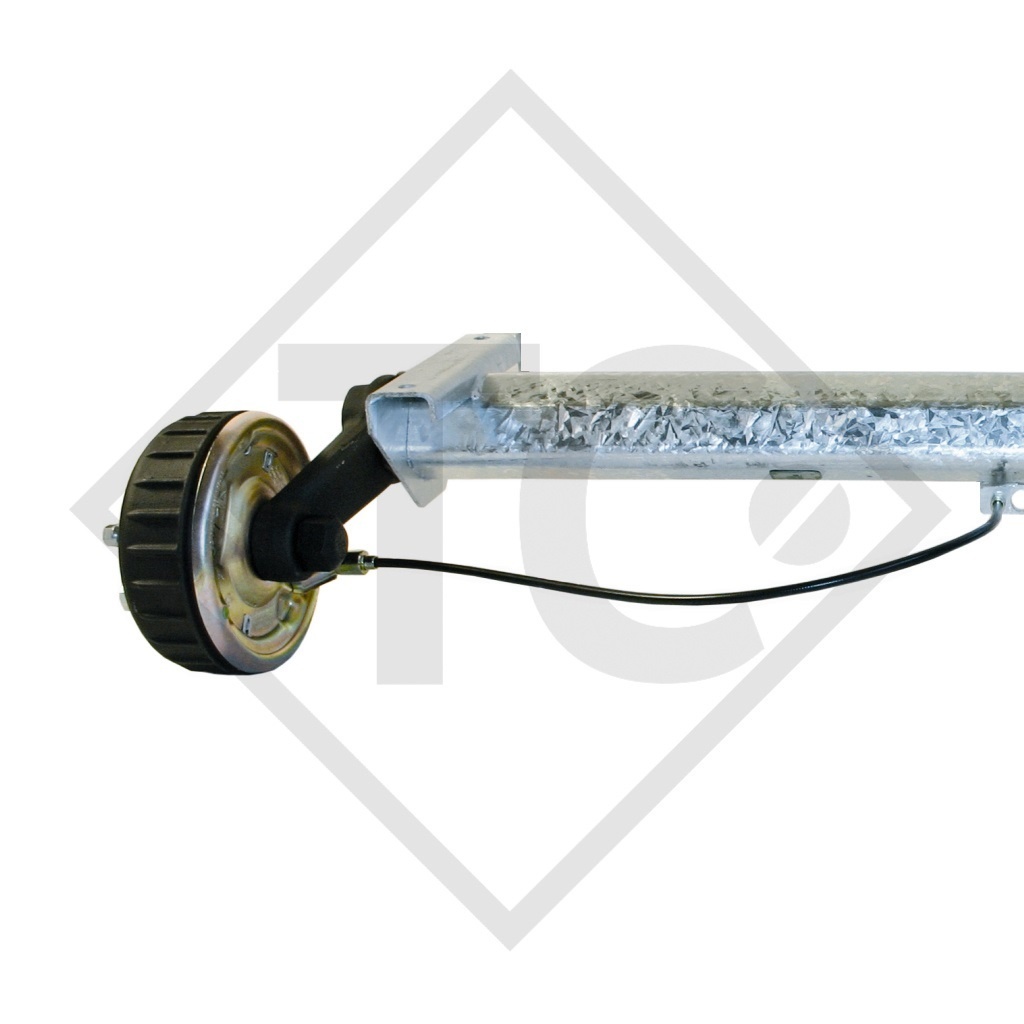

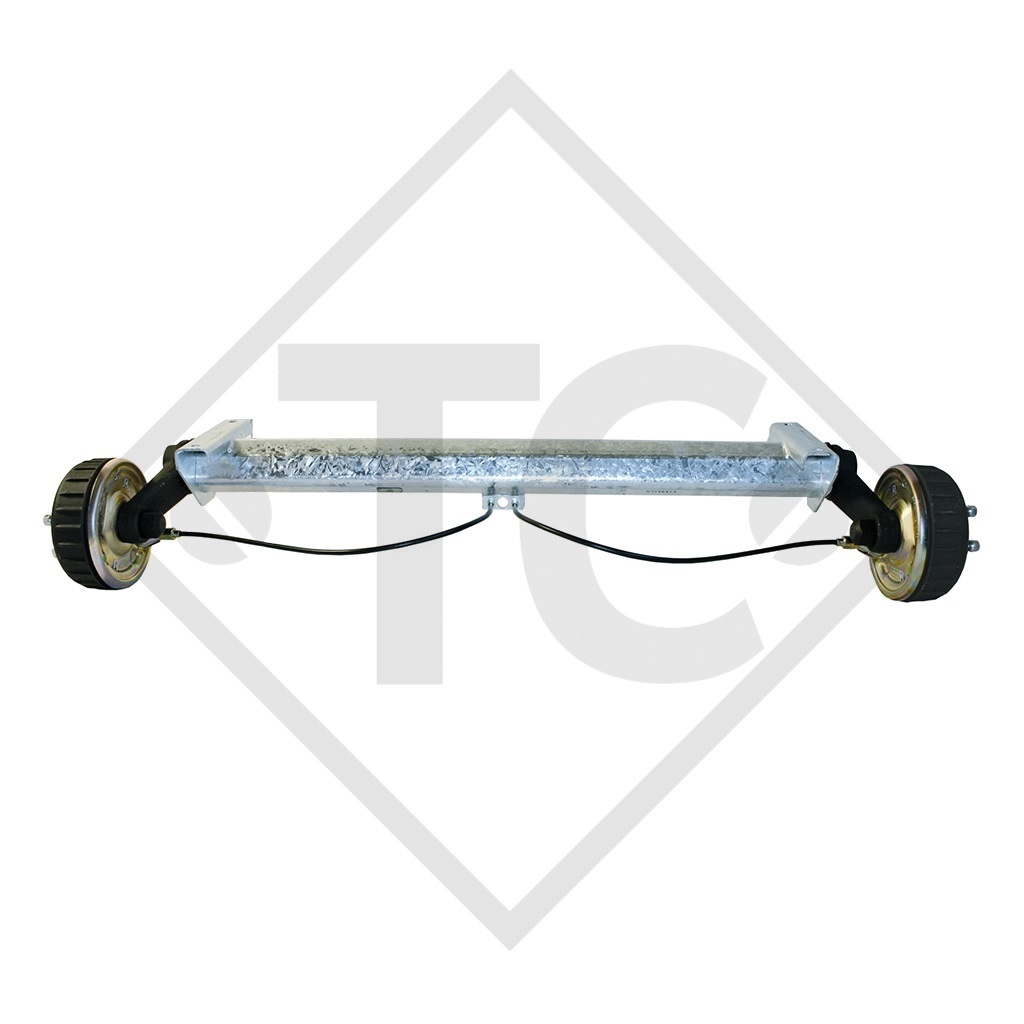

Home / Braked tandem rear axle 1800kg BASIC axle type B 1800-9 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1100mm, OHF: dimension C 1600mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 5°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...
Part no. on request
BC: dimension A 1100mm
OHF: dimension C 1600mm
Wheel connection 112x5

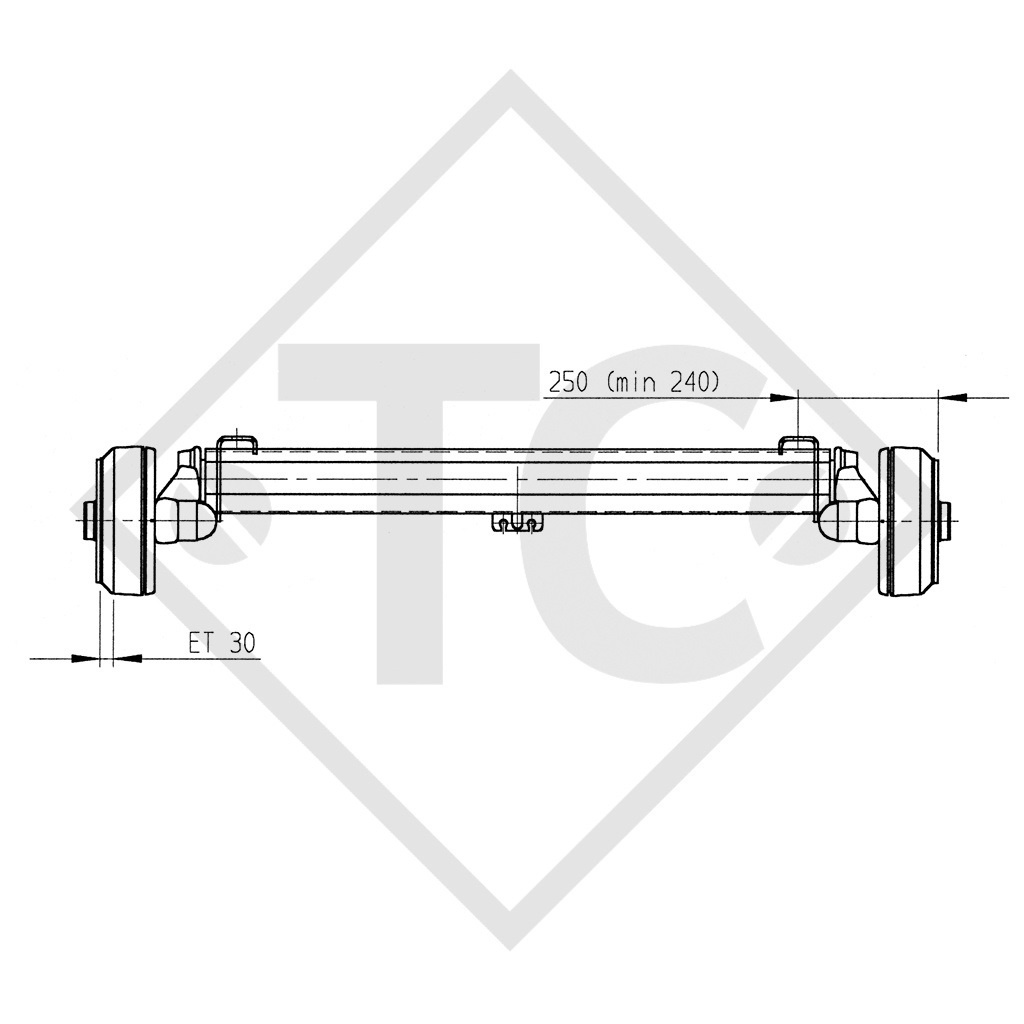

Offset (ET) 30mm

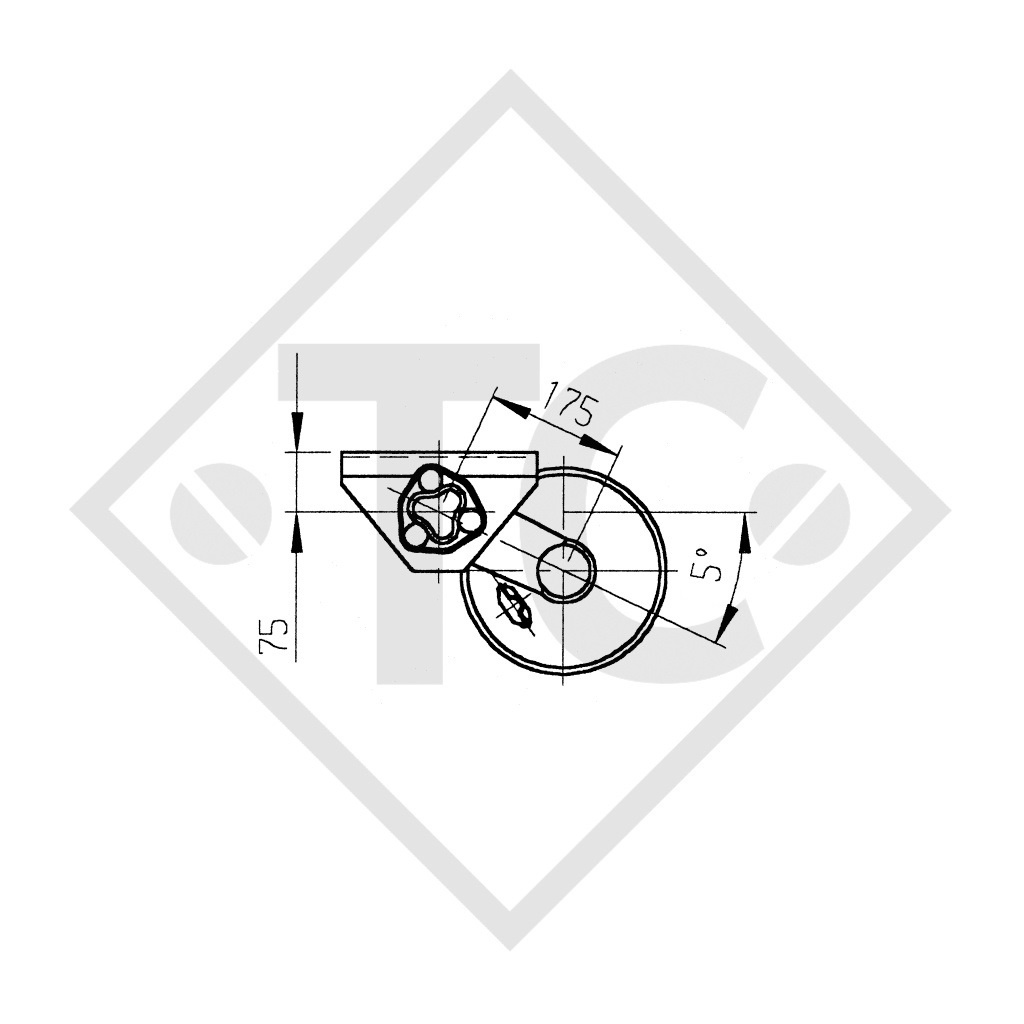

Swing arm position 5°
Axle profile 110mm
Original operating instructions
Replacement part identification number (ETI) 811731
TECHNOLOGY
Model: PLUS
Axle type: B 1800-9
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
