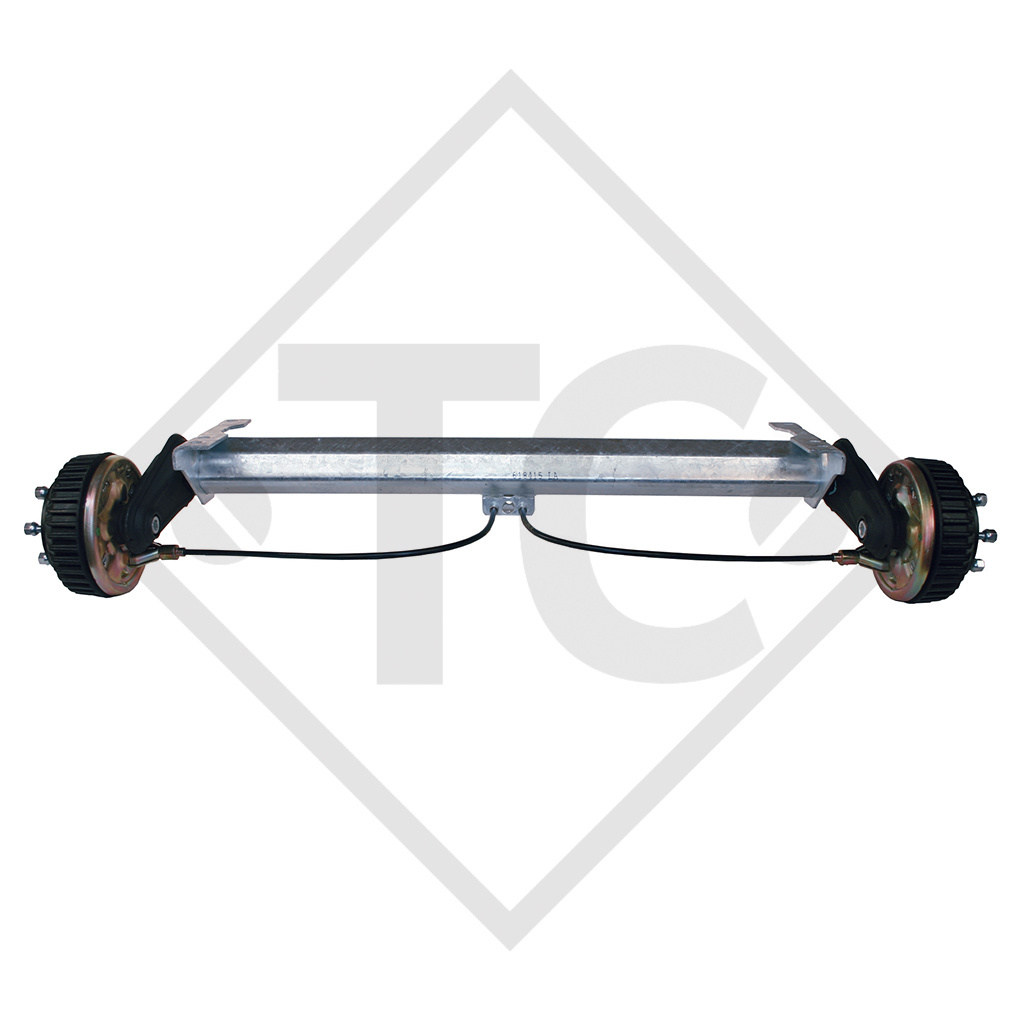

Home / Braked tandem rear axle 1500kg BASIC axle type B 1600-3 with AAA (automatic adjustment of the brake pads)
BC: dimension A 950mm, OHF: dimension C 1400mm, wheel connection 112x5, wheel brake type 2051 Ab with AAA, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20058761

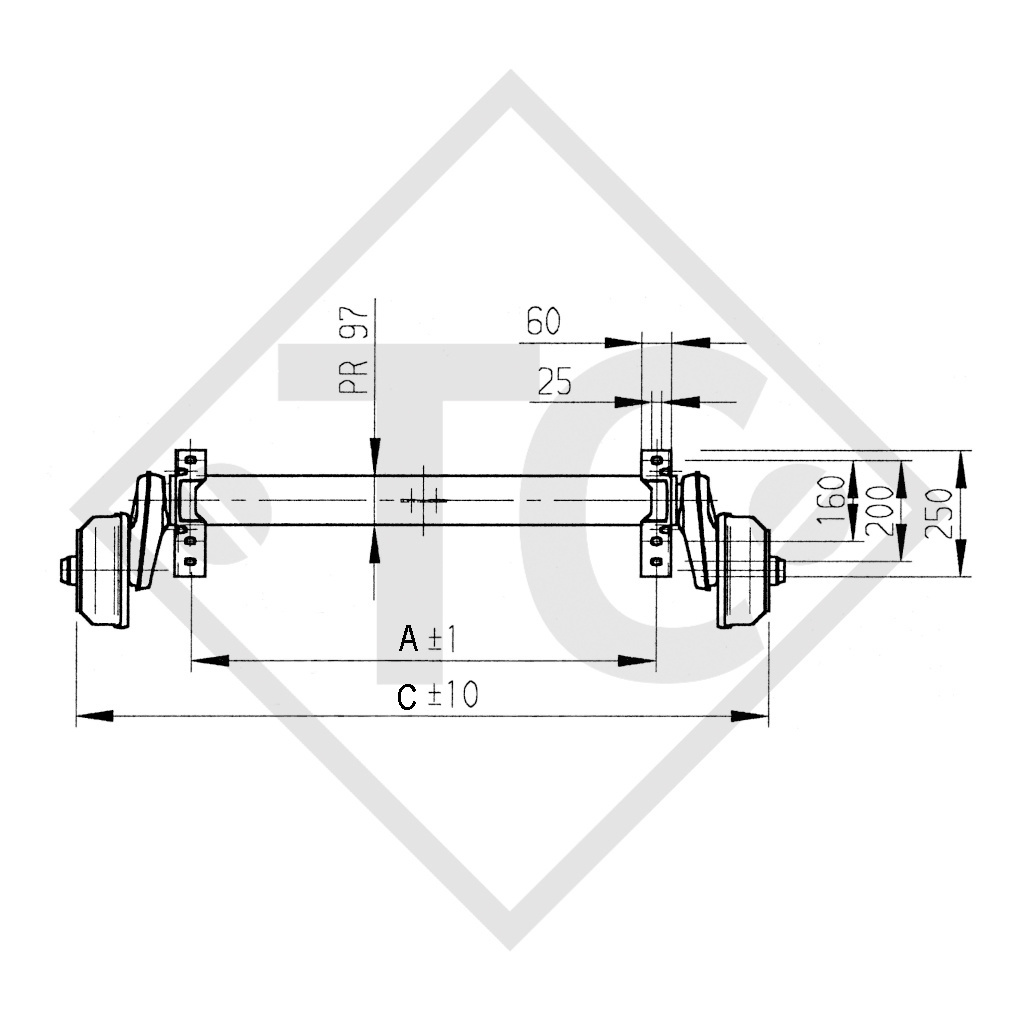

BC: dimension A 950mm
OHF: dimension C 1400mm
Wheel connection 112x5

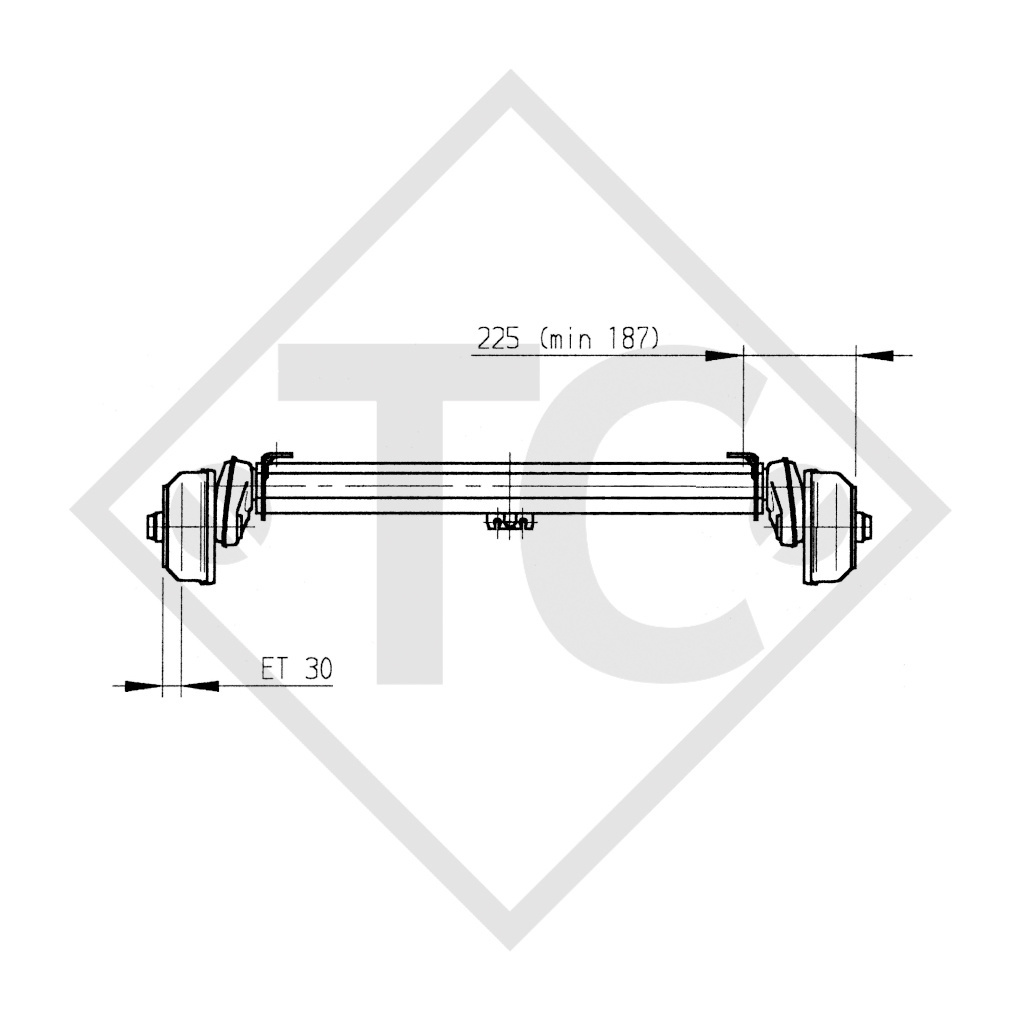

Offset (ET) 30mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811695
Replacement part identification number (ETI) NEW 811961
TECHNOLOGY
Model: BASIC
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
