Home / Braked tandem rear axle 1000kg BASIC axle type B 850-10
BC: dimension A 1530mm, OHF: dimension C 1980mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20016256

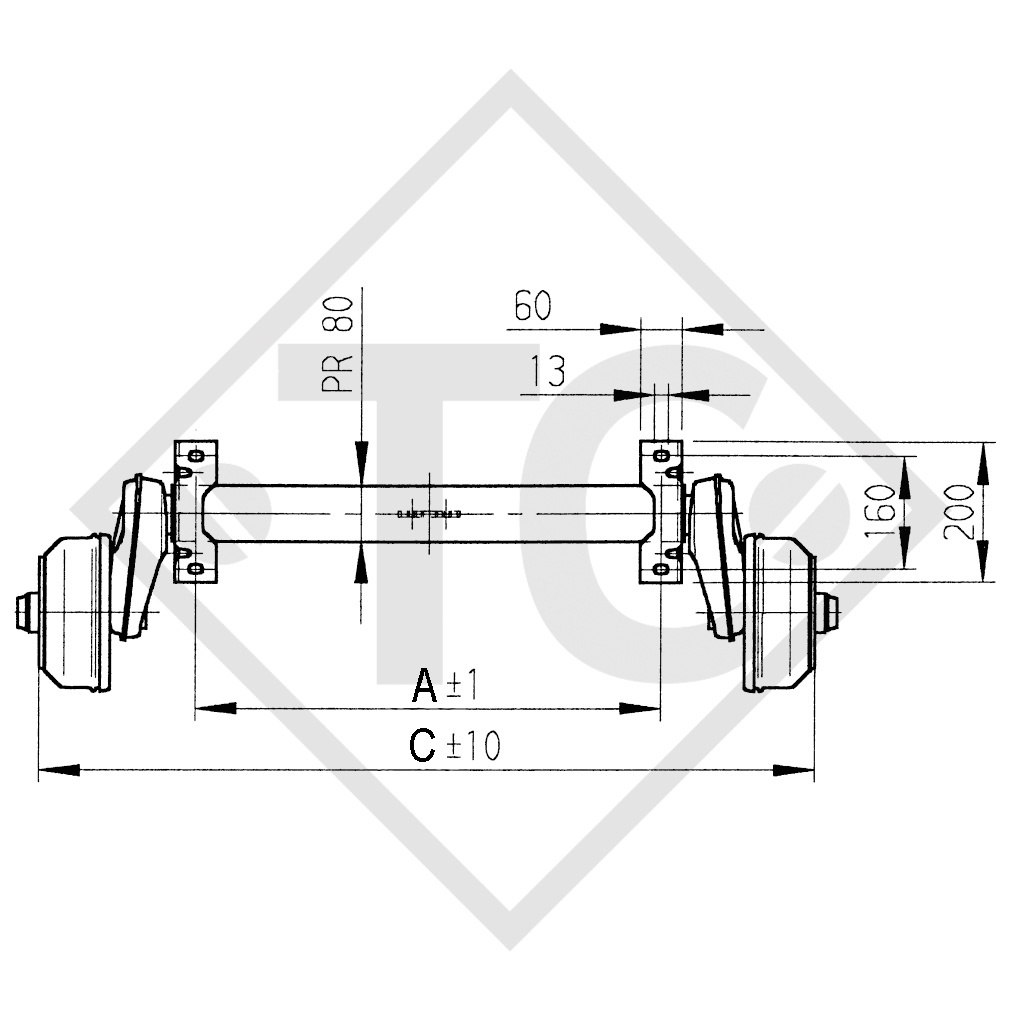

BC: dimension A 1530mm
OHF: dimension C 1980mm
Wheel connection 112x5

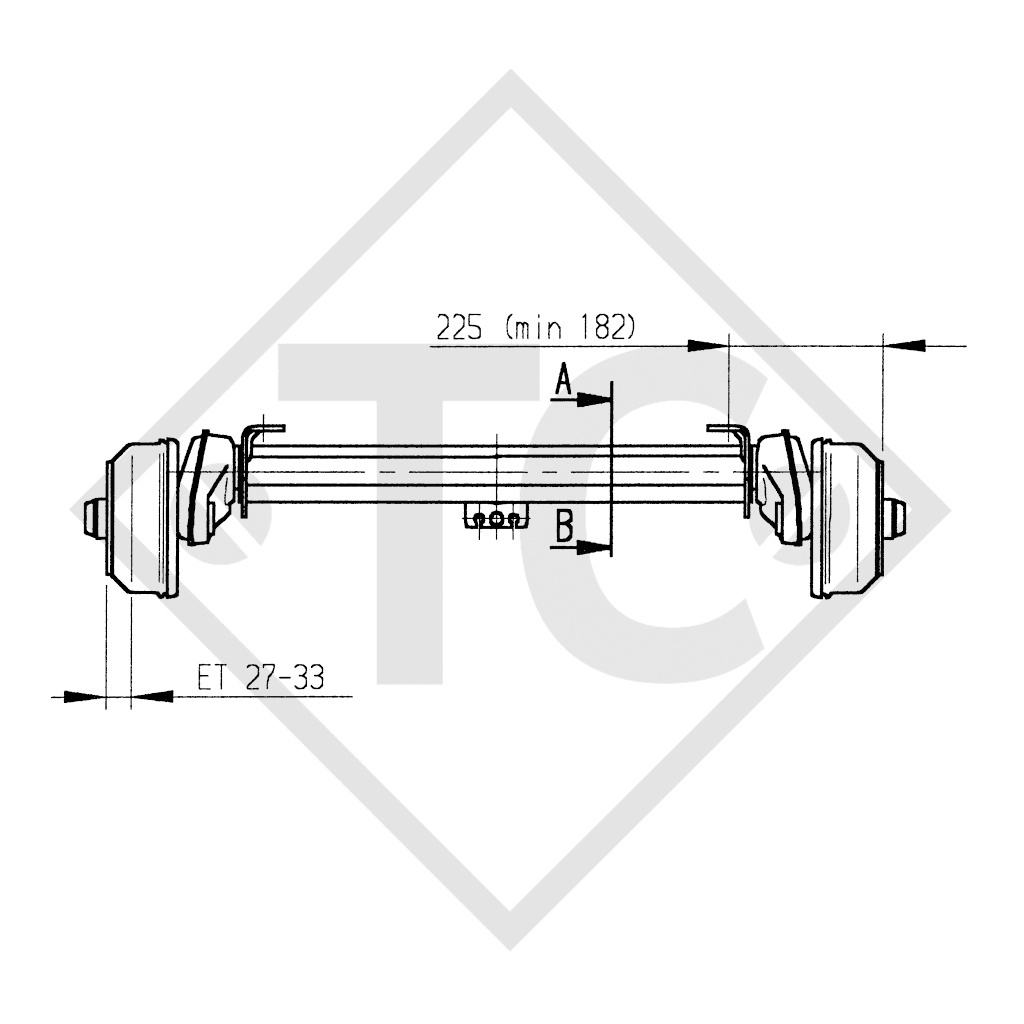

Offset (ET) 27-33mm
Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: BASIC
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
