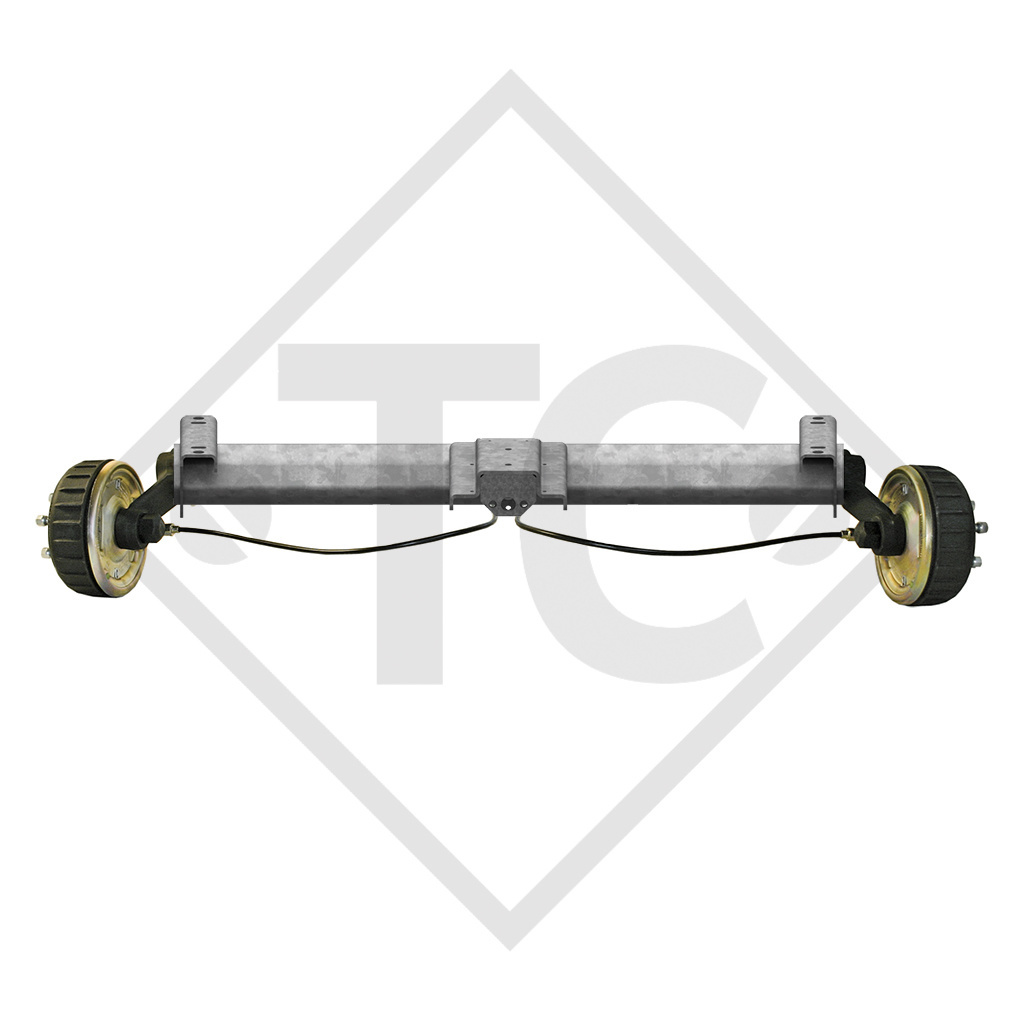

AL-KO Braked tandem front axle 1600kg BASIC axle type B 1600-1 with top hat profile 90mm

Part no. 20002708

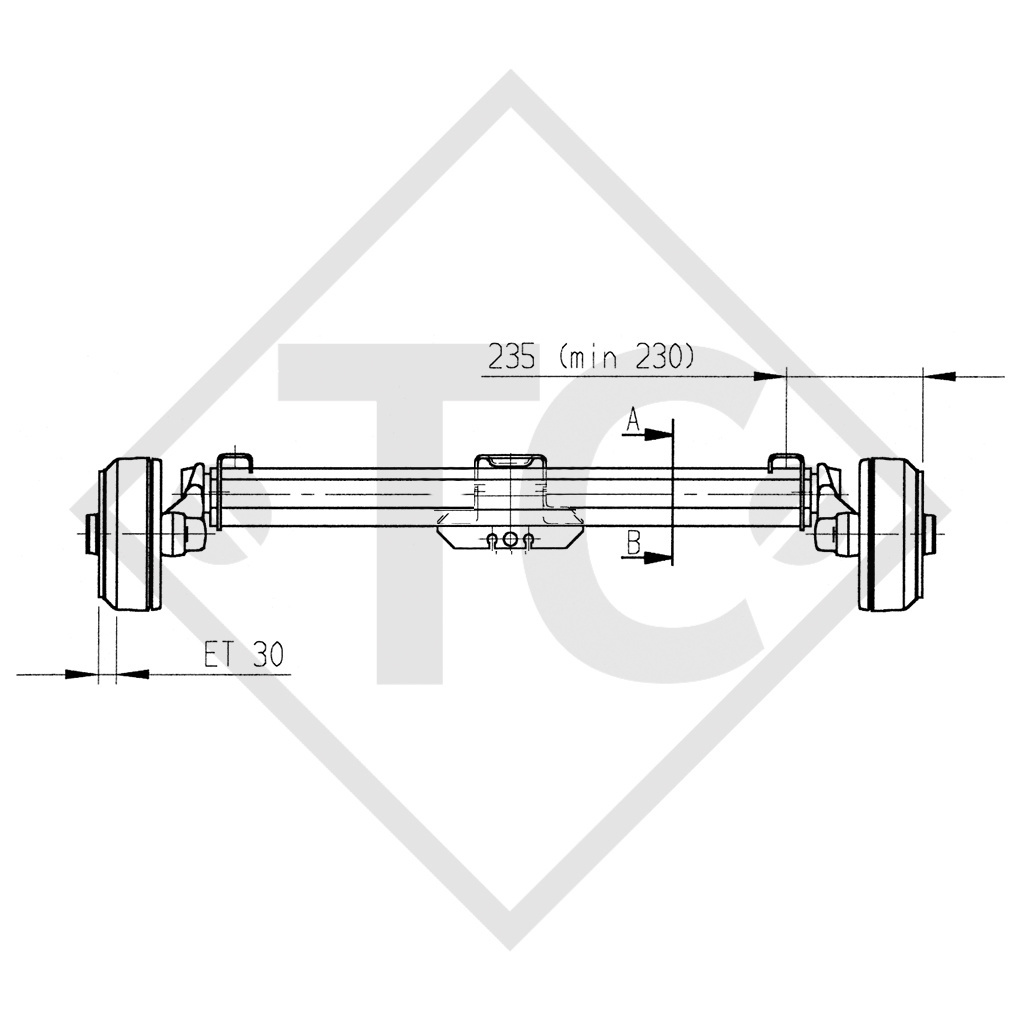

BC: dimension A 1350mm
OHF: dimension C 1820mm
EA: 90mm
Wheel connection 112x5
Offset (ET) 30mm

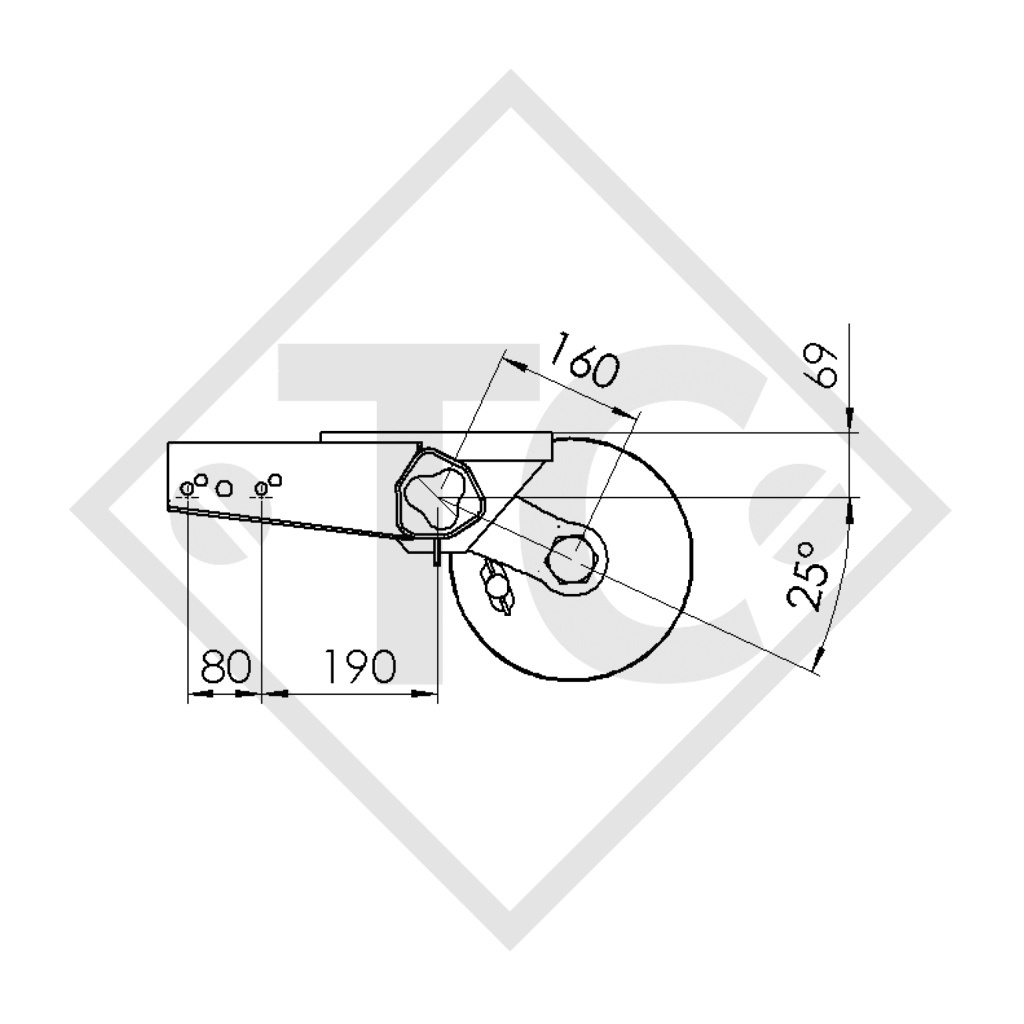

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811136

TECHNOLOGY
Model: BASIC
Axle type: B 1600-1
Axle load: Single axle 1600kg
Axle load: Tandem axle 3200kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded onto top hat profile
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
