Home / Braked tandem front axle 1350kg PLUS axle type B 1200-5 with top hat profile 130mm
BC: dimension A 1850mm, OHF: dimension C 2300mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20001510

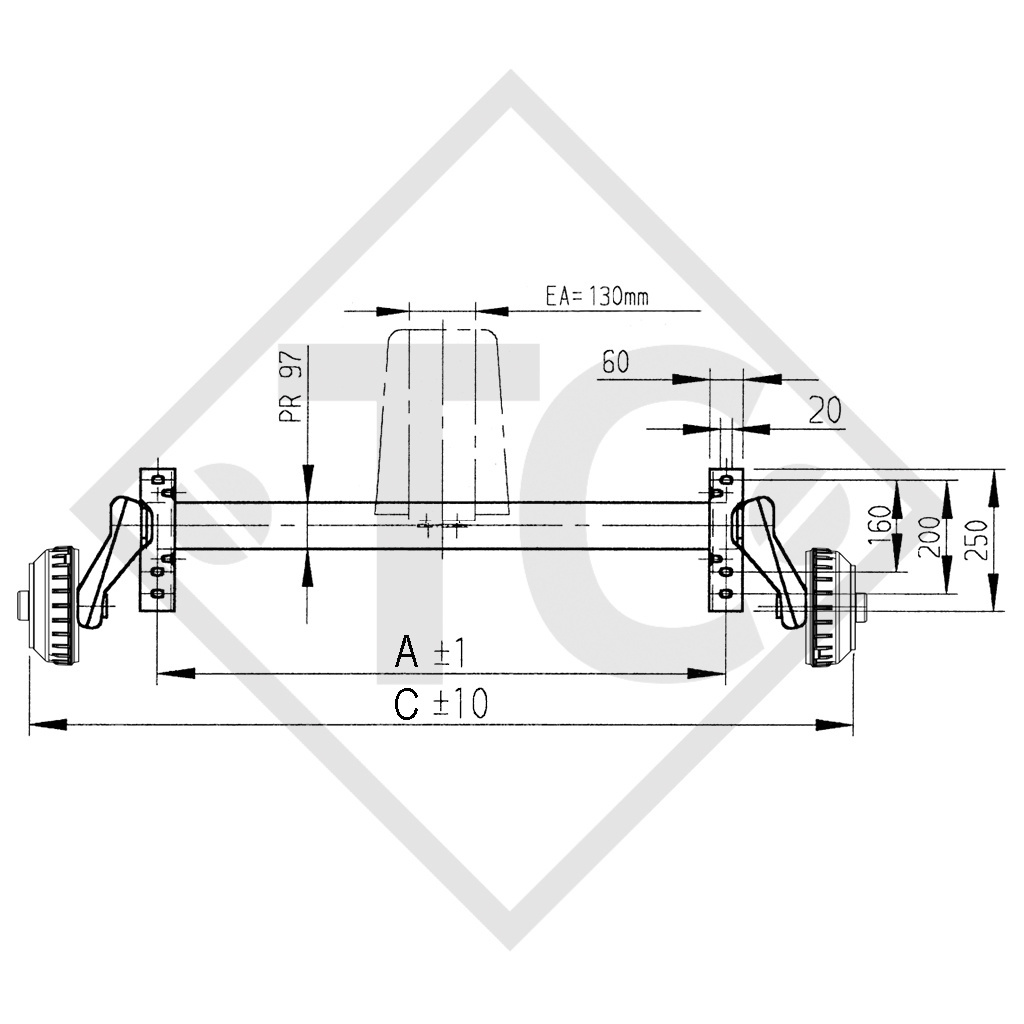

BC: dimension A 1850mm
OHF: dimension C 2300mm
Wheel connection 112x5

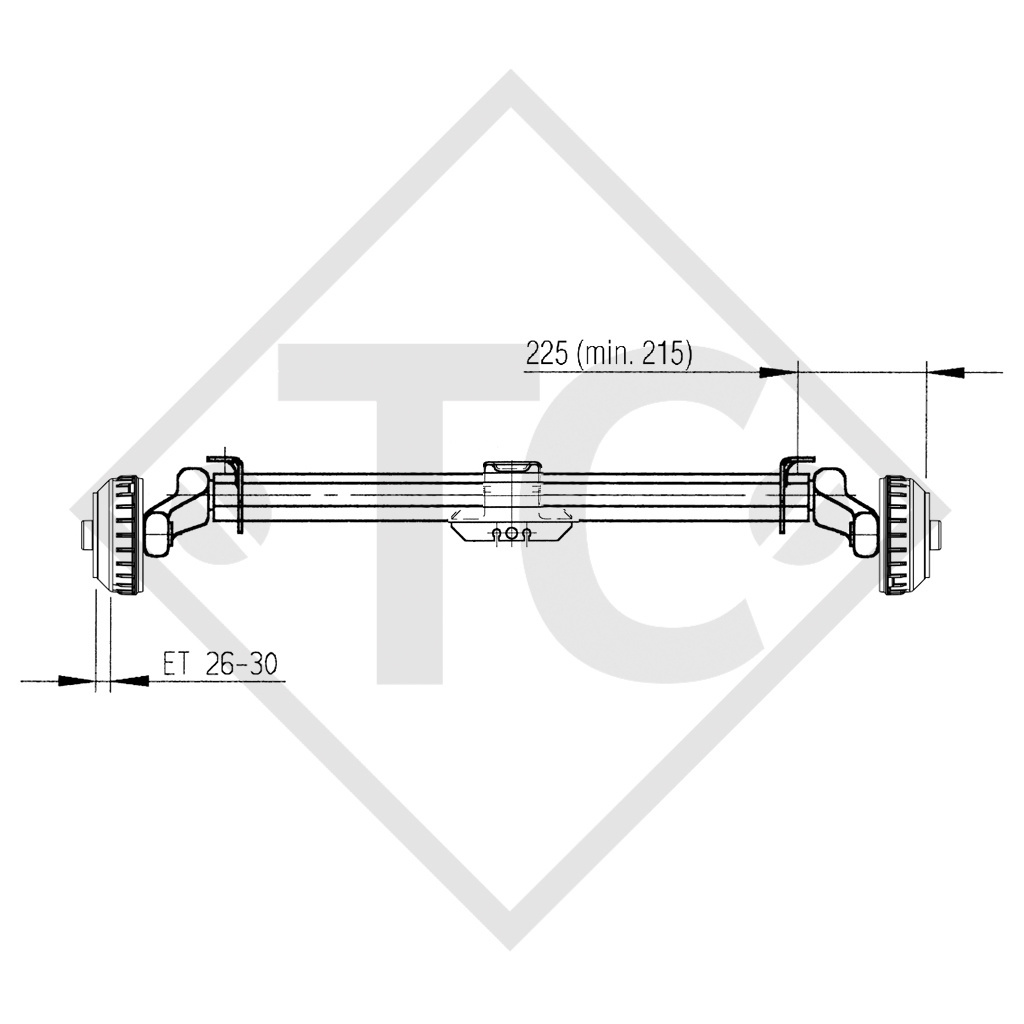

Offset (ET) 26-30mm

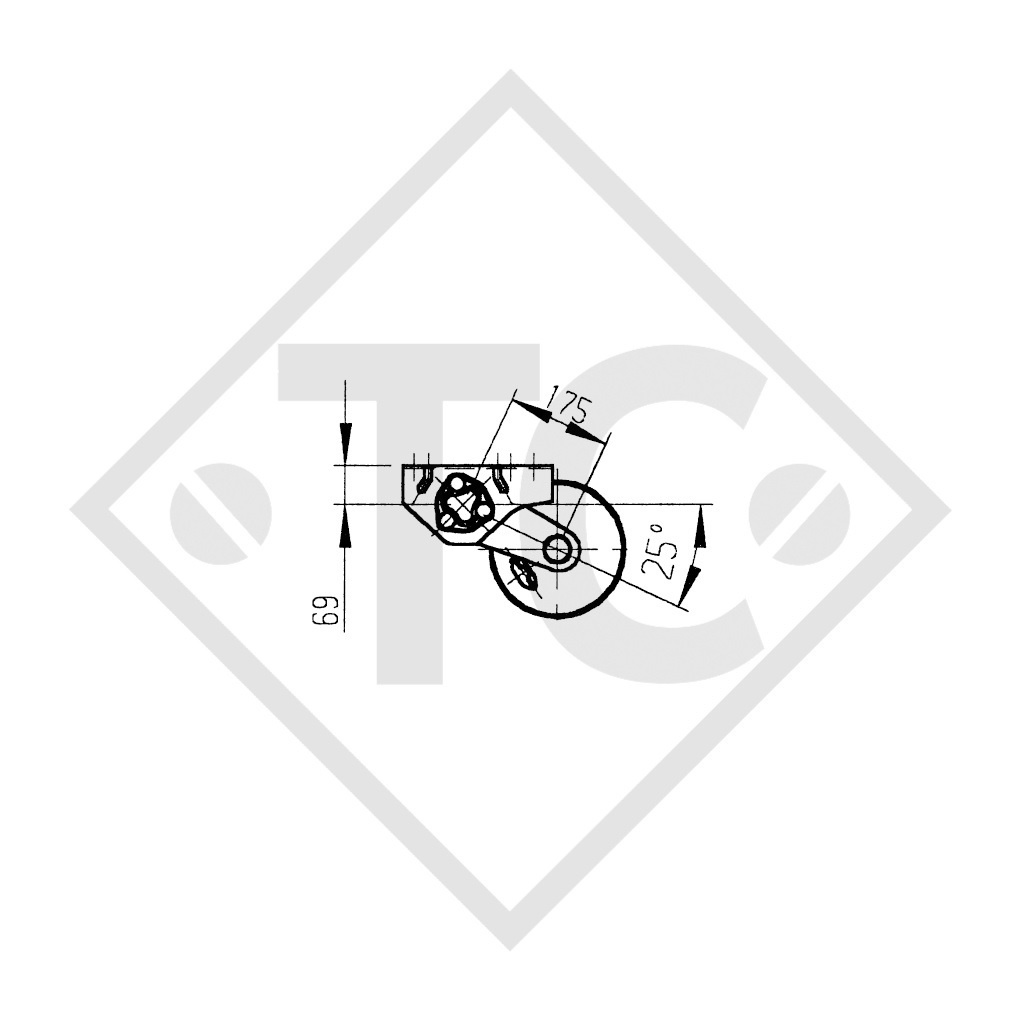

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
TECHNOLOGY
Model: PLUS
Axle type: B 1200-5
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
