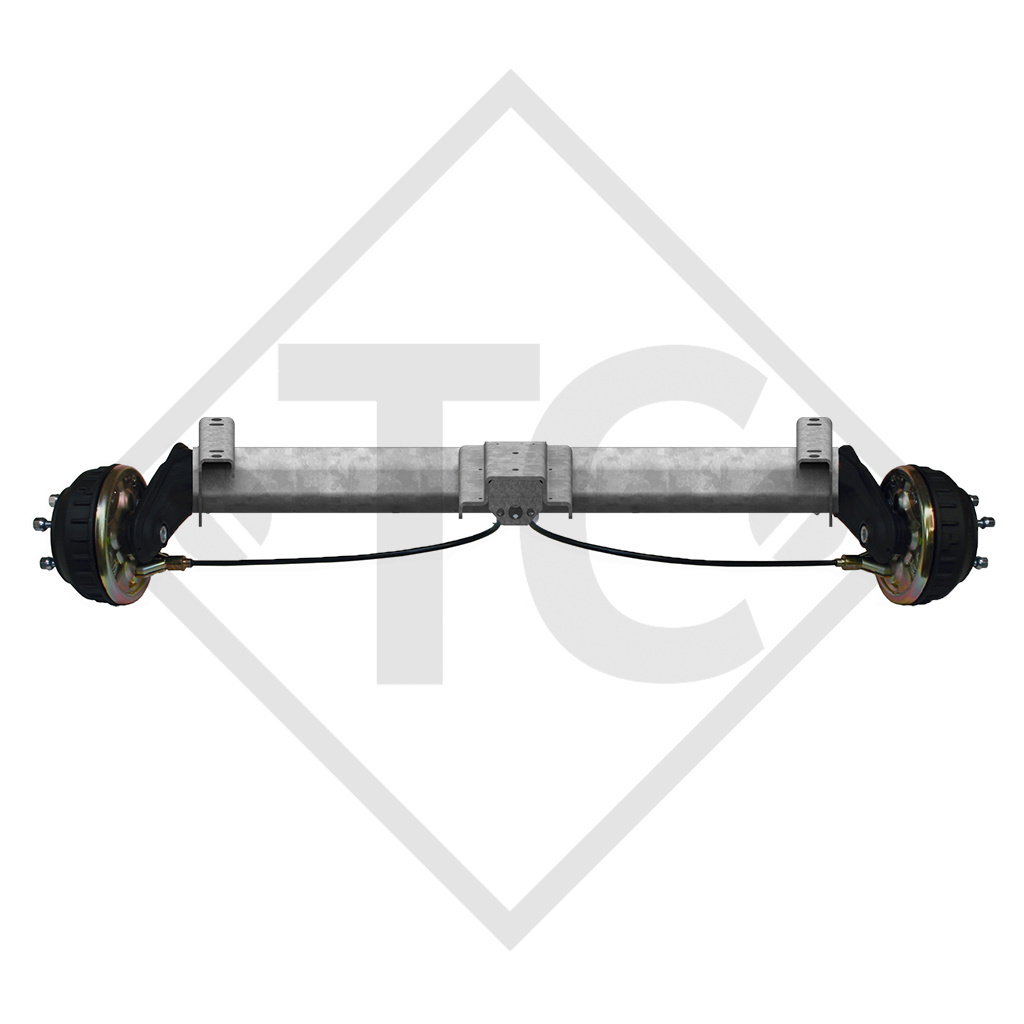

Braked tandem front axle 1350kg BASIC axle type B 1200-6 with top hat profile 90mm and AAA (automatic adjustment of the brake pads)

BC: dimension A 750mm, OHF: dimension C 1200mm, wheel connection 112x5, wheel brake type 2051 with AAA, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 550,40 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. on request

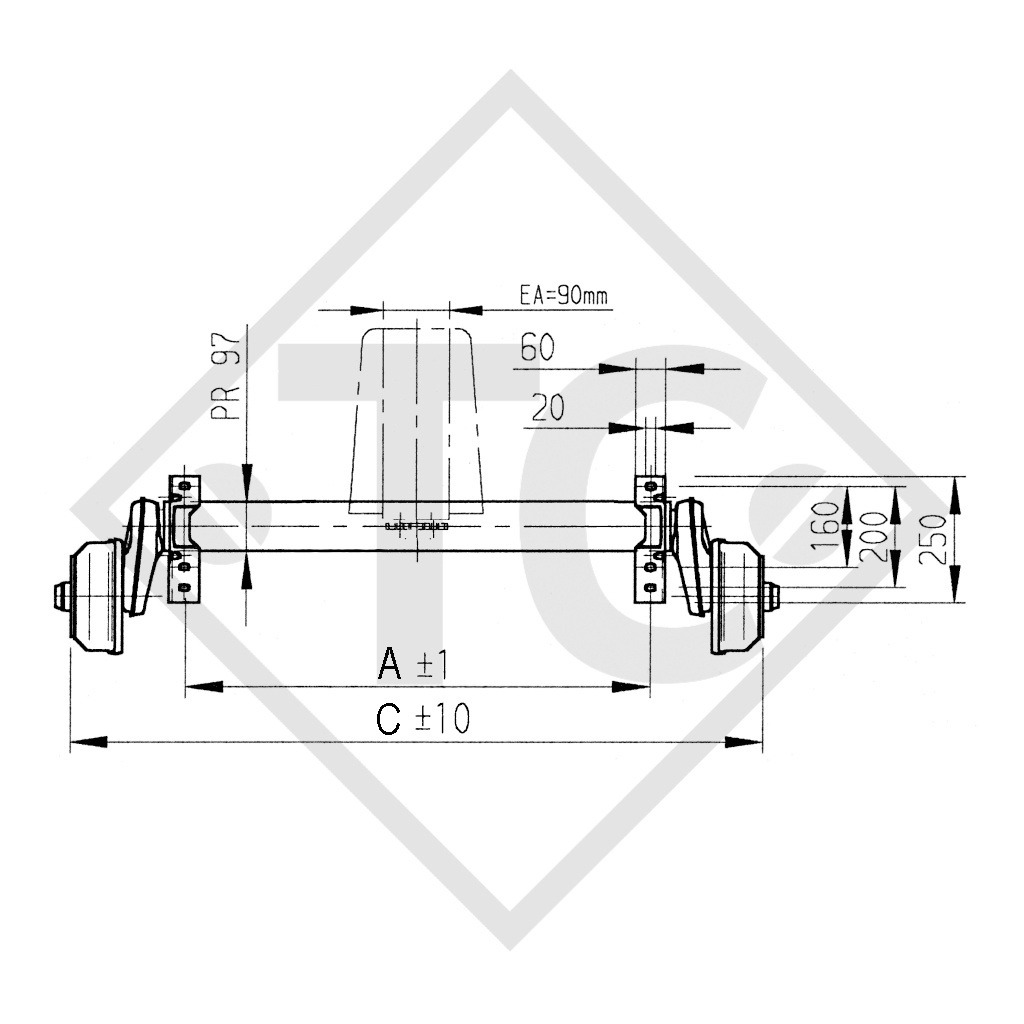

BC: dimension A 750mm
OHF: dimension C 1200mm
Wheel connection 112x5

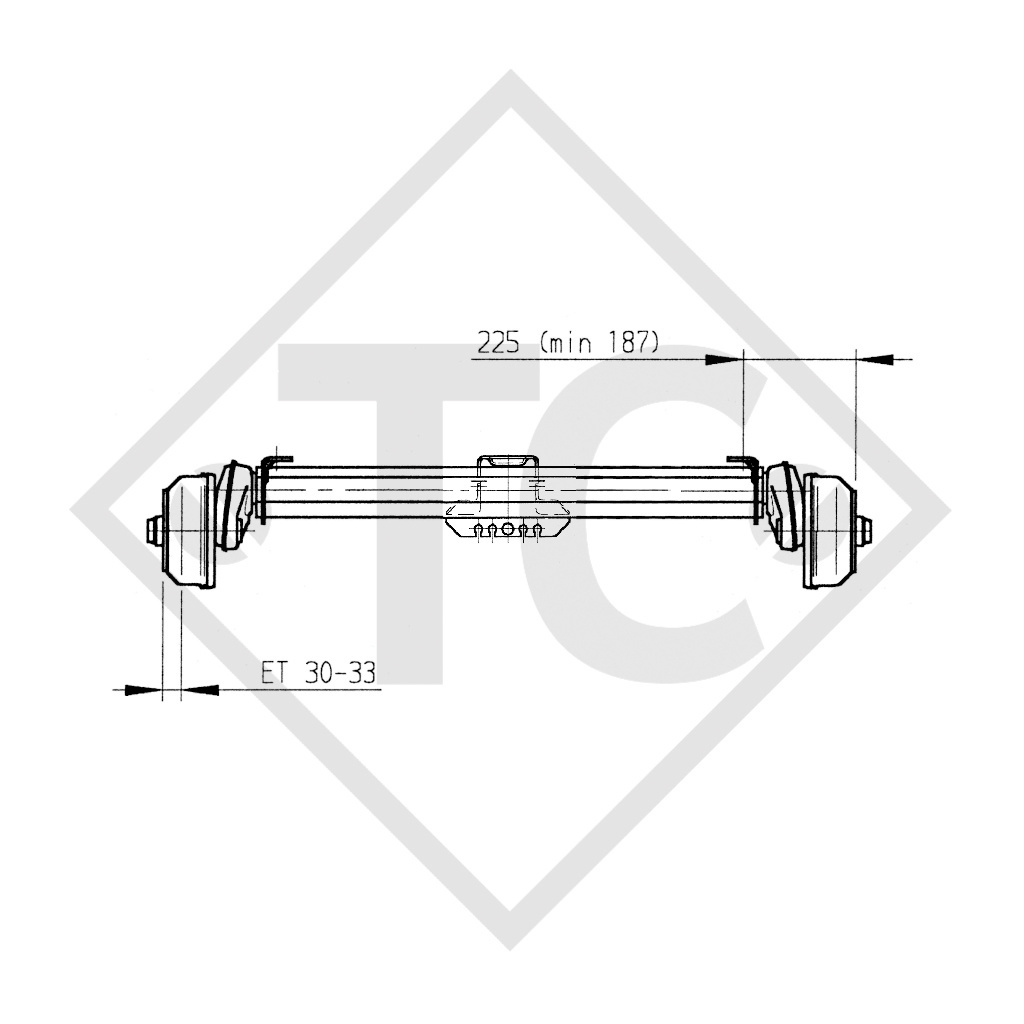

Offset (ET) 30-33mm

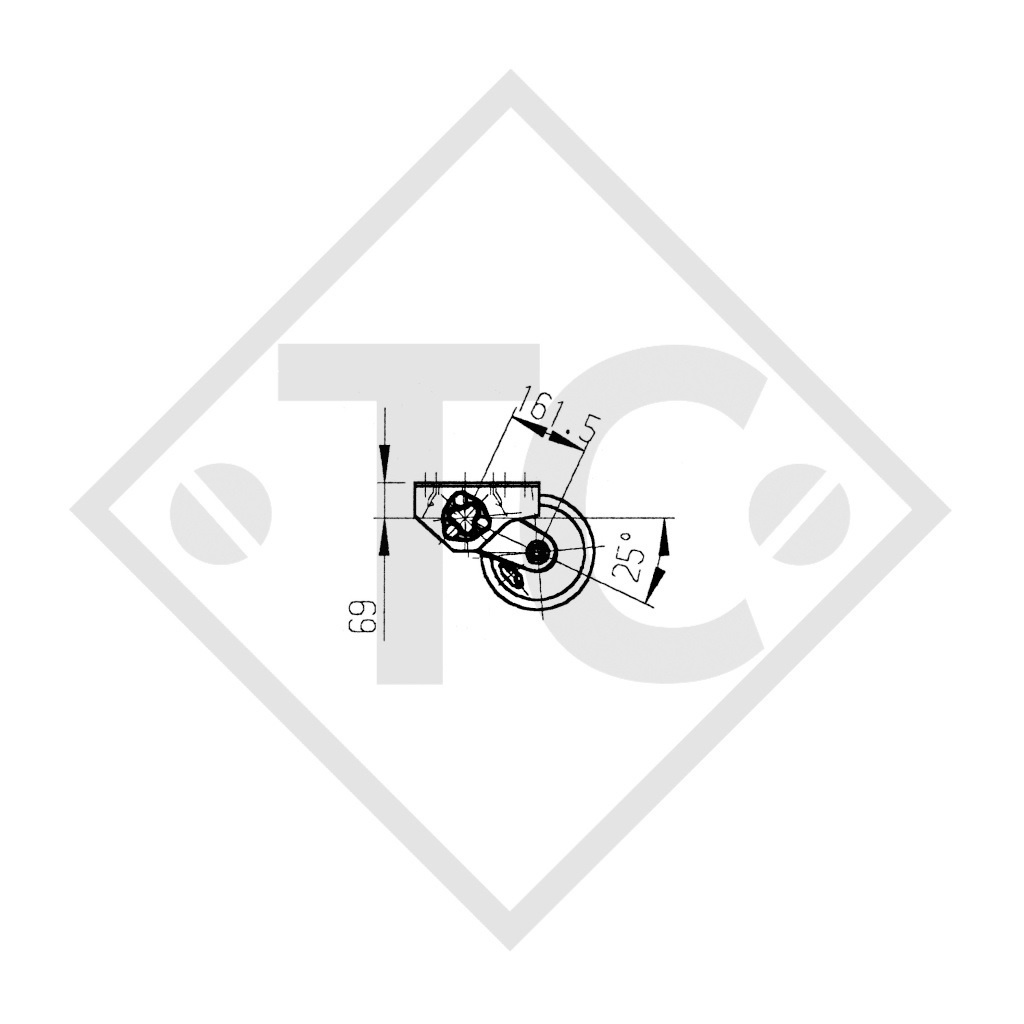

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811709
Replacement part identification number (ETI) NEW 811943

TECHNOLOGY
Model: BASIC
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded onto top hat profile
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO Braked tandem front axle 1350kg BASIC axle type B 1200-6 with top hat profile 90mm and AAA (automatic adjustment of the brake pads)
