BC: dimension A 1640mm, OHF: dimension C 2000mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Part no. 612516
BC: dimension A 1640mm
OHF: dimension C 2000mm
Wheel connection 112x5

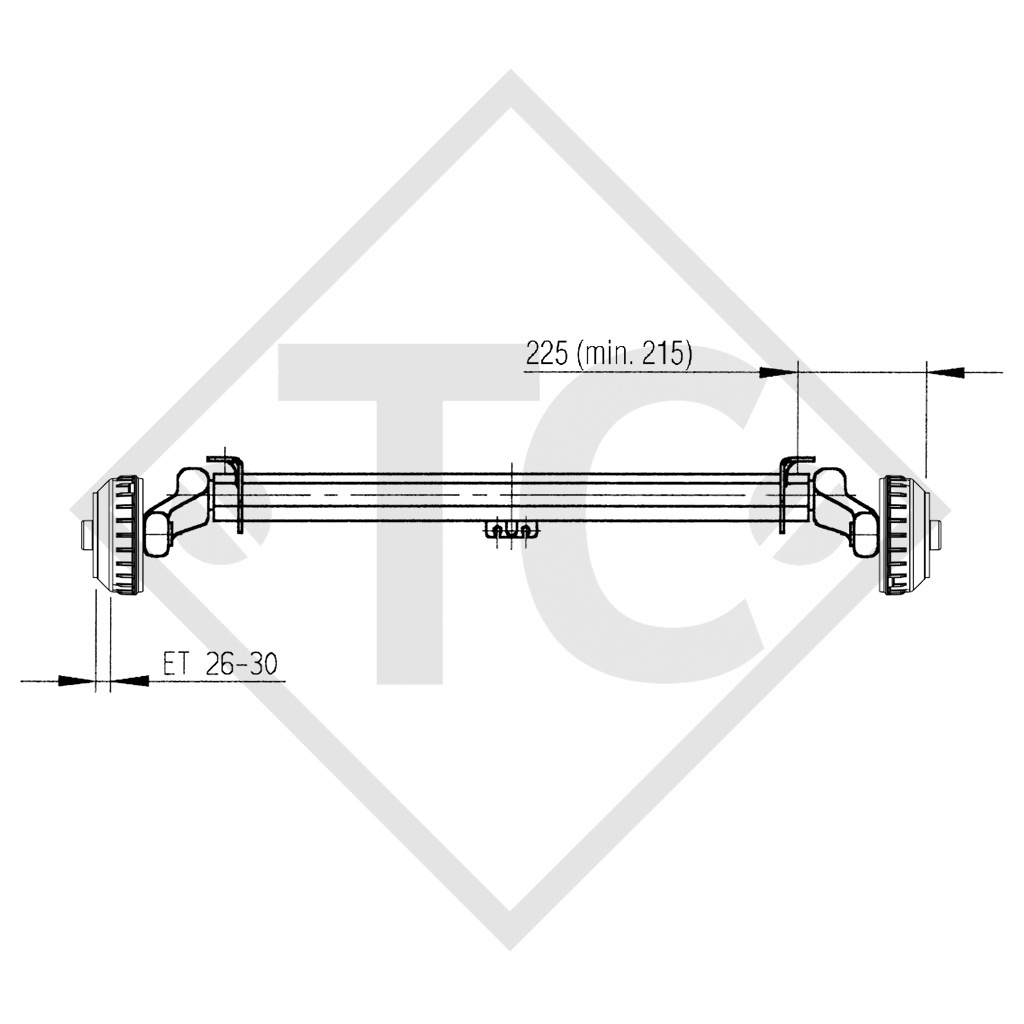

Offset (ET) 26-30mm

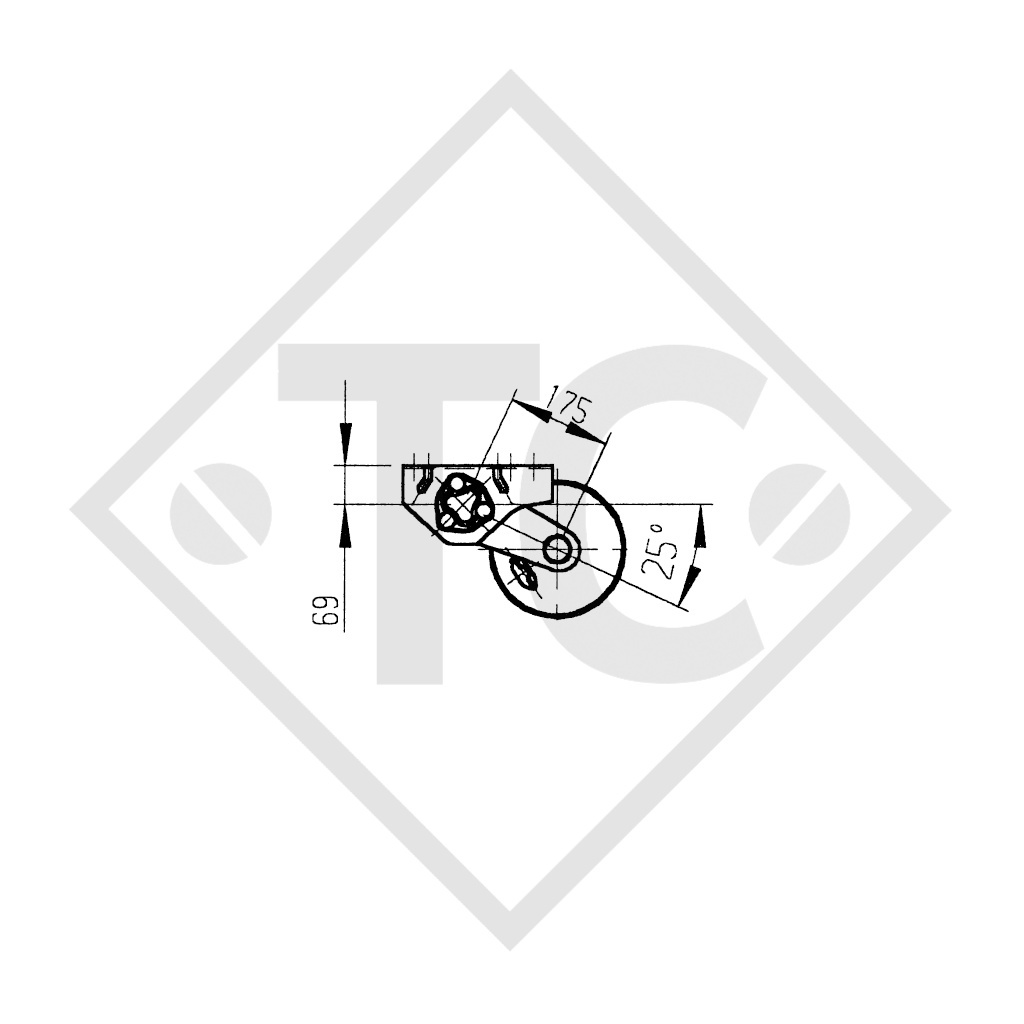

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941

TECHNOLOGY
Model: EURO
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
