Home / Braked tandem front axle 1050kg BASIC axle type CB1050

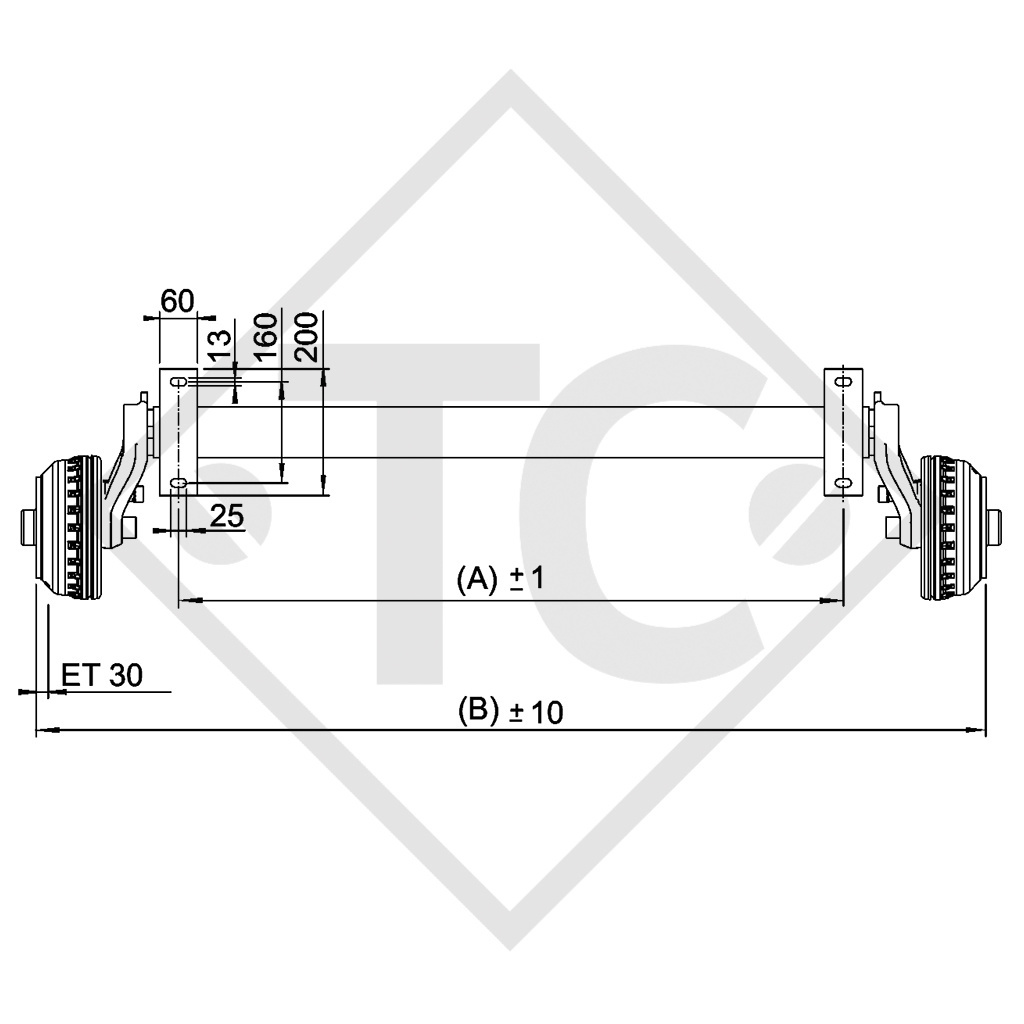

BC: dimension A 1900mm, OHF: dimension B 2350mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 4023404
| BC (A) |
1900mm |
| OHF (B) |
2350mm |
| Model | BASIC |
| Axle type |
CB1050 |
| Axle load single axle | 1050kg |
| Axle load: Tandem axel | 2100kg |
| Wheel brake | 2051 |
| Suspension | Square rubber suspension |
| Swing arm |
160mm |
| Wheel connection |
112x5 |
| Wheel bearing |
Compact bearings |
| Centre hole rim |
min. 57mm |
Replacement part identification number (ETI) 811941
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Bowden cables loose
Wheel bolts loose
Separate order for tandem
Tandem adapter bracket, bolt on 249 236
Tandem compensation 238 576
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
