Home / Braked tandem axle unit 3500kg SWING axle type CB 2/1805, 4021537

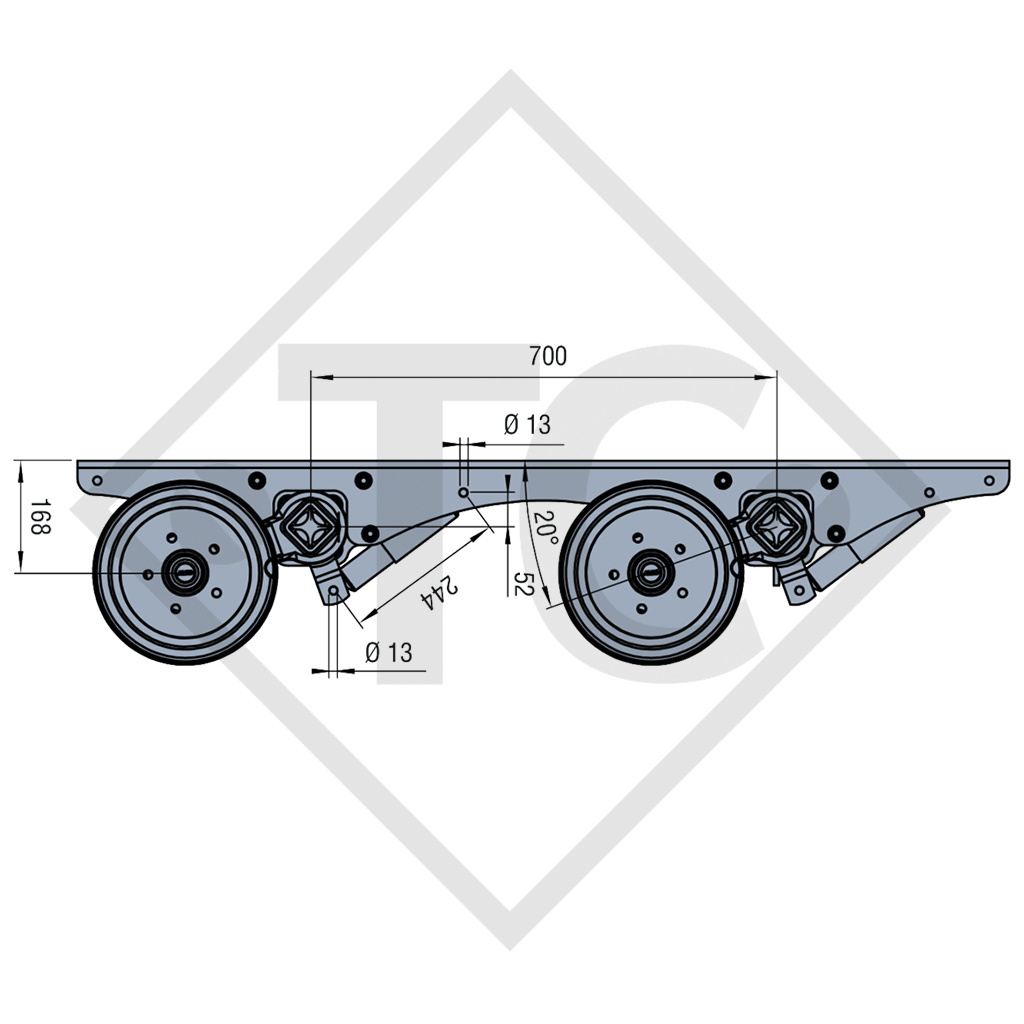

BC: dimension AM 1200mm, OHF: dimension FL 1640mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 4021537

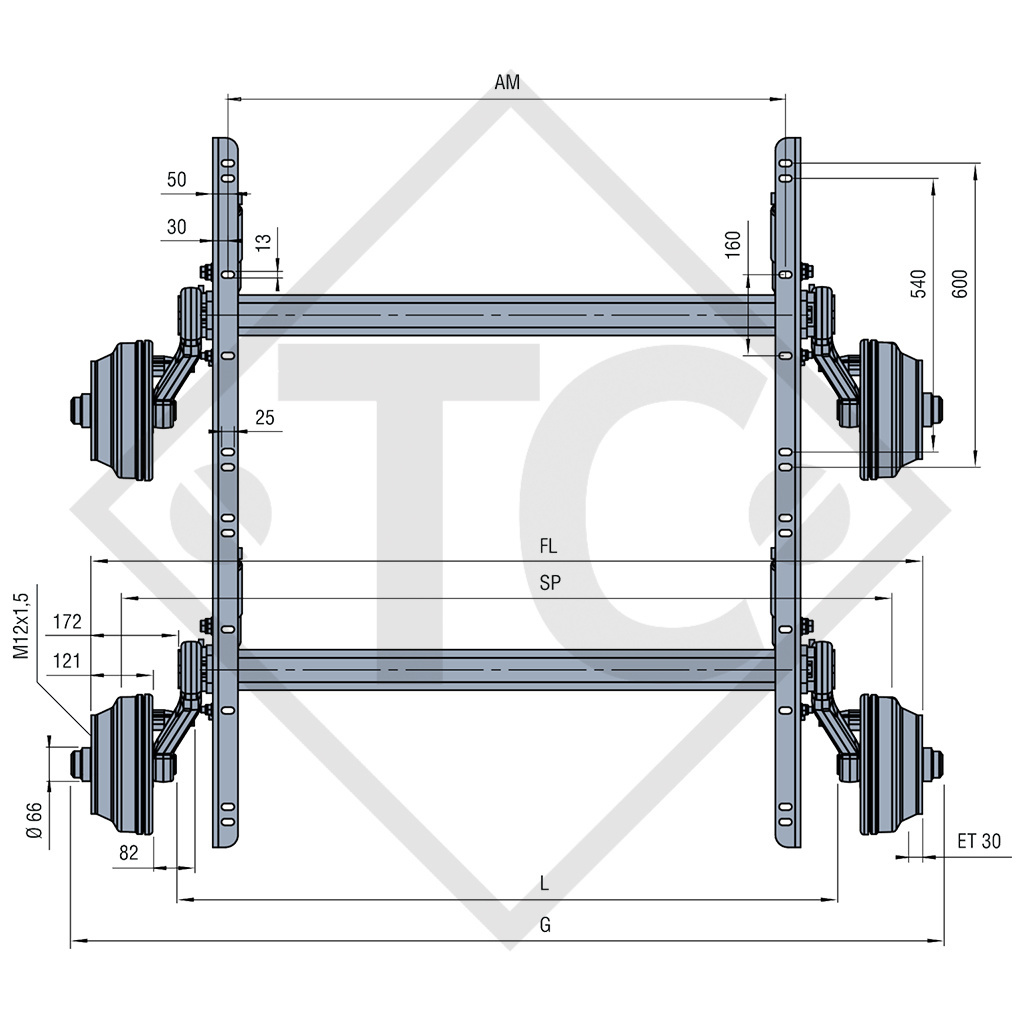

Dimension FL |
1640mm |
Dimension SP |
1580mm |
Dimension AM |
1200mm |
Dimension L |
1382mm |
Dimension G | 1690mm |
Model | SWING |
Axle type | CB2/1805 |
Axle load single axle | 1800kg |
Axle load: Tandem axel | 3500kg |
Wheel brake | S 2504-7 RASK |
Suspension | Square rubber suspension |
Swing arm | 160mm |
Wheel connection | 112x5 |
Wheel bearing | Compact bearings |
Centre hole rim | min. 56.5mm |
Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.368.XXX
Replacement part identification number (ETI) NEW 827080
SCOPE OF DELIVERY
Axle without bowden cables loose
Welded-on shock absorber brackets
Taper-head wheel bolts M12x1.5 loose
DETAILS
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
