Home / Braked tandem axle unit 3000kg EURO Compact axle type 2x B 1600-3

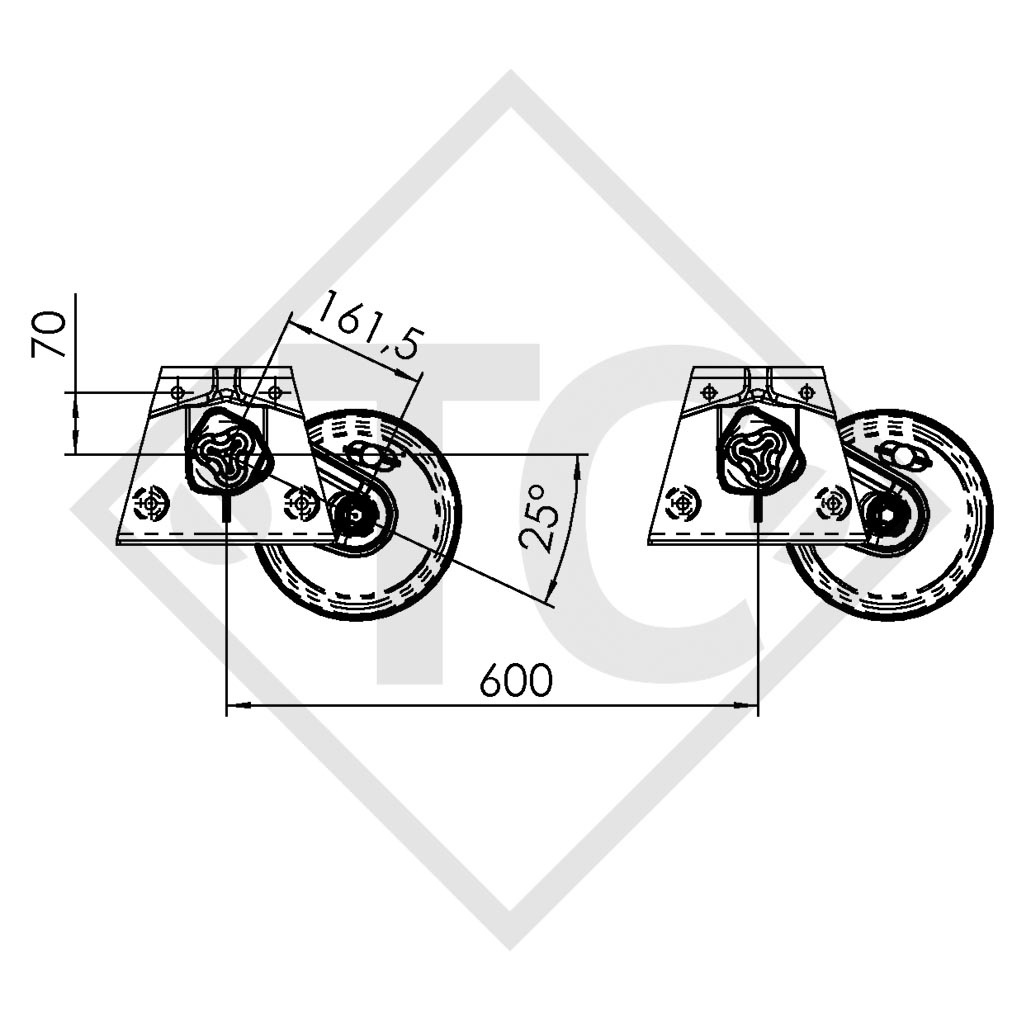

BC: dimension A 1405mm, OHF: dimension C 1900mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1226659
Axle type: 2xB1600-3
Axle load tandem: 3000kg

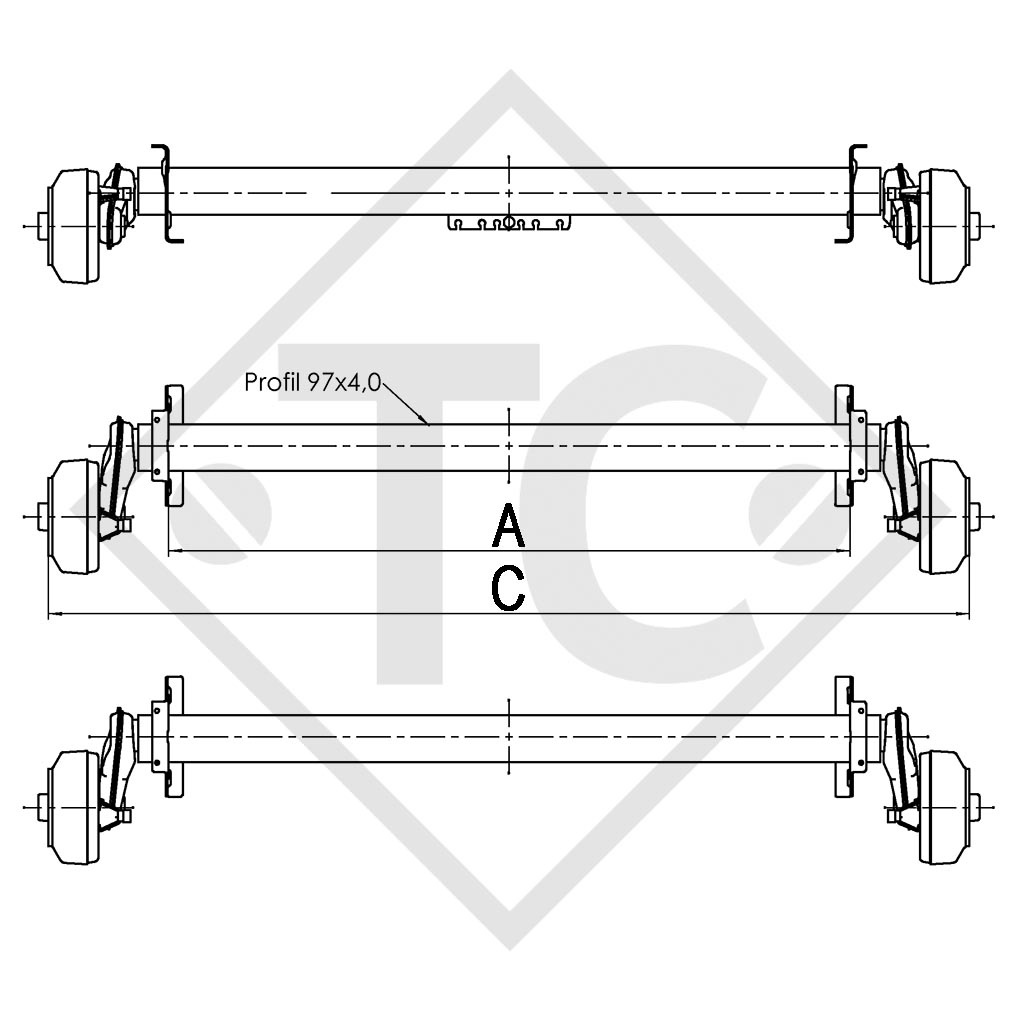

Axle dimensions
BC dimension A: 1405mm
OHF dimension C: 1900mm
Axle beam ▢ : 97mm
Rims and tyres
Wheel brake: 2051 Ab
Wheel connection: 112x5
Wheel bolt: M12x1.5 ball-head
Offset (ET) from to: 26-30mm
Recommended rims: 5.5Jx14 (not included in scope of delivery)
Recommended tyres: 185R14C (not included in scope of delivery)
Original operating instructions
SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
