BC: dimension AM 1250mm, OHF: dimension FM 1690mm, wheel connection 100x4, wheel brake type W 234 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAGT30322 |
Dimension AM |
1250mm |
Dimension FM |
1690mm |
Wheel connection | 100x4 |
Spare part list for wheel brake W 234 RS
Bowden cables
TECHNOLOGY
Model: WAGT-B

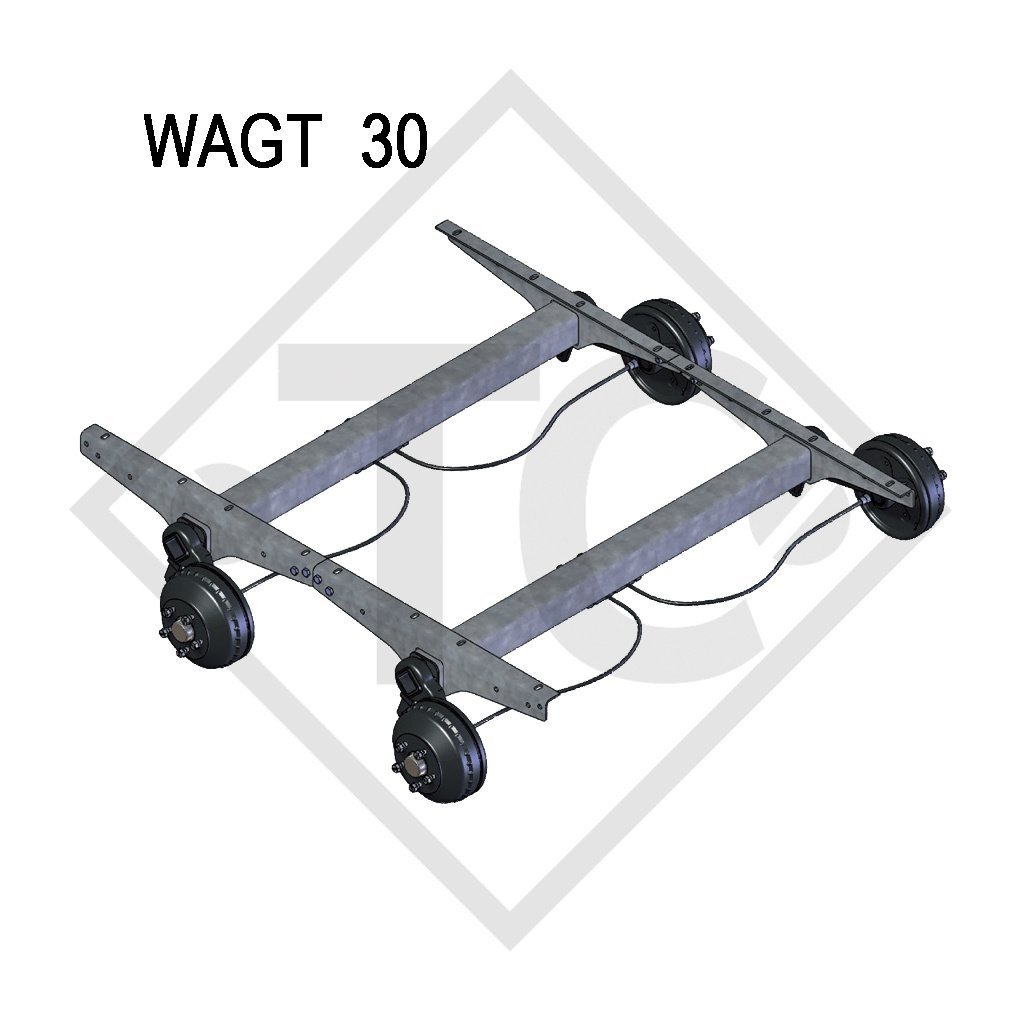

Axle type: WAGT 30
Axle load: 3000kg
Suspension: Square rubber suspension

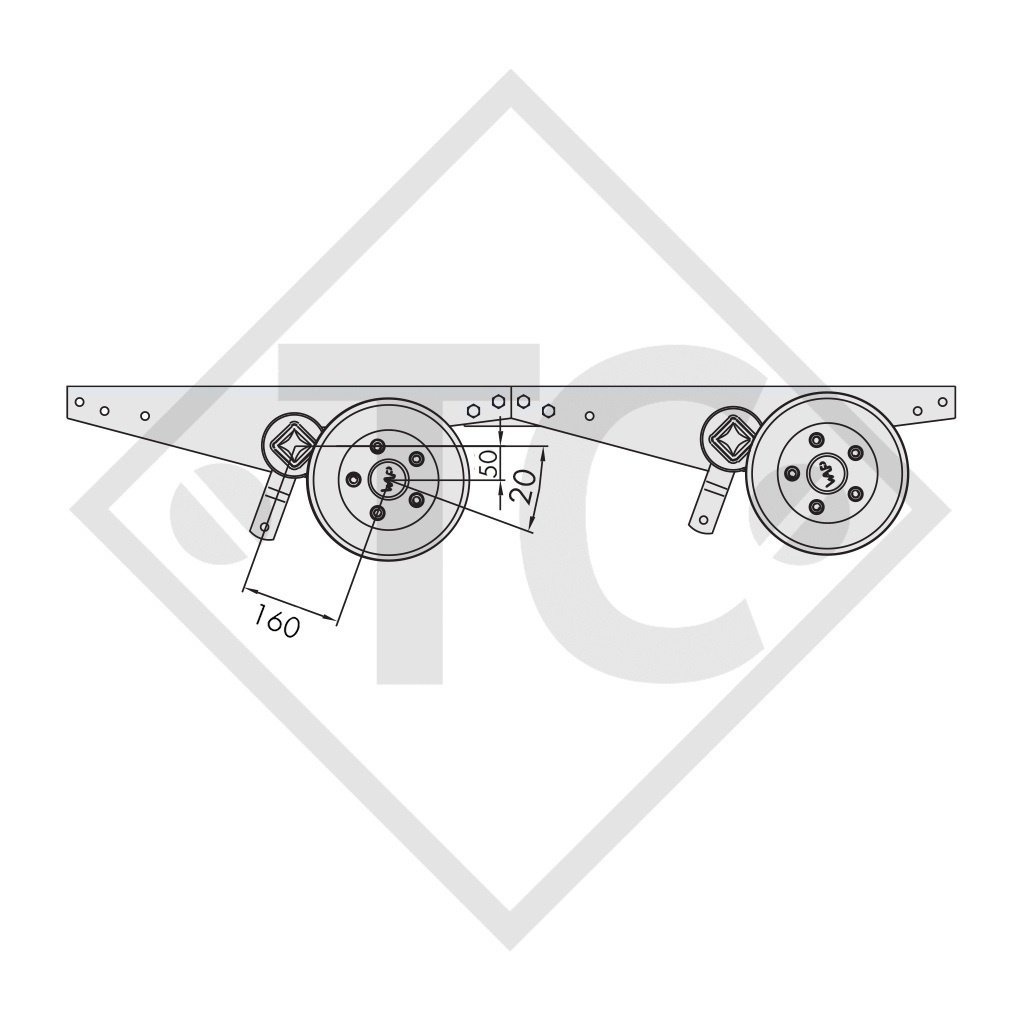

Swing arm length SH: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
