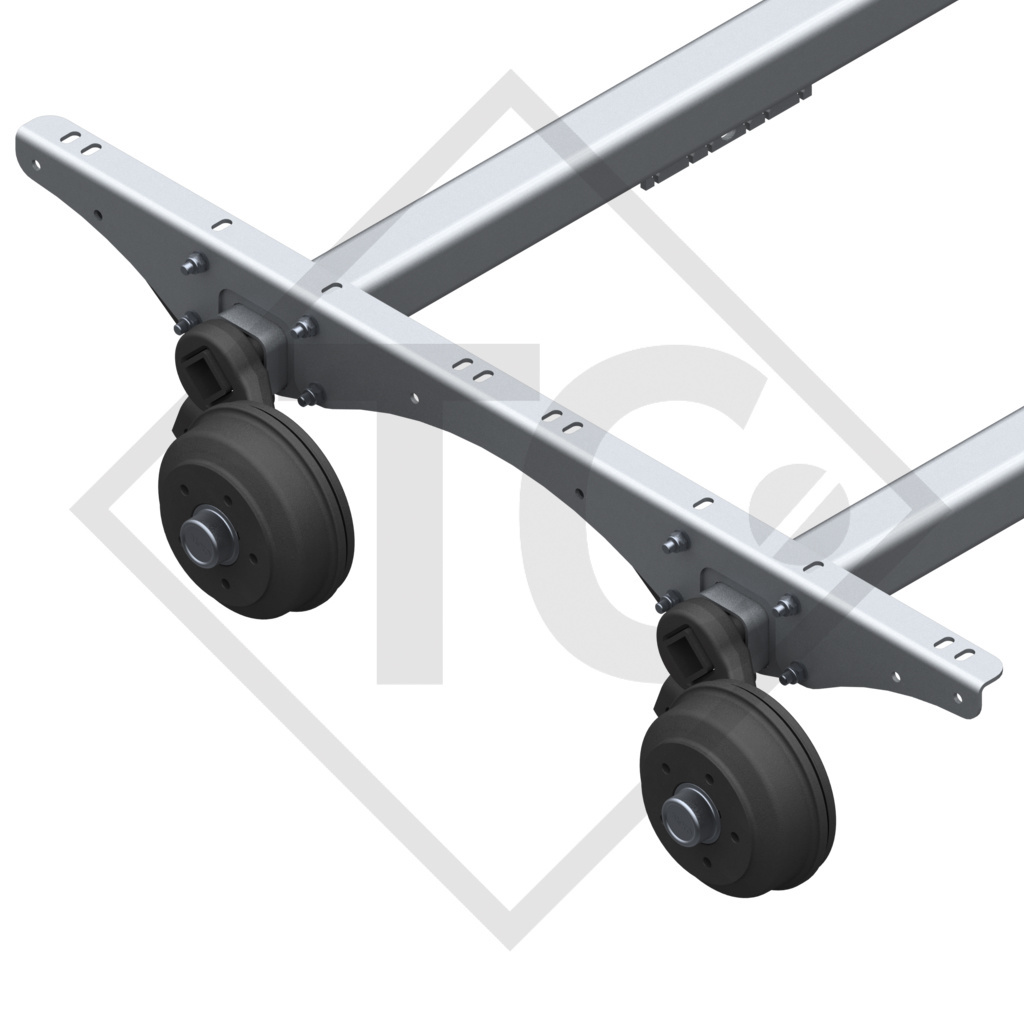

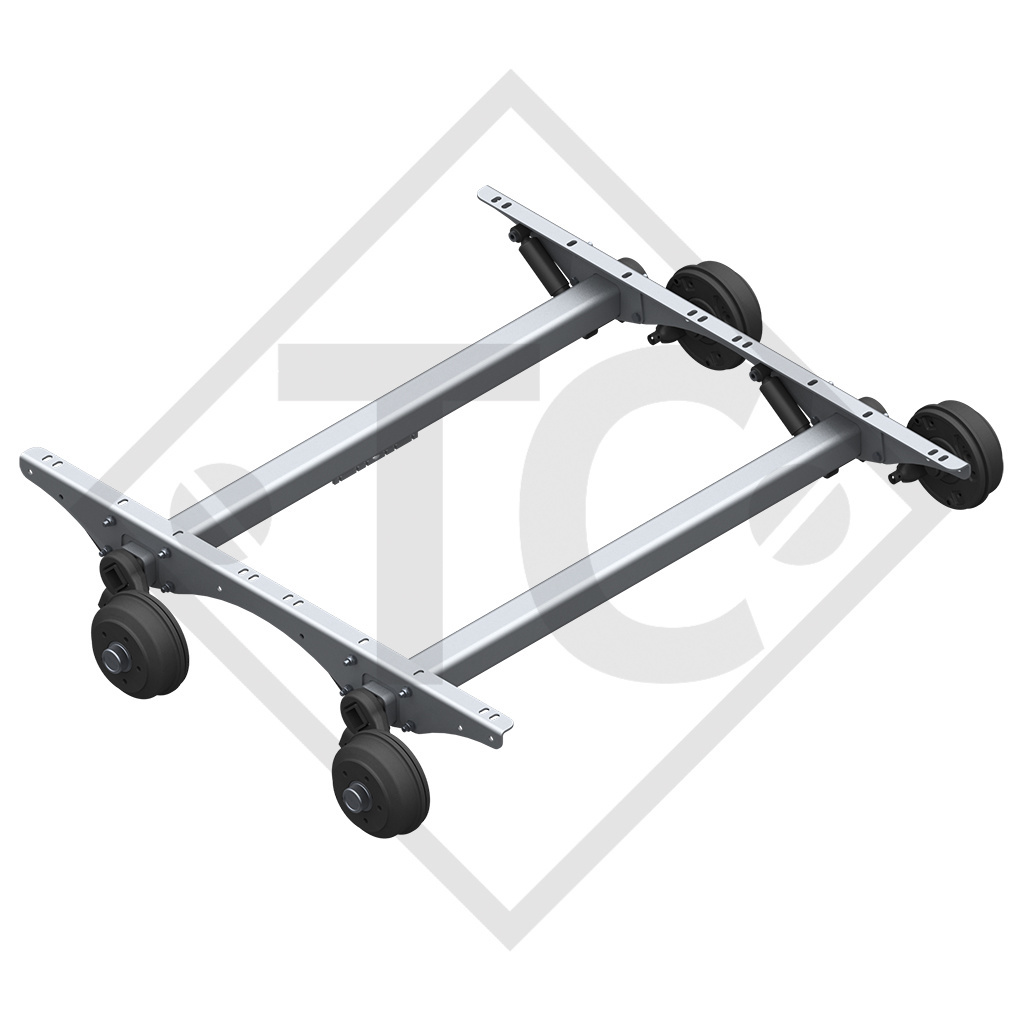

BPW Braked tandem axle unit 2700kg axle type CB 2/1355, 49.25.379.196

Part no. OLD 49.25.379.196  (46.24.379.067 + 46.24.379.068)
Part no. NEW 4014510  (4013001 + 4013002)

Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets

DETAILS

• Speed up to 140 km/h
• Drawbar connection: Clamping shells see Accessories
• Axle shock absorber see Accessories
• Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
• Special axle mounts and drawbar connections on demand
• Also available with watertight bearings
• Axle body fully hop-dip galvanised: Permanent surface protection
• Independent wheel suspension: Optimum compensation of uneven road surfaces
• Maintenance-free suspension: Lower maintenance costs
• Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
• Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
• Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
• Incl. shock absorber bracket
