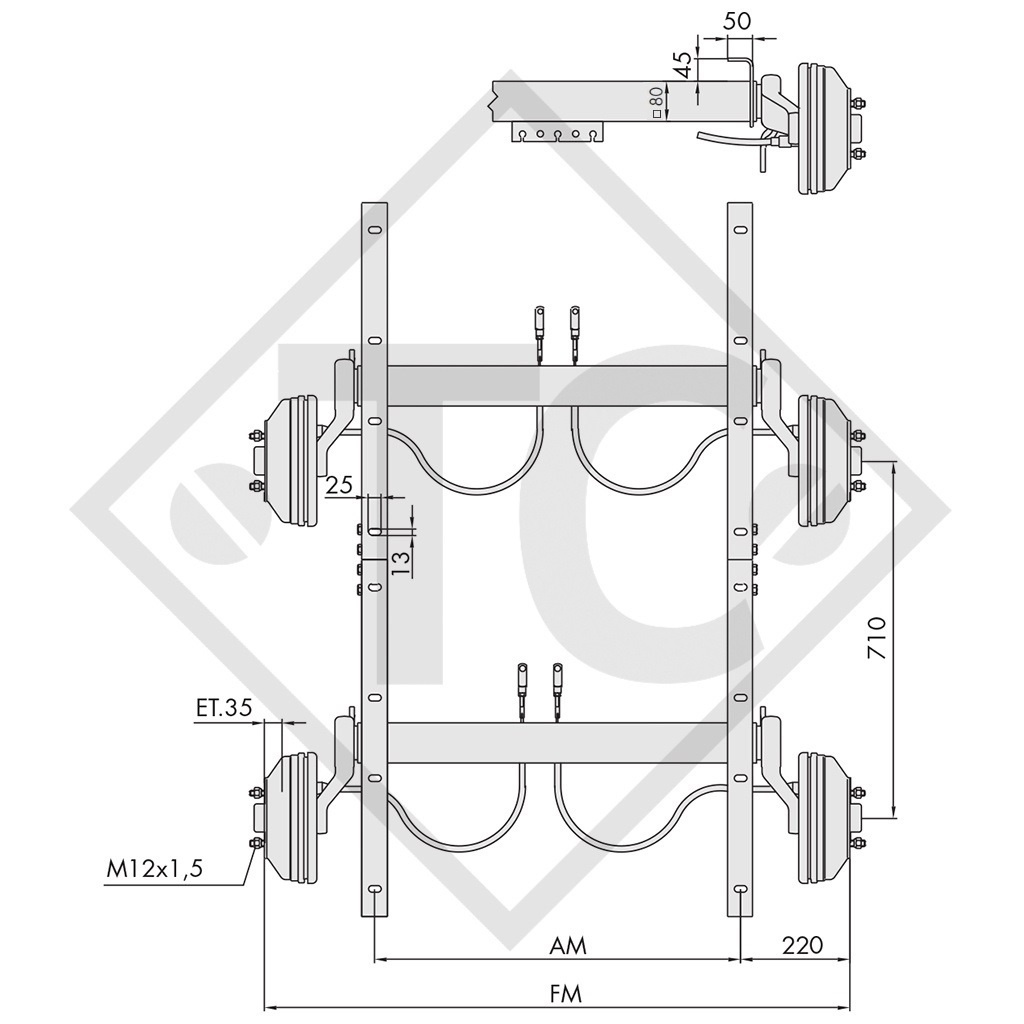

BC: dimension AM 850mm, OHF: dimension FM 1290mm, wheel connection 100x4, wheel brake type W 205 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAGT27026 |
Dimension AM |
850mm |
Dimension FM |
1290mm |
Wheel connection | 100x4 |
Spare part list for wheel brake W 205 RS
Bowden cables
TECHNOLOGY

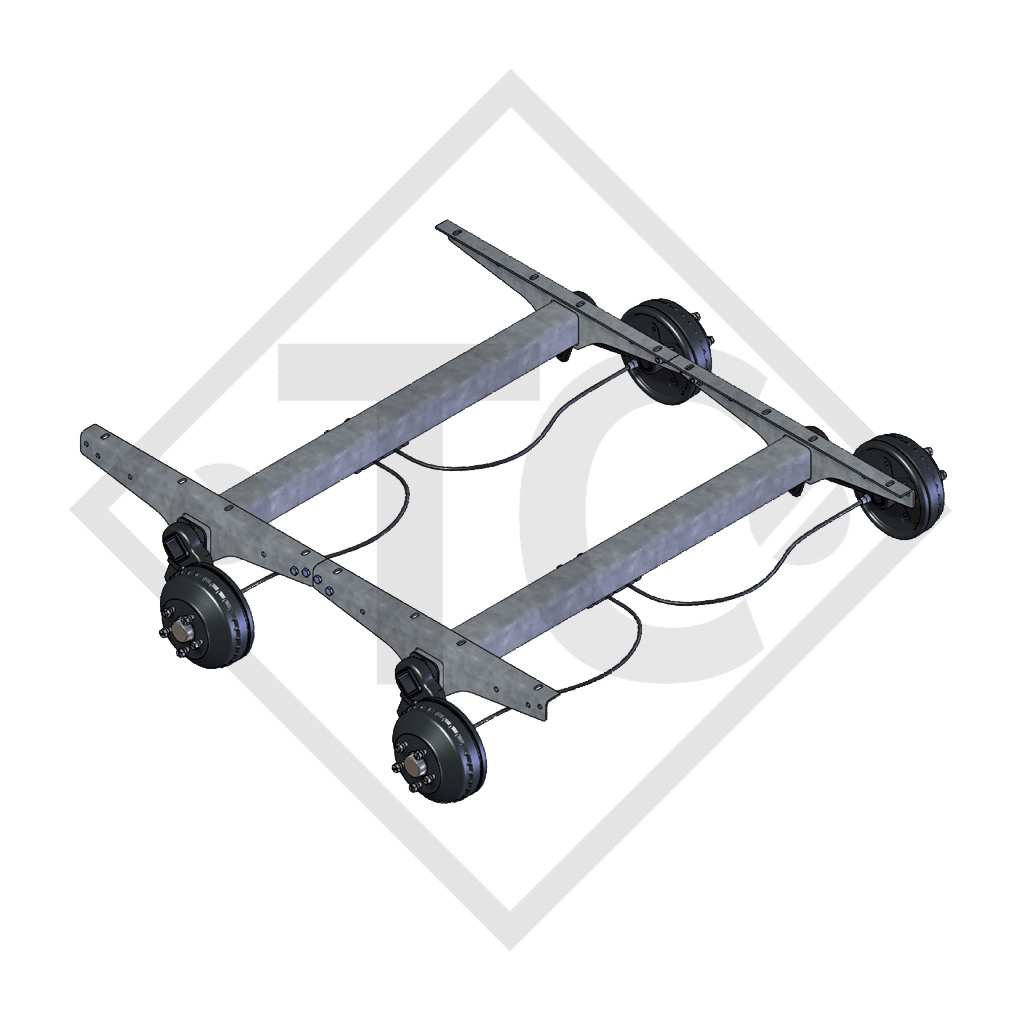

Model: WAGT-B

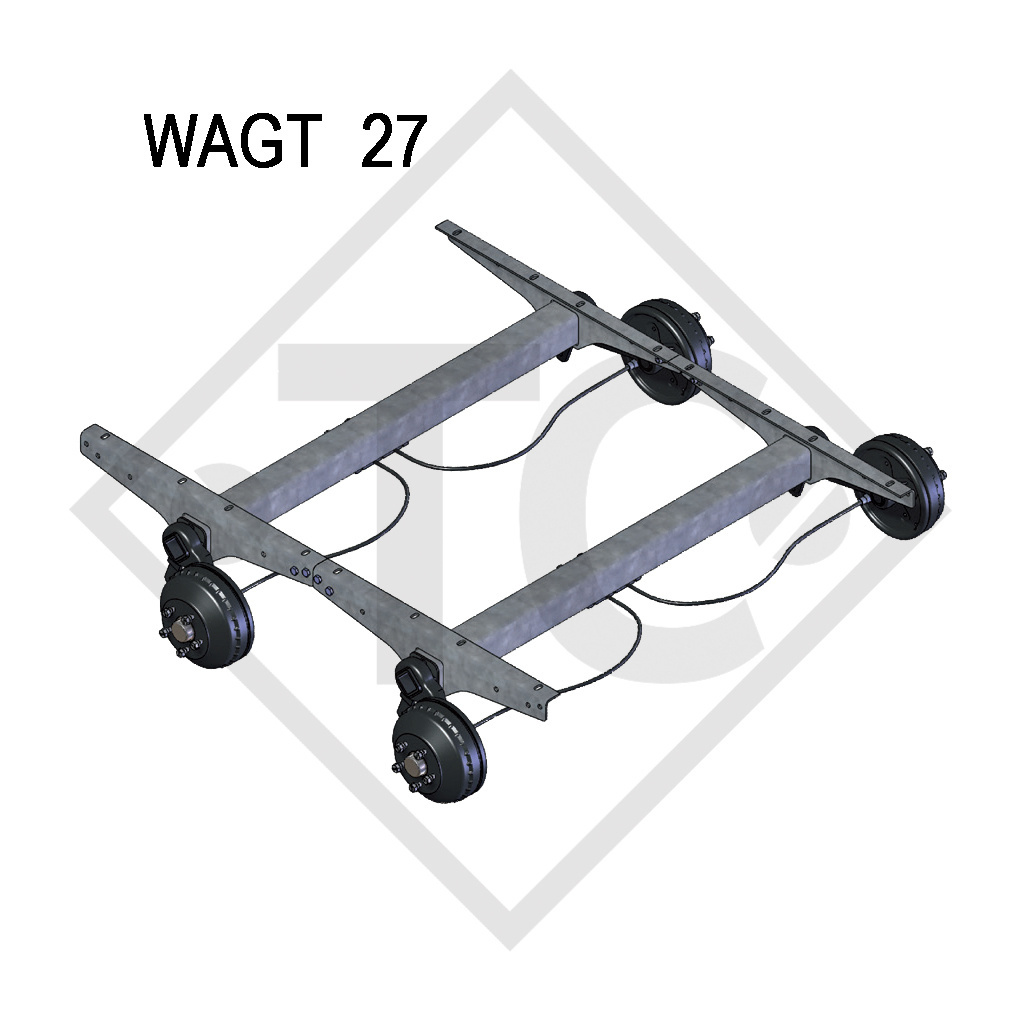

Axle type: WAGT 27
Axle load: 2700kg
Suspension: Compact bearing

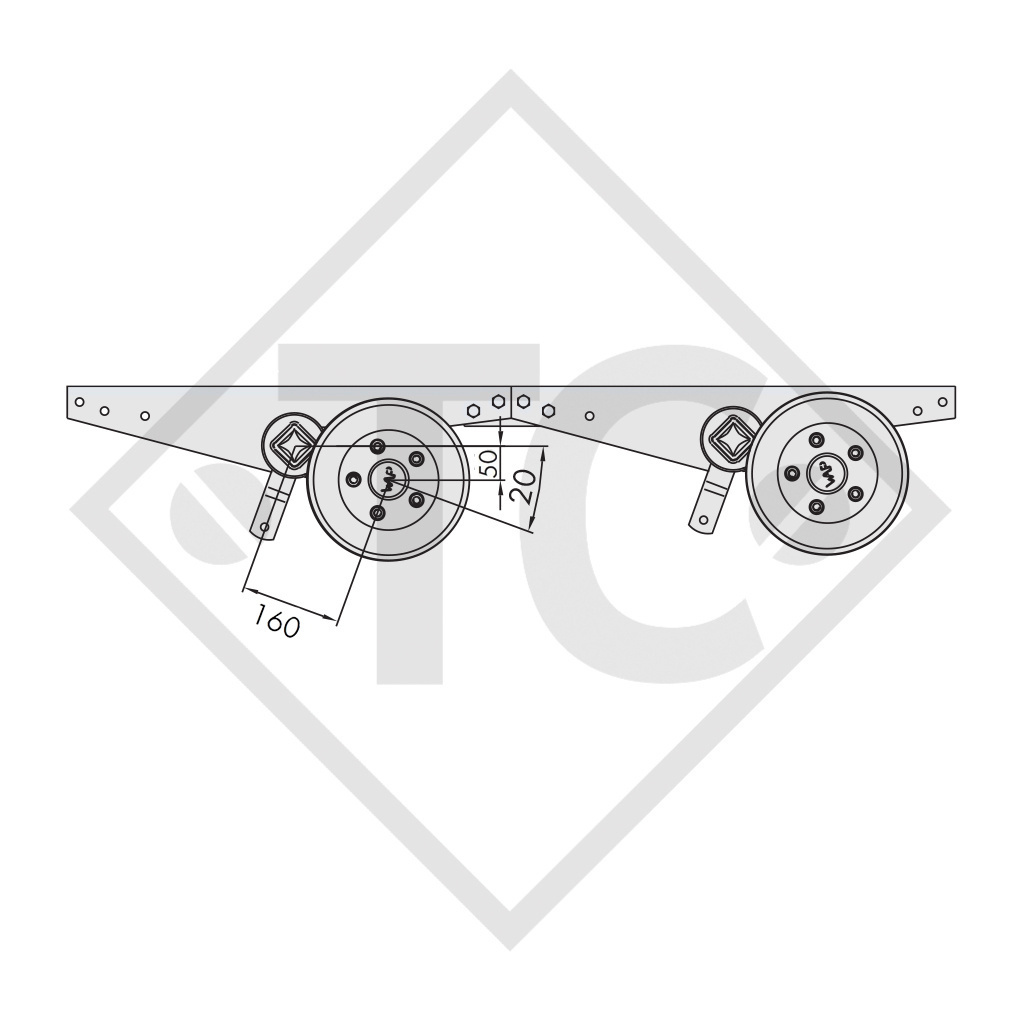

Swing arm length SH: 160mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
