Home / Braked tandem axle unit 2500kg EURO COMPACT axle type 2xB 1200-5 MANEGOLD

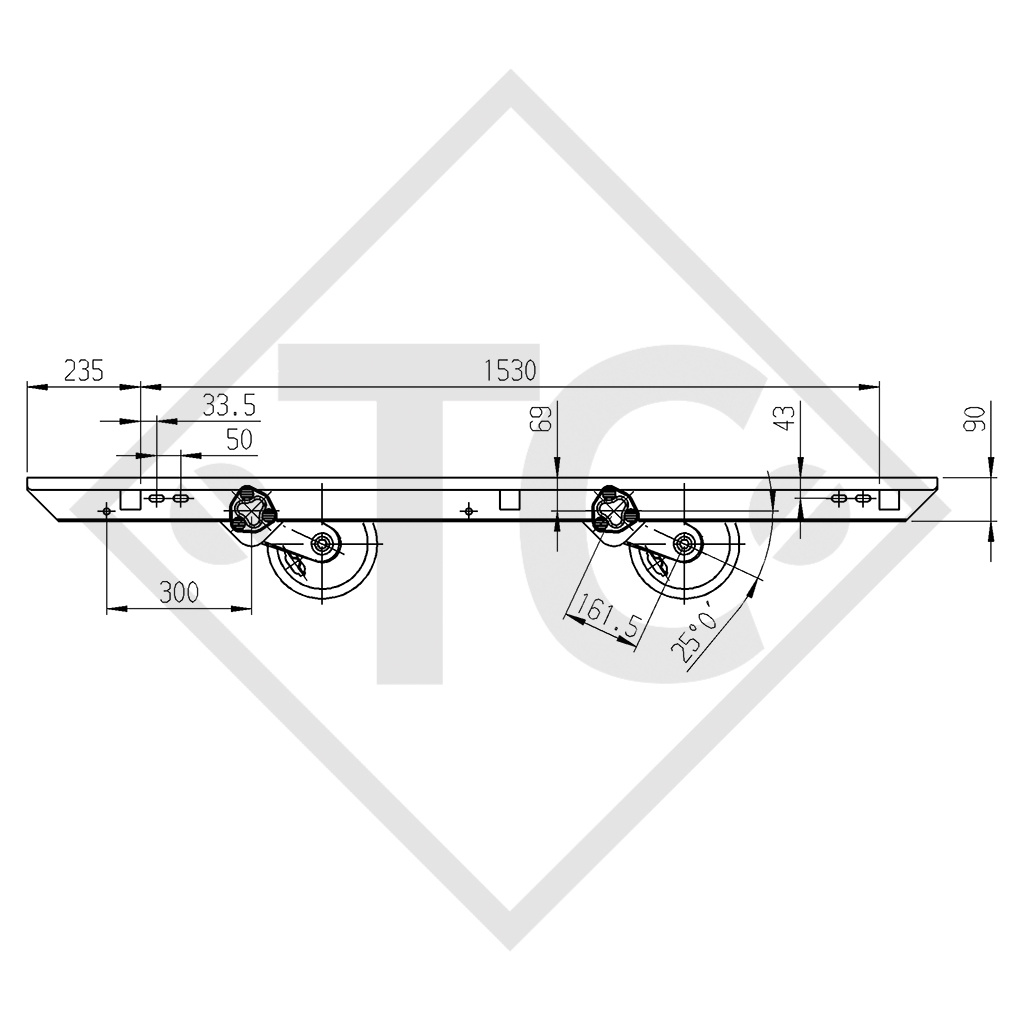

BC: dimension A 1500mm, OHF: dimension C 1990mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 249702 (619391)
Axle type: 2xB 1200-5
Axle load tandem: 2500kg
Axle dimensions

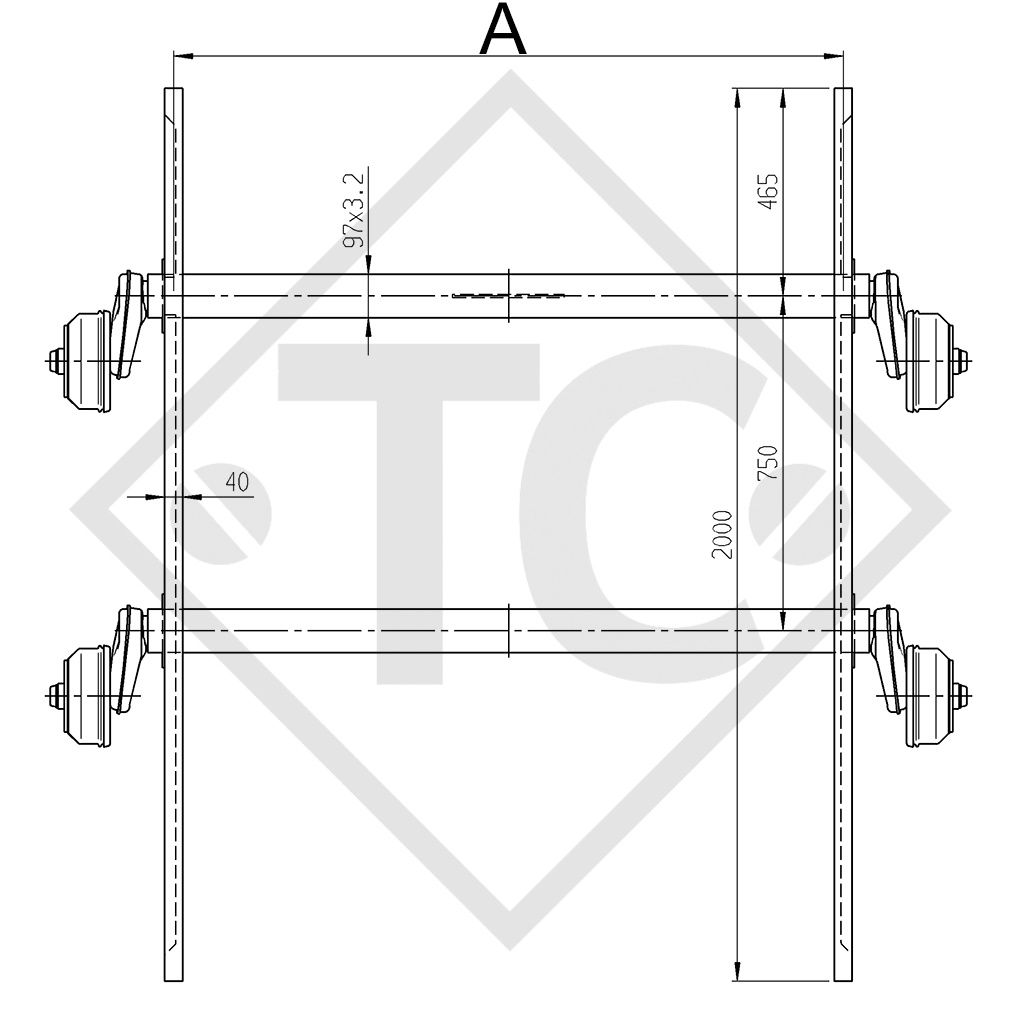

BC dimension A: 1500mm

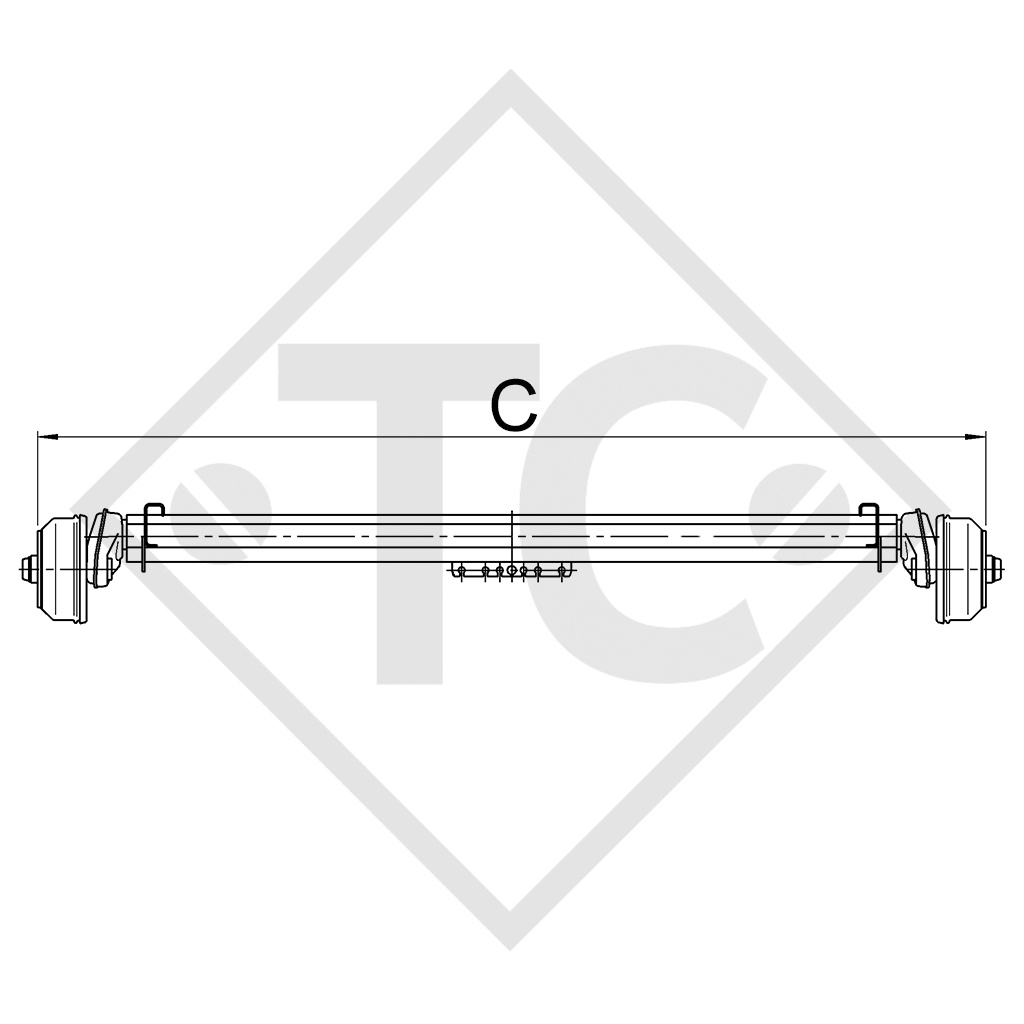

OHF dimension C: 1990mm
Axle beam Ø: 97mm
Rims and tyres
Wheel brake: 2051 vers. A
Wheel connection: 112x5
Wheel bolt: M12x1.5 ball-head
Offset (ET) from to: 26-30mm
Recommended rims: 5.5Jx14 (not included in scope of delivery)
Recommended tyres: 185R14 (not included in scope of delivery)
Original operating instructions
SCOPE OF DELIVERY

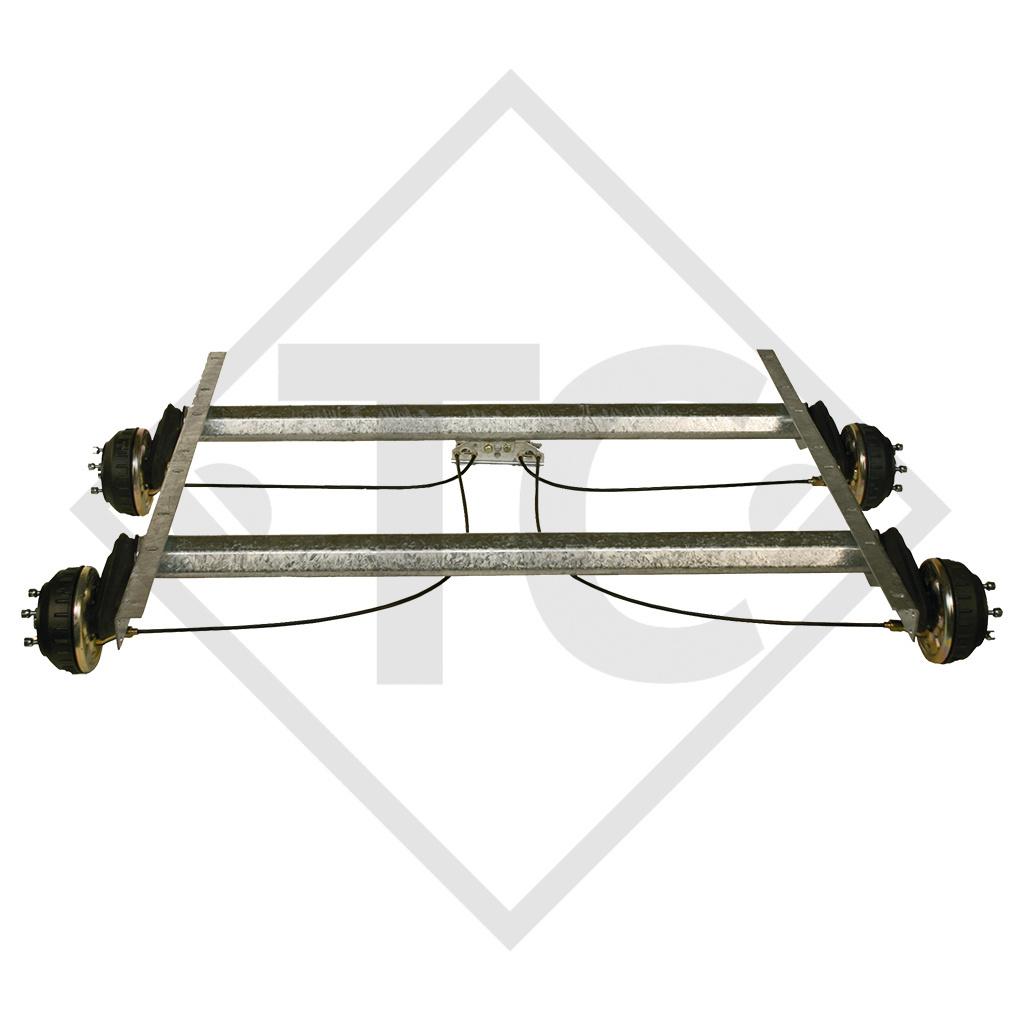

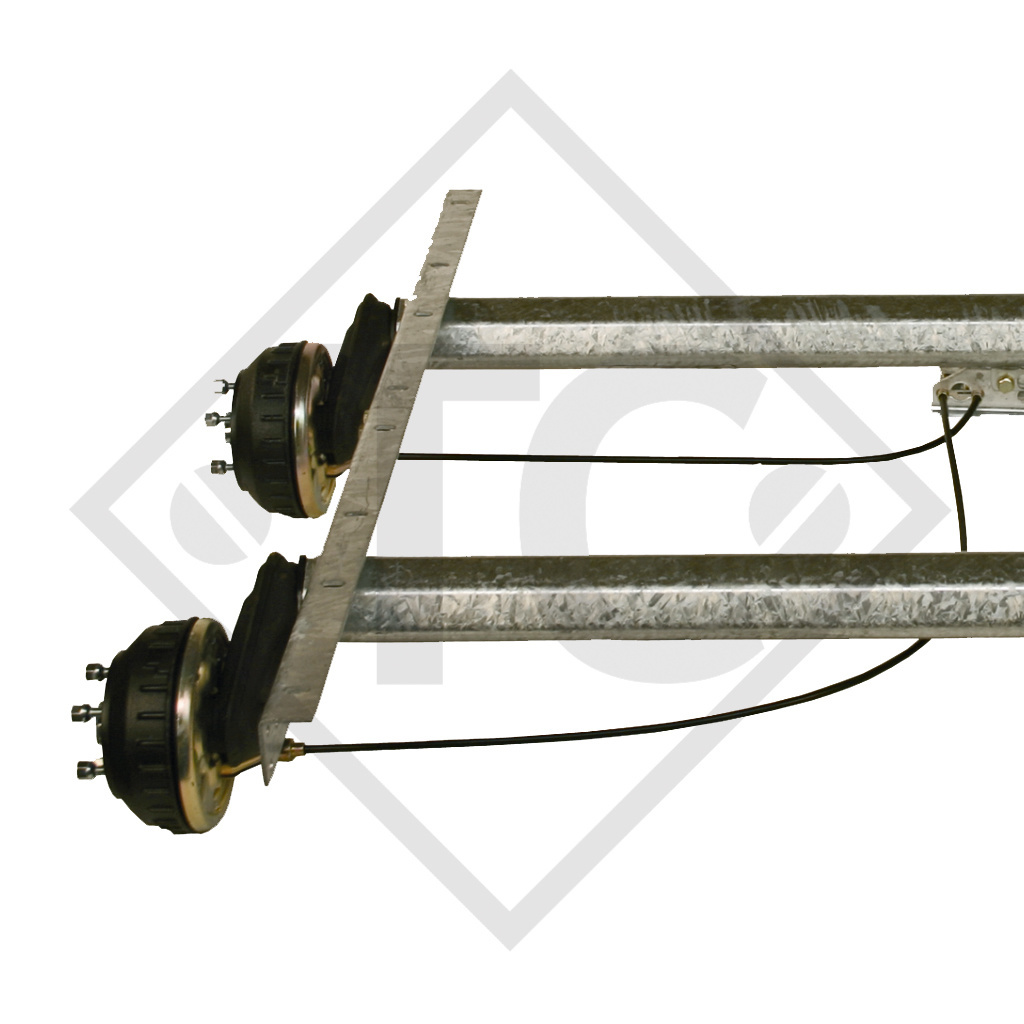

Tandem axle unit braked
Tandem axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
