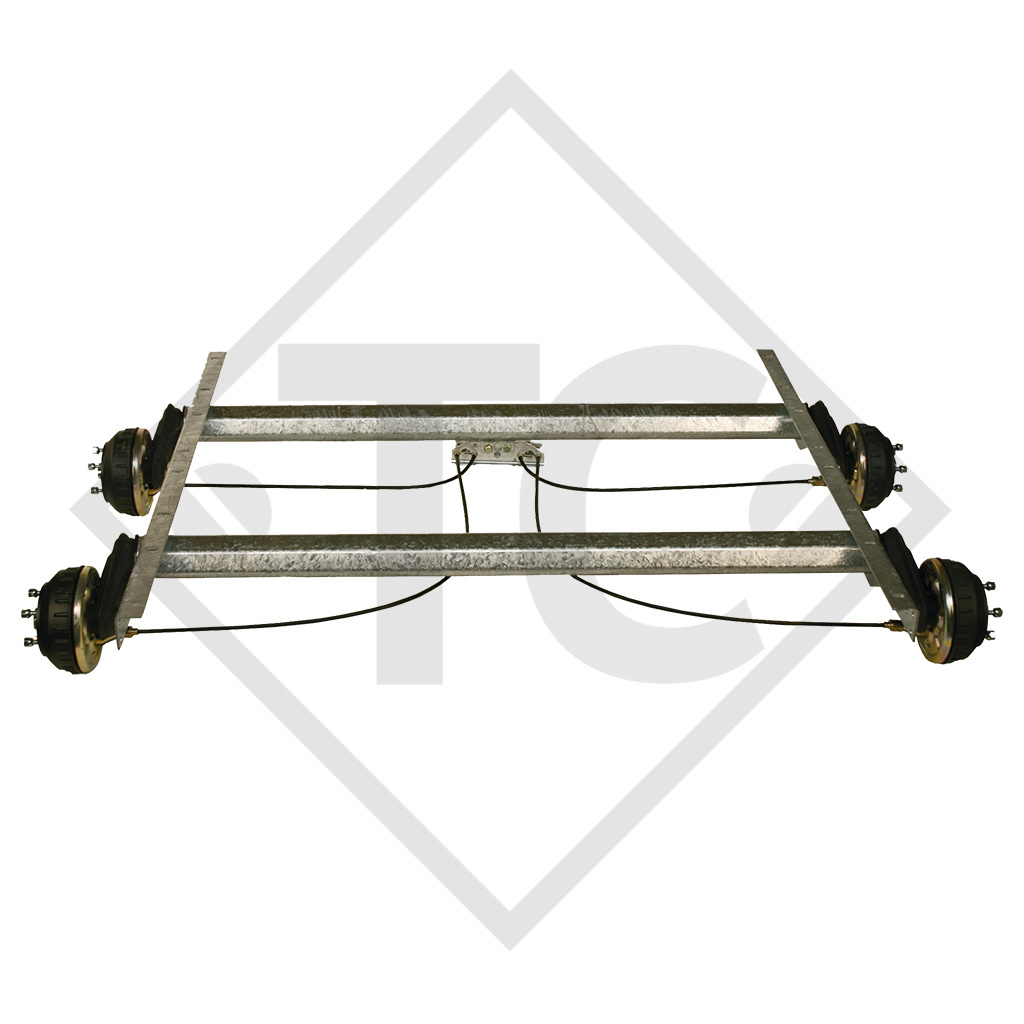

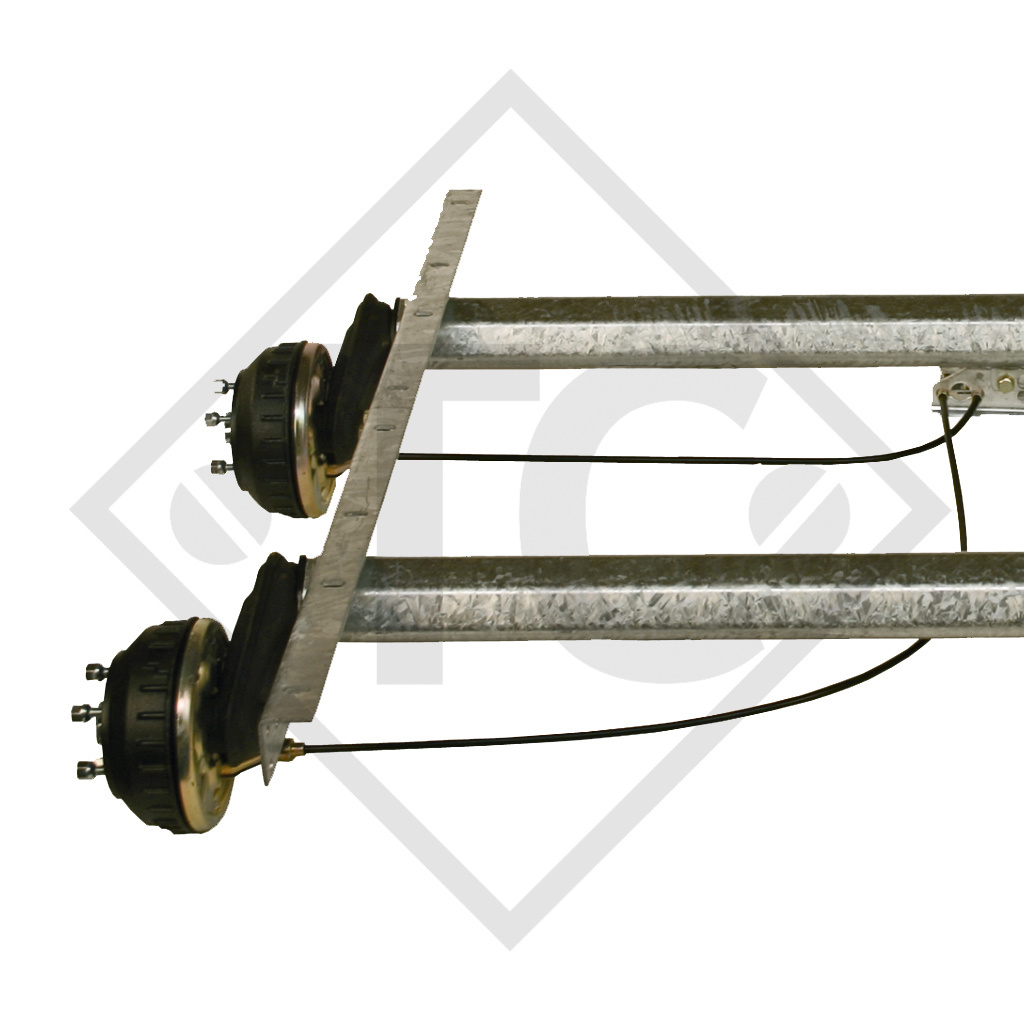

Braked tandem axle unit 2000kg EURO COMPACT axle type 2xB 1000

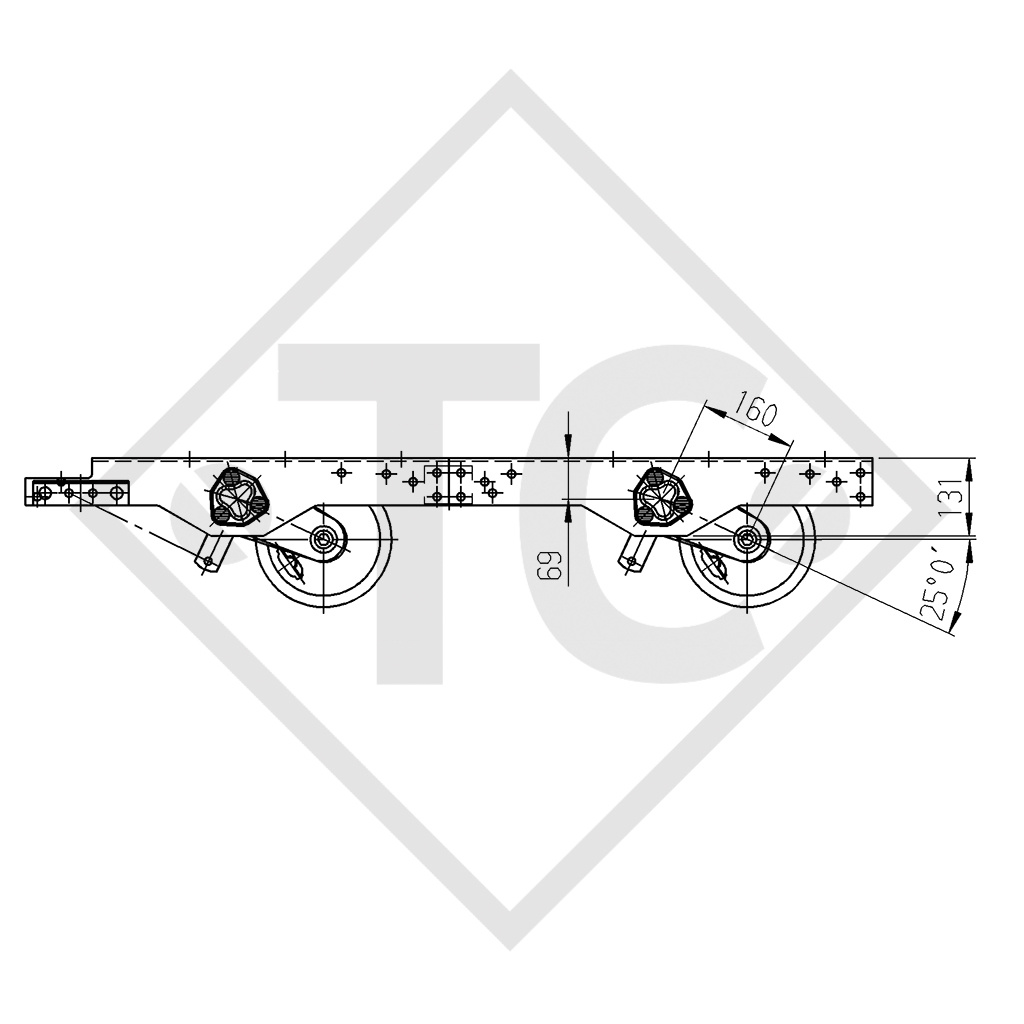

BC: dimension A 1730mm, OHF: dimension C 2100mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 26-40mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.750,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 249670
Axle type: 2xB 1000
Axle load tandem: 2000kg

Axle dimensions

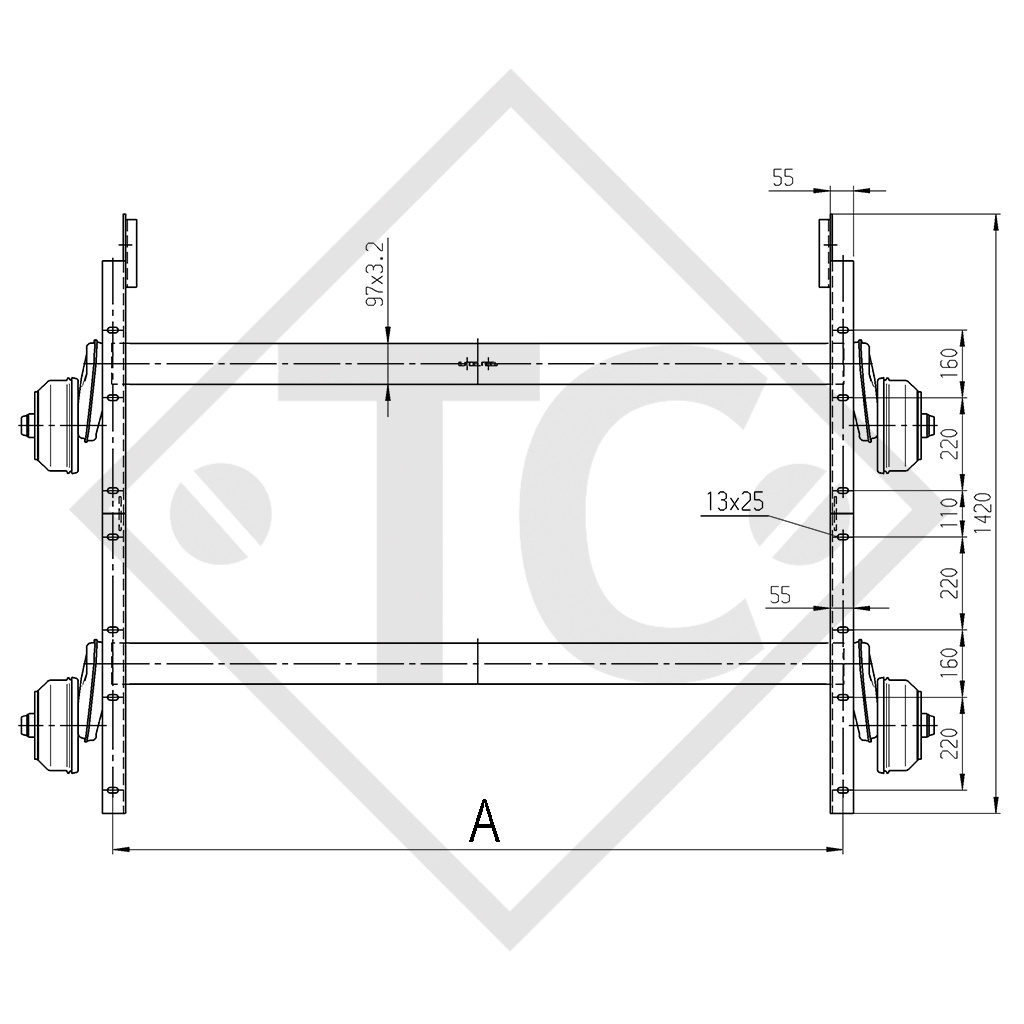

BC dimension A: 1730mm

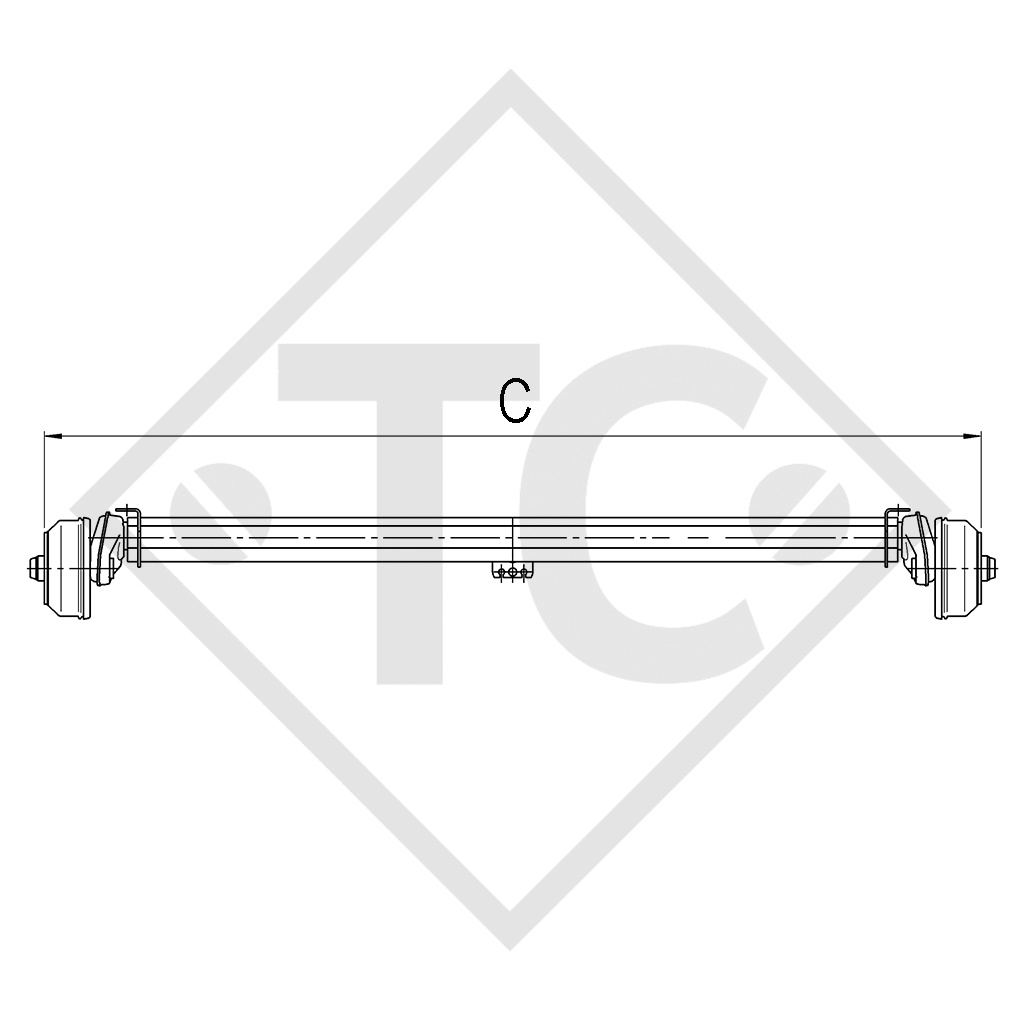

OHF dimension C: 2100mm
Axle beam Ø: 97mm

Original operating instructions

SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Other designs available on request.

AL-KO Braked tandem axle unit 2000kg EURO COMPACT axle type 2xB 1000-3
