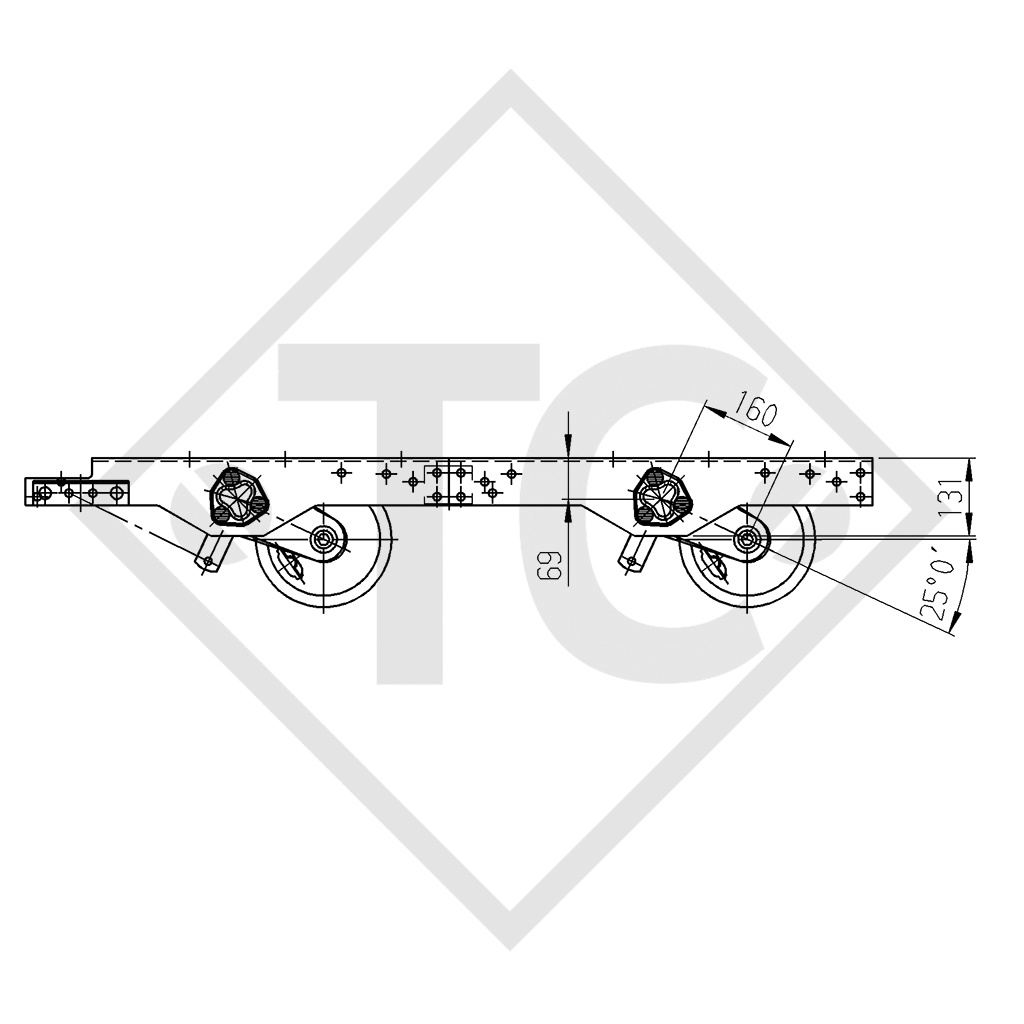

BC: dimension A 1755mm, OHF: dimension C 2265mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 26-40mm, swing arm position 16°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 1211436
Axle type: 2x DELTA SIN 10
Axle load tandem: 2000kg

Axle dimensions

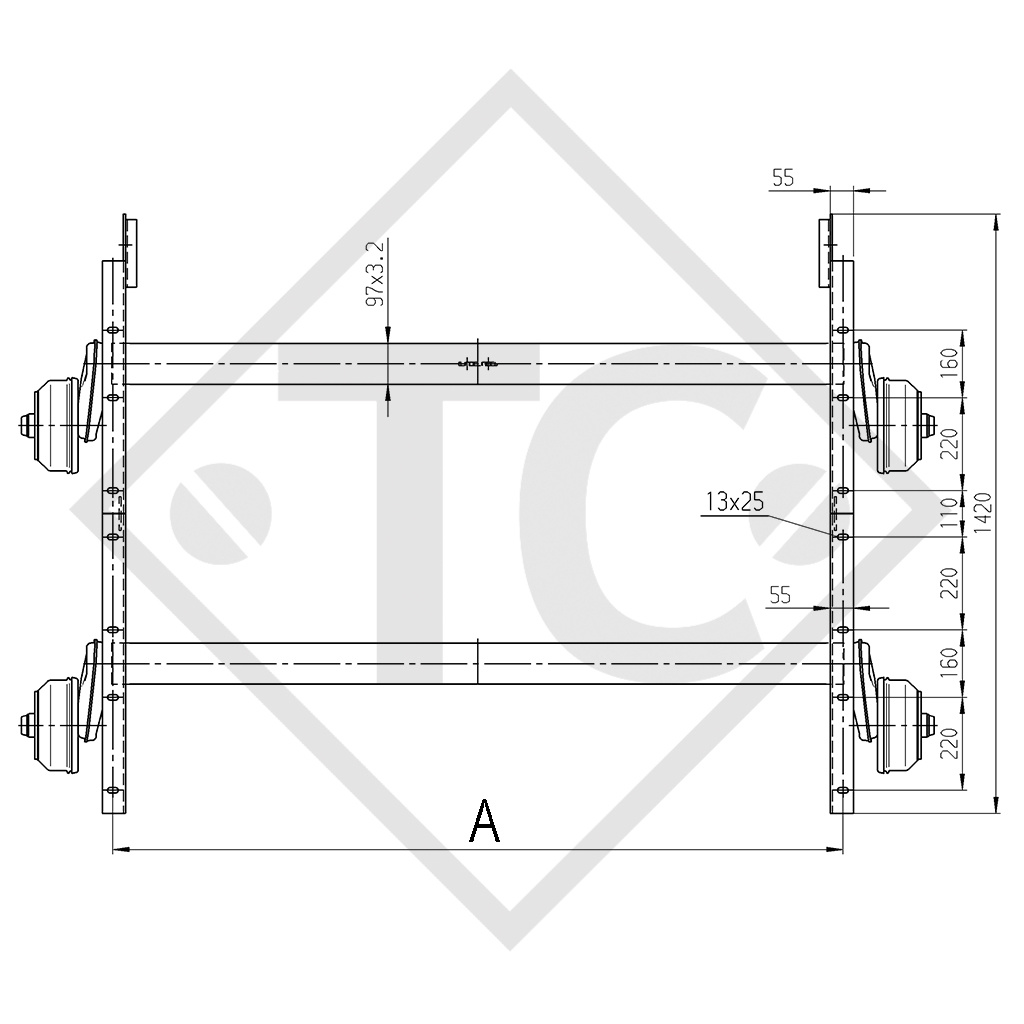

BC dimension A: 1755mm

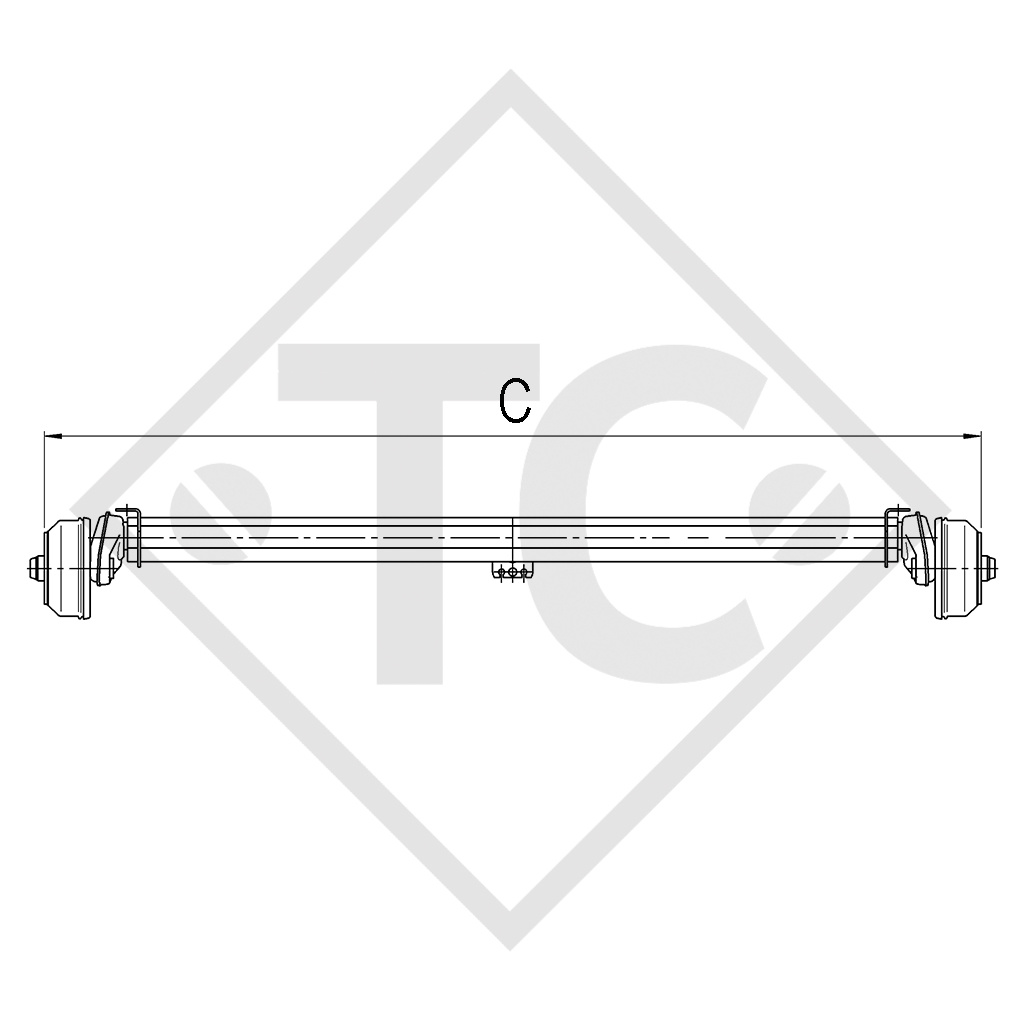

OHF dimension C: 2265mm
Axle beam Ø: 97mm

Original operating instructions

SCOPE OF DELIVERY

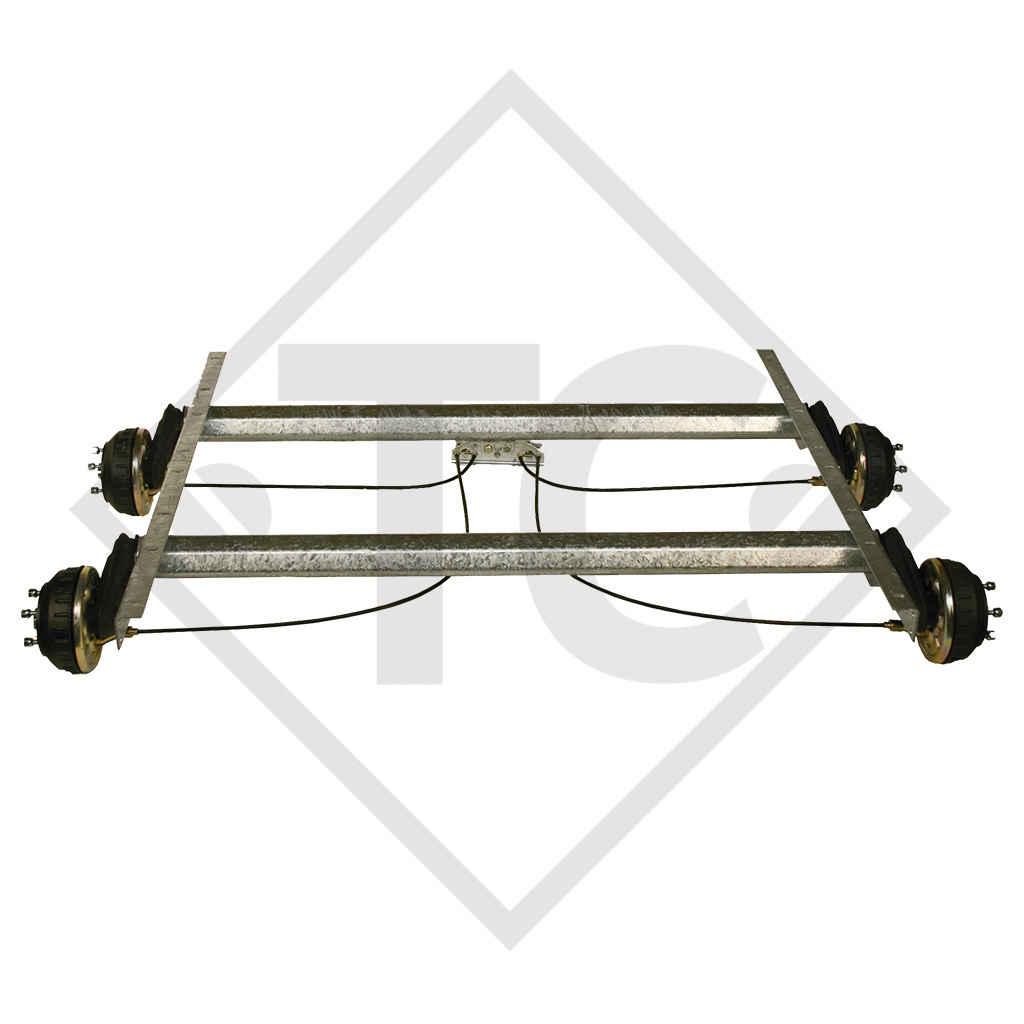

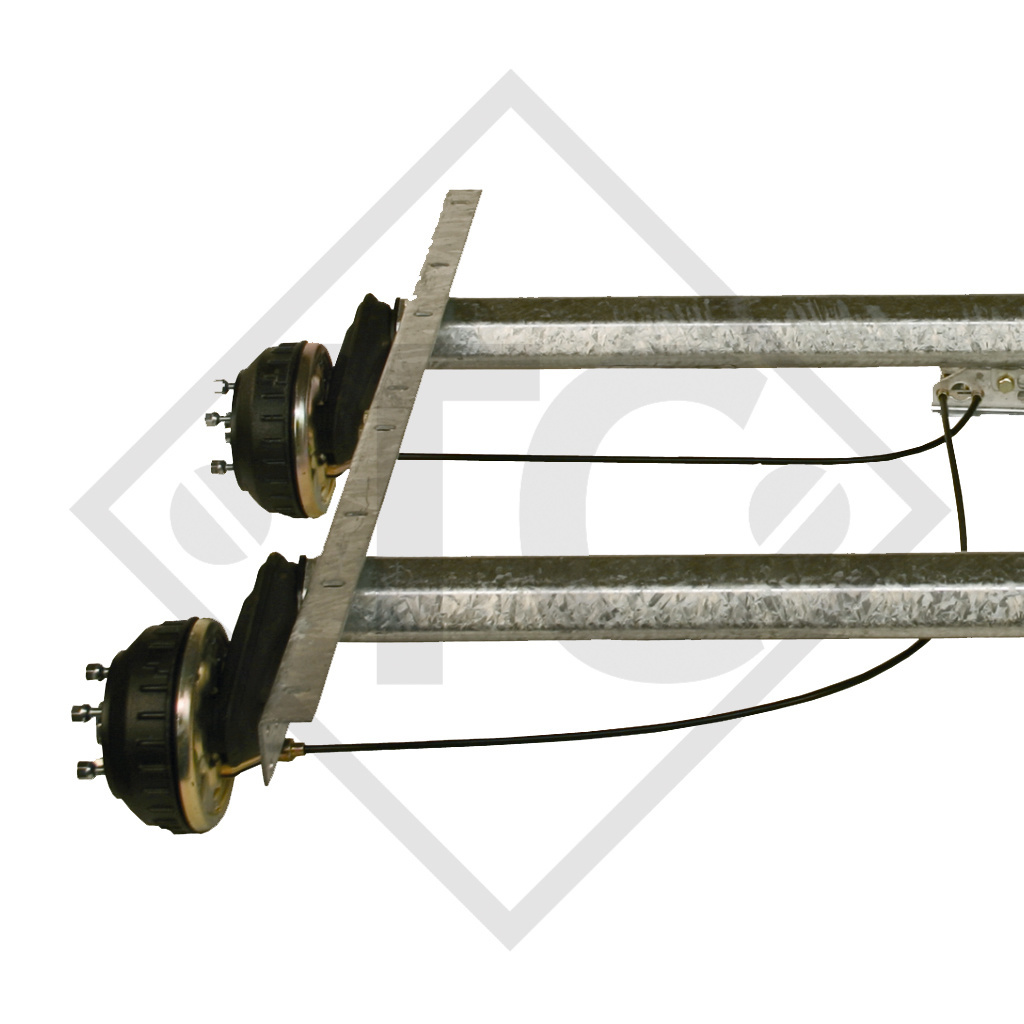

Tandem axle with brake 2051 A
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Other designs available on request.
