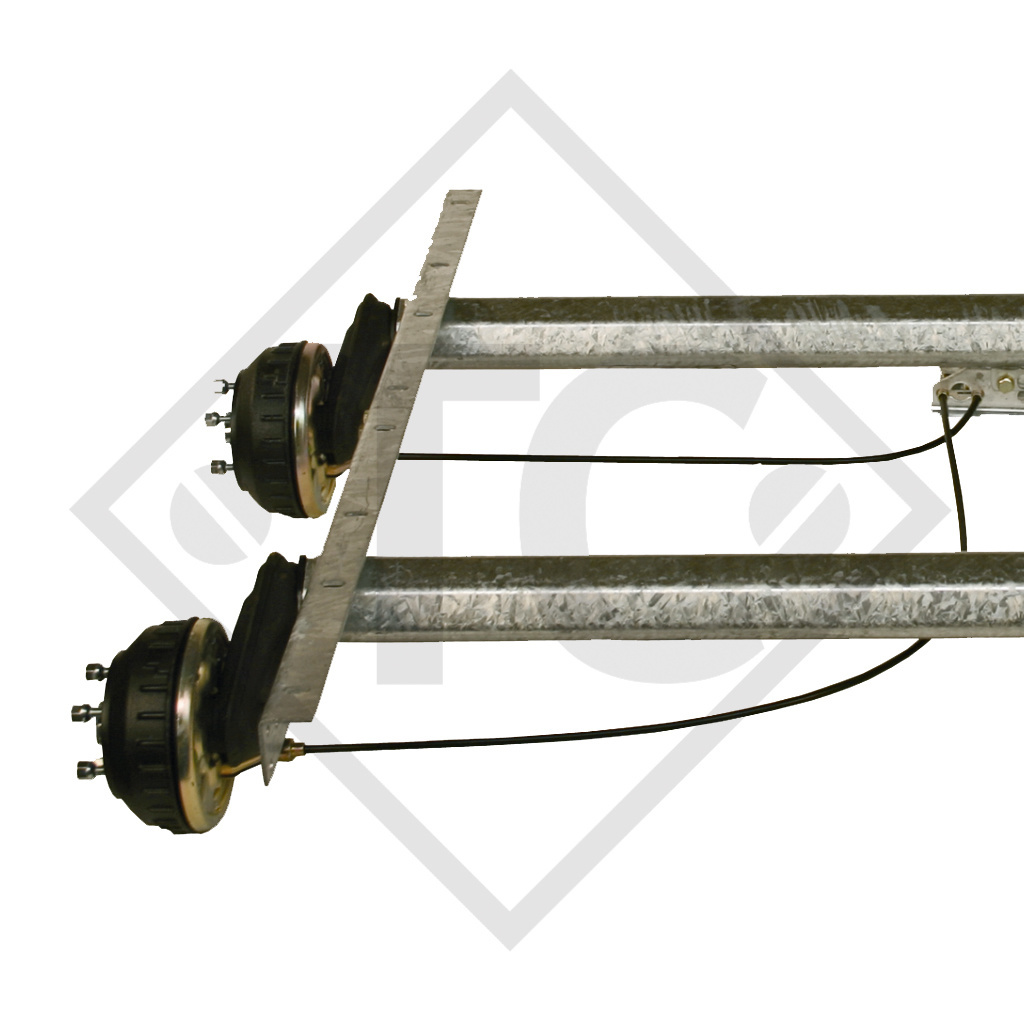

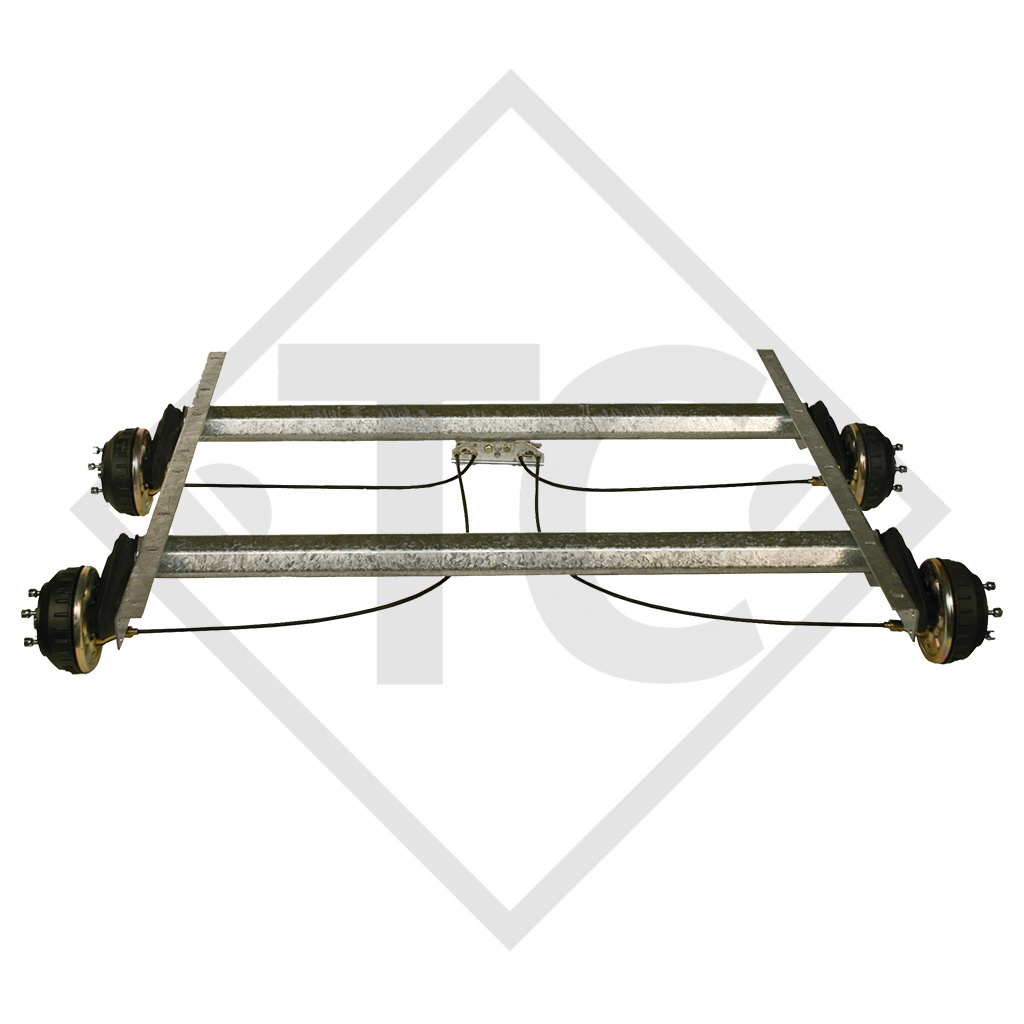

Home / Braked tandem axle unit 2000kg EURO Compact axle type 2x B 1000-3 - BRENDERUP 36 N
BC: dimension A 1590mm, OHF: dimension C 1975mm, wheel connection 100x4, wheel brake type 2051A, offset (ET) 26-40mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 1909213
Axle type: 2xB 1000-3
Axle load tandem: 2000kg

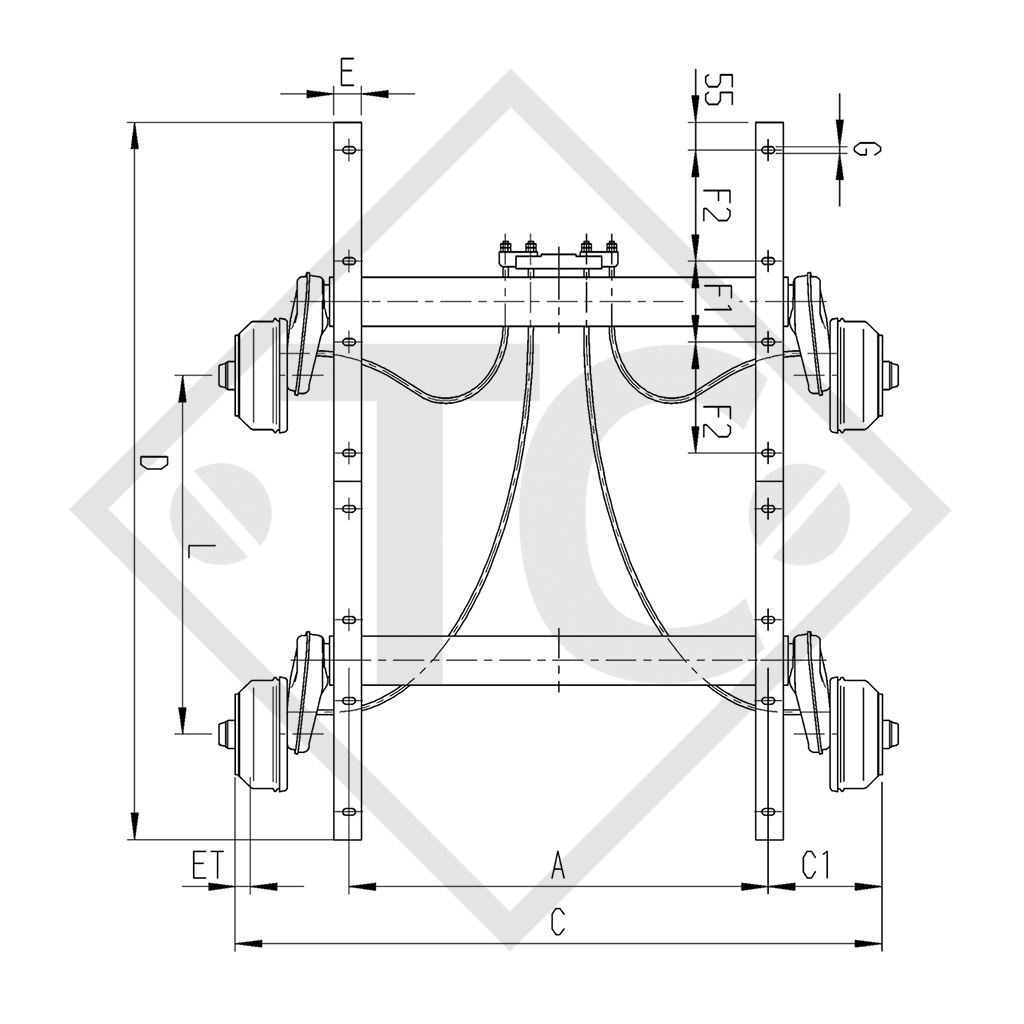

Axle dimensions
BC dimension A: 1590mm
OHF dimension C: 1975mm
Axle beam Ø: 97mm
Rims and tyres
Wheel brake: 2051 A
Wheel connection: 100x4
Wheel bolt: ---
Offset (ET) from to: 26-40mm
Swing arm
Dimension H: 161,5mm
Dimension I Standard (Swing arm position): 25°
Dimension K: 83mm
Dimension L (axle distance): 700mm
Dimension M at 25°: 148mm
Original operating instructions
SCOPE OF DELIVERY
Tandem axle unit braked
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Other designs available on request.
