Home / STEADY LEGS / EXTENDABLE CORNER STEADIES / STEADY LEGS, SPINDLE / Braked tandem axle unit 2000kg EURO Compact axle type 2xB 1000-3
BC: dimension A 1450mm, OHF: dimension C 1940mm, wheel connection 112x5, wheel brake type 2051A, offset (ET) 26-40mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1212606
Axle type: 2xB 1000-3
Axle load tandem: 2000kg

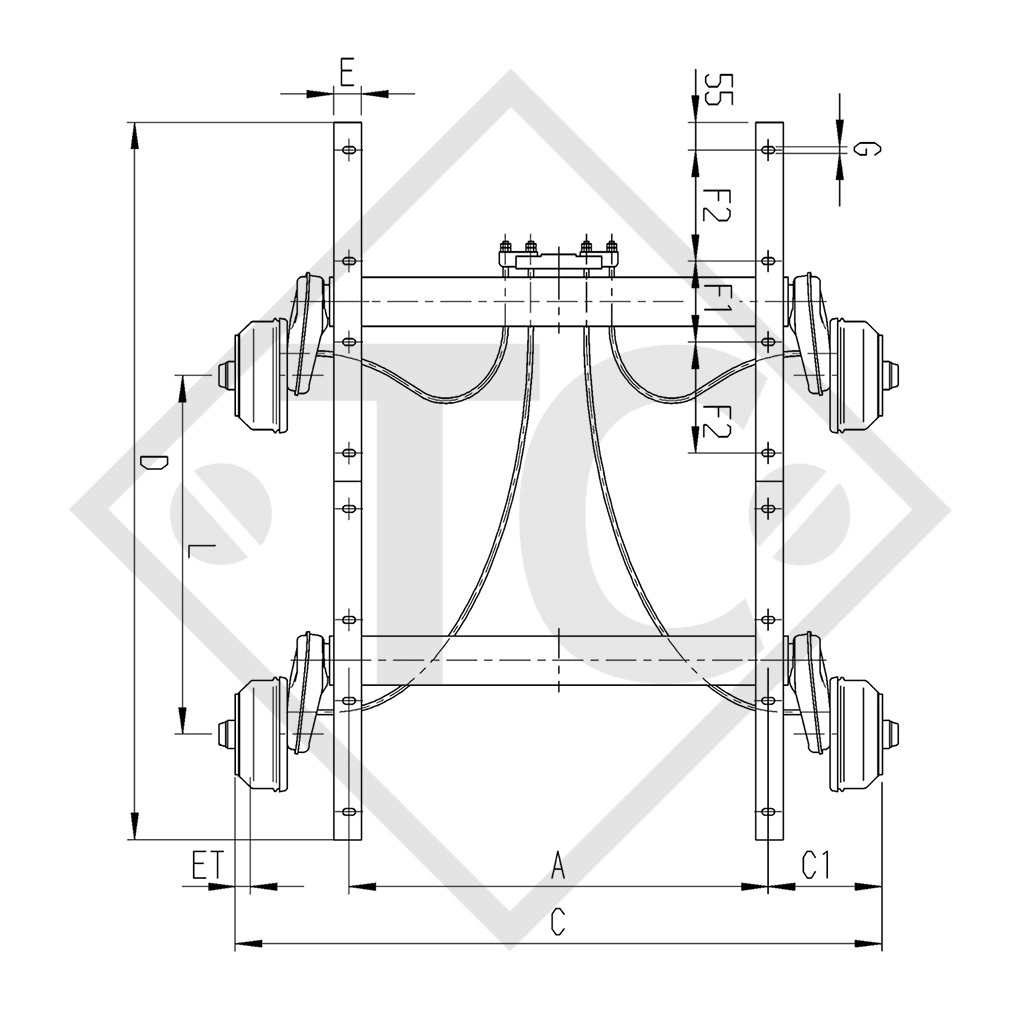

Axle dimensions
BC dimension A: 1450mm
OHF dimension C: 1940mm
Axle beam Ø: 97mm
Rims and tyres
Wheel brake: 2051 A
Wheel connection: 112x5
Wheel bolt: M12x1.5 ball-head
Offset (ET) from to: 26-40mm
Recommended rims: 5Jx14 (not included in scope of delivery)
Recommended tyres: 175R14 (not included in scope of delivery)
Clamping mount
Variant no.: 1
Dimension D: 1420mm
Dimension E: 55mm
Dimension F1: 160mm
Dimension F2: 220mm
Dimension G: 13mm

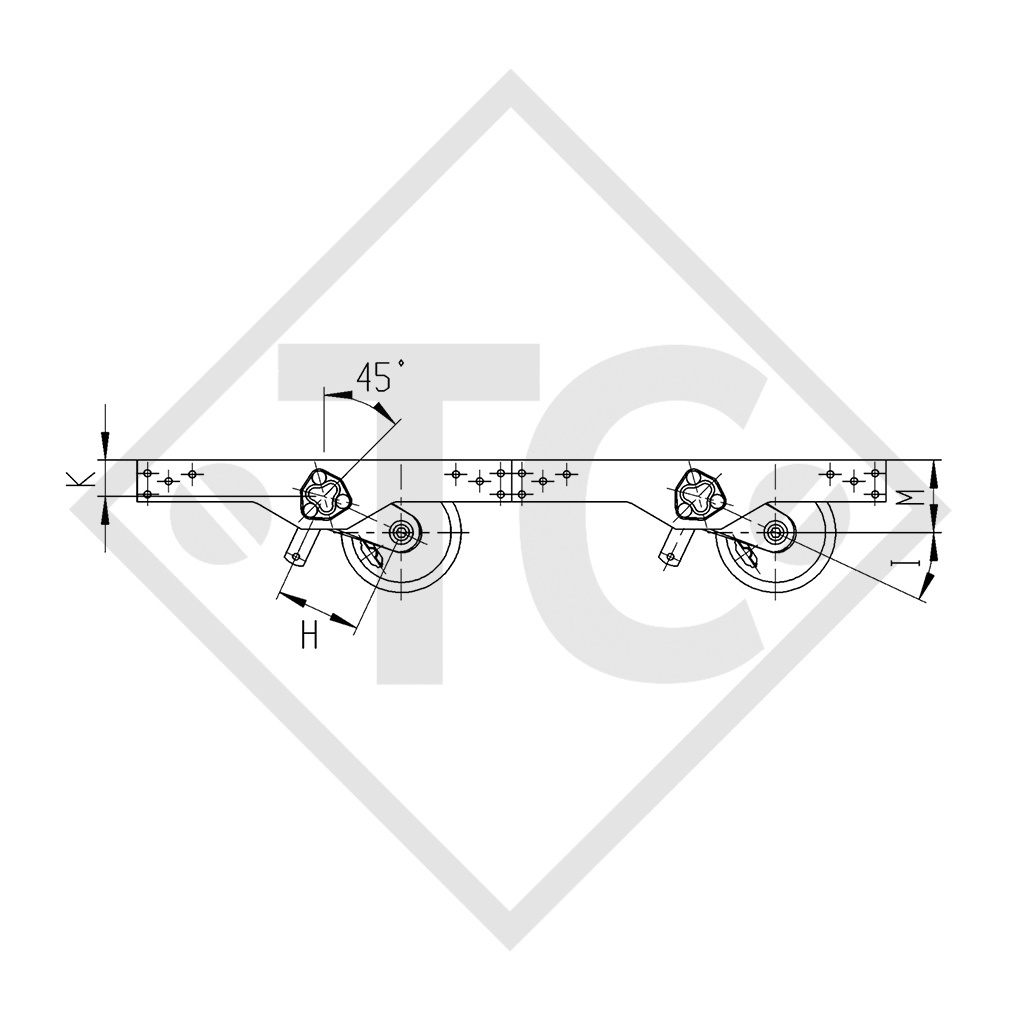

Swing arm
Dimension H: 175mm
Dimension I Standard (Swing arm position): 25°
Dimension K: 65mm
Dimension L (axle distance): 710mm
Dimension M at 25°: 140mm
Minimum axle dimensions
C1 min.: 1220mm
C1 min. with clamping mount variant no.: 215mm with clamping mount variant no. 1
Original operating instructions

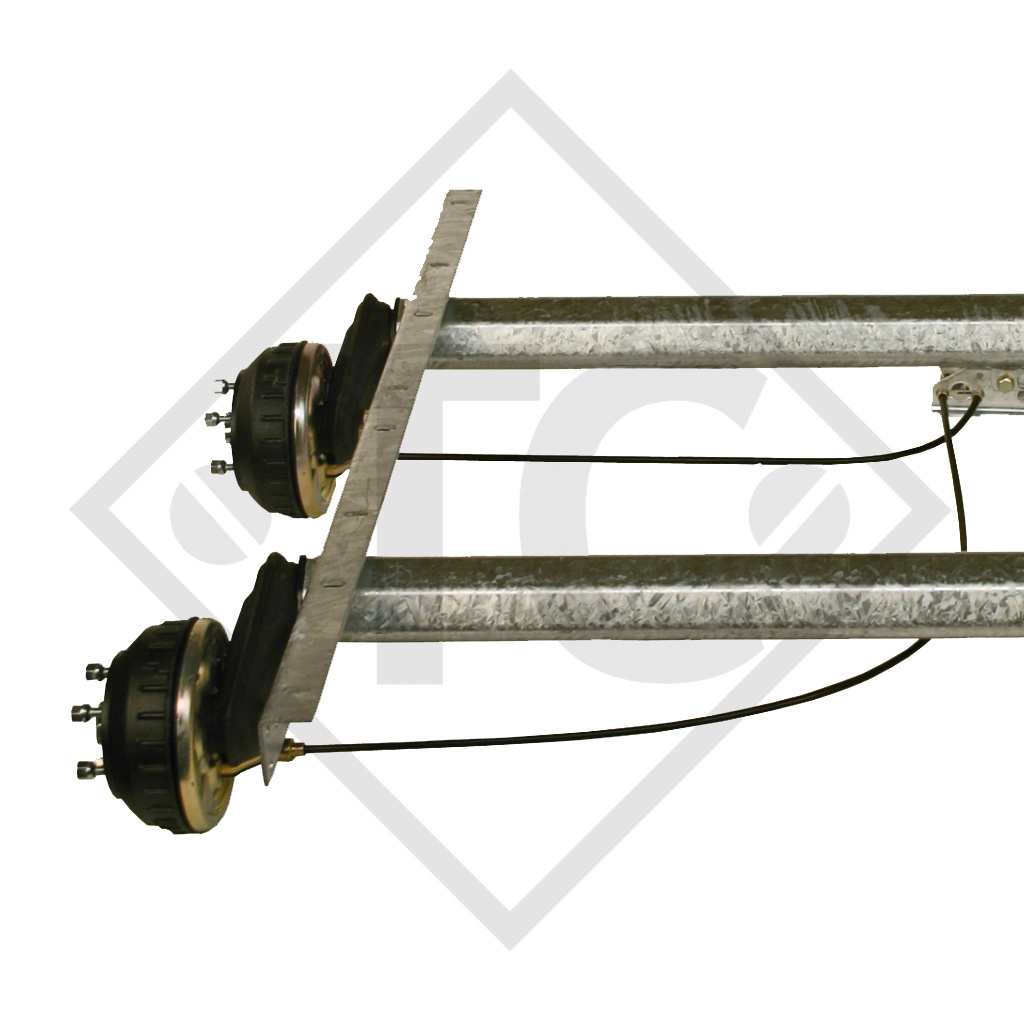

SCOPE OF DELIVERY
Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Other designs available on request.
