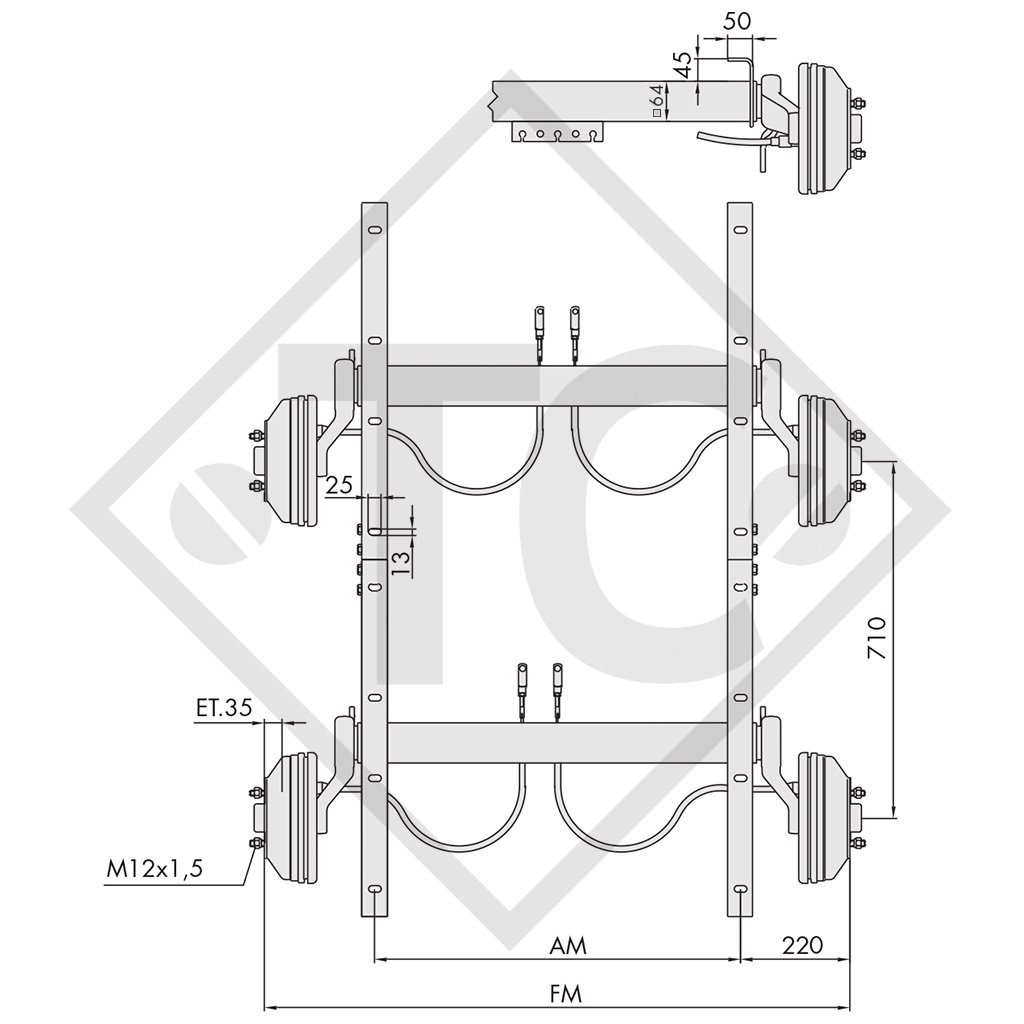

BC: dimension AM 1900mm, OHF: dimension FM 2340mm, wheel connection 112x5, wheel brake type W 184 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAGT17023 |
Dimension AM |
1900mm |
Dimension FM |
2340mm |
Wheel connection | 112x5 |
Spare part list for wheel brake W 184 RS
Bowden cables
TECHNOLOGY

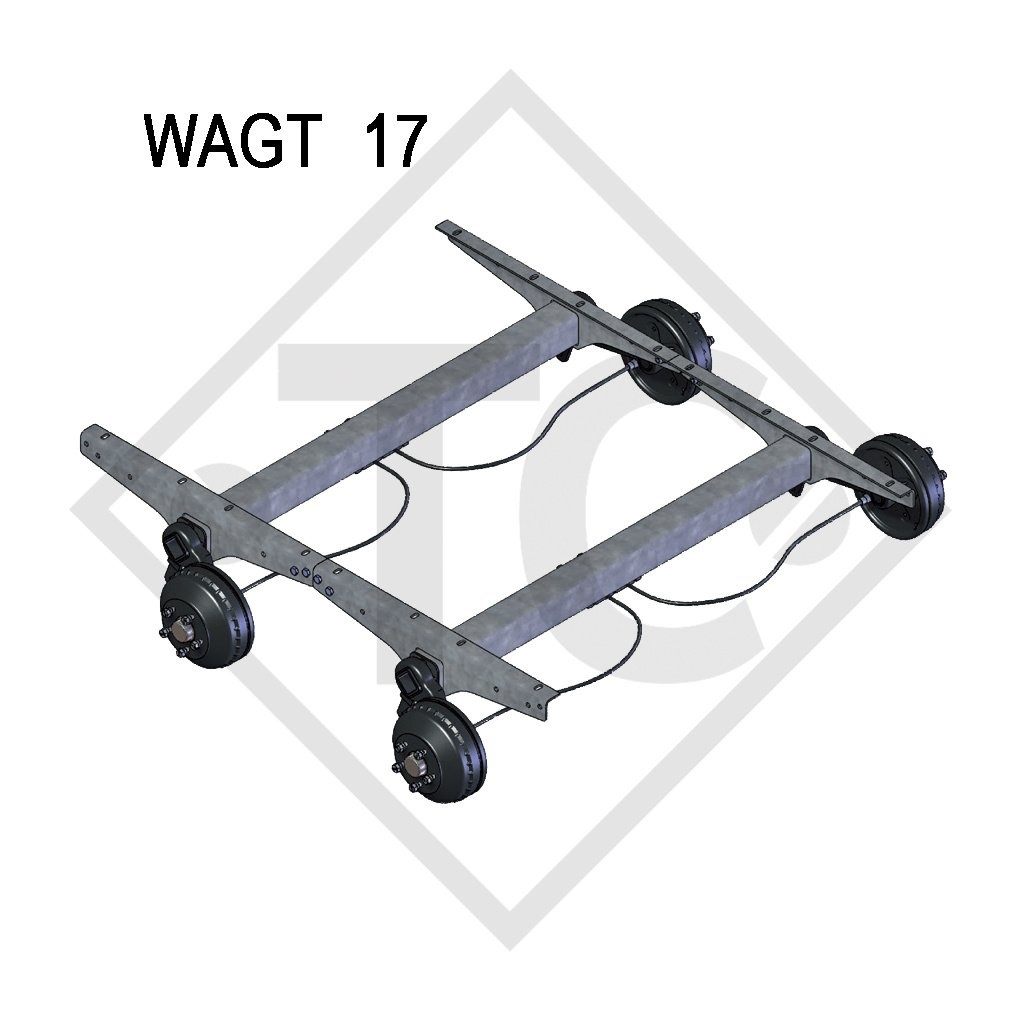

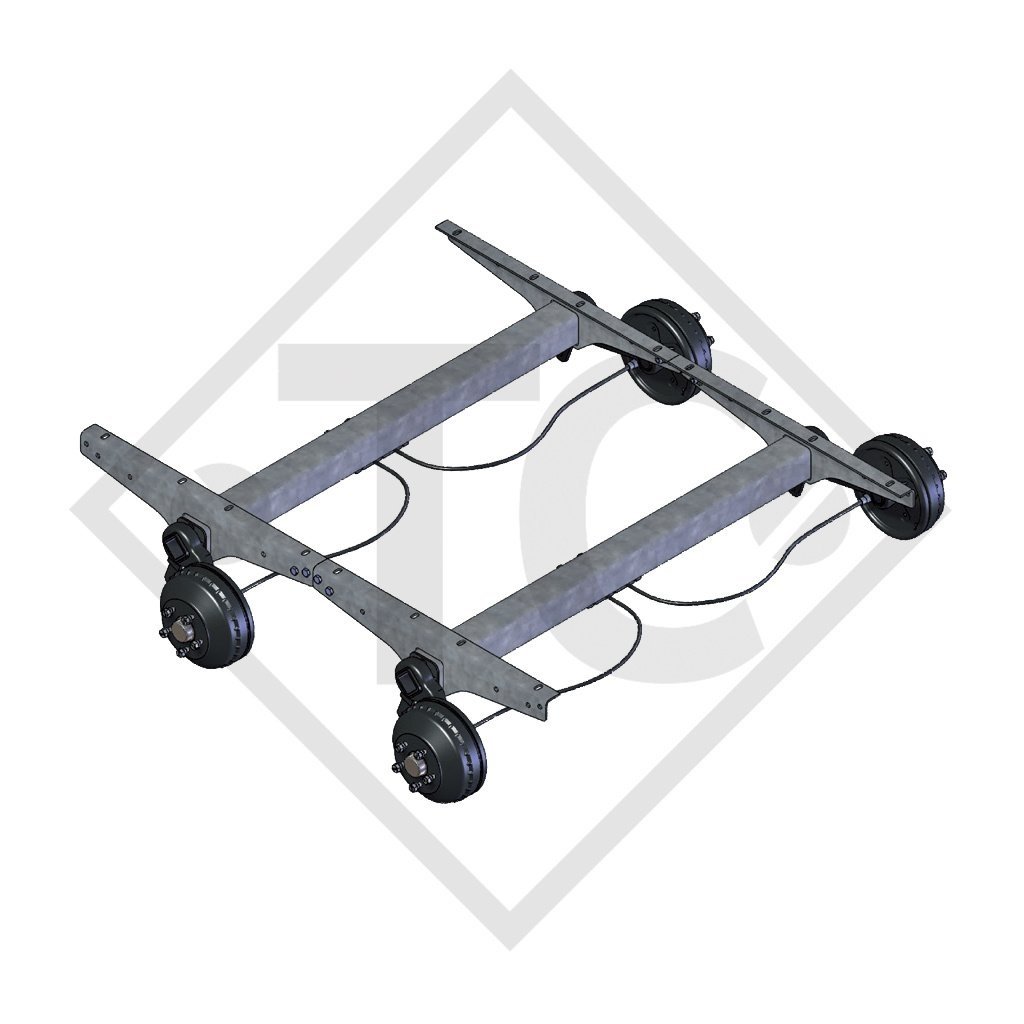

Model: WAGT-B
Axle type: WAGT 17
Axle load: 1700kg
Suspension: Square rubber suspension

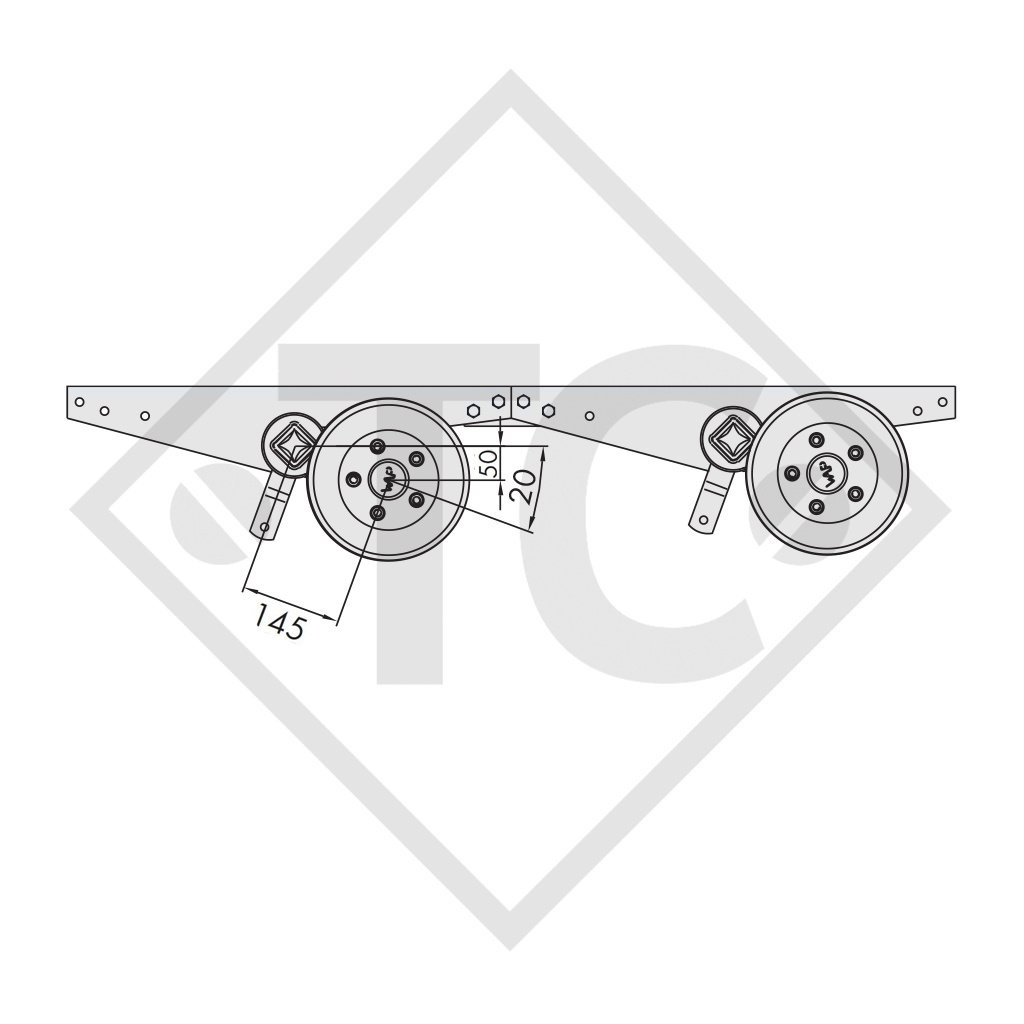

Swing arm length SH: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
