AL-KO Braked tandem axle unit 2000kg BASIC axle type 2xB 850-10

Part no. 249583
Axle type: 2xB 850
Axle load tandem: 1600kg

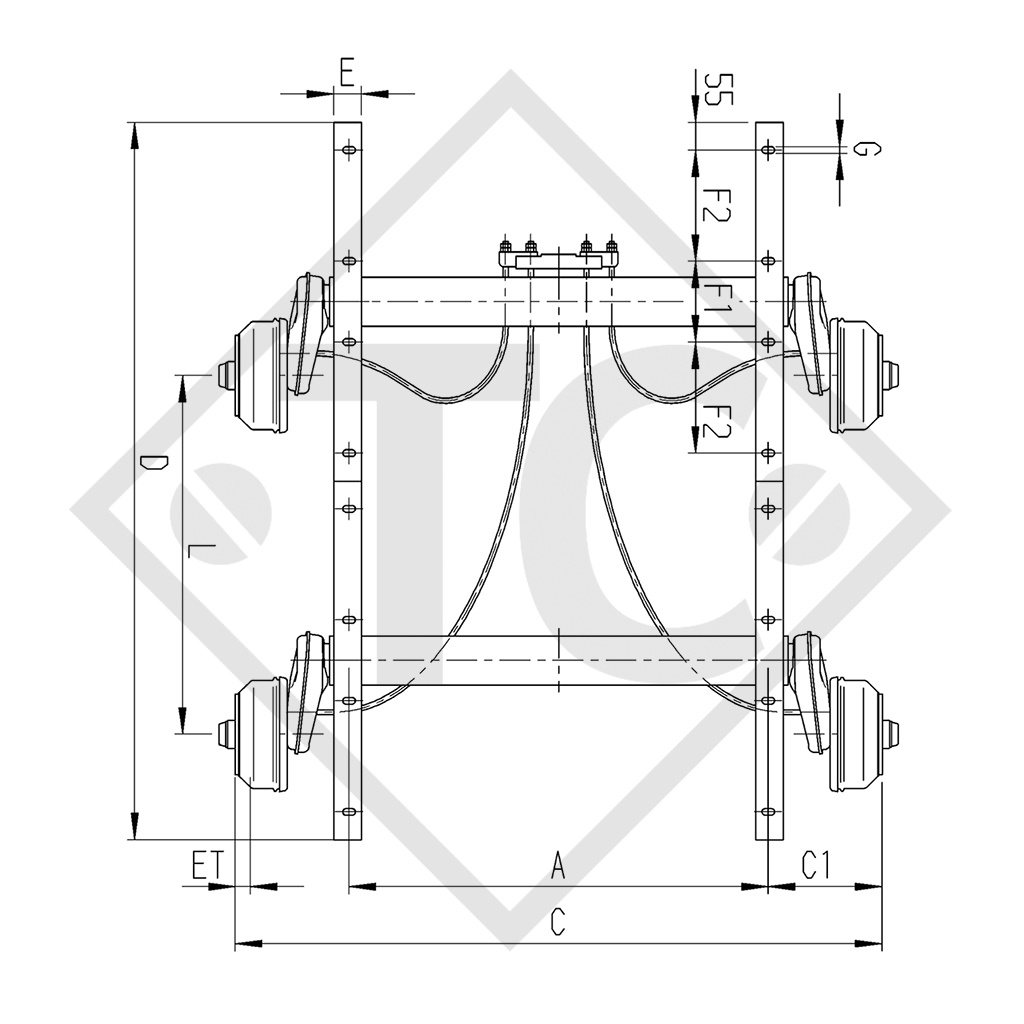

Axle dimensions
BC dimension A: 1600mm
OHF dimension C: 2030mm
Axle beam Ø: 80mm

Rims and tyres
Wheel brake: 2051A
Wheel connection: 100x4
Wheel bolt: M12x1.5 taper
Offset (ET) from to: 27-45mm
Recommended rims: 4.50Jx13 (not included in scope of delivery)
Recommended tyres: 165R13 (not included in scope of delivery)

Clamping mount
Variant no.: 1
Dimension D: 1420mm
Dimension E: 55mm
Dimension F1: 160mm
Dimension F2: 220mm
Dimension G: 13mm

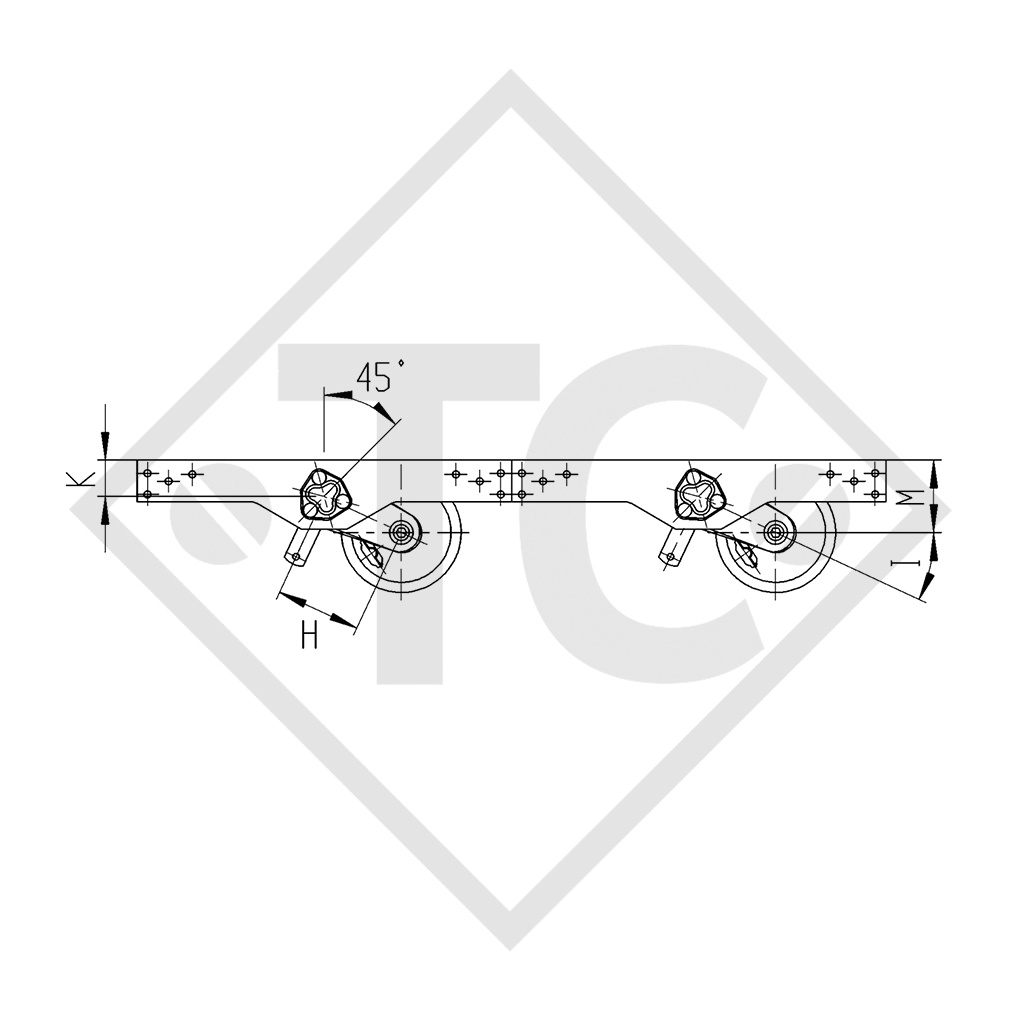

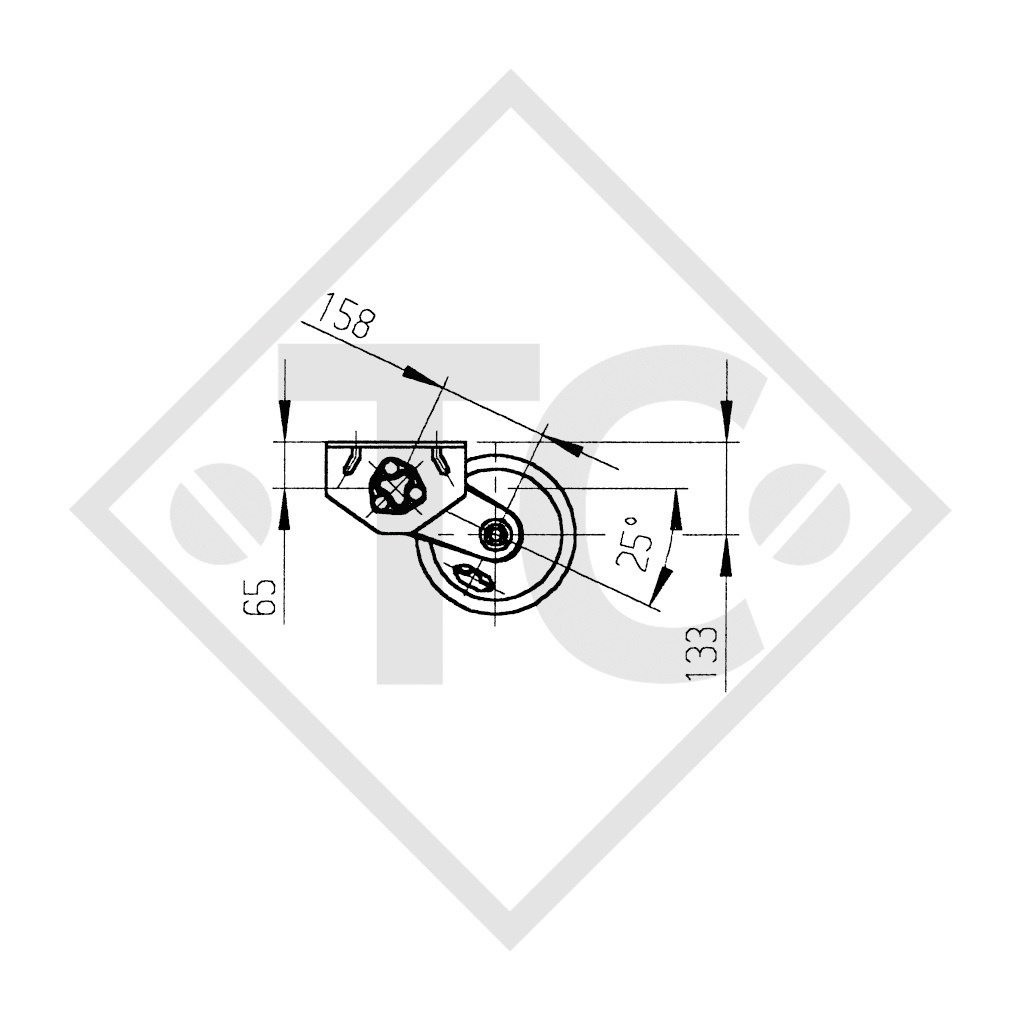

Swing arm
Dimension H: 158mm
Dimension I Standard (Swing arm position): 25°
Dimension K: 65mm
Dimension L (axle distance): 710mm
Dimension M at 25°: 133mm

Original operating instructions

SCOPE OF DELIVERY

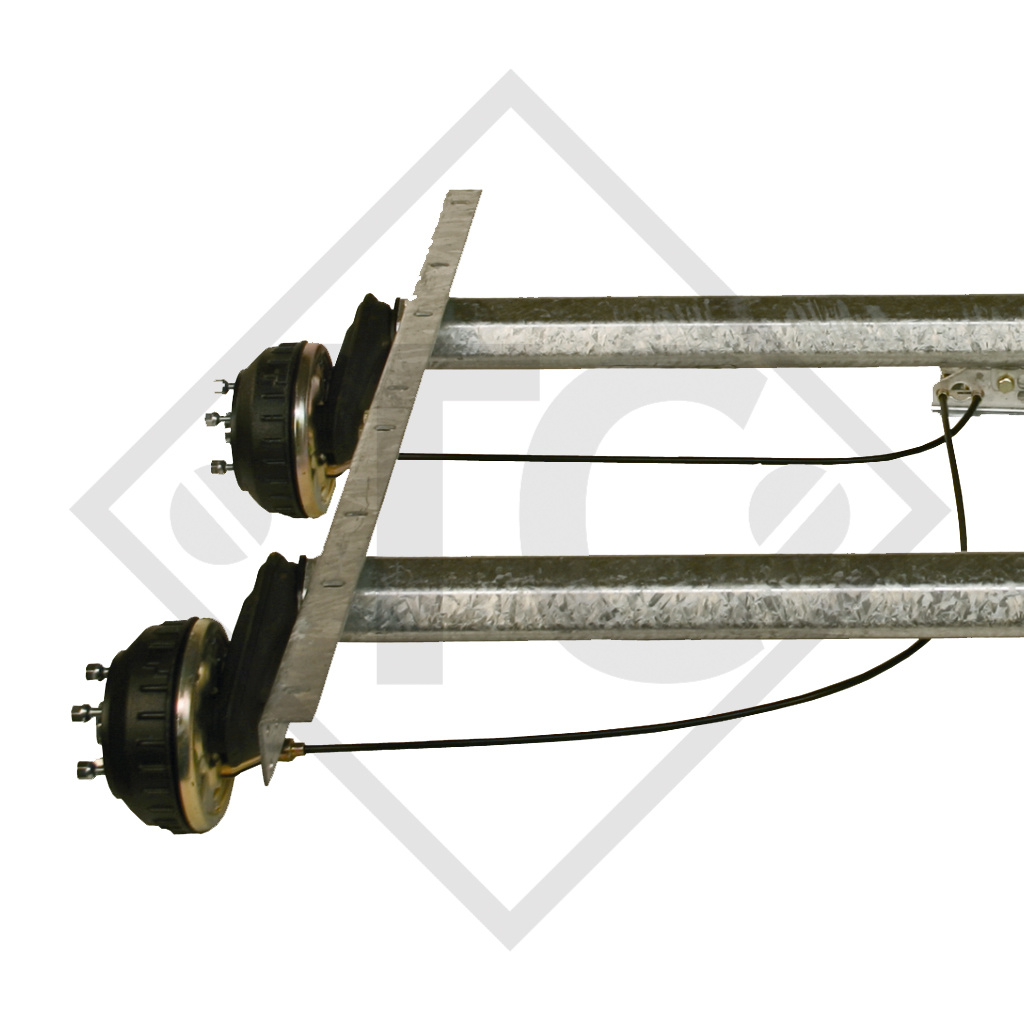

Tandem axle unit braked
Single axle trailer adapter bracket welded on
Tandem plug-on adapter bracket loose
Tandem compensation loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
