BC: dimension A 430mm, OHF: dimension C 660mm, wheel connection 205x6, wheel brake type 3062, offset (ET) 0mm, swing arm position 25°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...
Part no. 1701129

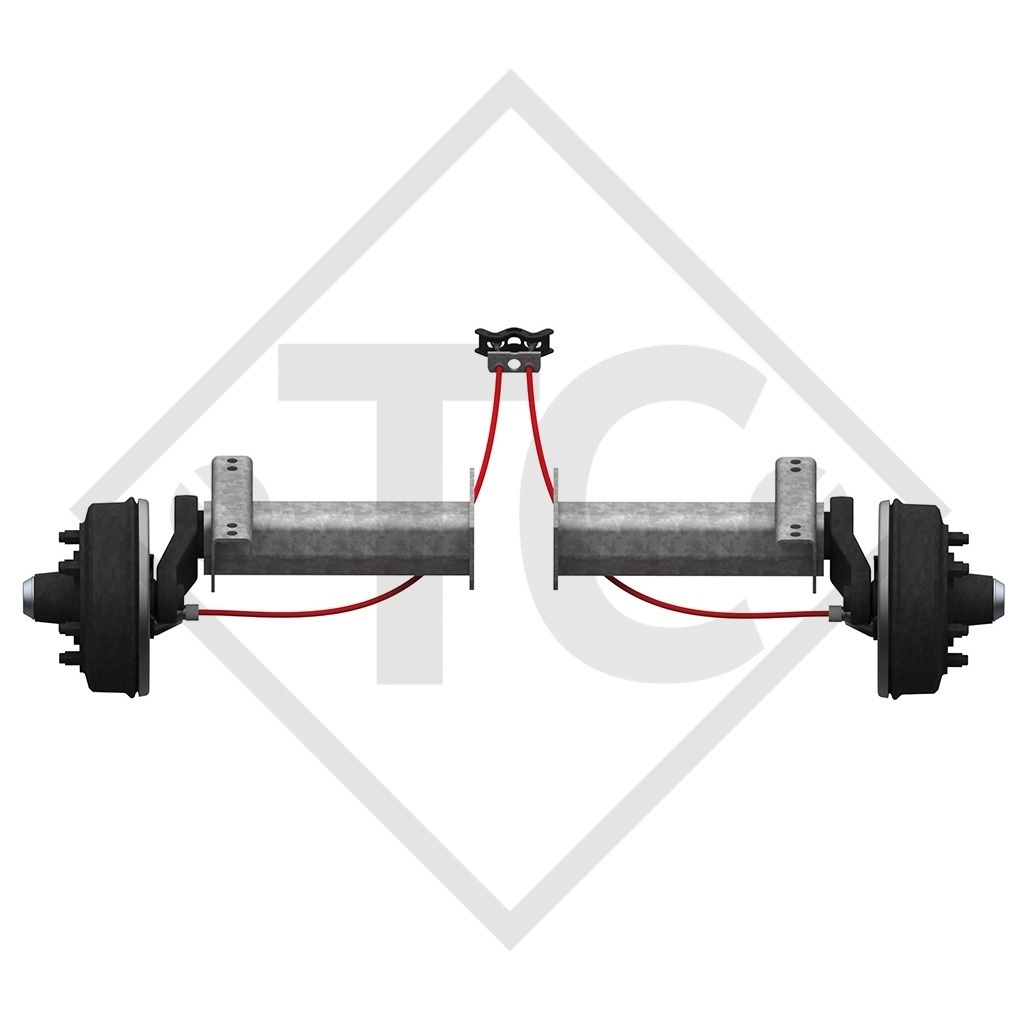

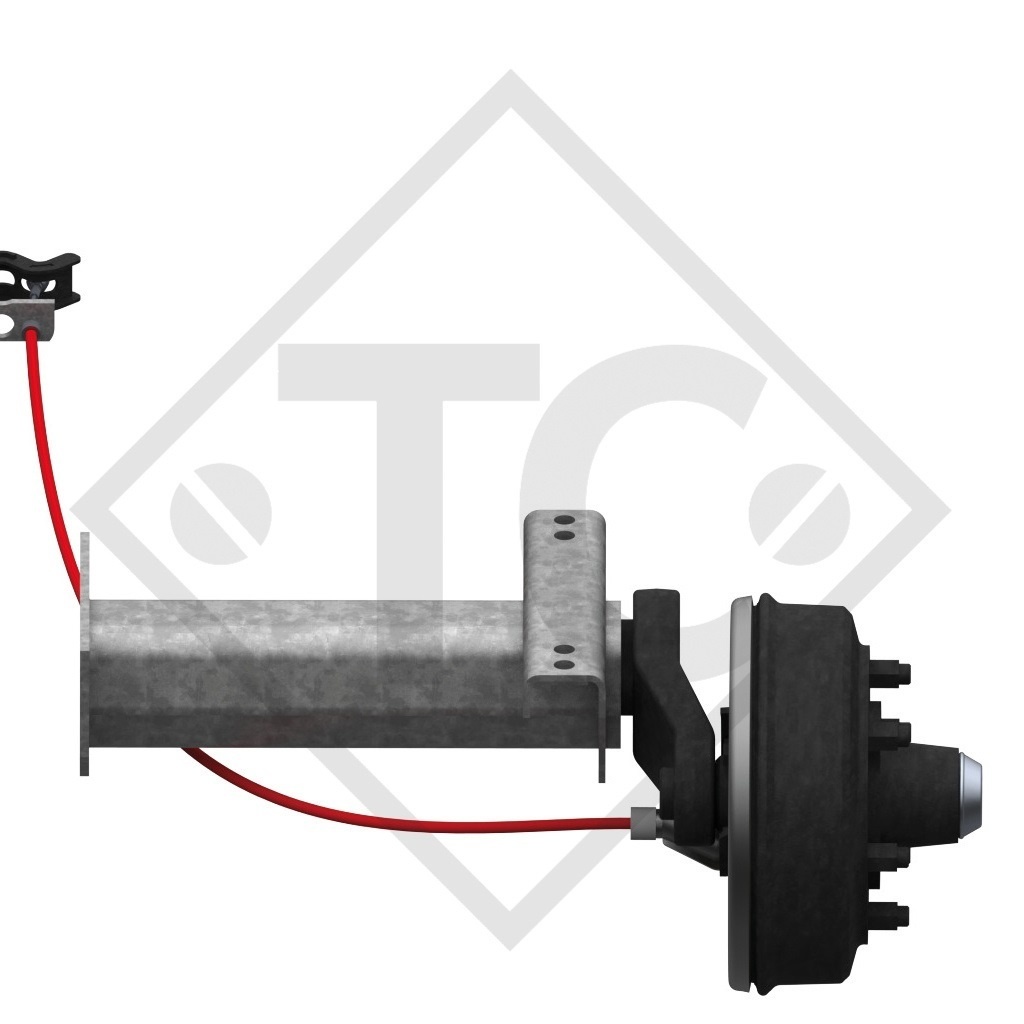

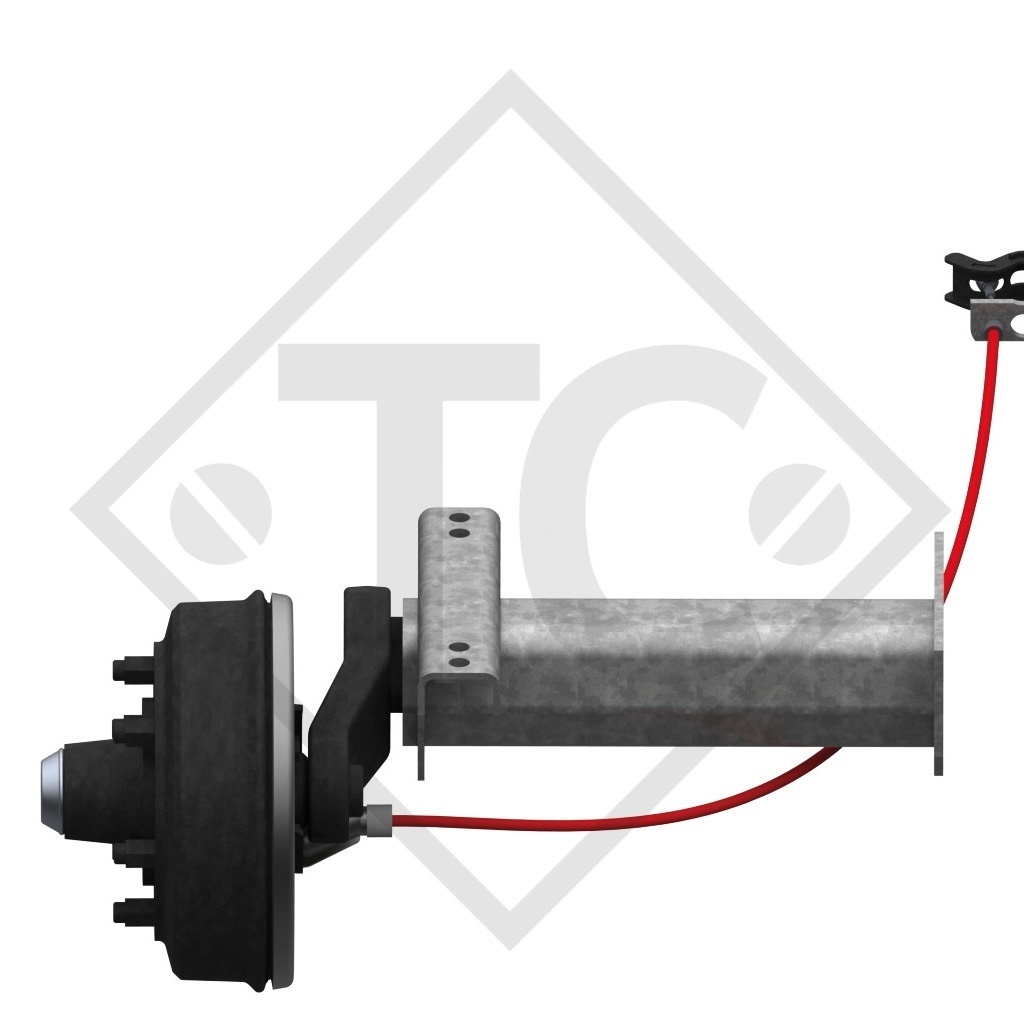

| Braked half axles |
| Axle load per pair |
3000kg |
| Type | B 2500-8 |
| Wheel brake |
3062 |
| Wheel connection |
205x6 |

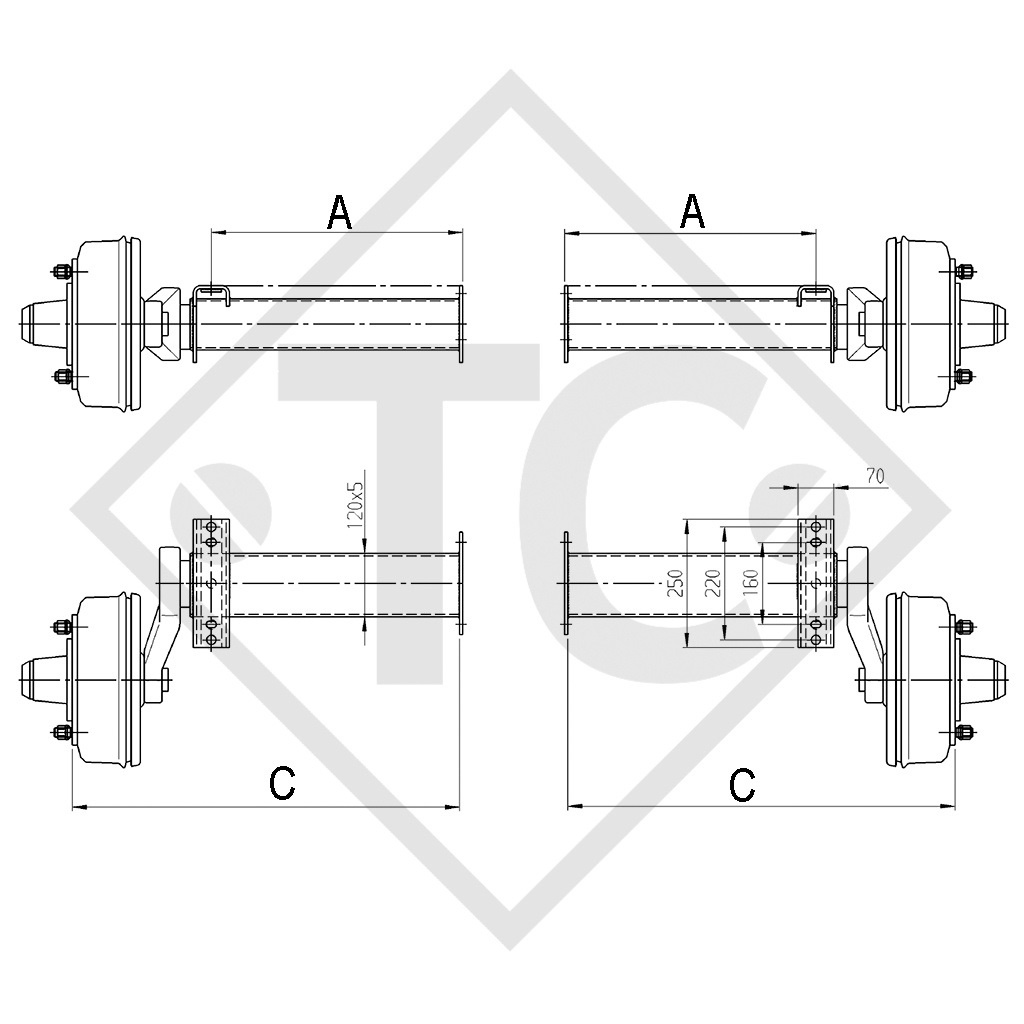

| BC: dimension A | 430mm |
| OHF: dimension C | 690mm |
| Offset: ET |
0mm |
Original operating instructions
Replacement part identification number (ETI) 811401
SCOPE OF DELIVERY
Half axles
Wheel bolts loose
Single axle trailer compensation profile loose
Without bowden cables loose
Without adapter bracket single axle loose 375175
SURFACE TREATMENT
Hot-dip galvanised axle profile
