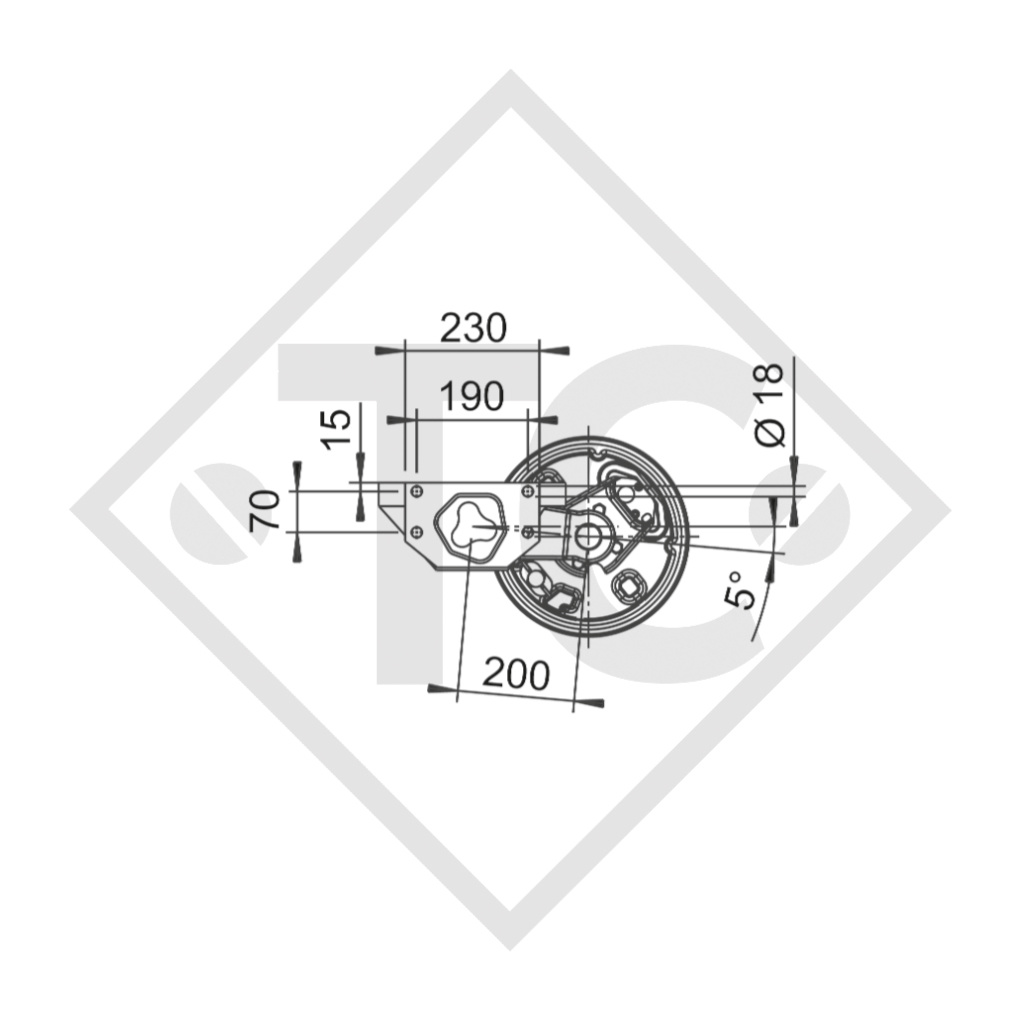

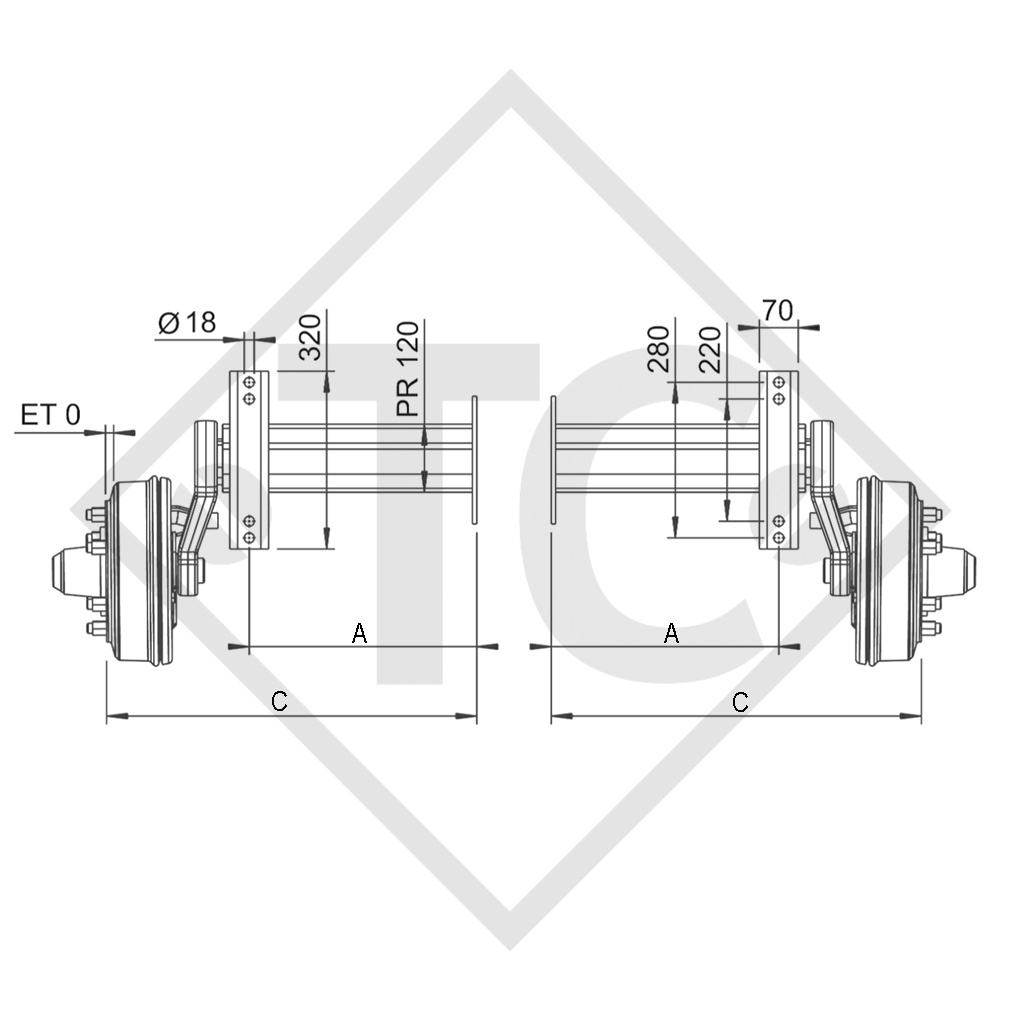

BC: dimension A 410mm, OHF: dimension C 668mm, wheel connection 205x6, wheel brake type 3062, offset (ET) 0mm, swing arm position 5°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...

Wishlist: Add to comparison:

Part no. 1227681

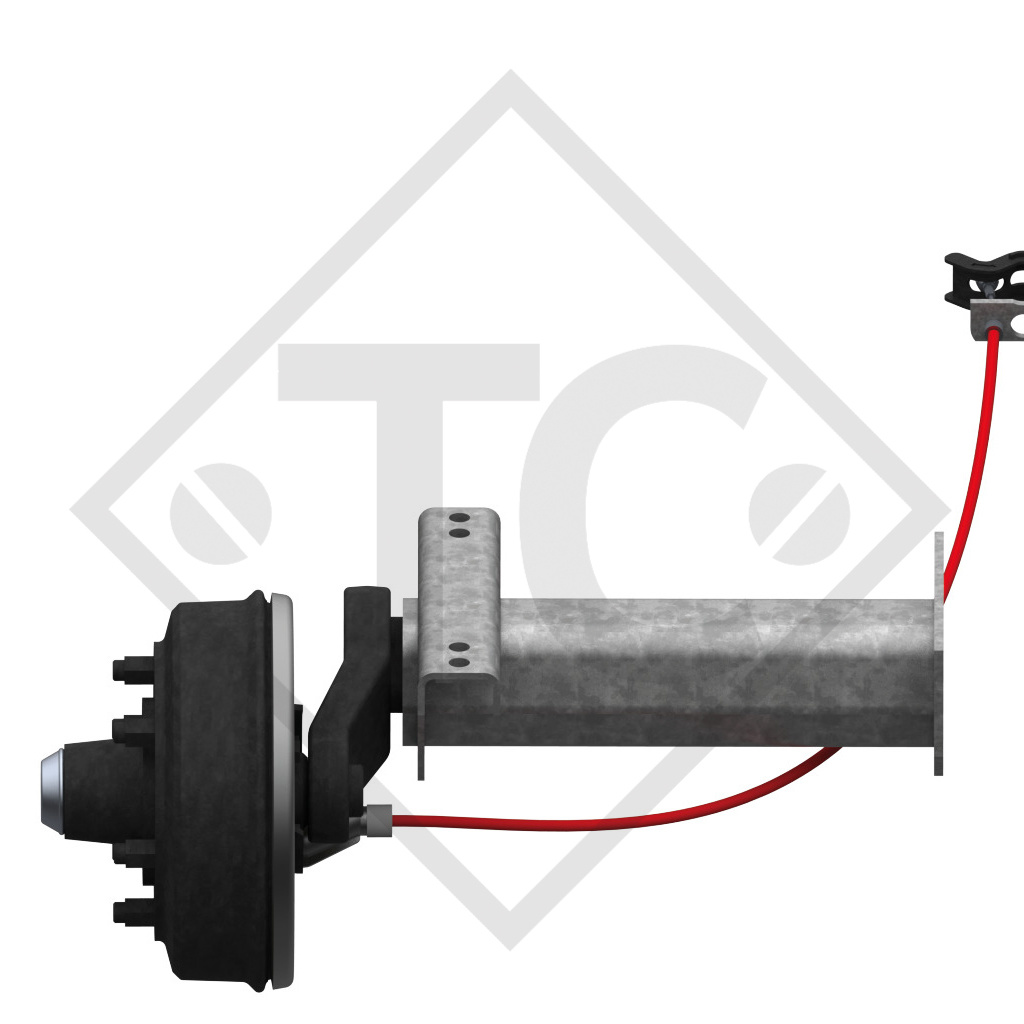

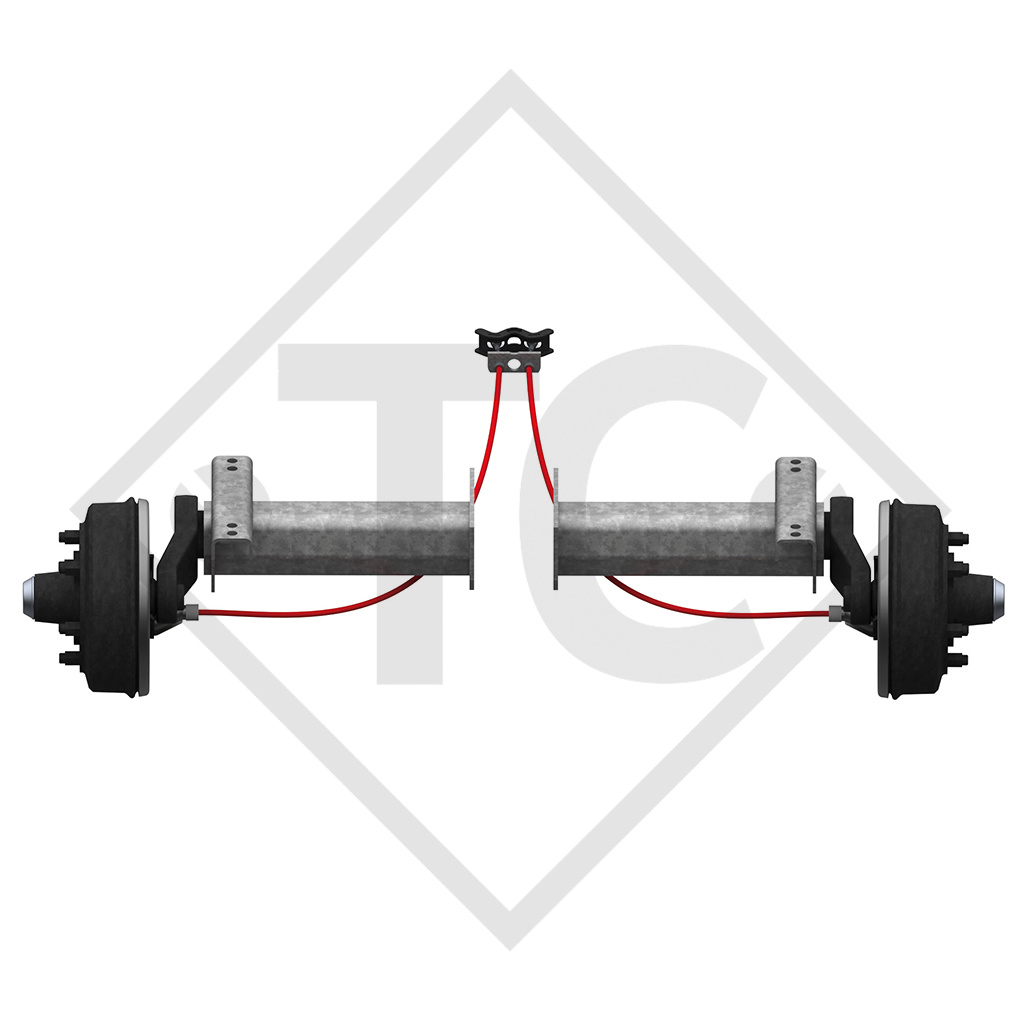

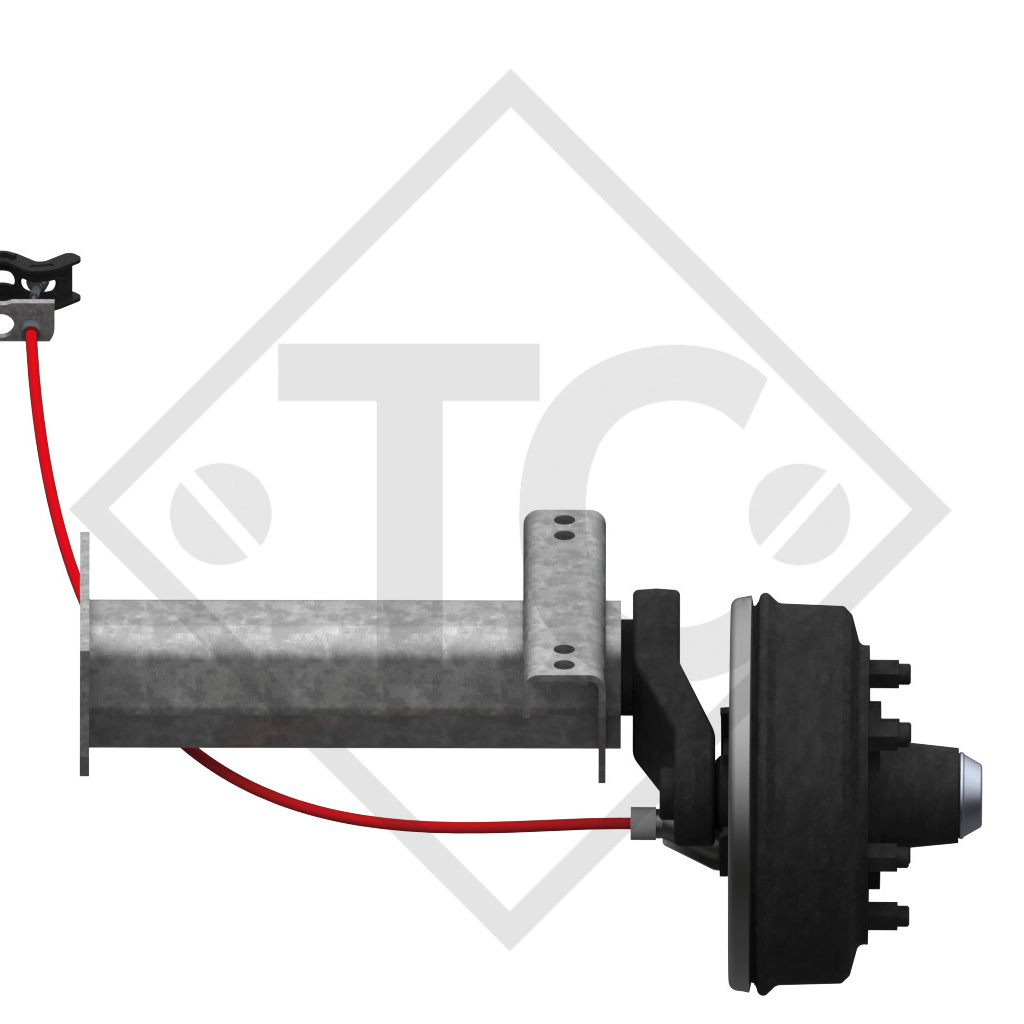

Braked half axles
Axle load per pair
2500kg
Type B 2500-8
Wheel brake
3062
Wheel connection
205x6
BC: dimension A 410mm
OHF: dimension C 668mm
Offset: ET
0mm



SPARE PART LIST 811401

SCOPE OF DELIVERY
Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Hot-dip galvanised axle profile
