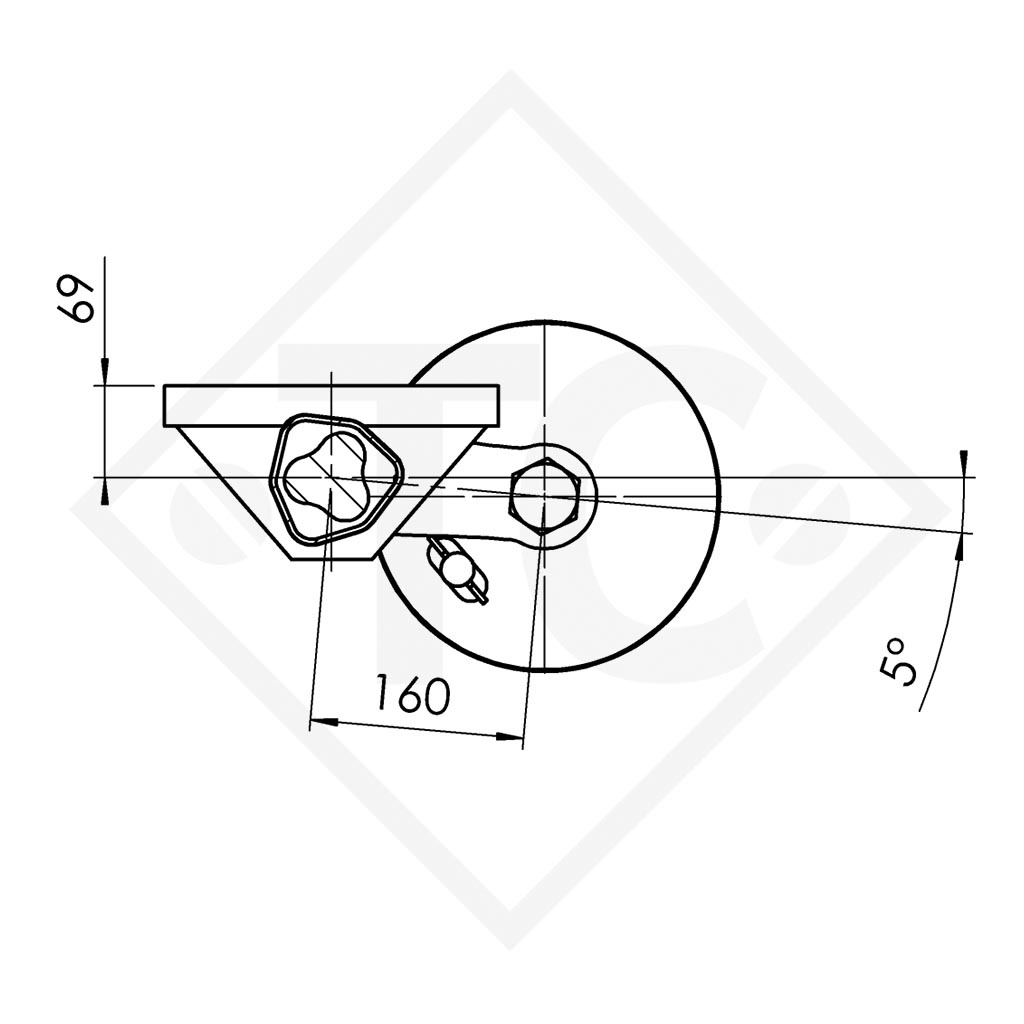

BC: dimension A 490mm, OHF: dimension C 730mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, wheel bolts M12x1.5. Read more...

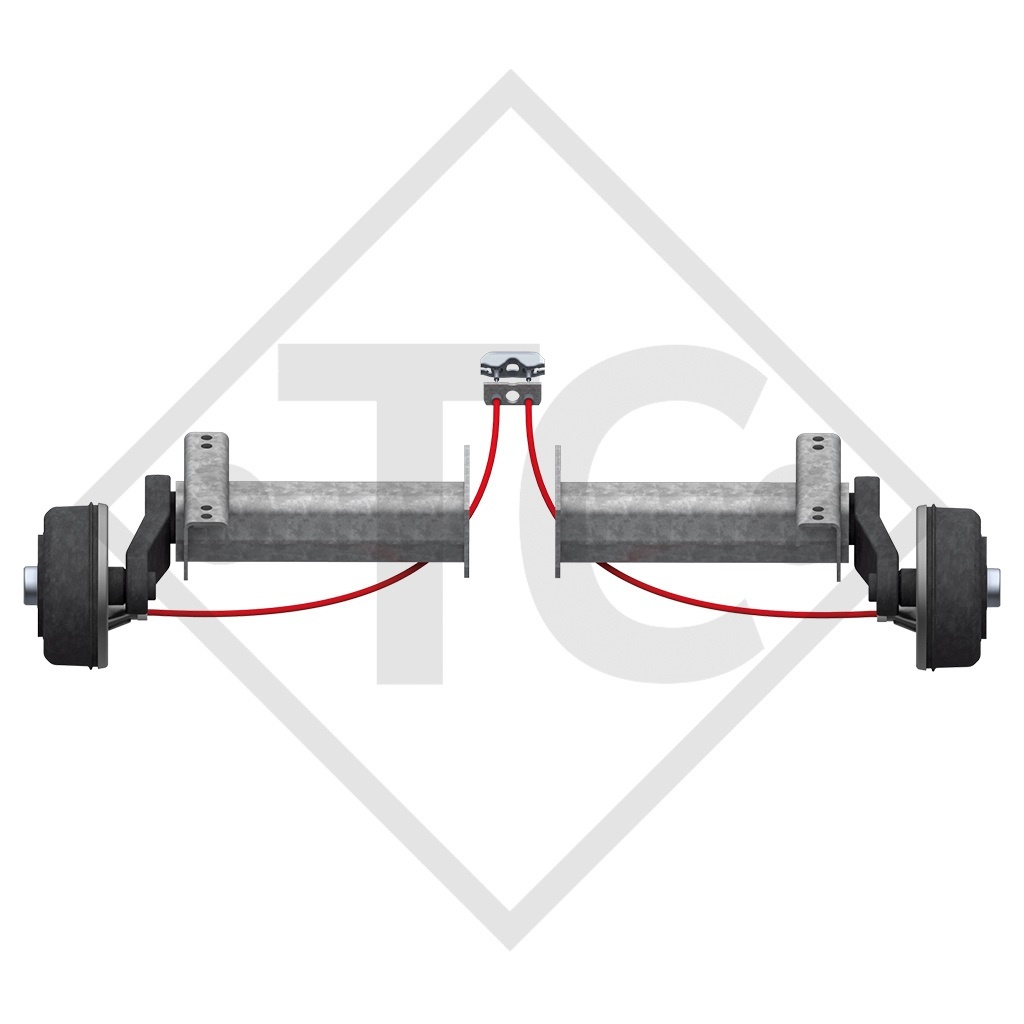

Part no. 1706262 (242204C)
Braked half axles |
Axle load per pair |
1600kg |
Type | B 1600-1 |
Wheel brake |
2361 |
Wheel connection |
112x5 |

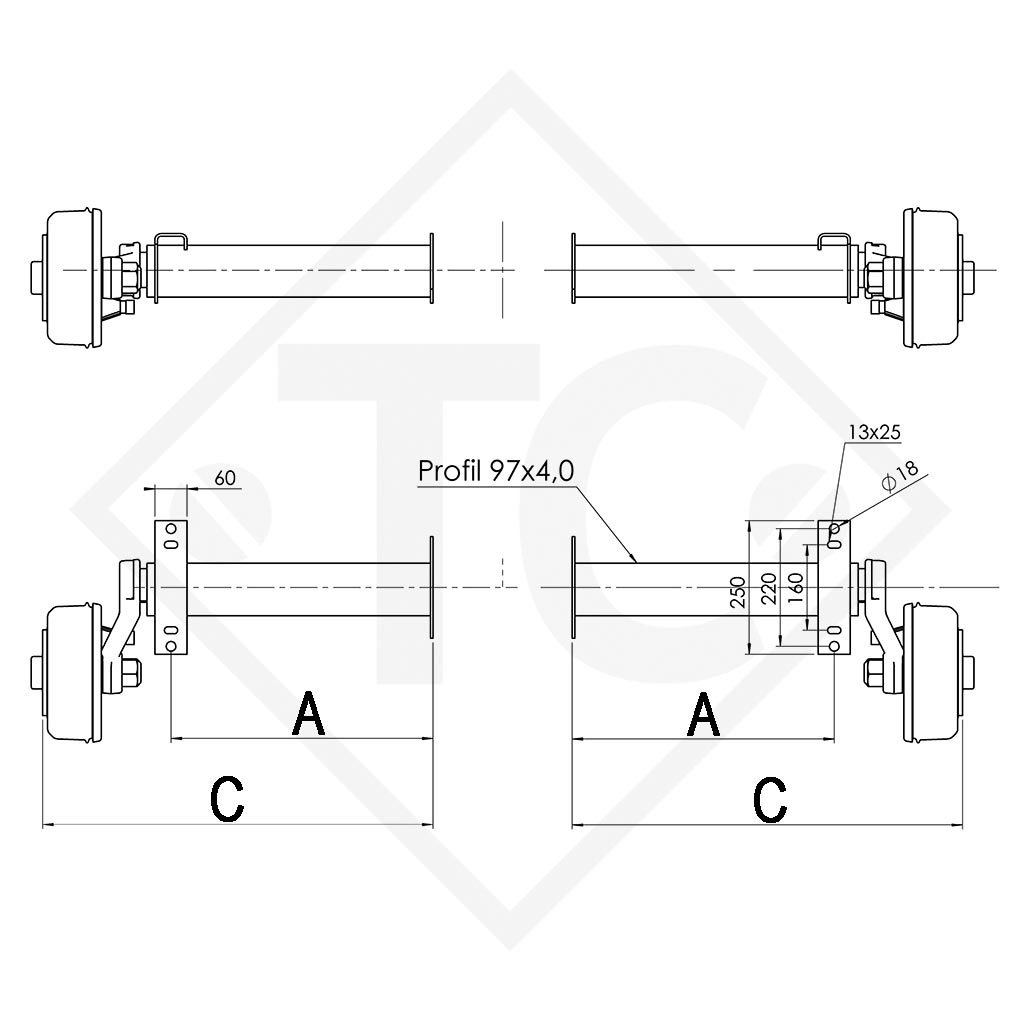

BC: dimension A | 490mm |
OHF: dimension C | 730mm |
Offset: ET |
30mm |
Original operating instructions
Replacement part identification number (ETI) OLD 812028
SCOPE OF DELIVERY

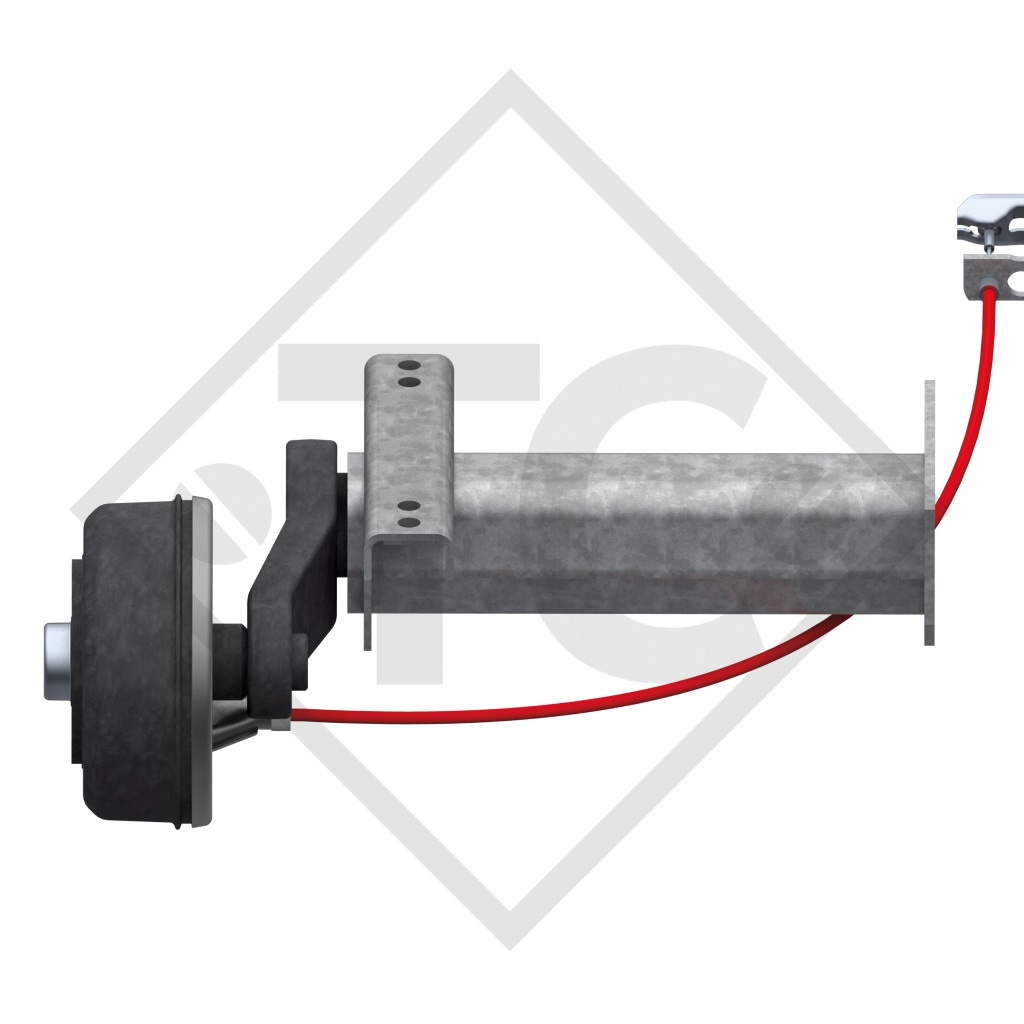

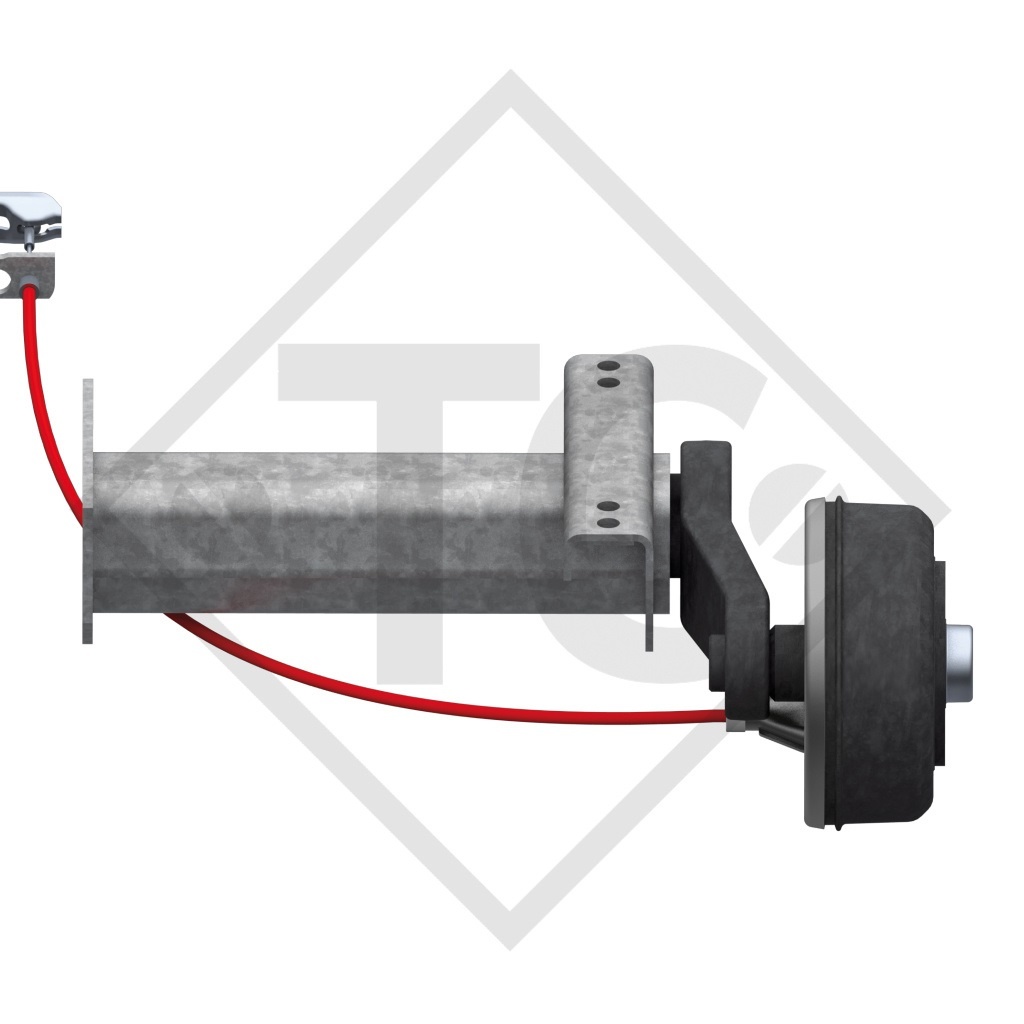

Half axles

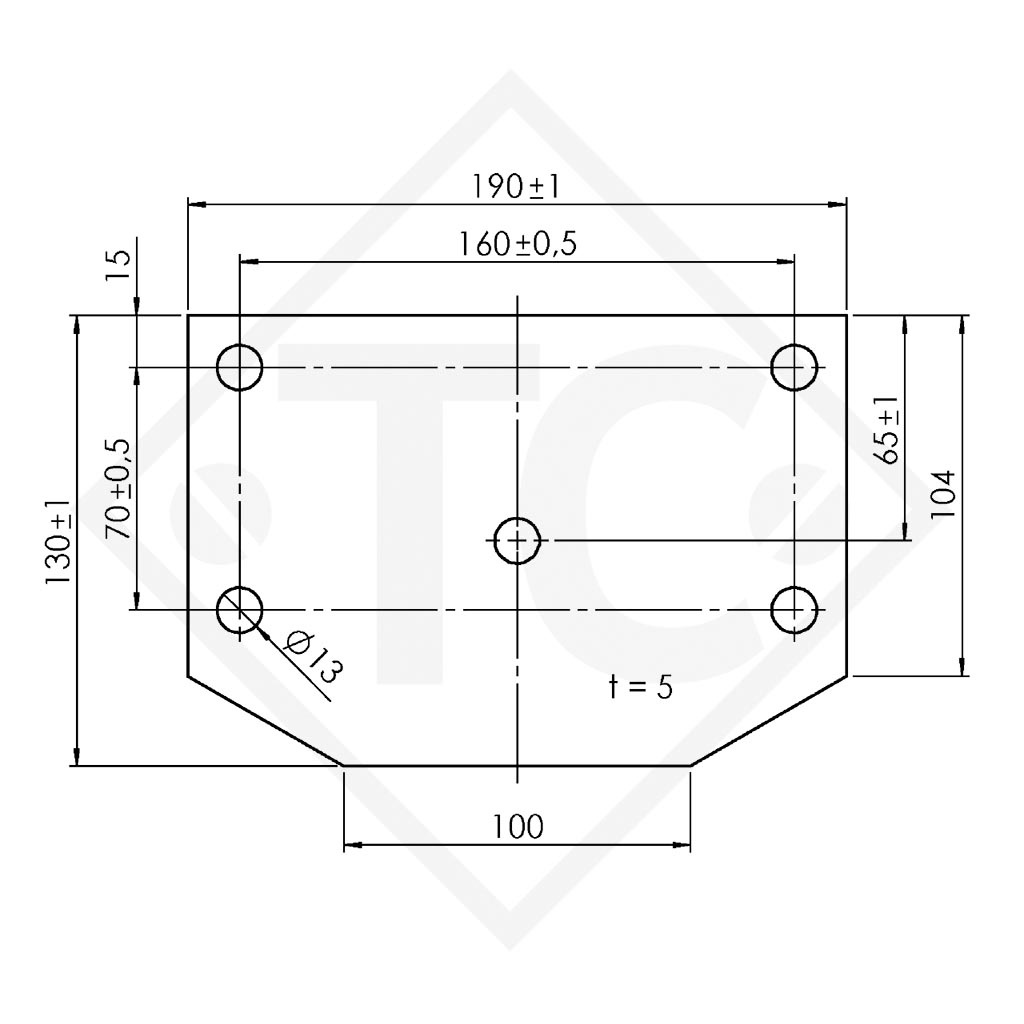

Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts M12x1.5 loose
SURFACE TREATMENT
Raw to weld axle profile
