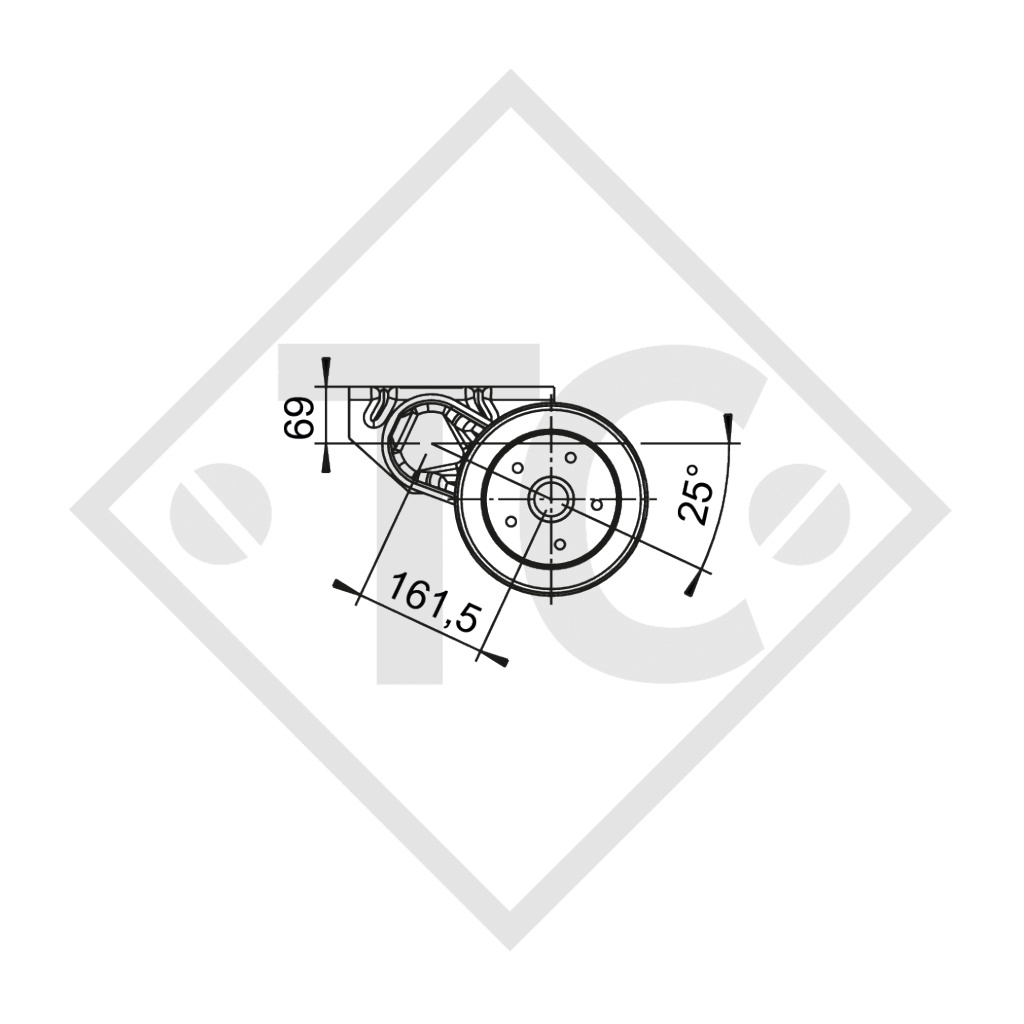

BC: dimension A 420mm, OHF: dimension C 645mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1226706
| Braked half axles |
| Axle load per pair |
1500kg |
| Type | B1200-5 |
| Wheel brake |
2051 vers. A |
| Wheel connection |
112x5 |
| BC: dimension A | 420mm |
| OHF: dimension C | 645mm |
| Offset: ET |
30mm |
SPARE PART LIST 811952

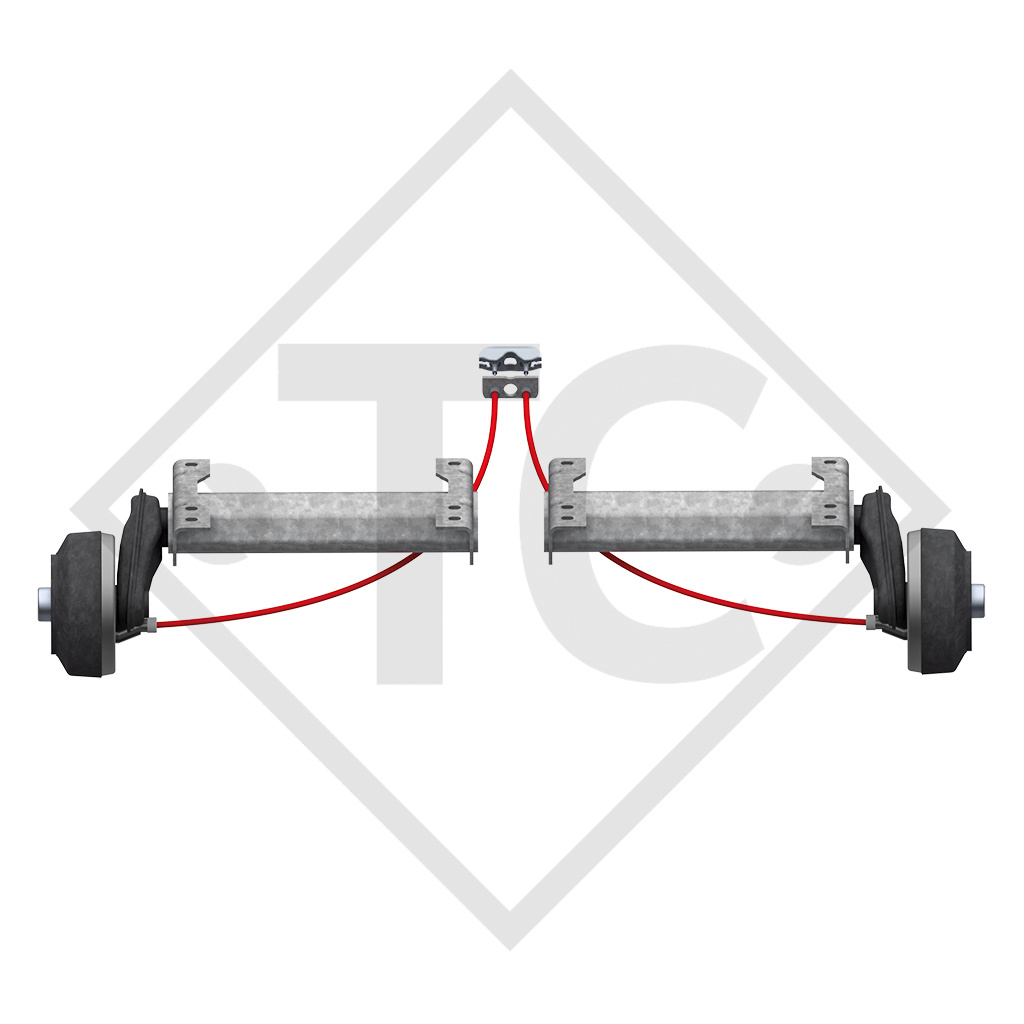

SCOPE OF DELIVERY
Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Hot-dip galvanised axle profile
