Braked half axles 1500kg axle type B 1600-3 (pair)

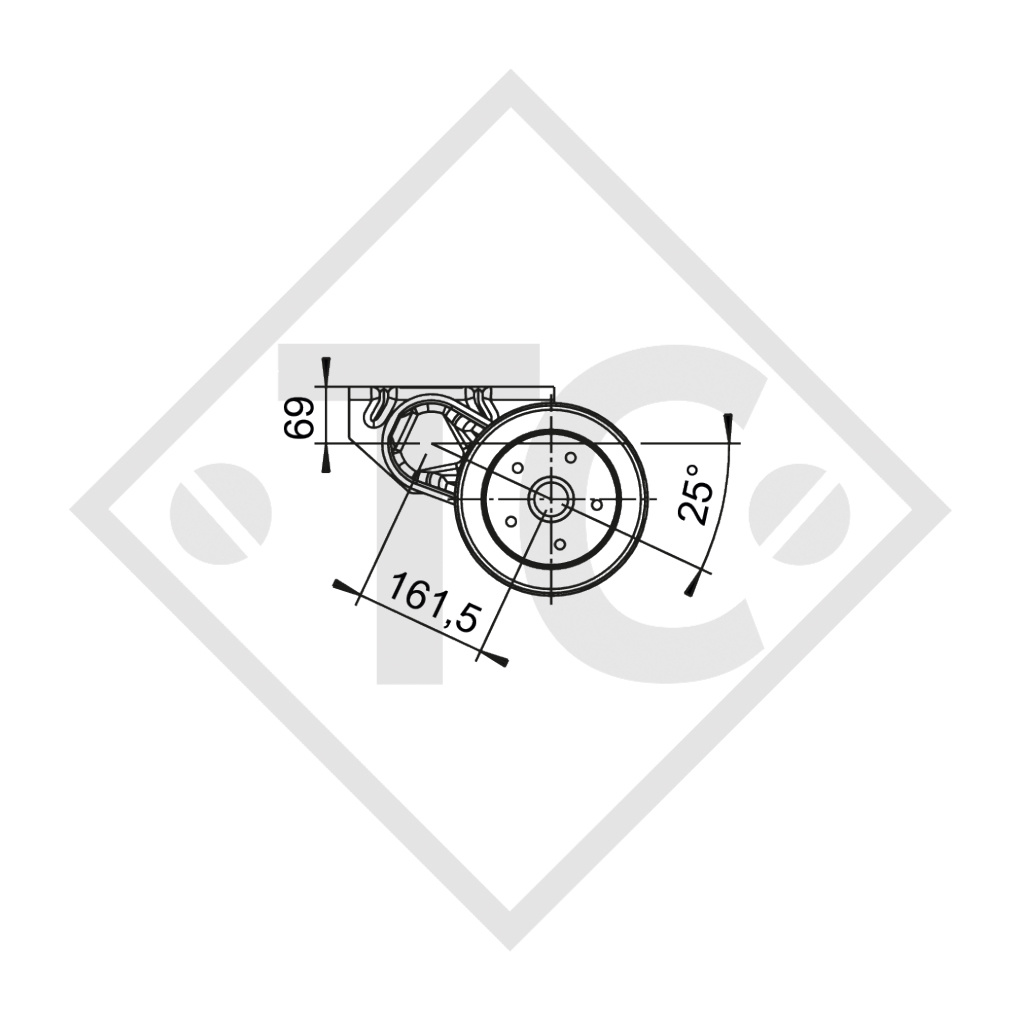

BC: dimension A 420mm, OHF: dimension C 645mm, wheel connection 112x5, wheel brake type 2051 vers. Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 799,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1226170

Braked half axles

Axle load per pair

1500kg

Type

B1600-3

Wheel brake

2051 vers. Ab

Wheel connection

112x5

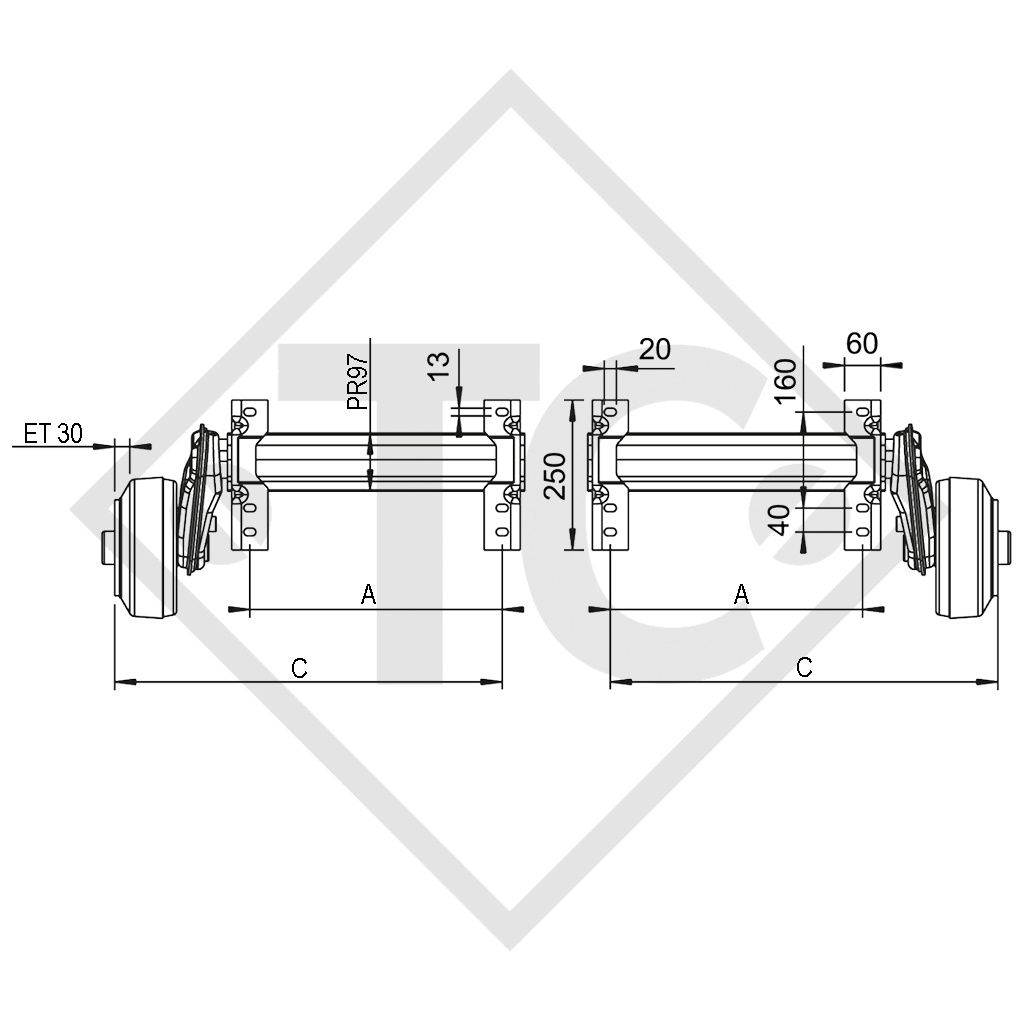

BC: dimension A

420mm

OHF: dimension C

645mm

Offset: ET

30mm

Replacement part identification number (ETI) OLD 811158
Replacement part identification number (ETI) NEW 811938

SCOPE OF DELIVERY

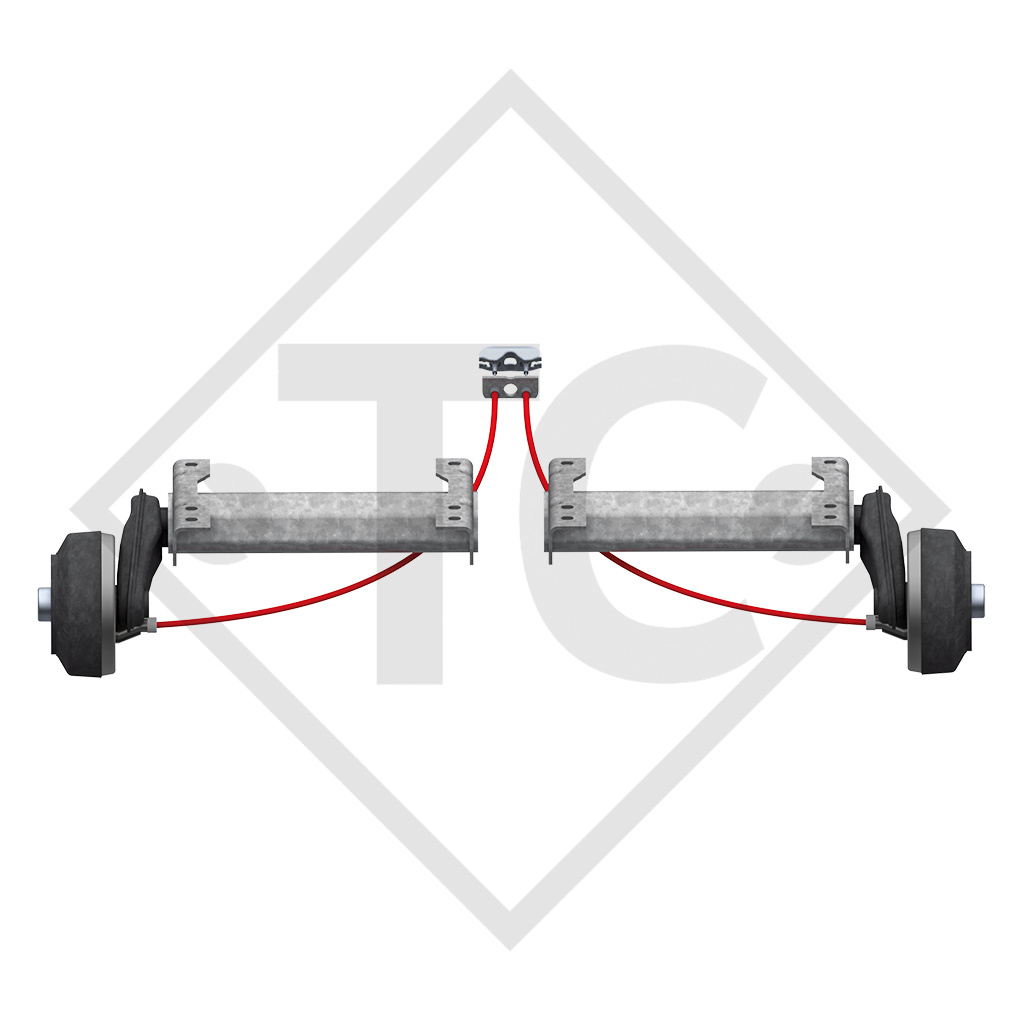

Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Hot-dip galvanised axle profile

AL-KO Braked half axles 1500kg axle type B 1600-3 (pair)

Product description
