BC: dimension A 500mm, OHF: dimension C 758mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 20-33mm, swing arm position -5°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 663696

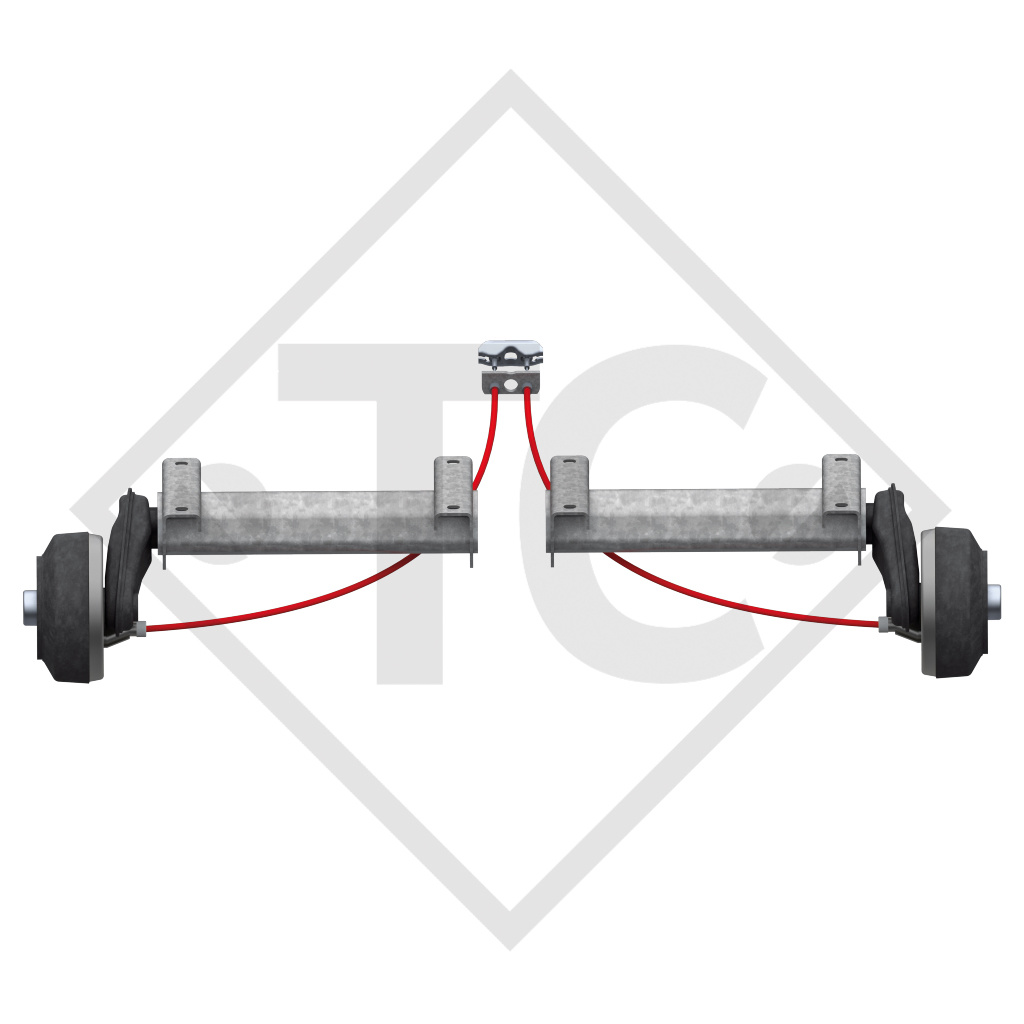

| Braked half axles |
| Axle load per pair |
1000kg |
| Type | B 850-10 |
| Wheel brake |
2051 vers. A |
| Wheel connection |
112x5 |
| BC: dimension A | 500mm |
| OHF: dimension C | 758mm |
| Offset: ET |
20-33mm |
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
SCOPE OF DELIVERY
Half axles with bake
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Hot-dip galvanised axle profile
