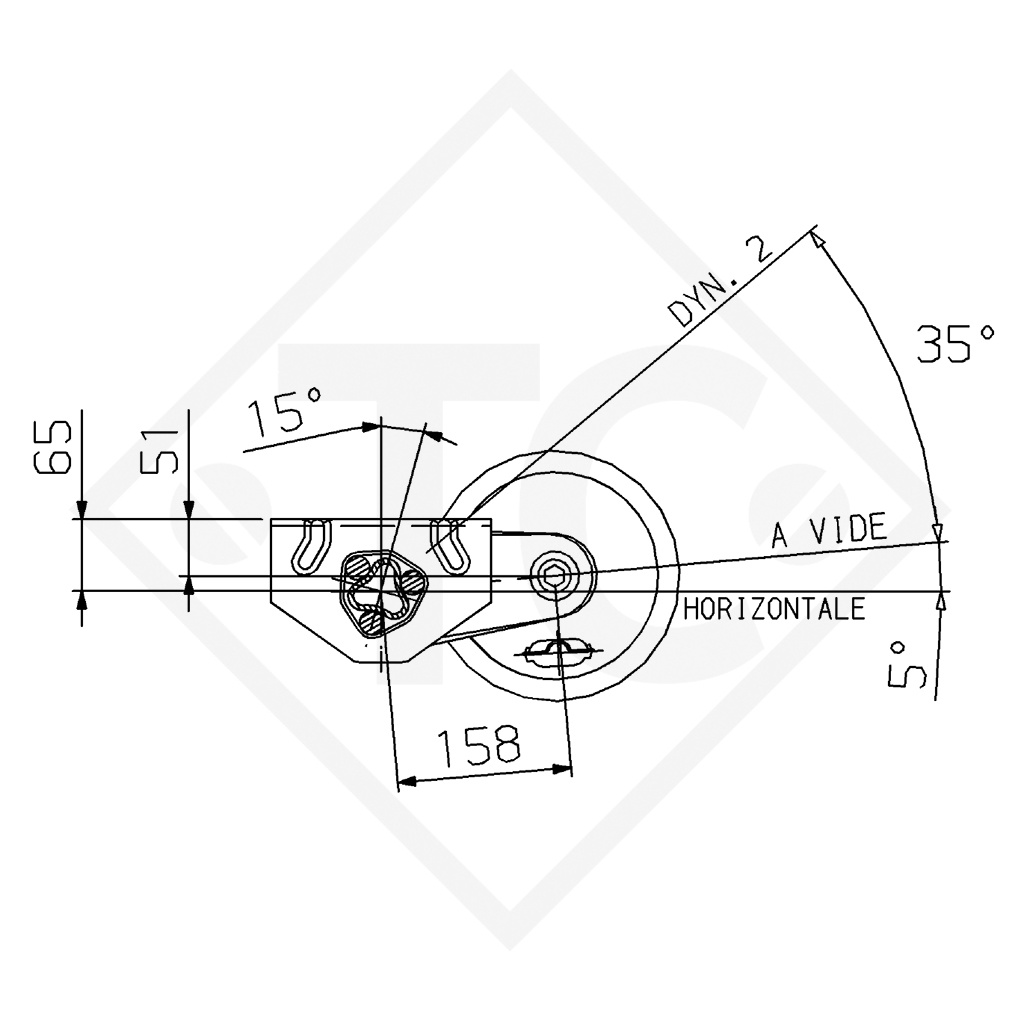

BC: dimension A 470mm, OHF: dimension C 735mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 20-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 86436

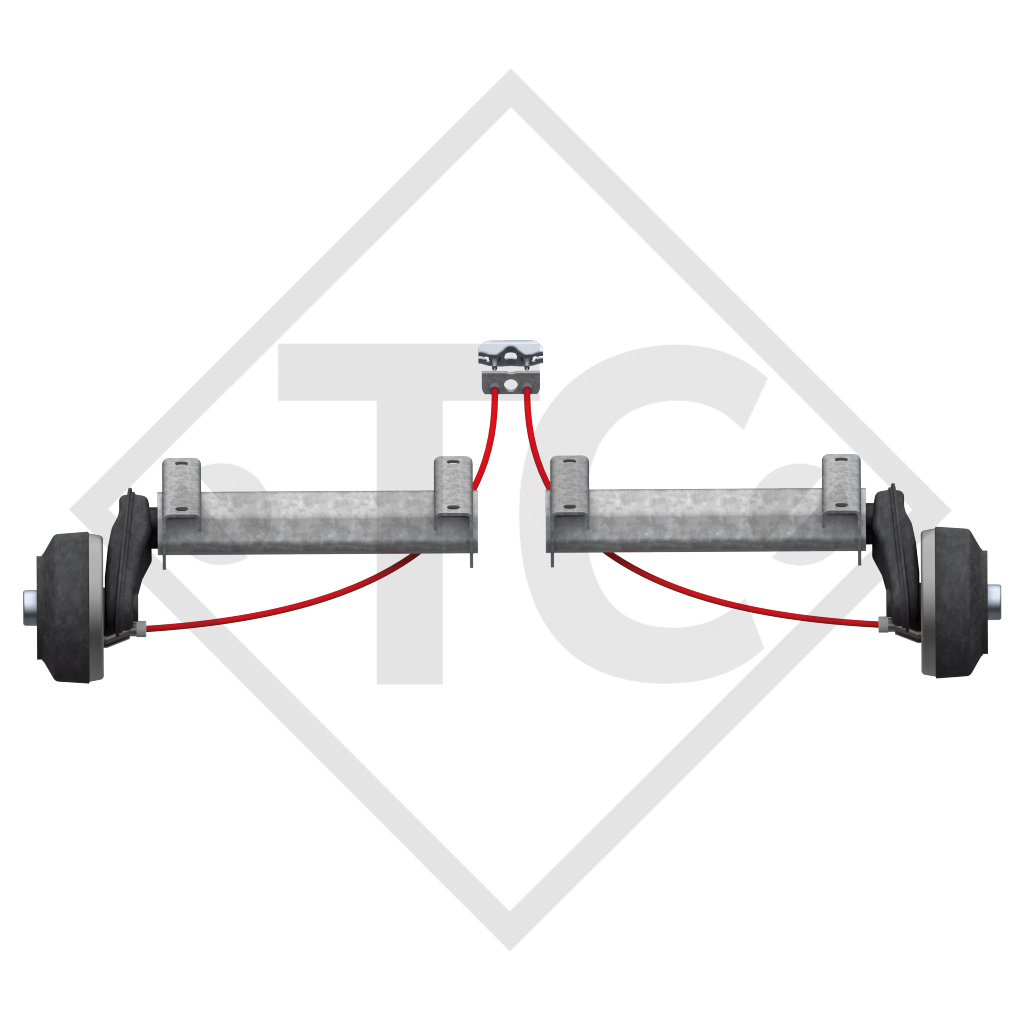

| Braked half axles |
| Axle load per pair |
1300kg |
| Type | B 1200-5 |
| Wheel brake |
2051 vers. A |
| Wheel connection |
100x4 |
| BC: dimension A | 470mm |
| OHF: dimension C | 735mm |
| Offset: ET |
20-33mm |
Original operating instructions
Replacement part identification number (ETI) OLD 811294
Replacement part identification number (ETI) NEW 811947
SCOPE OF DELIVERY

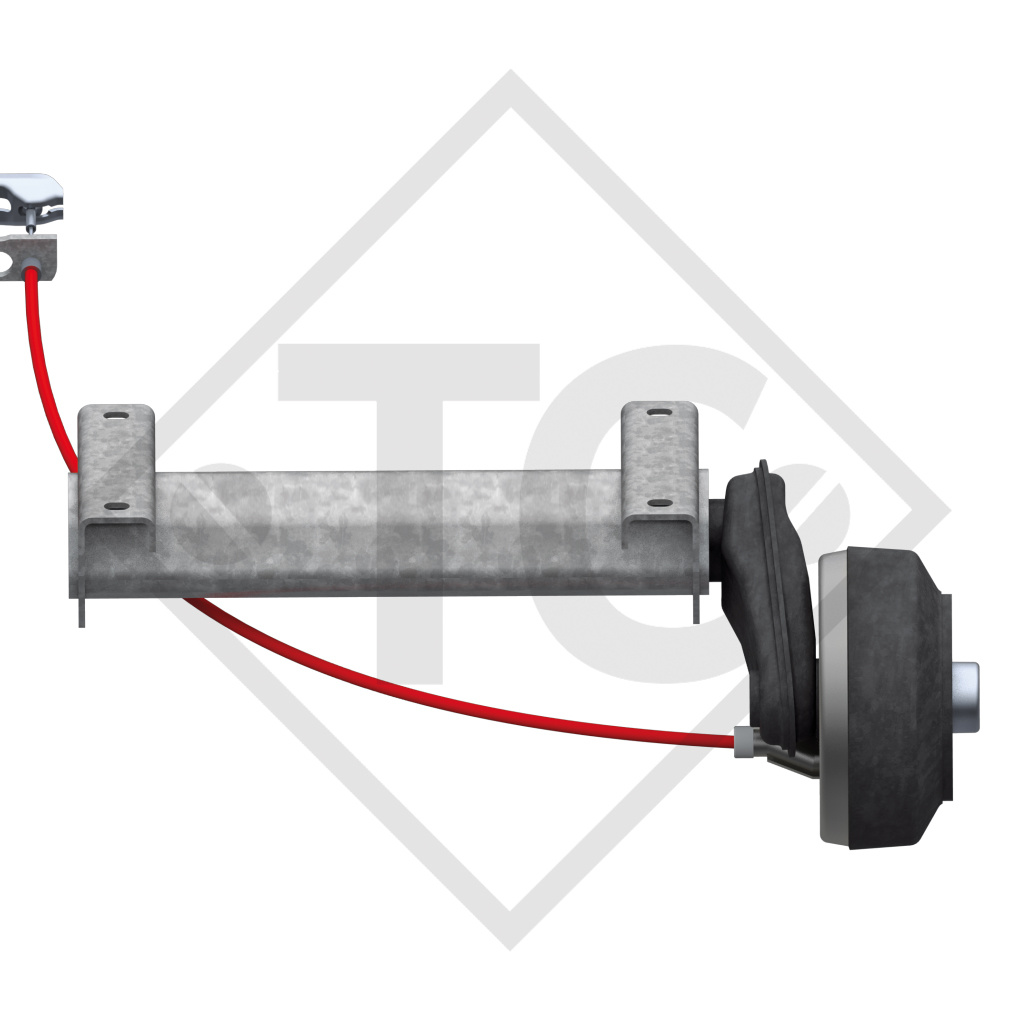

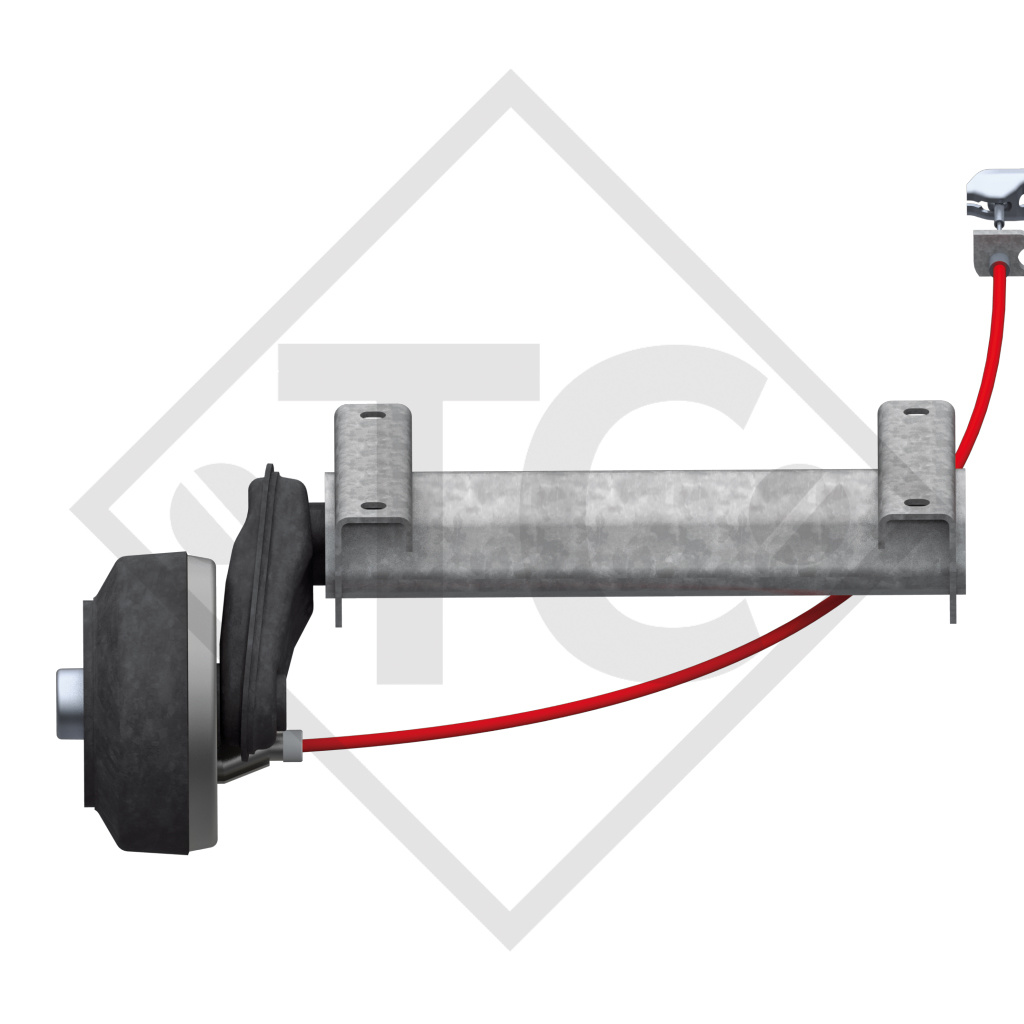

Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Hot-dip galvanised axle profile
