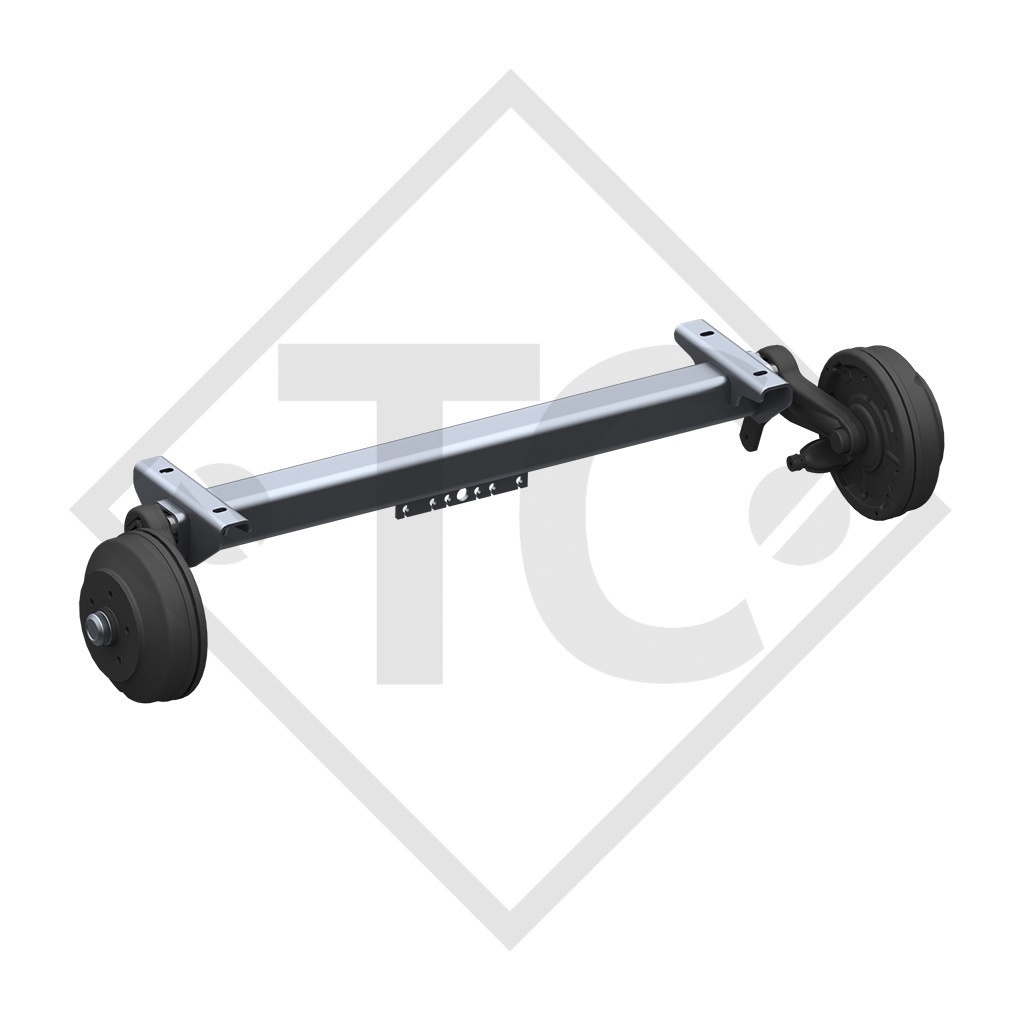

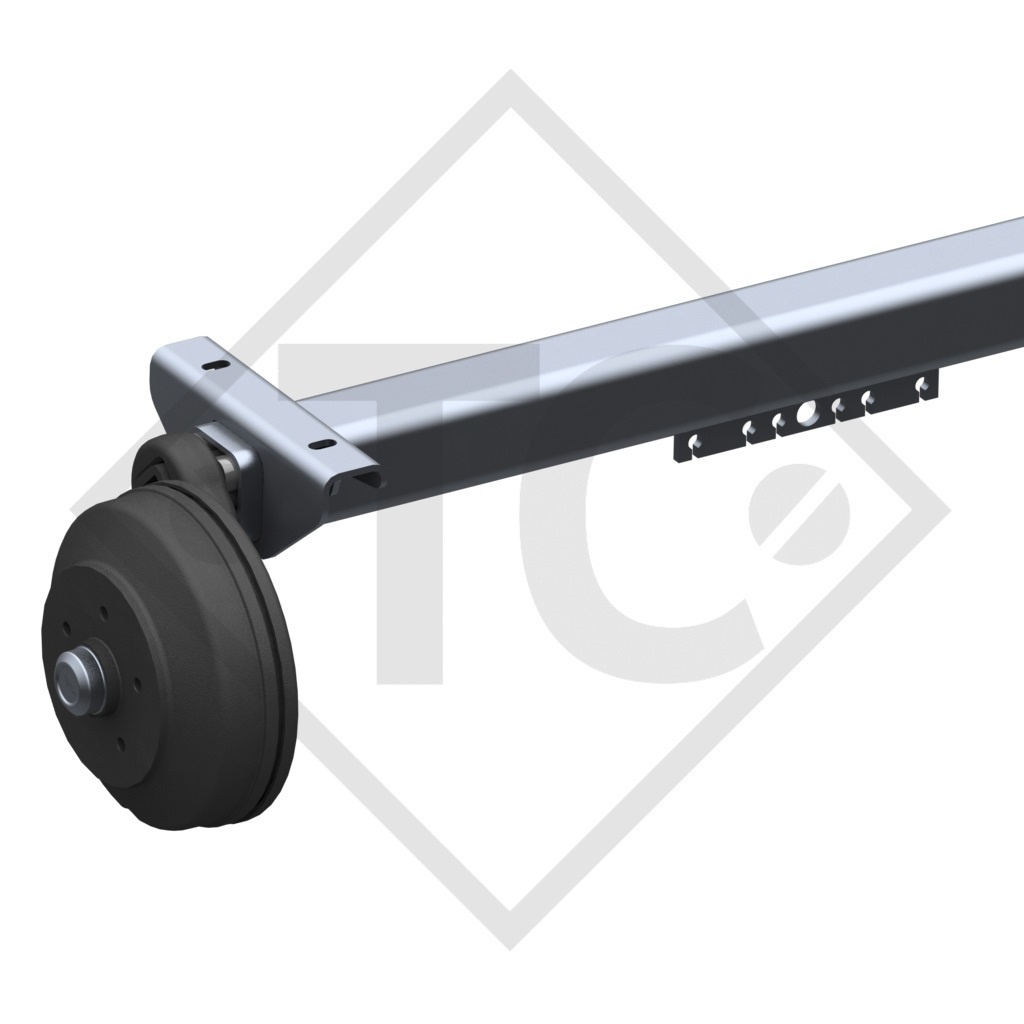

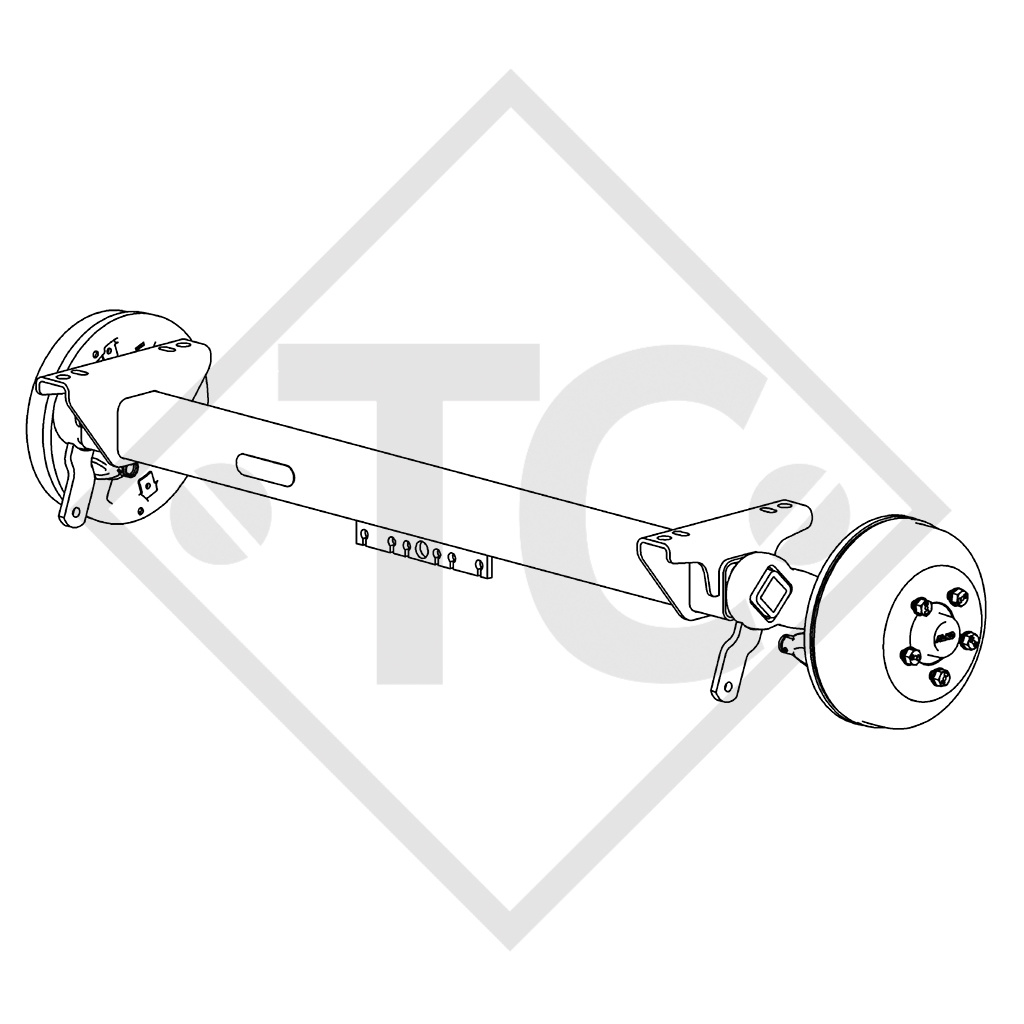

Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR

BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR

Home / Braked axle SWING 1800kg axle type CB 1805, 46.32.368.859, HUMBAUR

BC: dimension AM 1100mm, OHF: dimension FL 1560mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.. Read more...

Wishlist: Add to comparison:
Price 899,00 EUR Incl. tax Excl. Shipping costs
Delivery time: approx. 1-3 working days (Mon-Fri)
- +
Add to cart

Product description

Part no. OLD 46.32.368.859
Part no. NEW 4013940 or 4002922

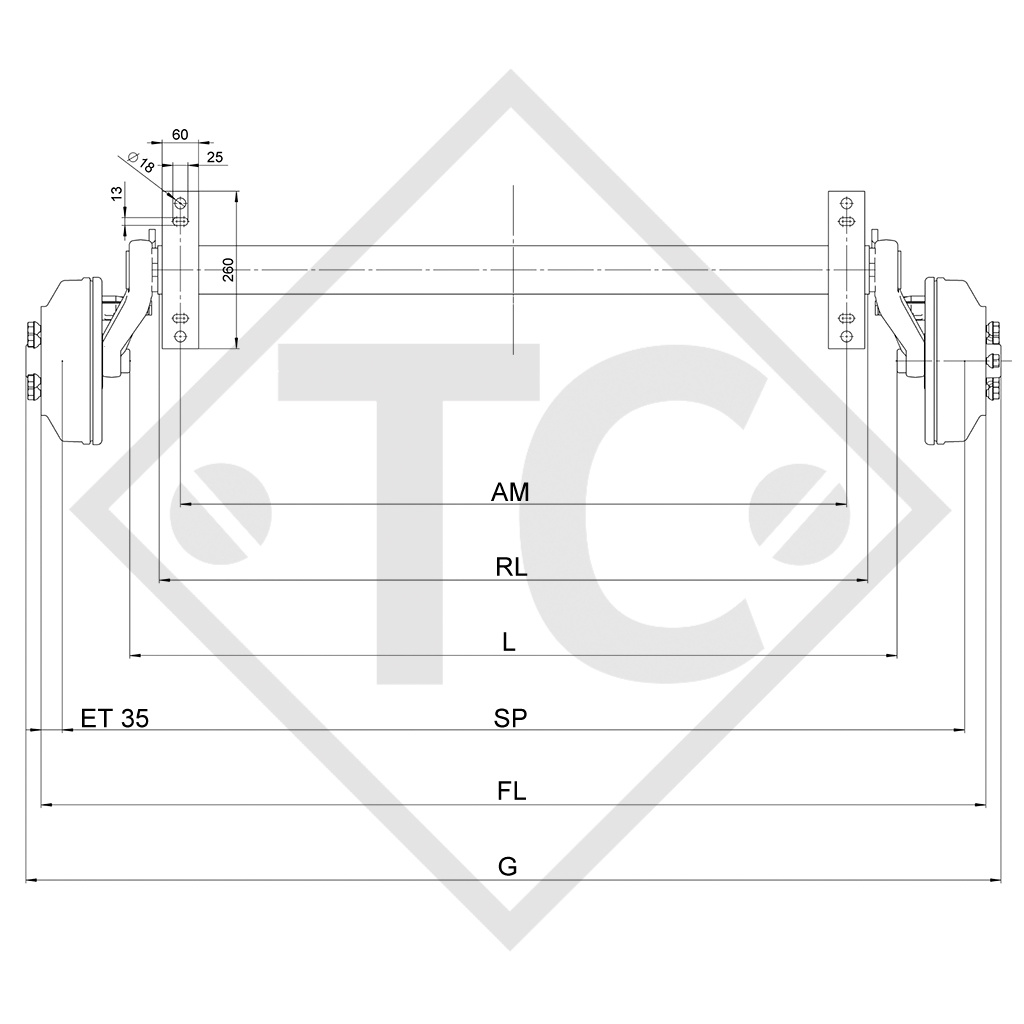

Dimension FL
 1560mm
Dimension SP
 1490mm
Dimension AM
 1100mm
Dimension L
 1267mm
Dimension G 1624mm
Dimension RL
 1170mm

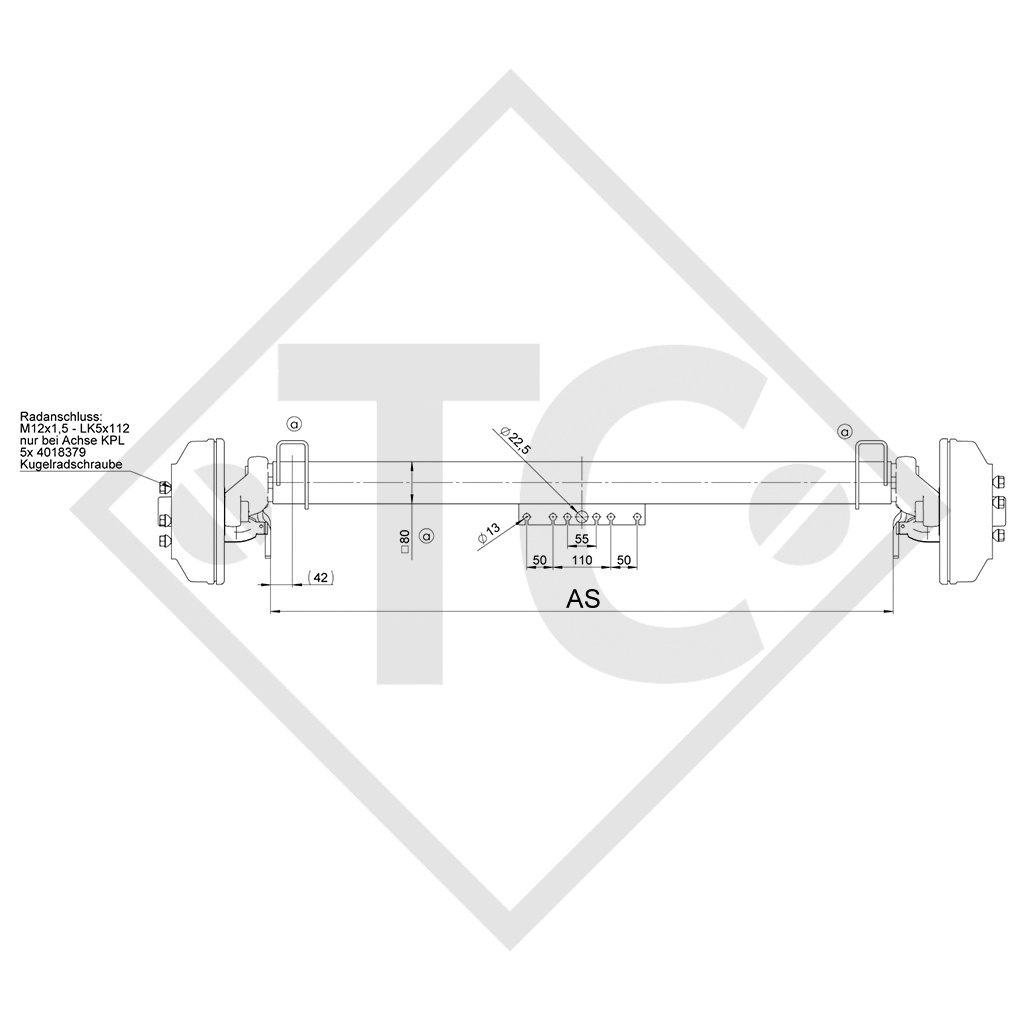

Dimension AS
 1183mm
Model SWING
Axle type CB1805
Axle load single axle 1800kg
Axle load: Tandem axel 3500kg
Wheel brake S 2504-7 RASK
Suspension Square rubber suspension

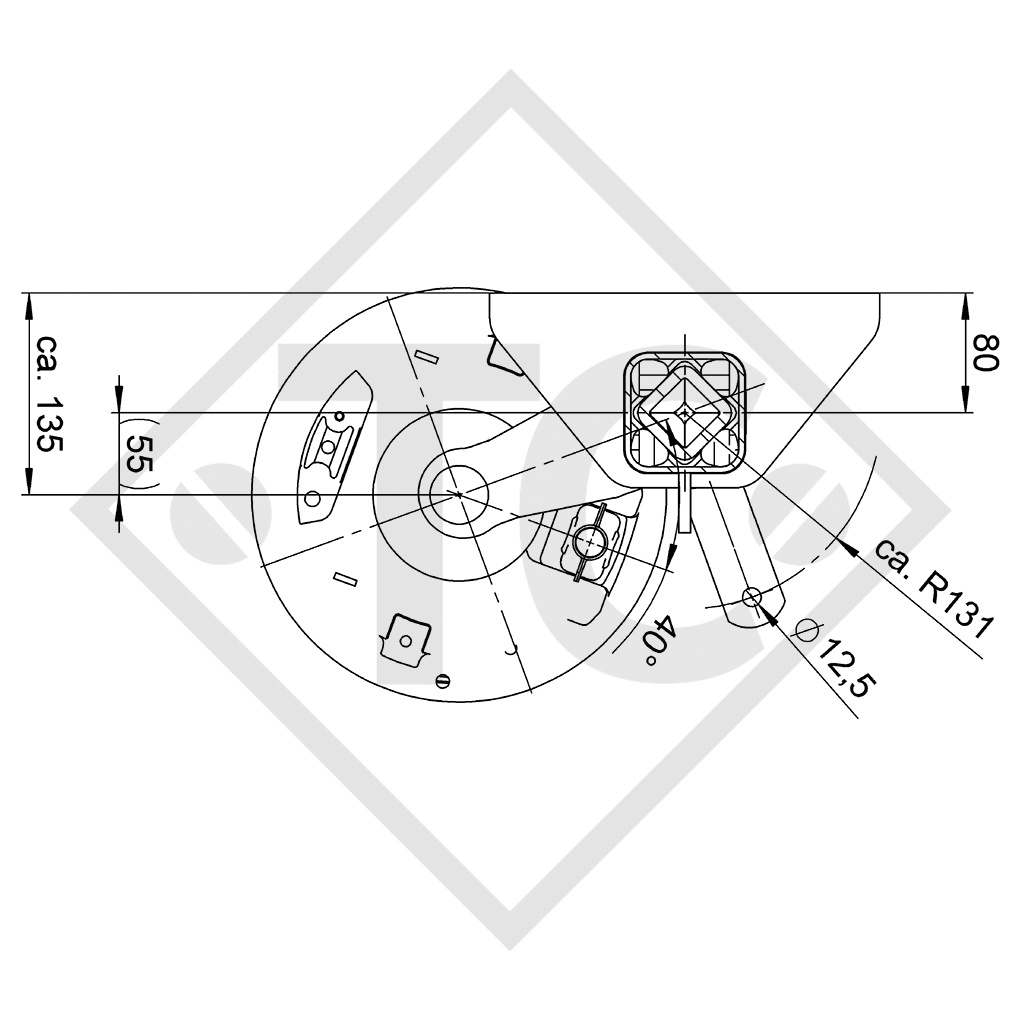

Swing arm 160mm
Wheel connection 165x5
Wheel bearing Compact bearings
Centre hole rim min. 62mm



Original operating instructions
Replacement part identification number (ETI) 827038

SCOPE OF DELIVERY
Axle incl. bowden cables
Welded-on shock absorber brackets
Wheel bolts M16x1.5
With tandem axle adapter bracket welded onto top hat profile

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
