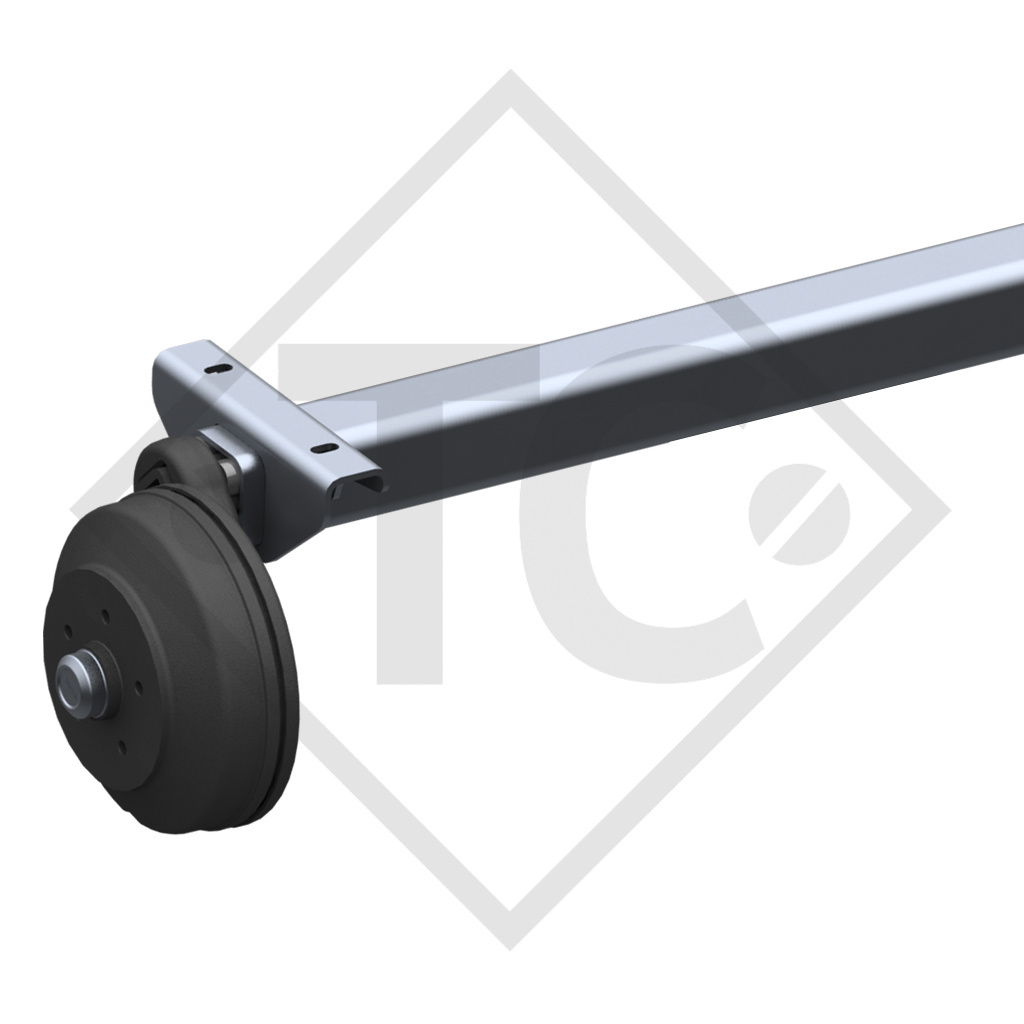

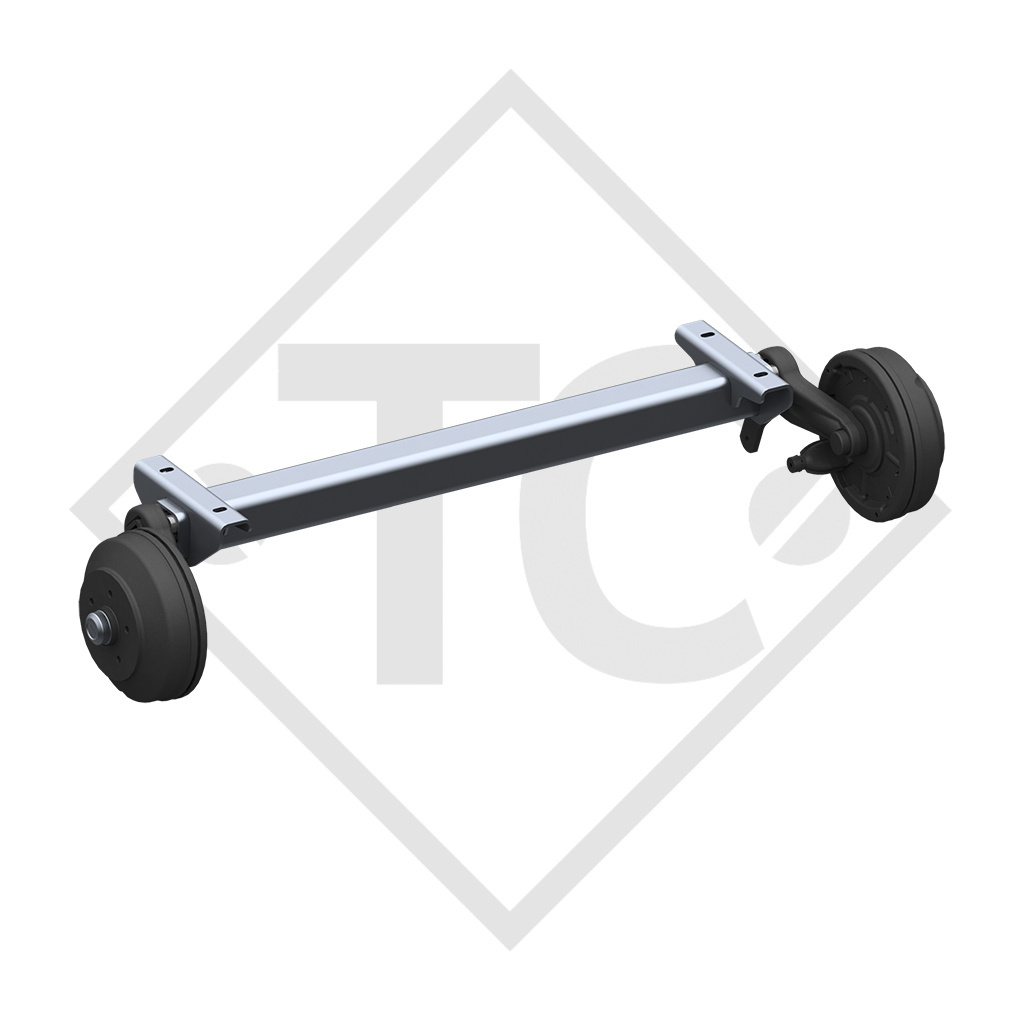

Part no. 4008946 (46.31.368.040)
| Axle load single axle |
1800kg |
| Axle load: Tandem axel |
3500kg |
| Wheel brake |
S 2504-7 RASK |
| Suspension |
Square rubber suspension |
| Wheel bearing |
Compact bearings |
| Centre hole rim |
min. 62mm |
SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Without wheel bolts M12x1.5
Without tandem axle adapter bracket welded onto top hat profile
DETAILS
- Speed up to 140 km/h
- Drawbar connection: Clamping shells see Accessories
- Axle shock absorber see Accessories
- Wheel connections: 140x5 on demand
- Special axle mounts and drawbar connections on demand
- Also available with watertight bearings
- Axle body fully hop-dip galvanised: Permanent surface protection
- Independent wheel suspension: Optimum compensation of uneven road surfaces
- Maintenance-free suspension: Lower maintenance costs
- Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
- Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
- Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
- Incl. shock absorber bracket
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
