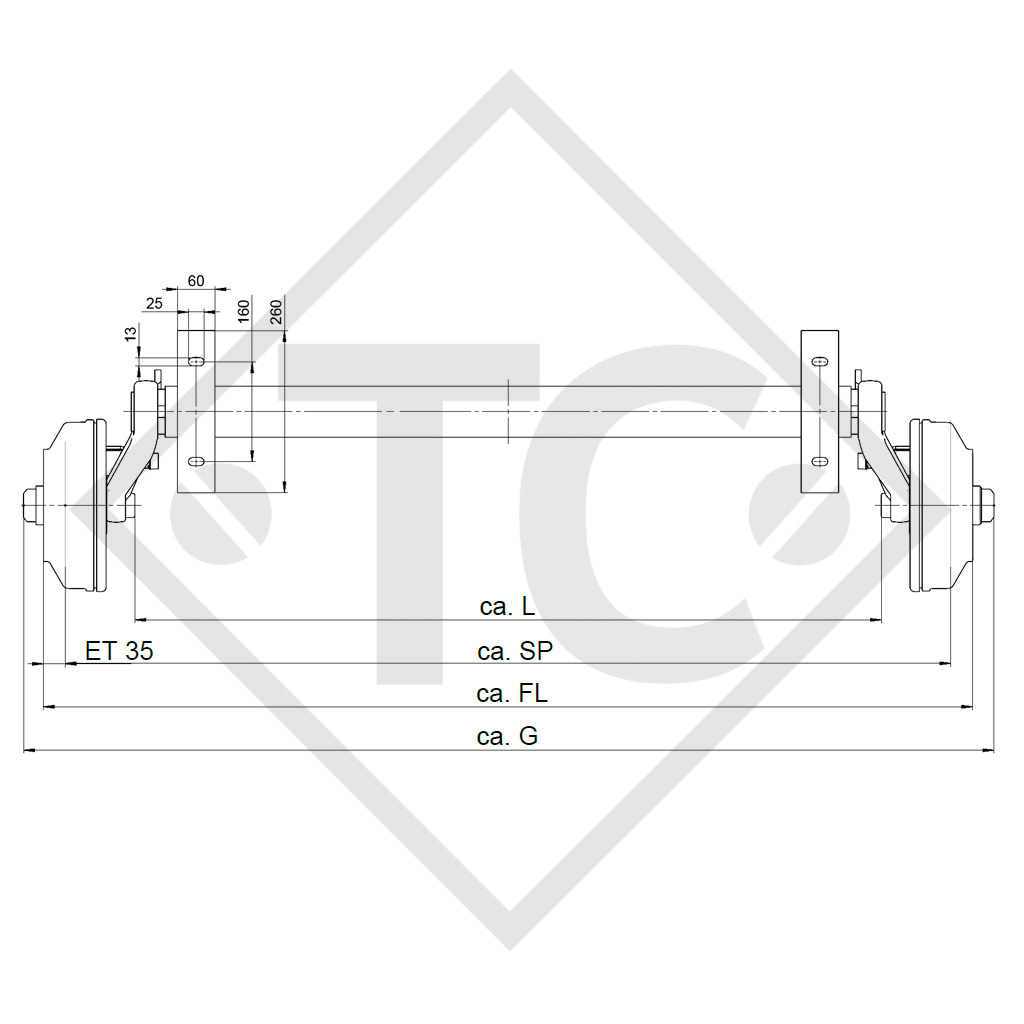

BC: dimension AM 1500mm, OHF: dimension FL 1985mm, wheel connection 112x5, wheel brake type Knott 25-2025, offset (ET) 35mm, swing arm position 30°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. OLD B308289995
Part no. NEW 3233263
| Dimension FL |
1985mm |
| Dimension SP |
1920mm |
| Dimension AM |
1500mm |
| Dimension L |
1697mm |
| Dimension G | 2054mm |
| Model | Nieper |
| Axle type | GFA1800 |
| Axle load single axle | 1800kg |
| Axle load: Tandem axel | 3500kg |
| Wheel brake | Knott 20-2025 |
| Suspension | Square rubber suspension |
| Swing arm | 160mm |
| Wheel connection | 112x5 |
| Wheel bearing | Compact bearings |
| Centre hole rim | min. 66mm |
SCOPE OF DELIVERY
Axle without bowden cables
Welded-on shock absorber brackets
Without ball-head wheel bolts M12x1.5
