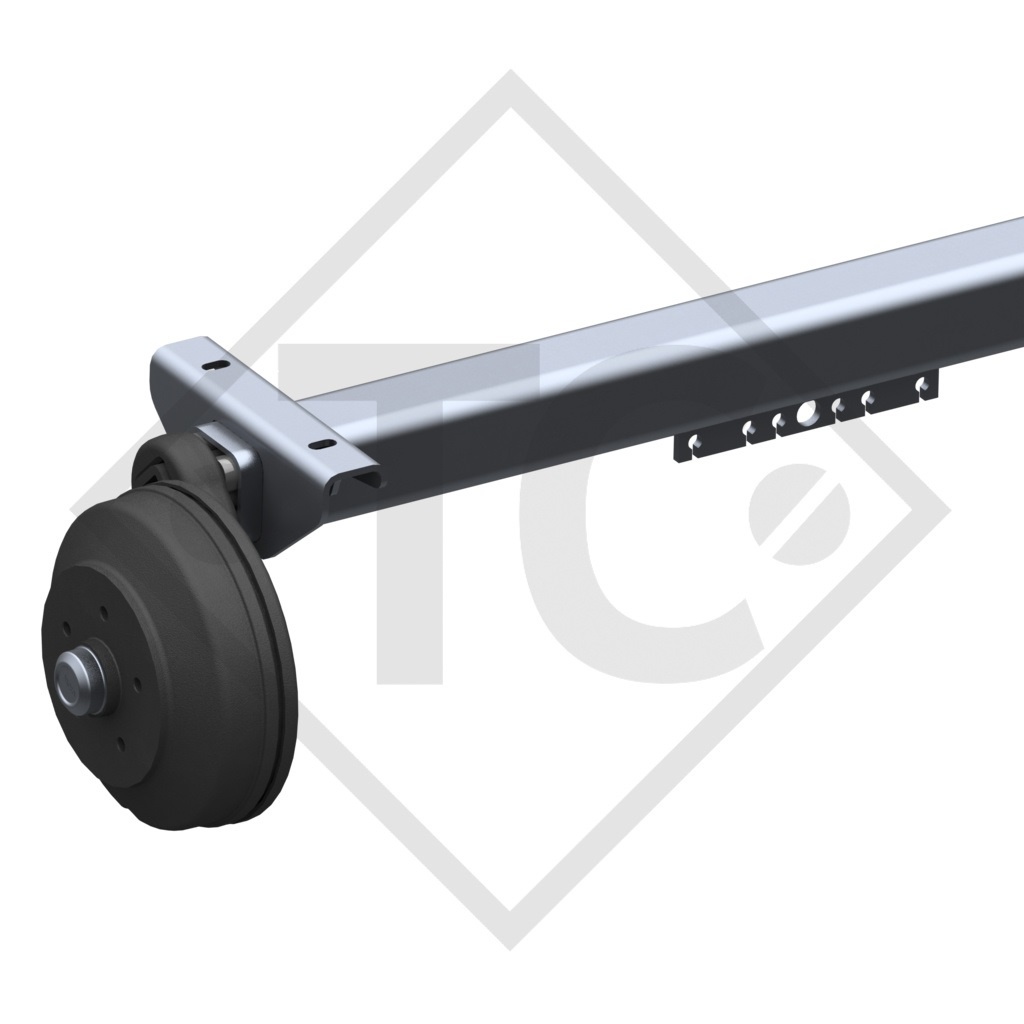

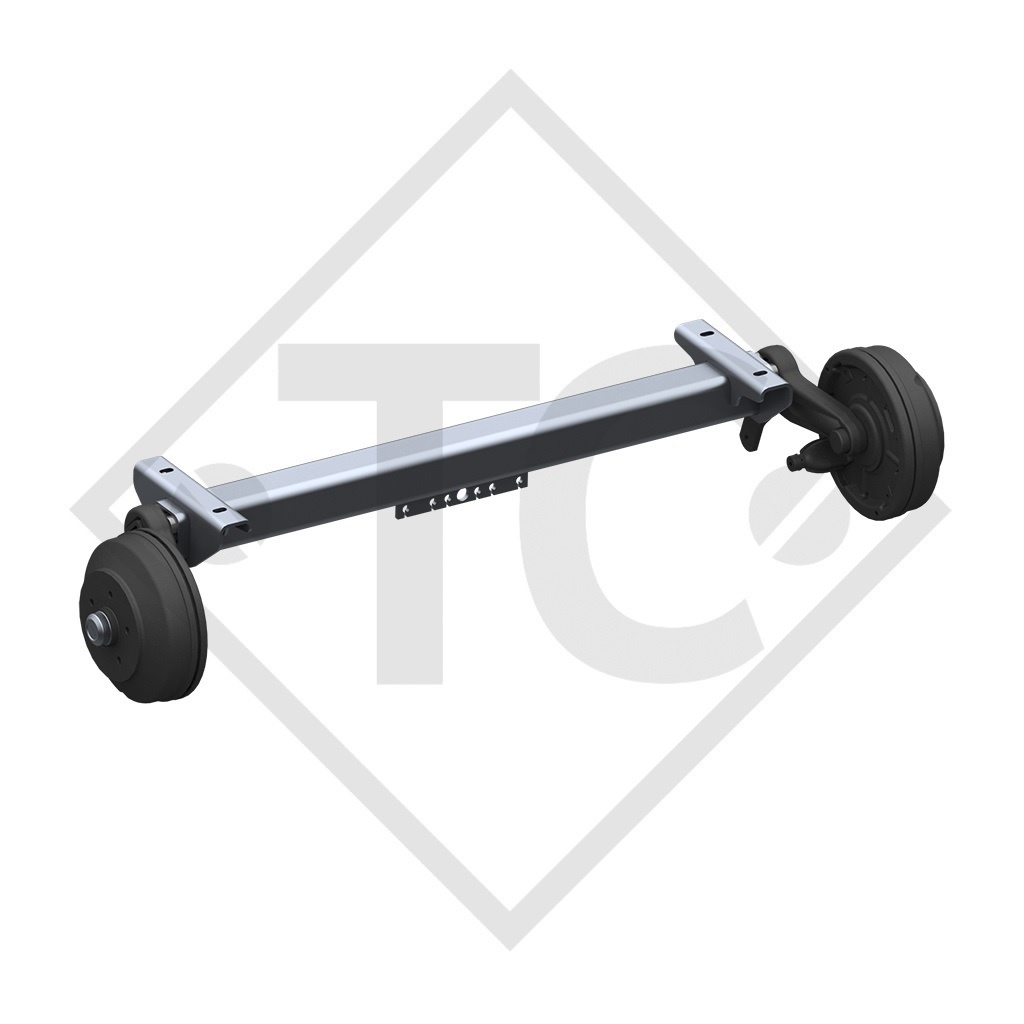

BPW Braked axle SWING 1800kg axle type CB 1805, 4013919

Part no. OLD 46.32.368.818
Part no. NEW 4013919

Original operating instructions
Replacement part identification number (ETI) 827038

SCOPE OF DELIVERY
Axle incl. bowden cables
Welded-on shock absorber brackets
Wheel bolts M16x1.5

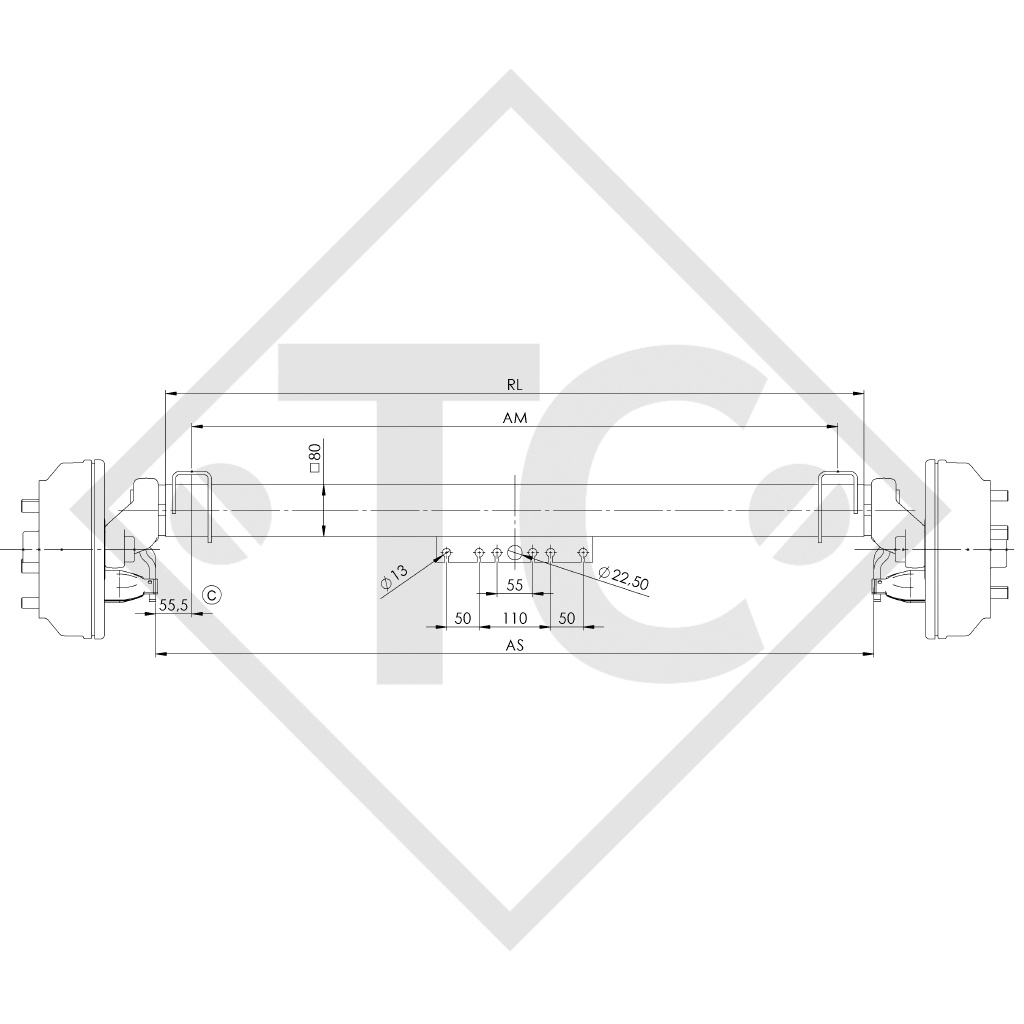

With tandem axle adapter bracket welded onto top hat profile

DETAILS

• Speed up to 140 km/h
• Drawbar connection: Clamping shells see Accessories
• Axle shock absorber see Accessories

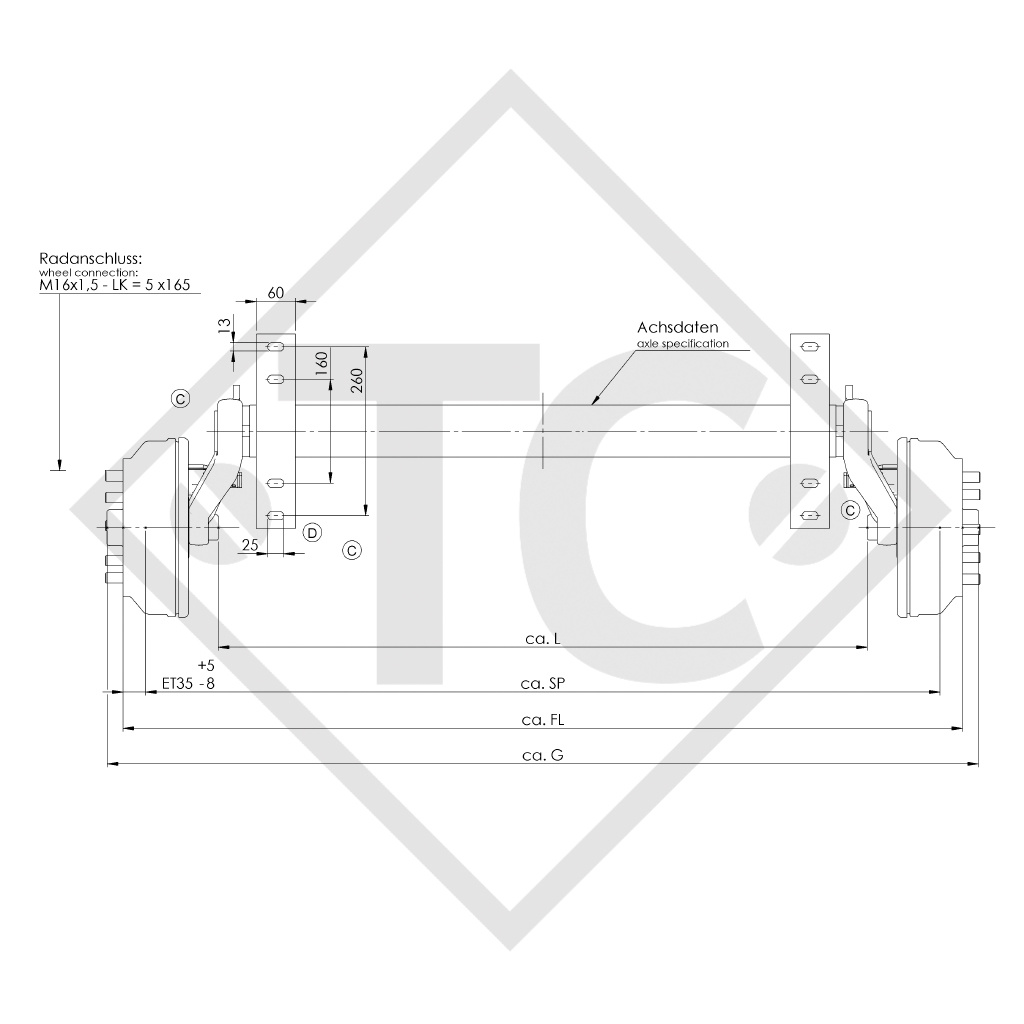

• Wheel connections: 140x5 on demand
• Special axle mounts and drawbar connections on demand
• Also available with watertight bearings
• Axle body fully hop-dip galvanised: Permanent surface protection
• Independent wheel suspension: Optimum compensation of uneven road surfaces
• Maintenance-free suspension: Lower maintenance costs
• Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites

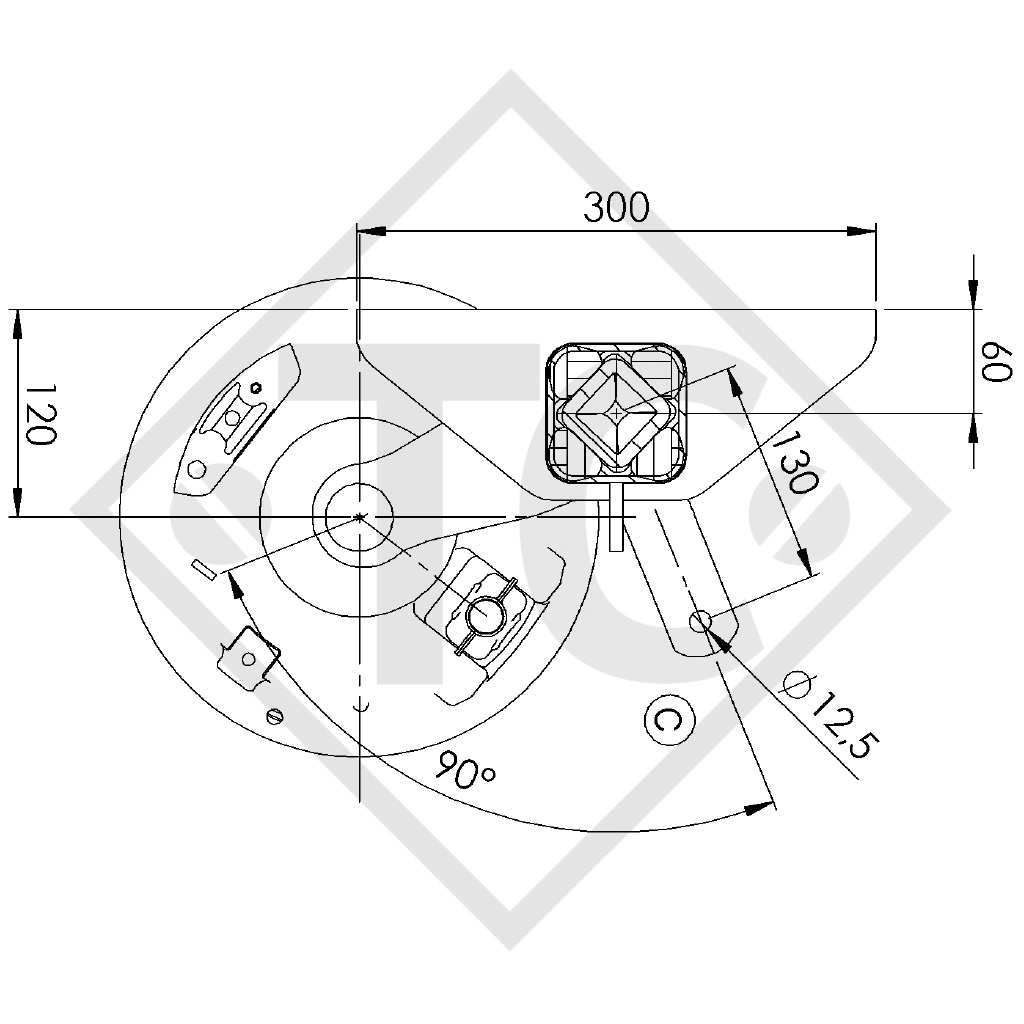

• Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
• Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
• Incl. shock absorber bracket
