Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR
Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR

BPW Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR

Home / Braked axle SWING 1800kg axle type CB 1805, 46.32.368.490, HUMBAUR

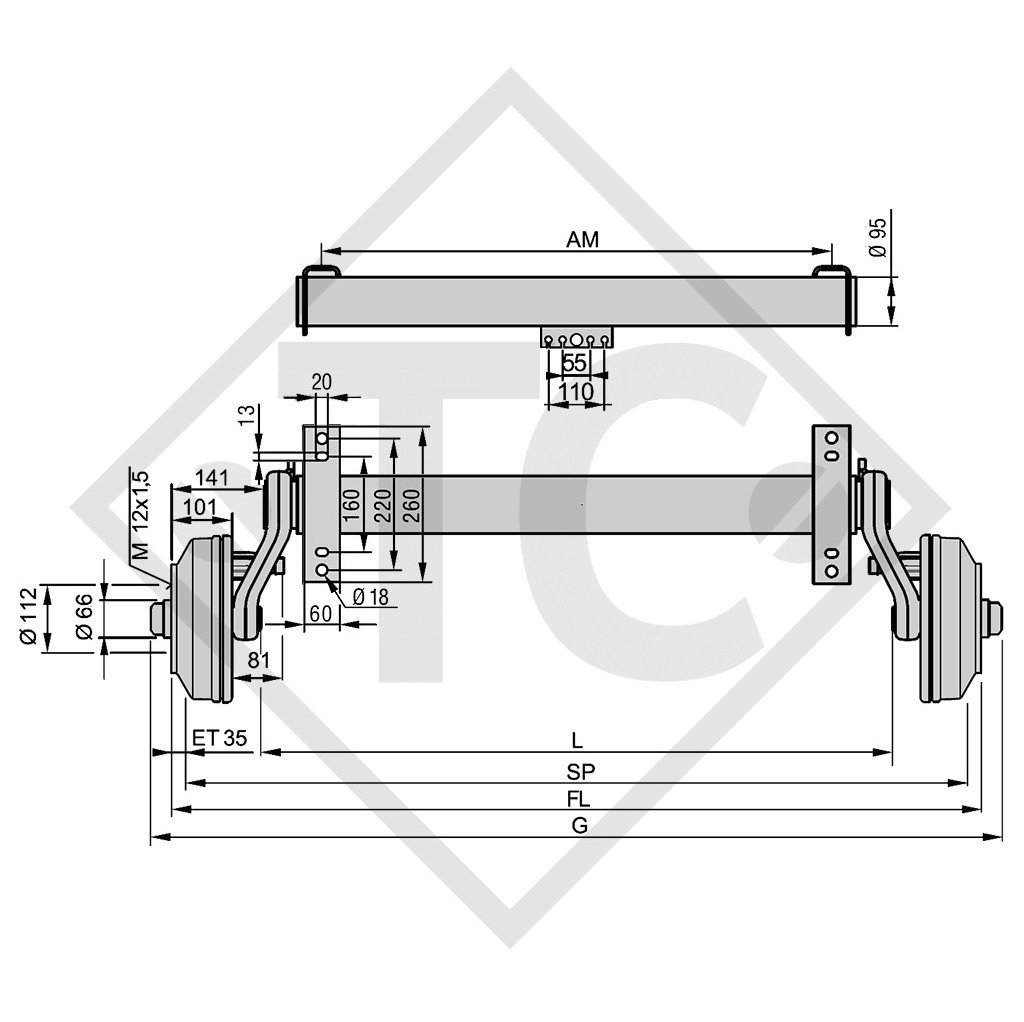

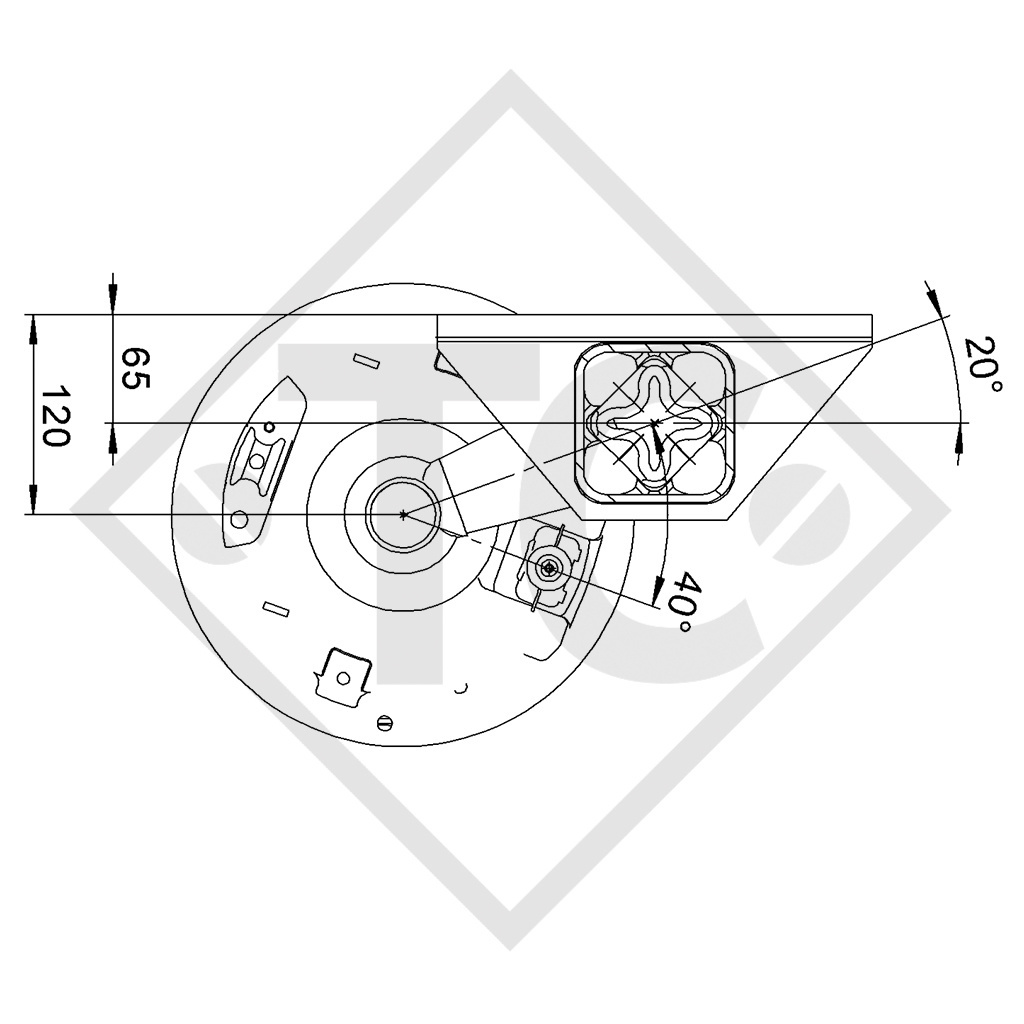

BC: dimension AM 1500mm, OHF: dimension FL 2035mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, swing arm position 20°, axle profile 95mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 46.32.368.490
Part no. NEW 4013813 or 4002867

Dimension FL
 2035mm
Dimension SP
 1965mm
Dimension AM
 1500mm
Dimension L
 1742mm
Dimension G 2085mm
Model SWING
Axle type CB1805
Axle load single axle 1800kg
Axle load: Tandem axel 3500kg
Wheel brake S 2504-7 RASK
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 66mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.368.XXX
Replacement part identification number (ETI) NEW 827080

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Ball-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded onto top hat profile

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
