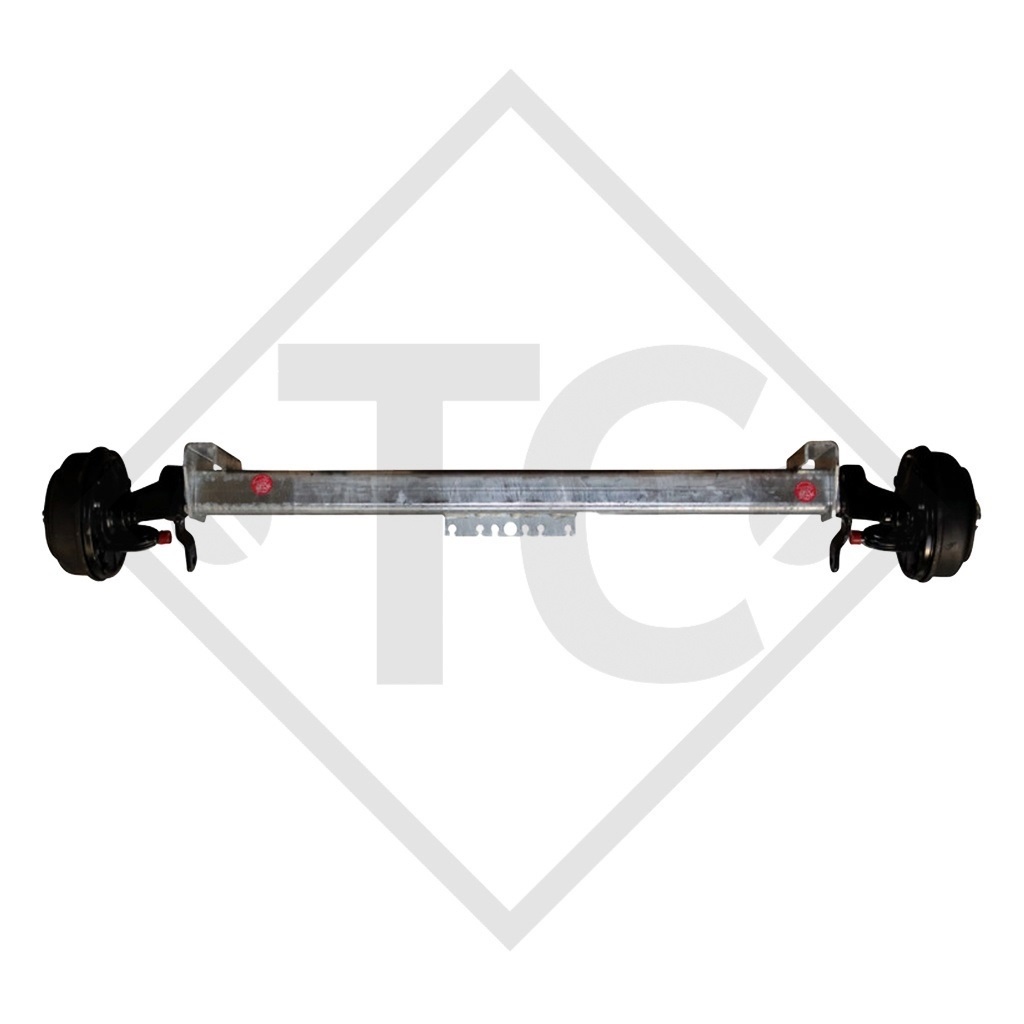

Home / Braked axle SWING 1500kg axle type CB 1505, 46.27.379.426 HUMBAUR
BC: dimension AM 1350mm, OHF: dimension FL 1800mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. OLD 46.27.379.426
Part no. NEW 4013483

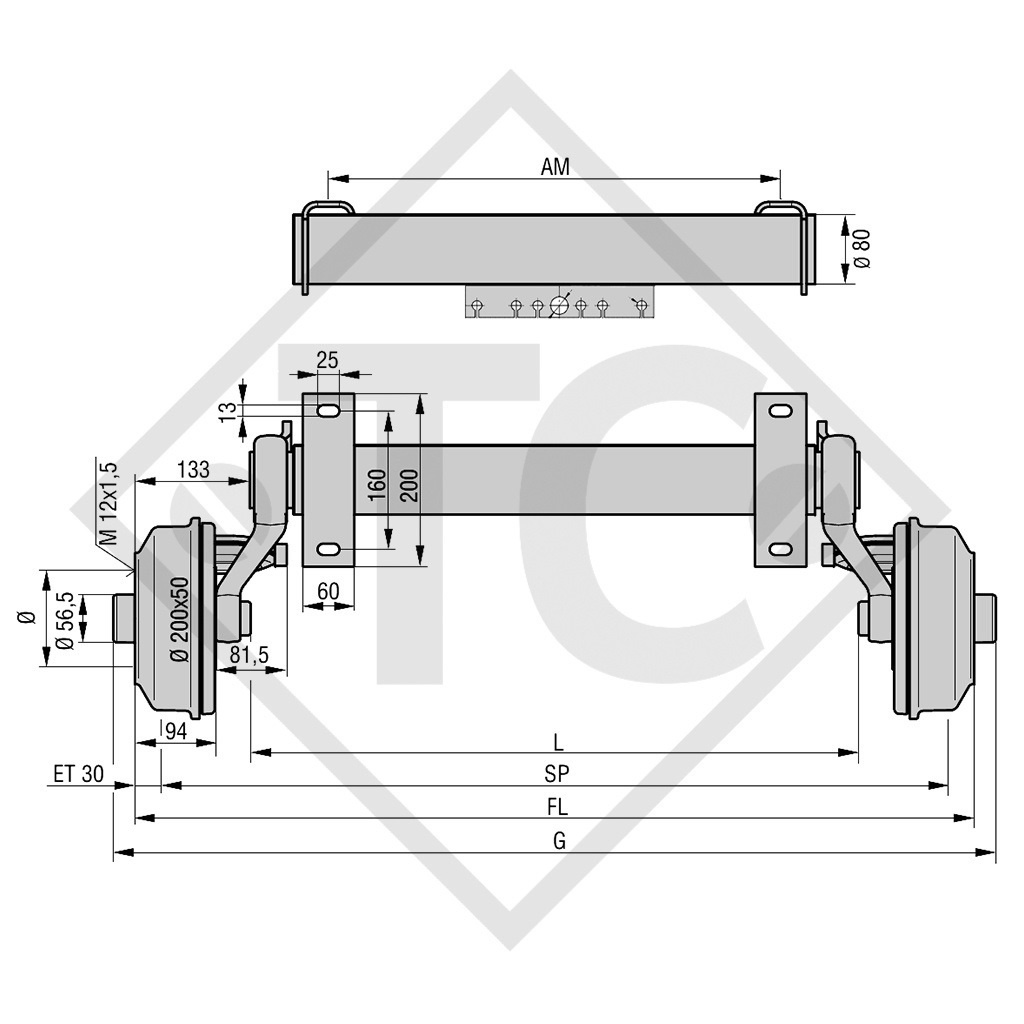

Dimension FL |
1800mm |
Dimension SP |
1740mm |
Dimension AM |
1350mm |
Dimension L |
1532mm |
Dimension G | 1850mm |
Model | SWING |
Axle type | CB1505 |
Axle load single axle | 1500kg |
Axle load: Tandem axel | 3000kg |
Wheel brake | S 2005-7 RASK |
Suspension | Square rubber suspension |

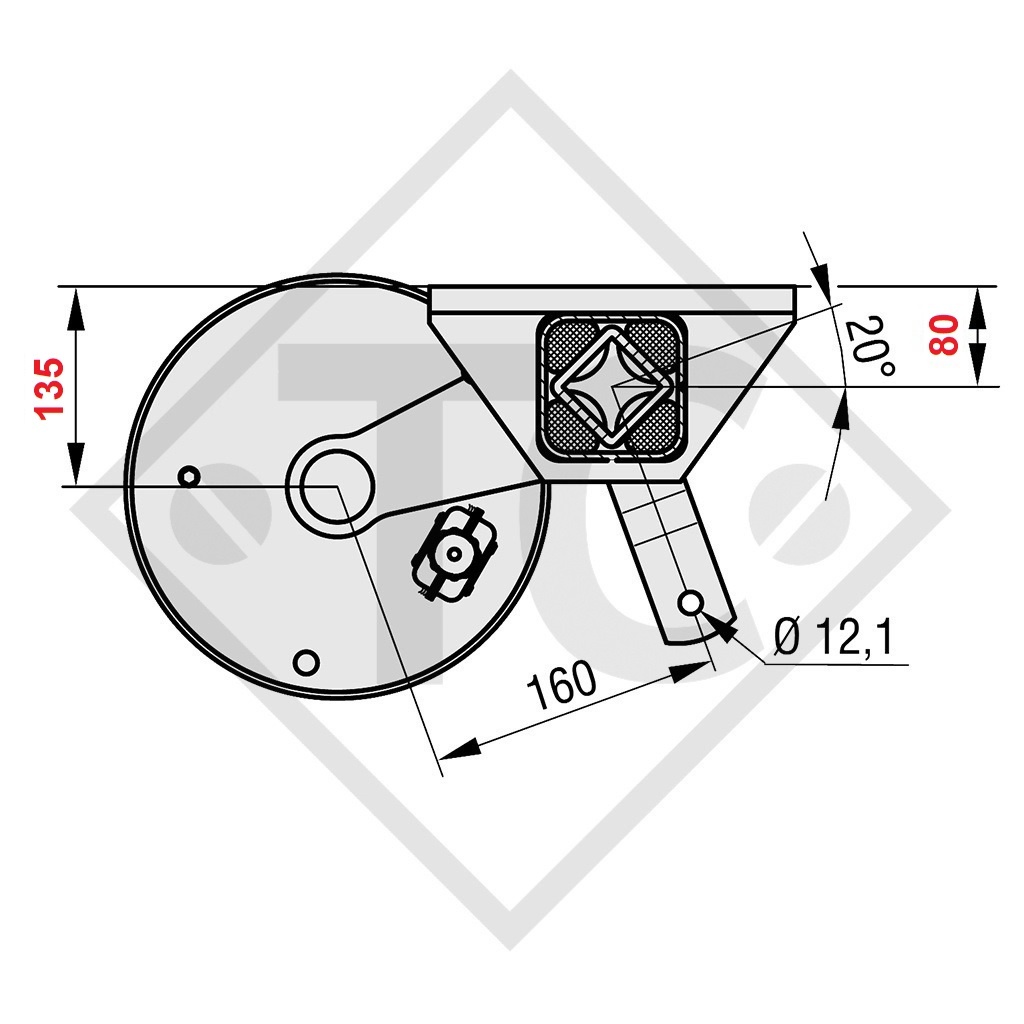

Swing arm | 160mm |
Wheel connection | 112x5 |
Wheel bearing | Compact bearings |
Centre hole rim | min. 56.5mm |
Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030
SCOPE OF DELIVERY
Axle without bowden cables
Welded-on shock absorber brackets
Taper-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded onto top hat profile
