Home / Braked axle 1350kg axle type H 135 B, 3203121 / 3204590 Humbaur
BC: dimension AM 1366mm, OHF: dimension FL 1665mm, wheel connection 112x5, wheel brake type W 205 RS, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | 3204590-2 |
| Dimension AM |
1366mm |
| Dimension FM |
1665mm |
| Wheel connection | 112x5 |
Spare part list for wheel brake W 205 RS

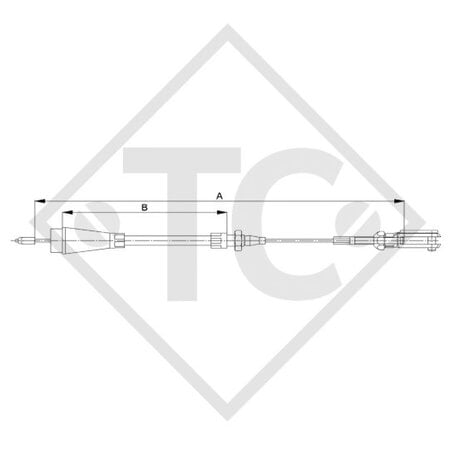

Bowden cables
TECHNOLOGY
Model: WAG-B
Axle type: H 135 B
Axle load: 1350kg
Suspension: Square rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
