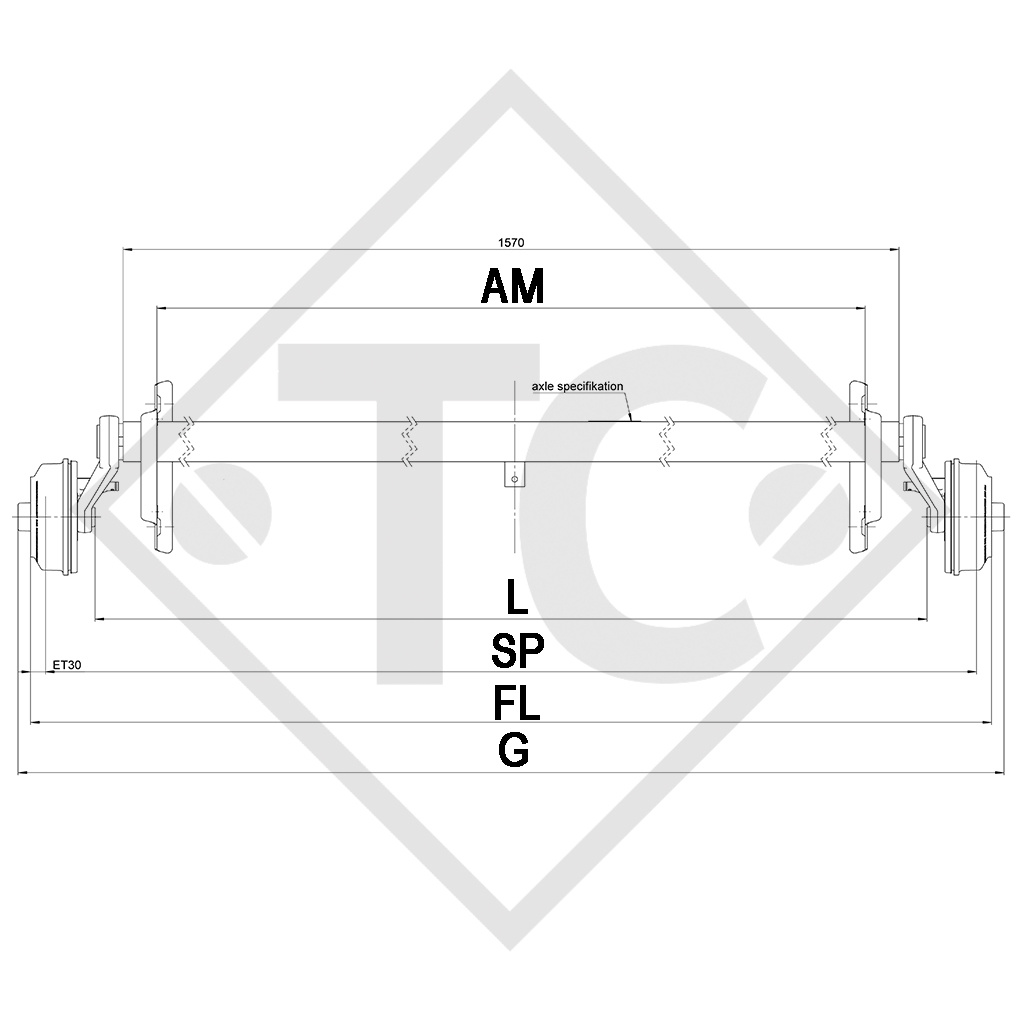

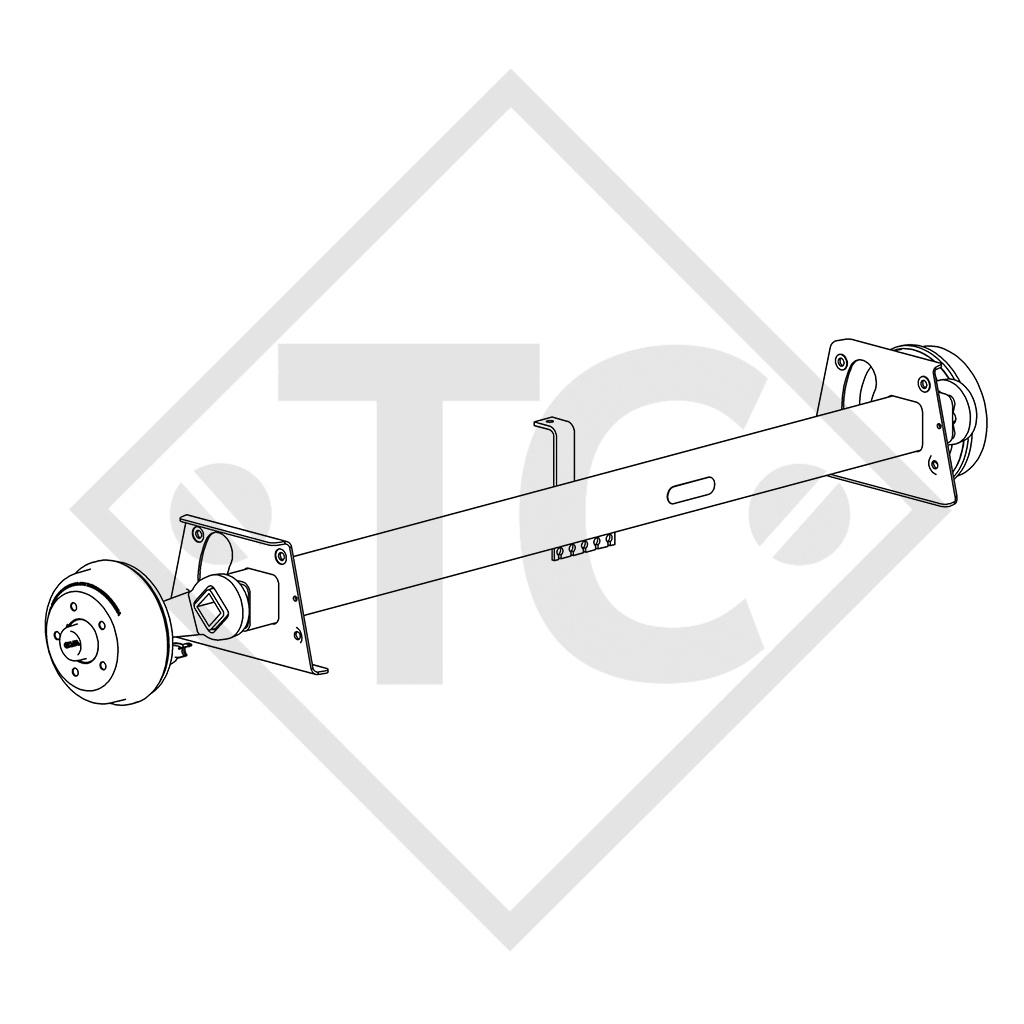

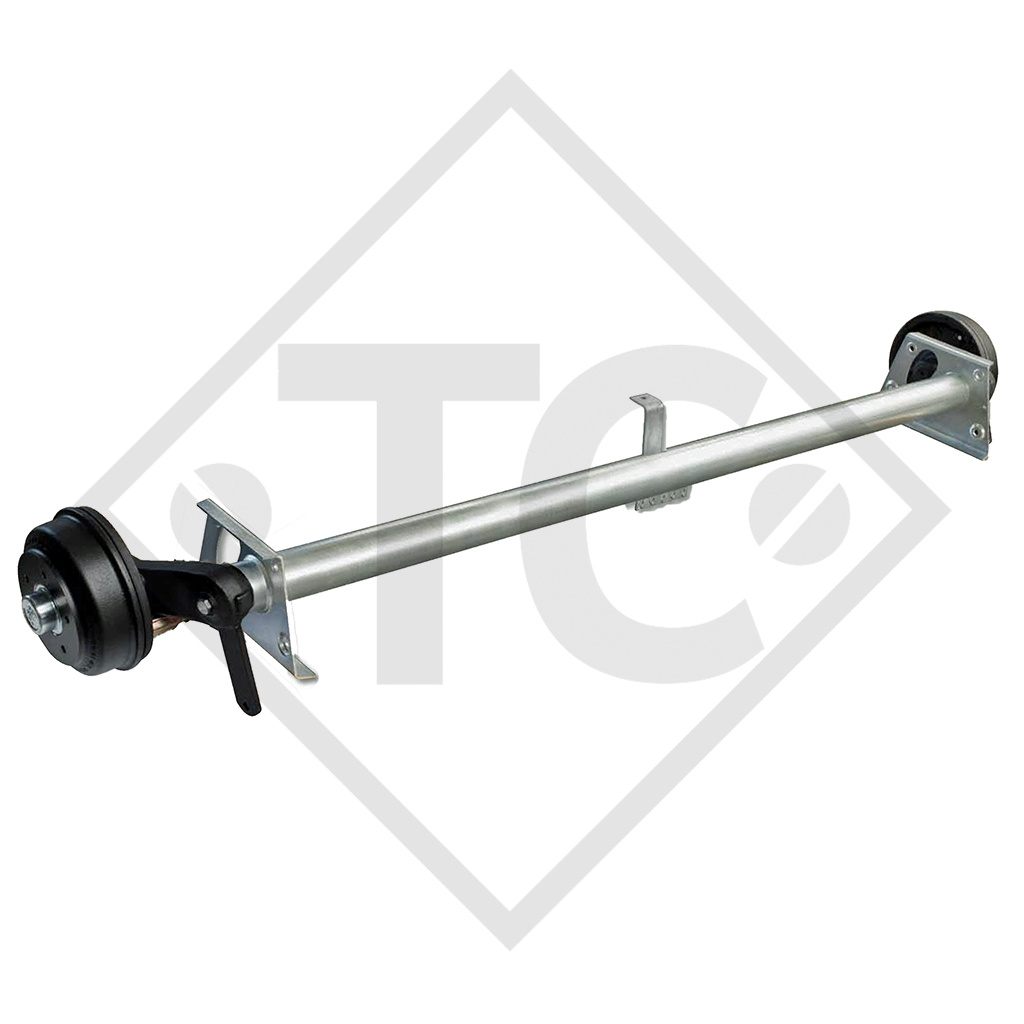

BPW Braked axle SWING 1350kg axle type CB 1355, 46.24.379.135

Part no. OLD 46.24.379.135
Part no. NEW 4021895

Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

DETAILS

• Speed up to 140 km/h
• Drawbar connection: Clamping shells see Accessories
• Axle shock absorber see Accessories

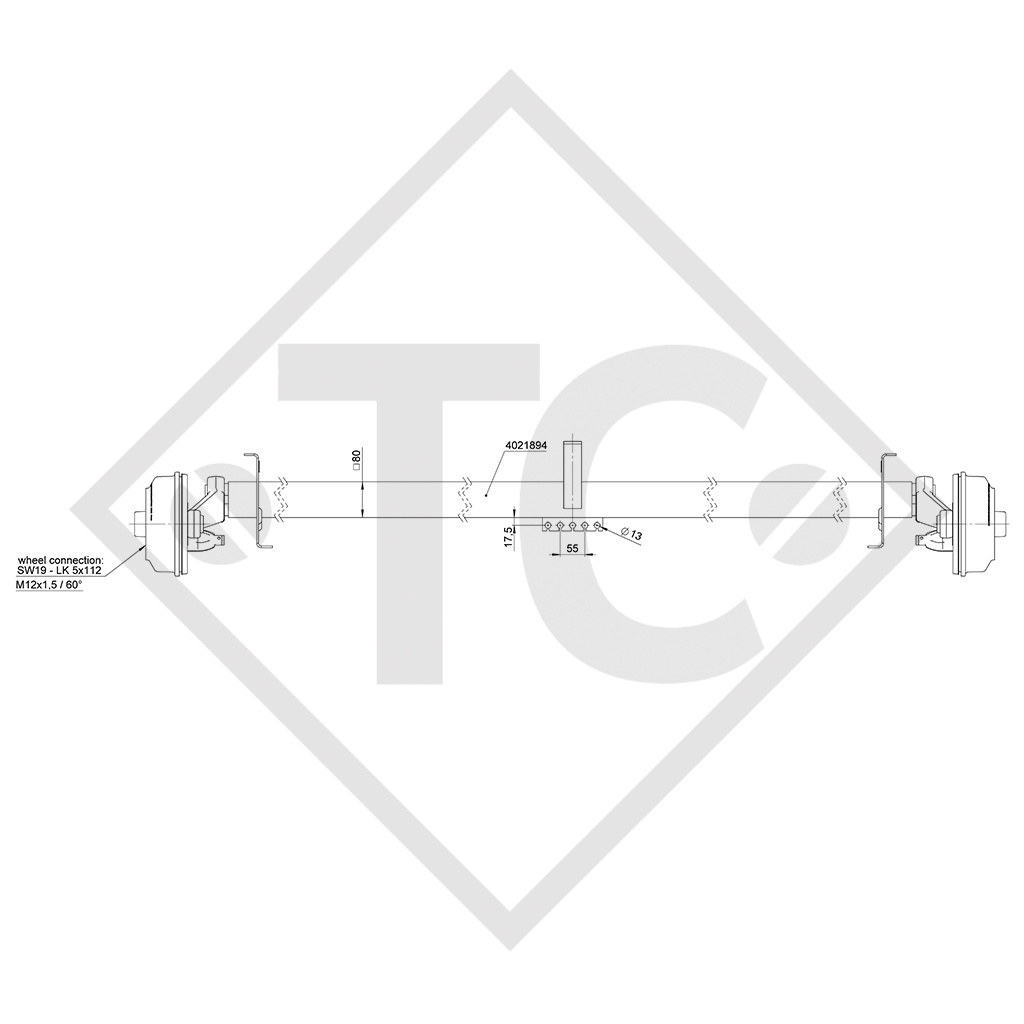

• Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
• Special axle mounts and drawbar connections on demand
• Also available with watertight bearings
• Axle body fully hop-dip galvanised: Permanent surface protection
• Independent wheel suspension: Optimum compensation of uneven road surfaces
• Maintenance-free suspension: Lower maintenance costs
• Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
• Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
• Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease

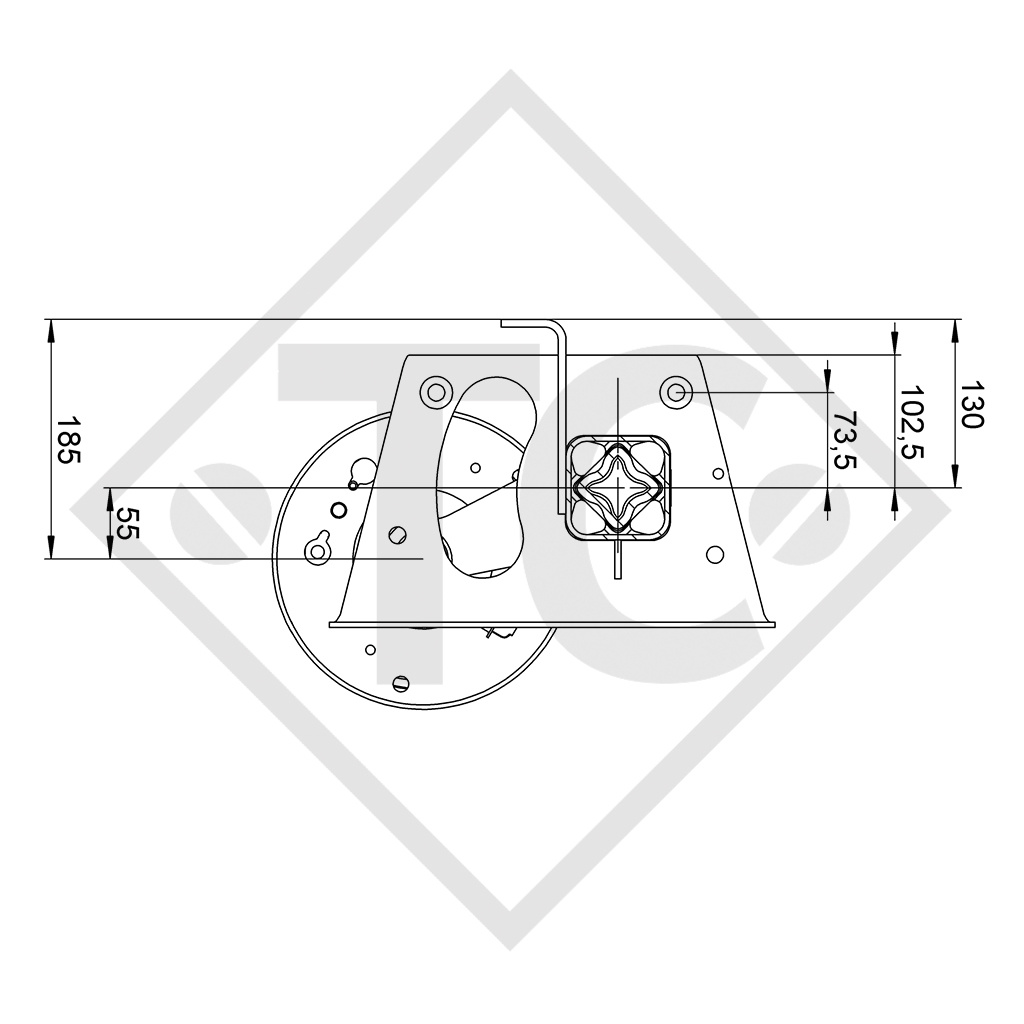

• Incl. shock absorber bracket
