Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR
Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR

BPW Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR

Home / Braked axle SWING 1350kg axle type CB 1355, 46.25.379.195, HUMBAUR

BC: dimension AM 1400mm, OHF: dimension FL 1850mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Price 655,00 EUR Incl. tax Excl. Shipping costs
Delivery time: approx. 1-3 working days (Mon-Fri)
- +
Add to cart

Product description

Part no. OLD 46.25.379.195
Part no. NEW 4013204

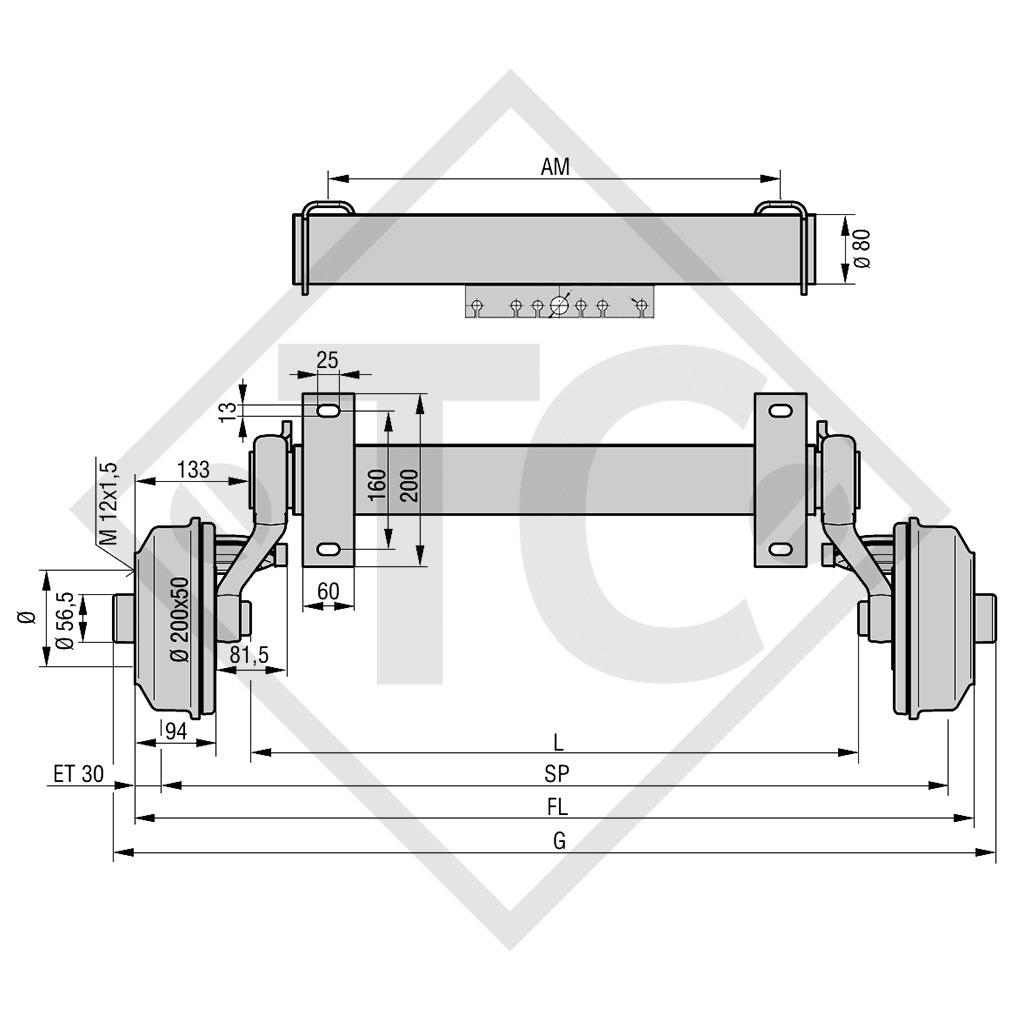

Dimension FL
 1850mm
Dimension SP
 1790mm
Dimension AM
 1400mm
Dimension L
 1582mm
Dimension G 1900mm
Model SWING
Axle type CB1355
Axle load single axle 1350kg
Axle load: Tandem axel 2700kg
Wheel brake S 2005-7 RASK
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle without bowden cables
Welded-on shock absorber brackets
Without wheel bolts M12x1.5

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
