BC: dimension AM 1450mm, OHF: dimension FL 1830mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 20°. Read more...

Wishlist: Add to comparison:

Part no. 107000  (46.25.379.286)

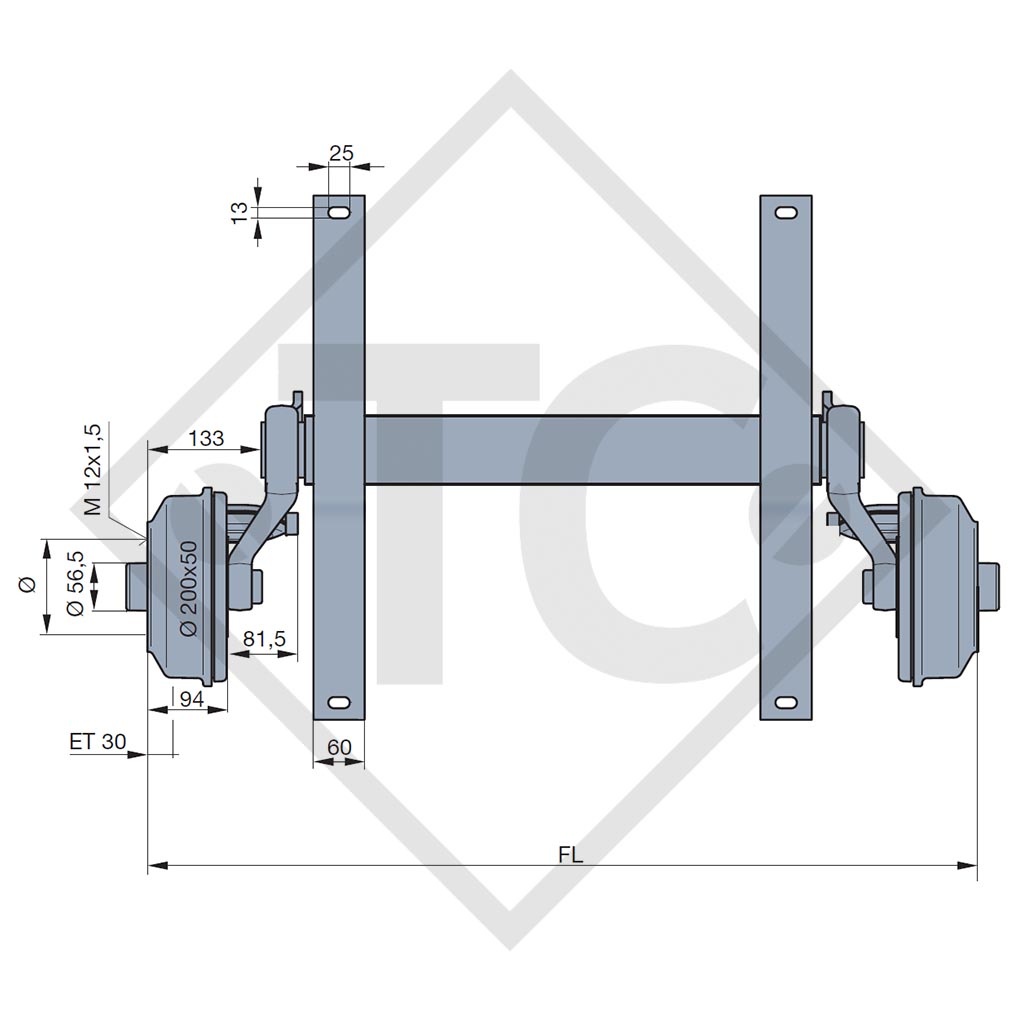

Dimension FL
1830mm

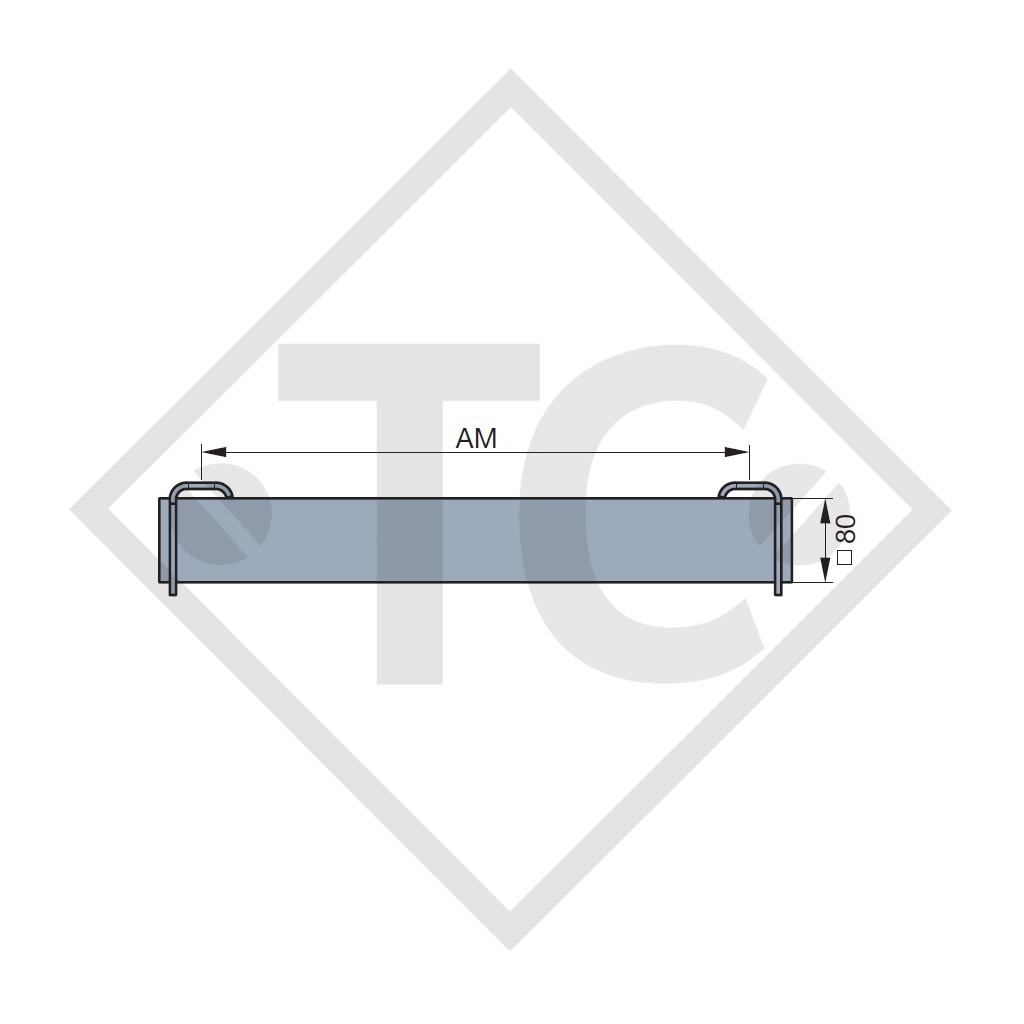

Dimension AM 1450mm
Axle type SB14
Axle load single axle 1400kg
Axle load: Tandem axel 2800kg
Wheel brake RB520
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



SCOPE OF DELIVERY
Axle incl. wheel brake

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
