Braked axle 900kg EURO axle type B850-5 ELLDIS 450

Braked axle 900kg EURO1 axle type B 850-5 - ELLDIS 450

BC: dimension A 1390mm, OHF: dimension C 1830mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm. Read more...

Wishlist: Add to comparison:

Price 1.200,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 185008657 (185007159)

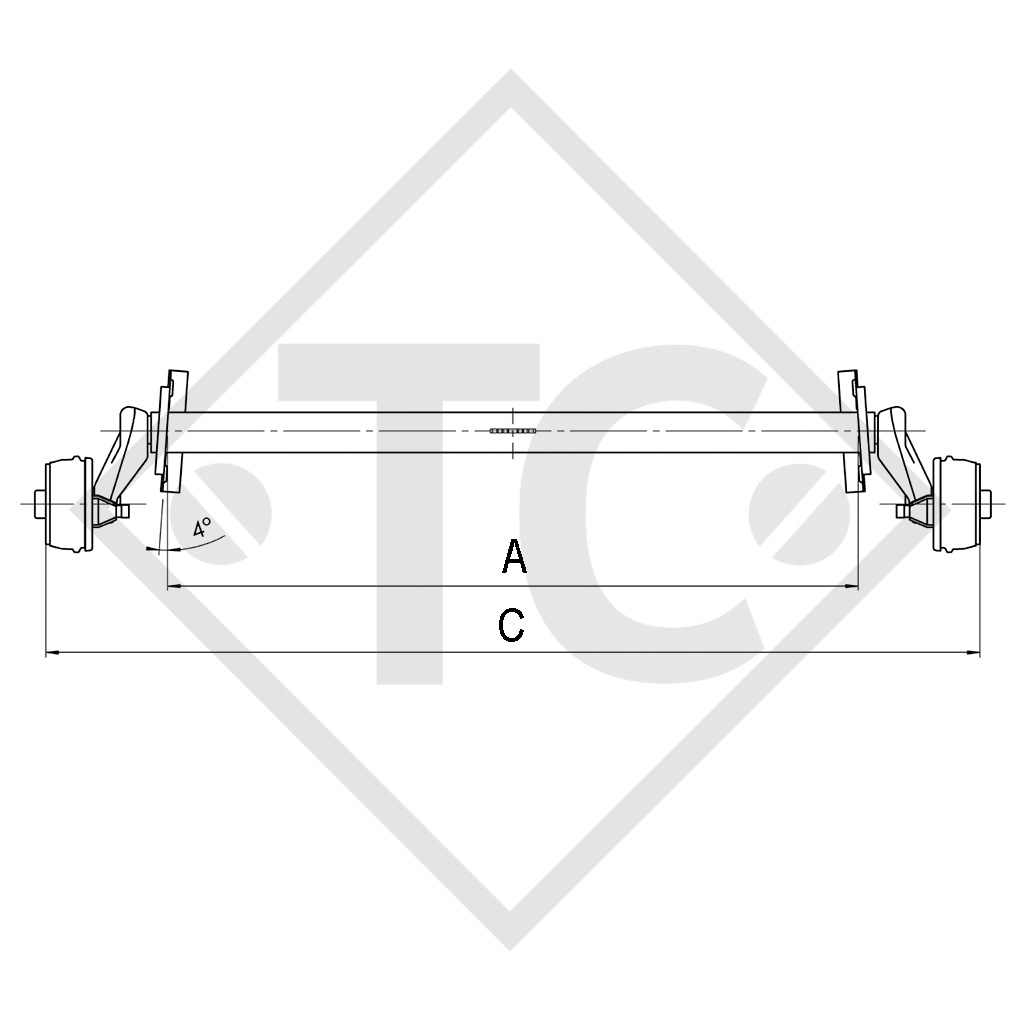

BC: dimension A 1390mm
OHF: dimension C 1830mm
Wheel connection 100x4
Offset (ET) 27-33mm

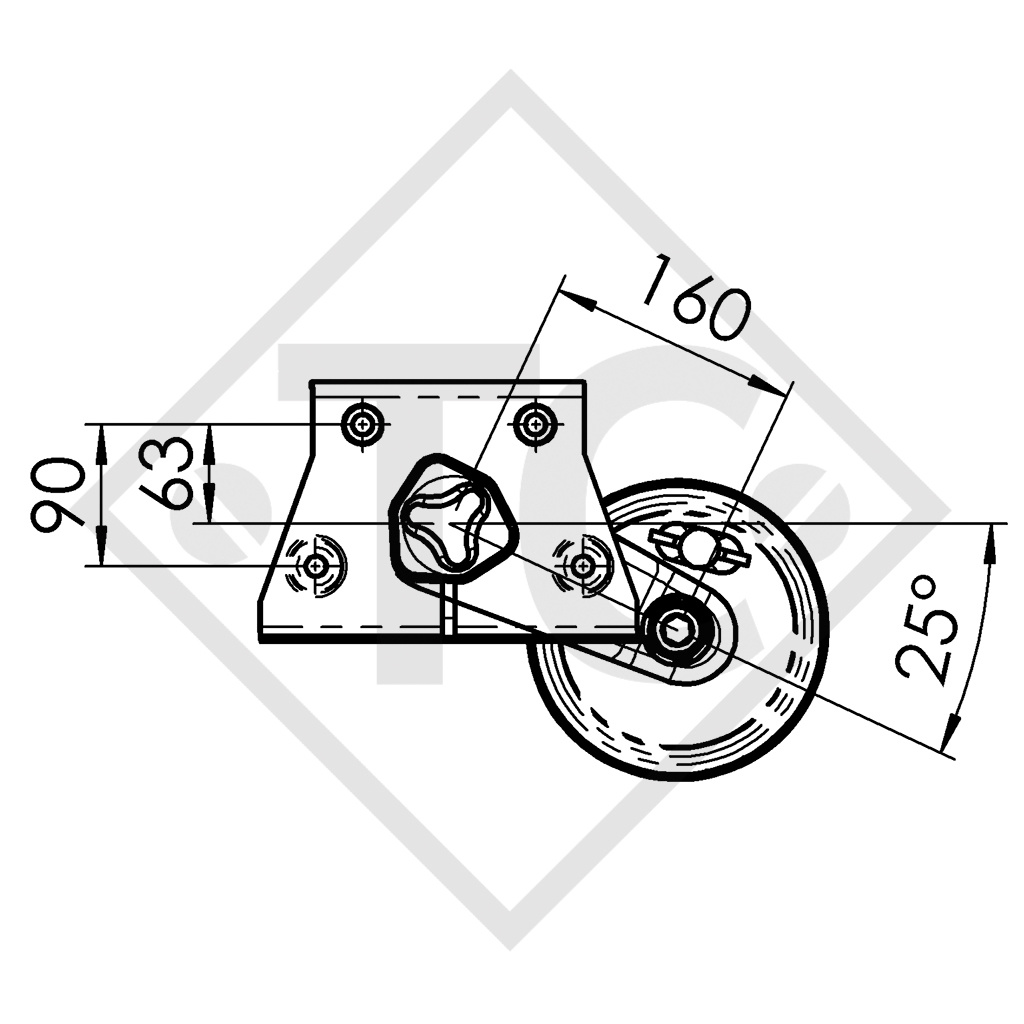

Swing arm position 25°
Axle profile 80mm

TECHNOLOGY
Model: EURO1
Axle type: B 850-5
Axle load: Single axle 900kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 900kg EURO1 axle type B 850-5 - ELLDIS 450
