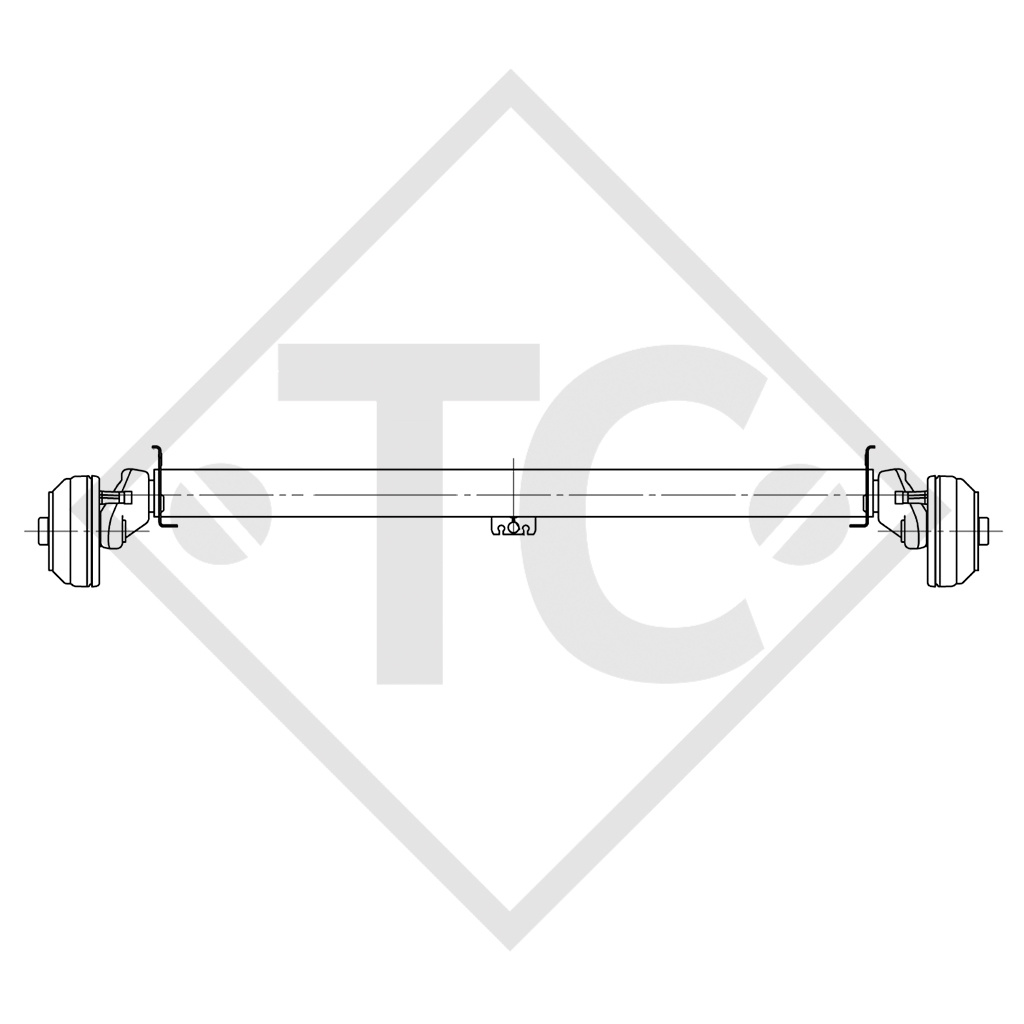

Home / Braked axle 900kg EURO1 axle type B 1000-3, TEC King 420 TSK
BC: dimension A 1545mm, OHF: dimension C 1990mm, wheel connection 130x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1705154 (1904725)

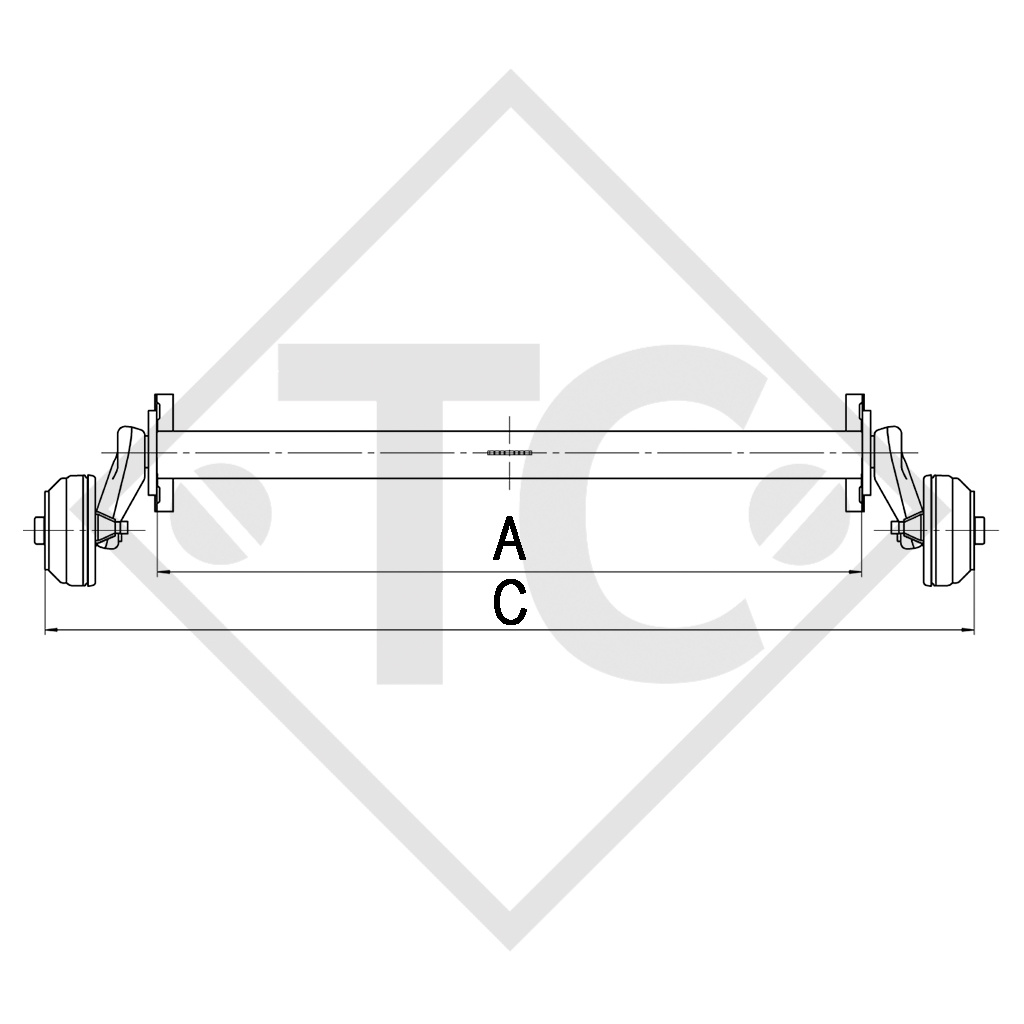

BC: dimension A 1545mm
OHF: dimension C 1990mm
Wheel connection 130x4
Offset (ET) 27-33mm

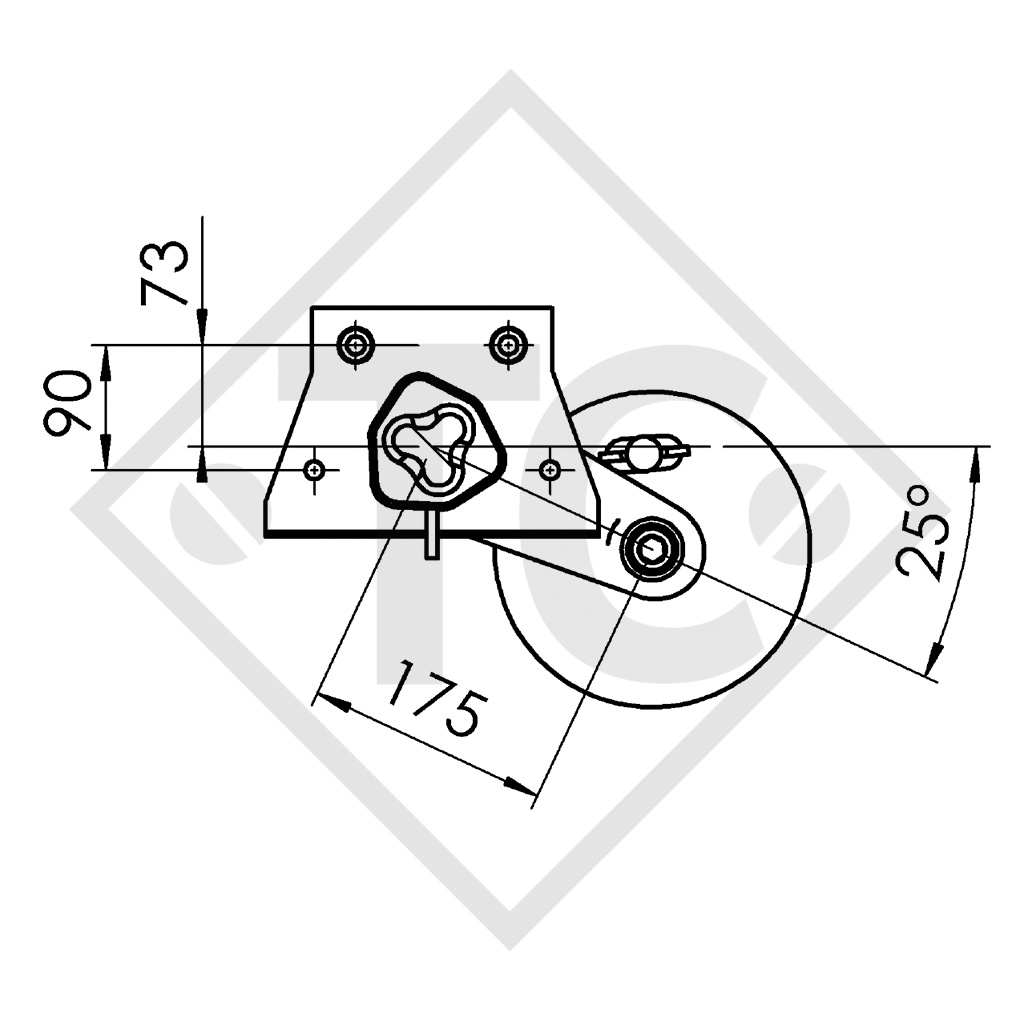

Swing arm position 25°
Axle profile 97mm
TECHNOLOGY
Model: EURO1
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M14x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
