BC: dimension A 1150mm, OHF: dimension C 1835mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 20mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1707553 (1906960)

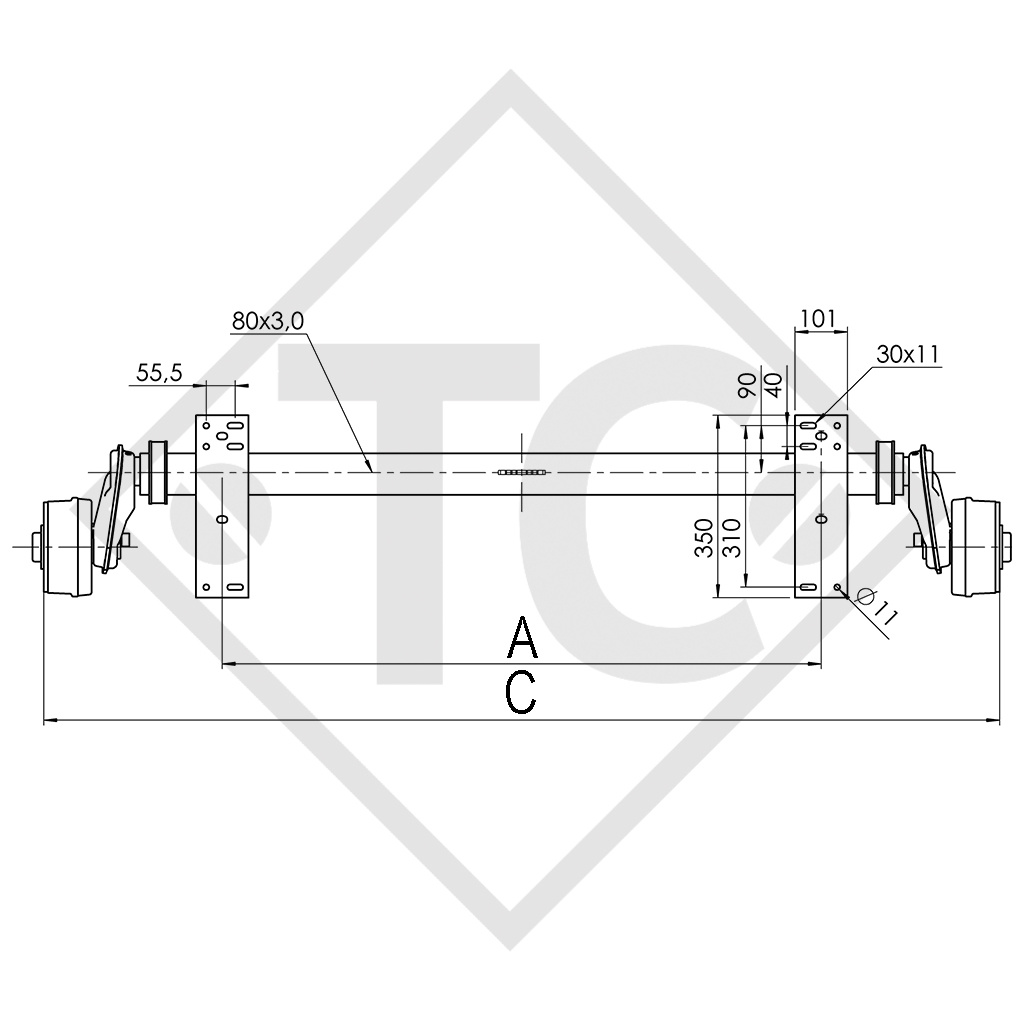

BC: dimension A 1150mm
OHF: dimension C 1835mm
Wheel connection 130x4
Offset (ET) 20mm

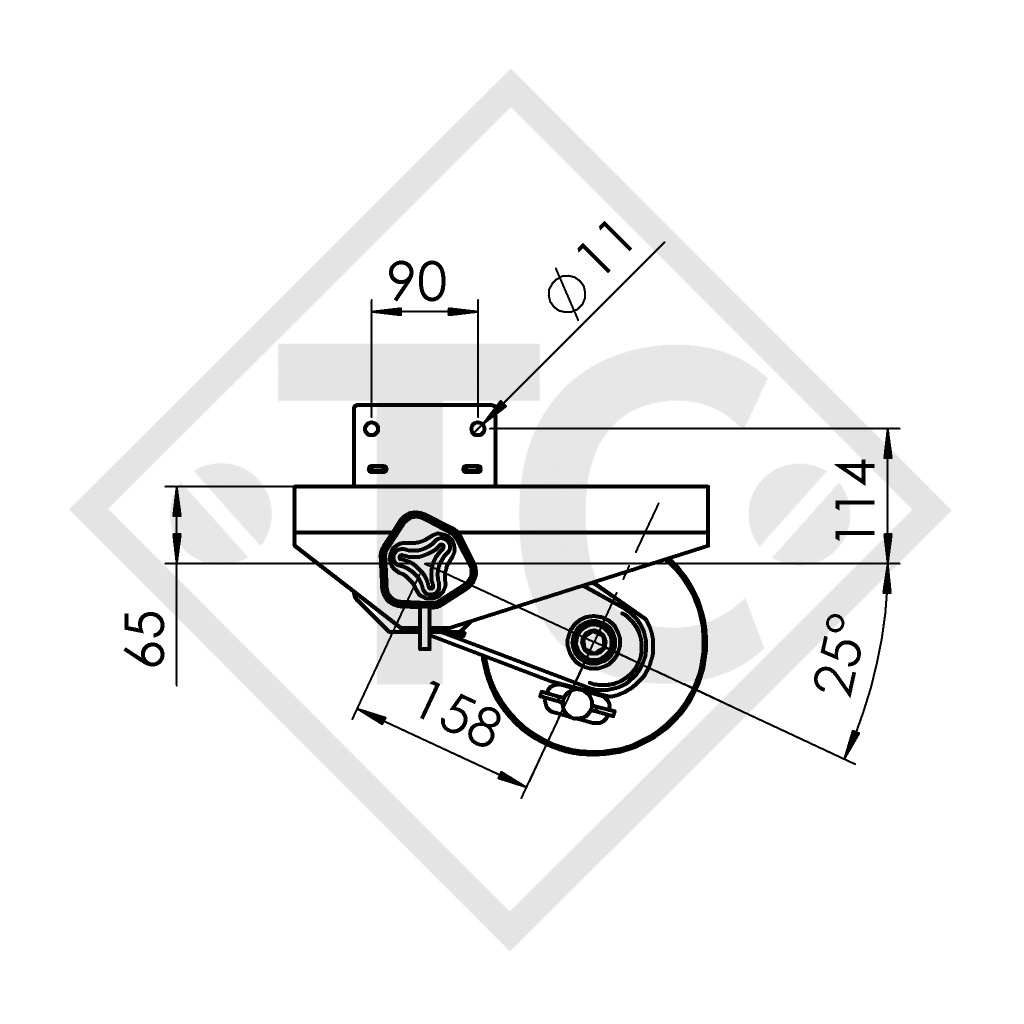

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) 812026
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 850-5
Axle load: Single axle 900kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 48mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M14x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
