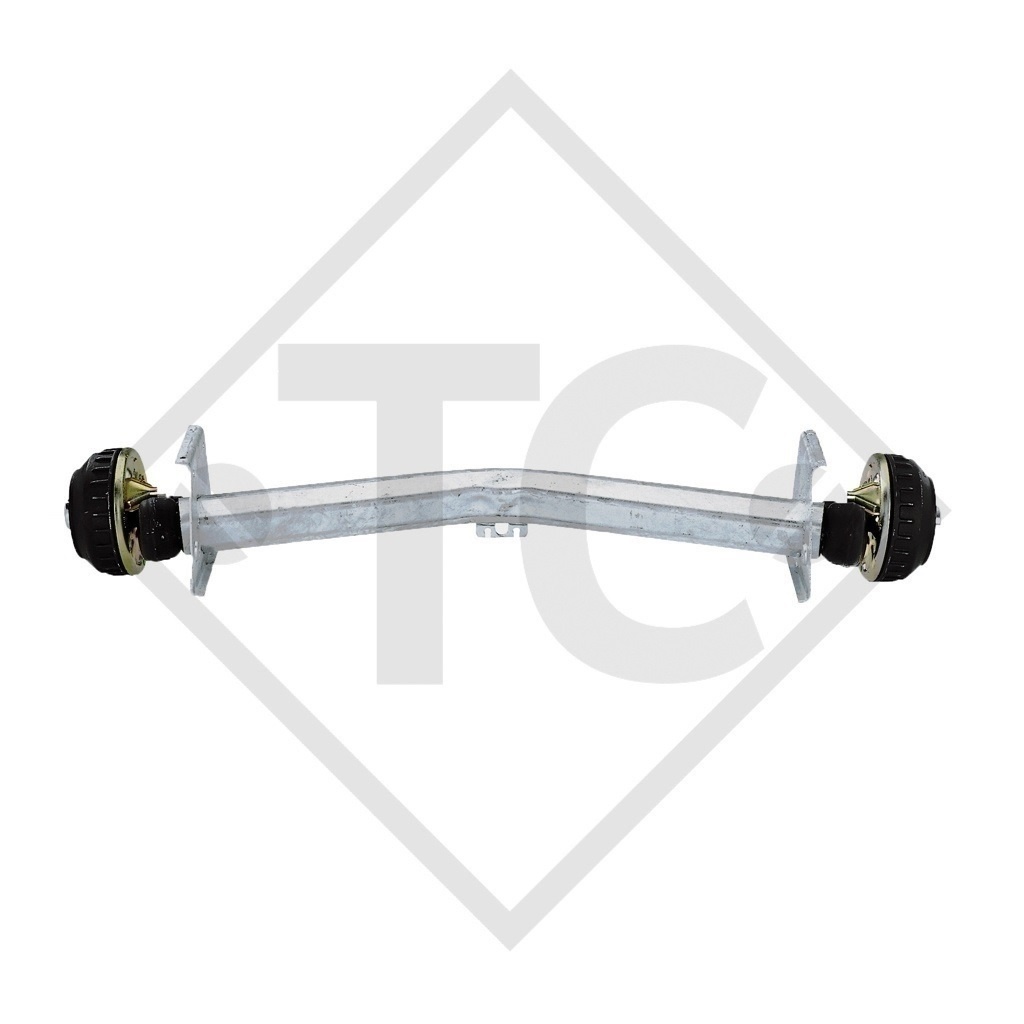

Braked axle 1000kg EURO Plus axle type Delta SI 850-10 811159

BC: dimension A 1355mm, OHF: dimension C 1835mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.315,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 249887

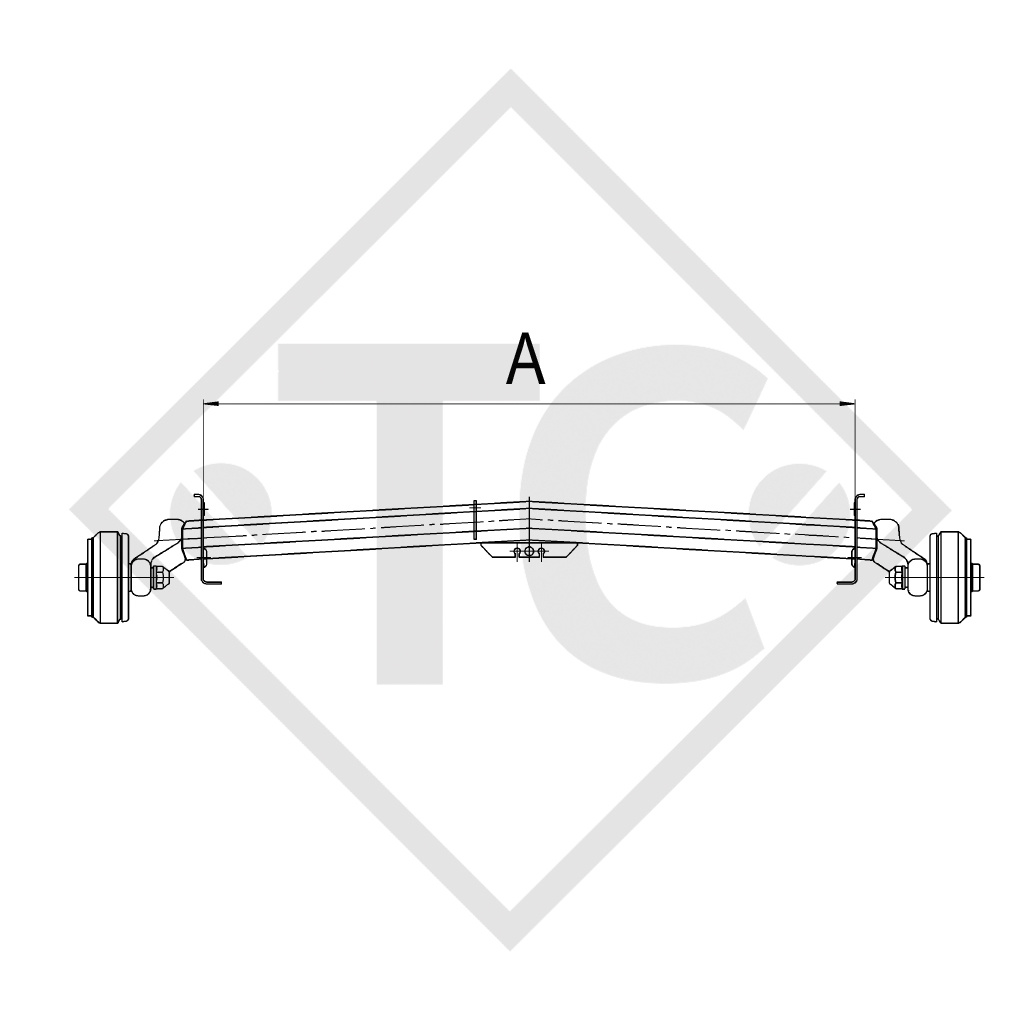

BC: dimension A 1355mm

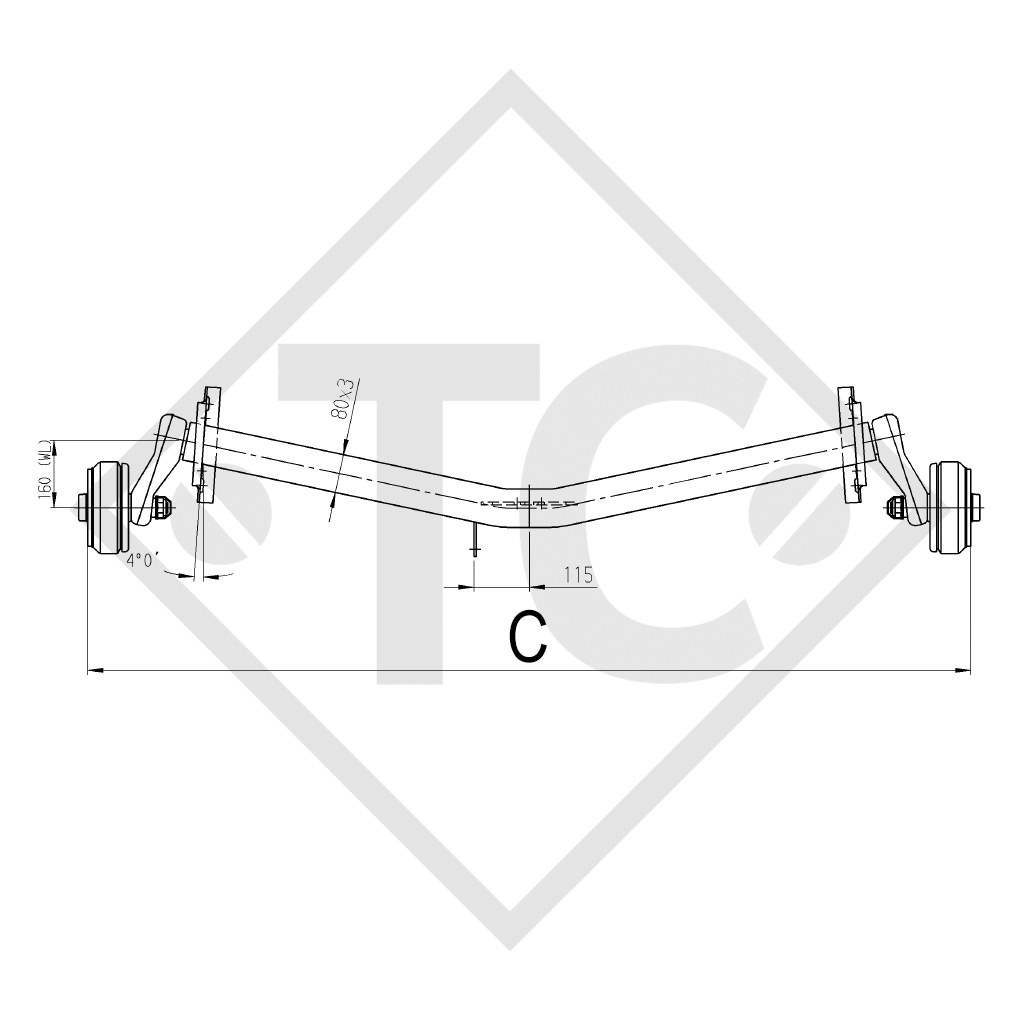

OHF: dimension C 1835mm
Wheel connection 100x4
Offset (ET) 27-33mm

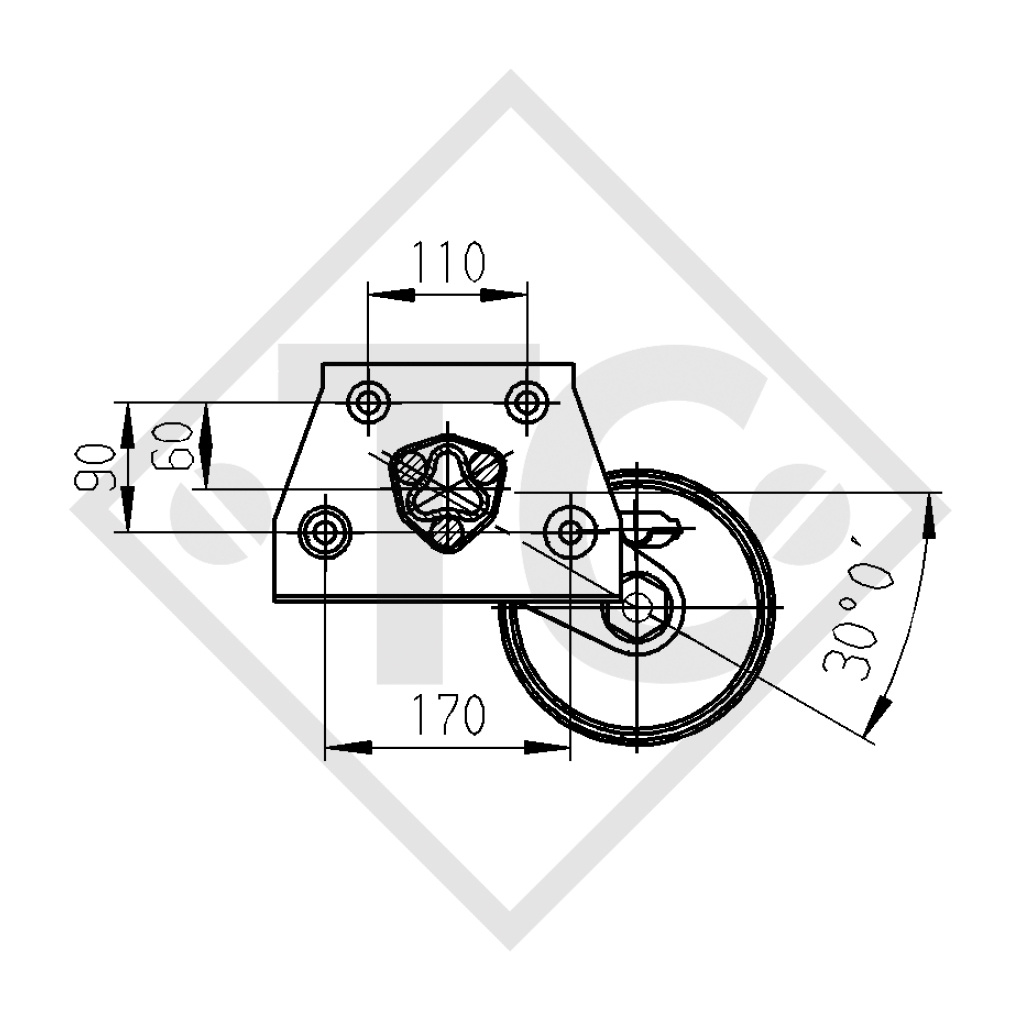

Swing arm position 30°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811159
Replacement part identification number (ETI) NEW 811944

TECHNOLOGY
Model: EURO Plus
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 1000kg EURO Plus axle type Delta SI 850-10
