BC: dimension A 1400mm, OHF: dimension C 1850mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 20-33mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1270609

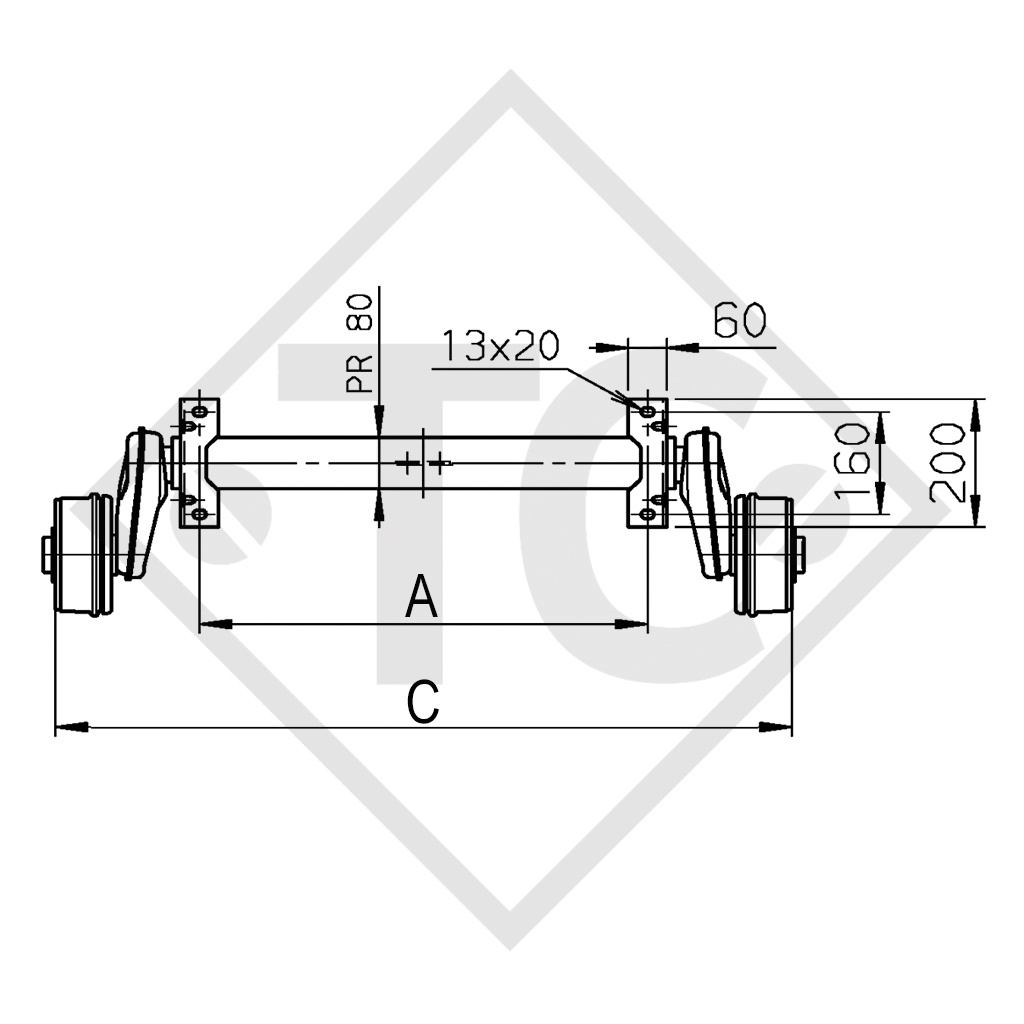

BC: dimension A 1400mm
OHF: dimension C 1850mm
Wheel connection 130x4

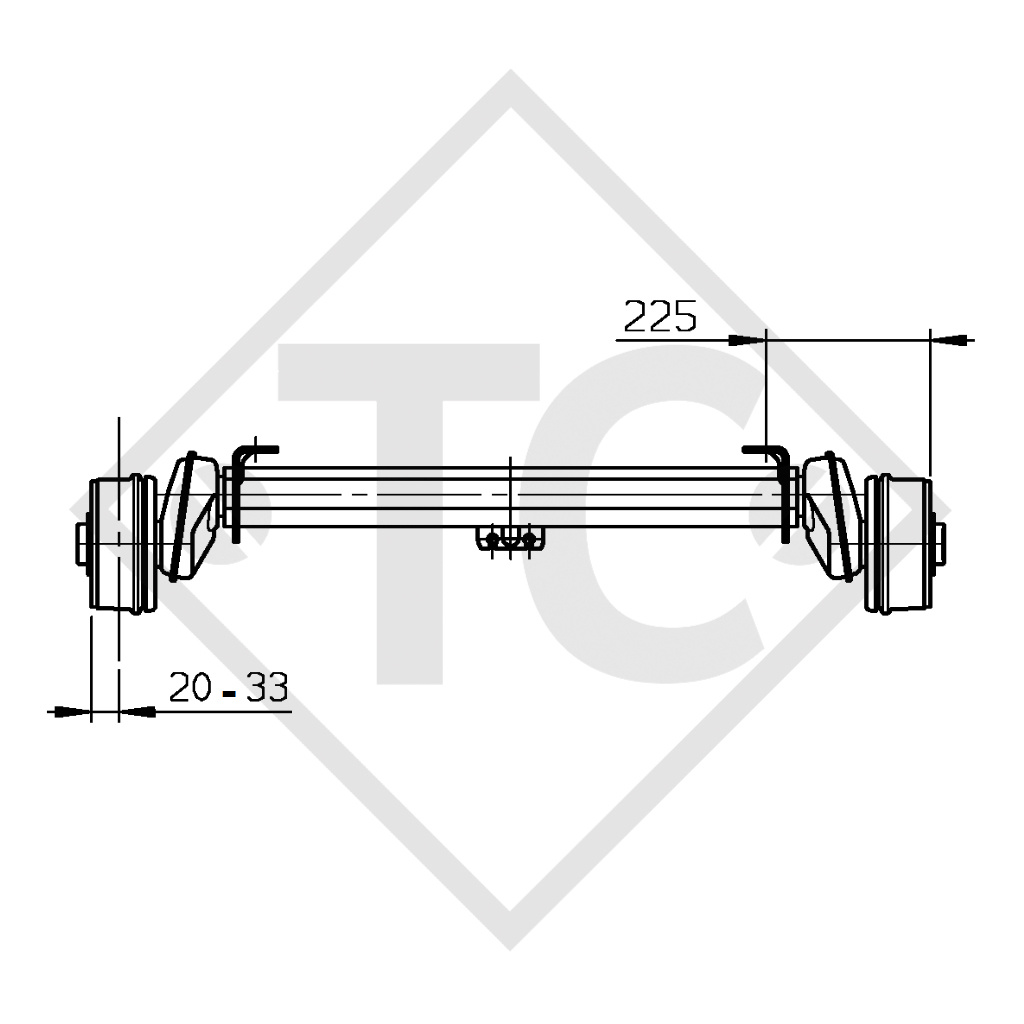

Offset (ET) 20-33mm

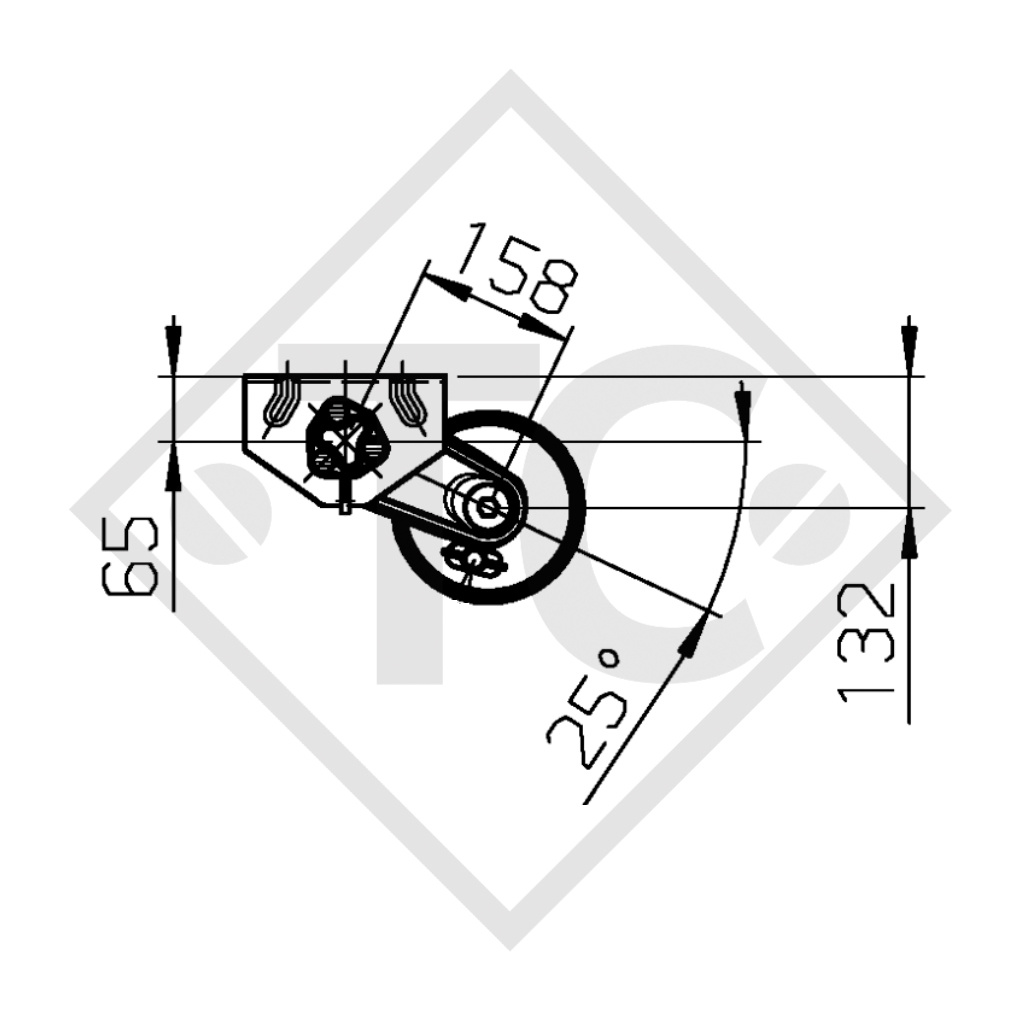

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811156
Replacement part identification number (ETI) NEW 811973
TECHNOLOGY
Model: COMPACT
Axle type: B 850-5
Axle load: Single axle 900kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
