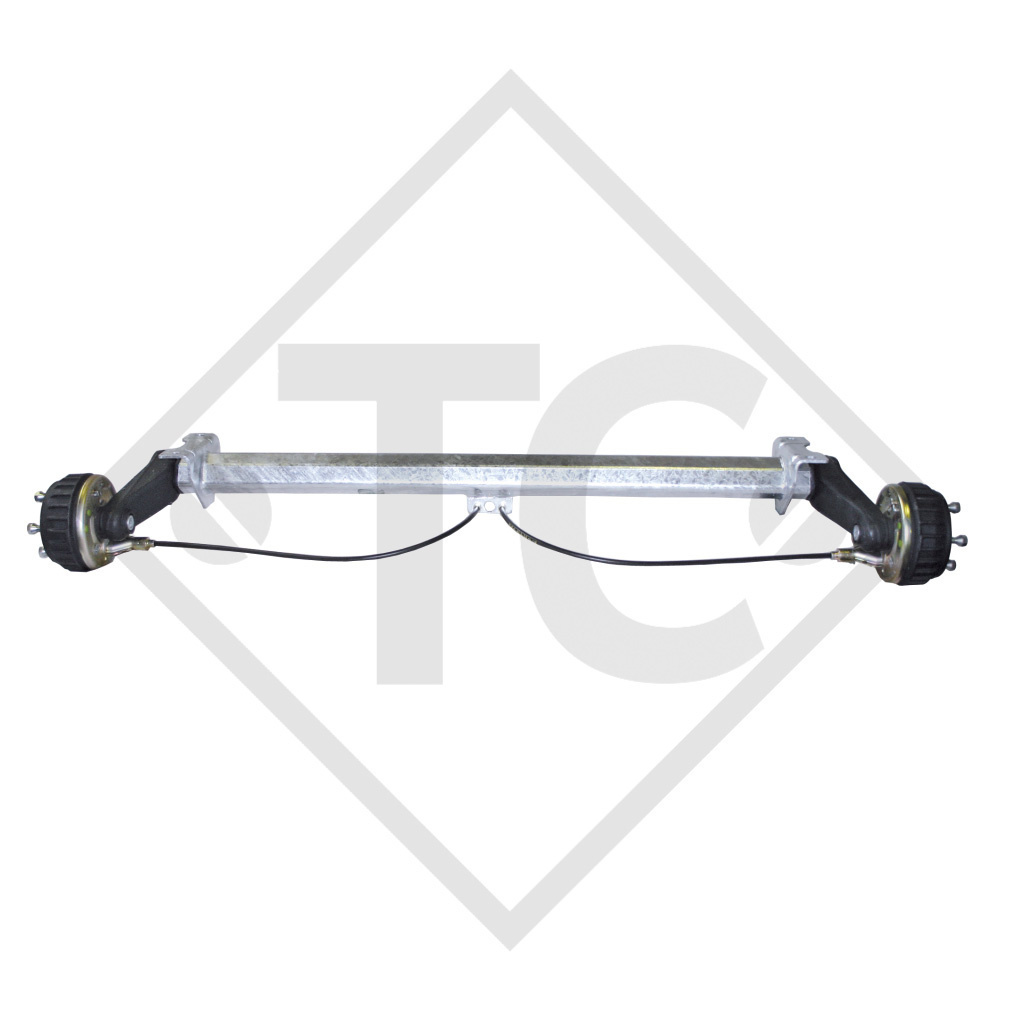

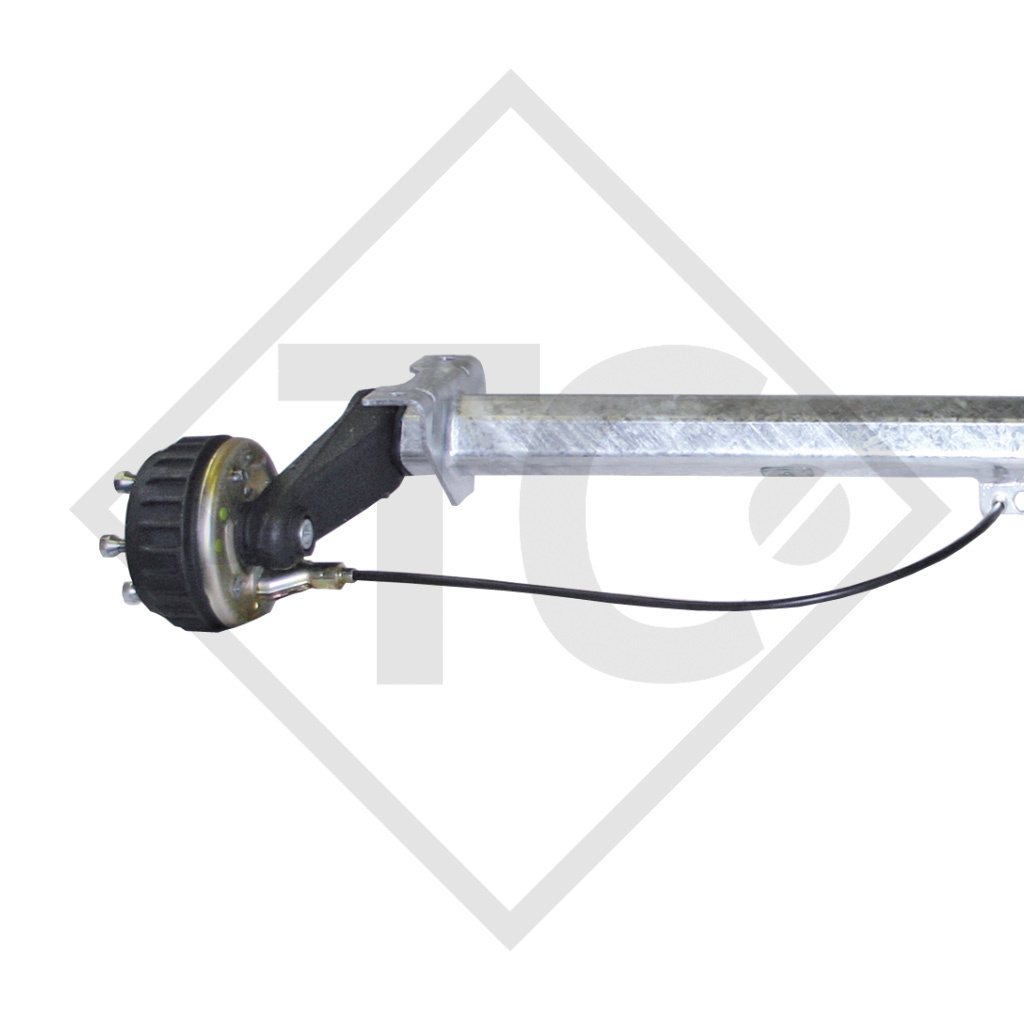

BC: dimension A 1625mm, OHF: dimension C 2075mm, wheel connection 112x5, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 5°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20008112
BC: dimension A 1625mm
OHF: dimension C 2075mm
Wheel connection 112x5
Offset (ET) 27-33mm

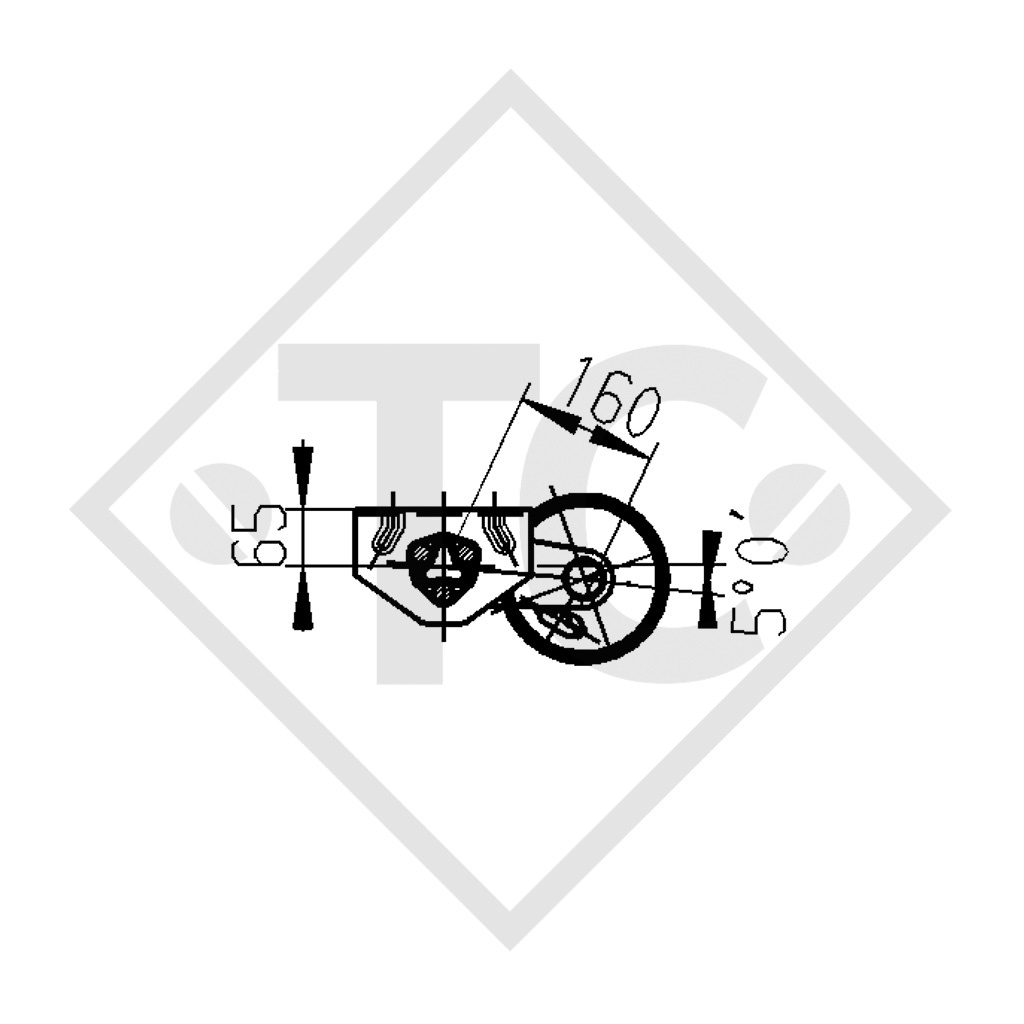

Swing arm position 5°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944
TECHNOLOGY
Model: BASIC
Axle type: B 850-5
Axle load: Single axle 900kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
