Part no. OLD 46.16.382.013
Part no. NEW XXXXXXX
| Axle load single axle |
850kg |
| Axle load: Tandem axel |
1700kg |

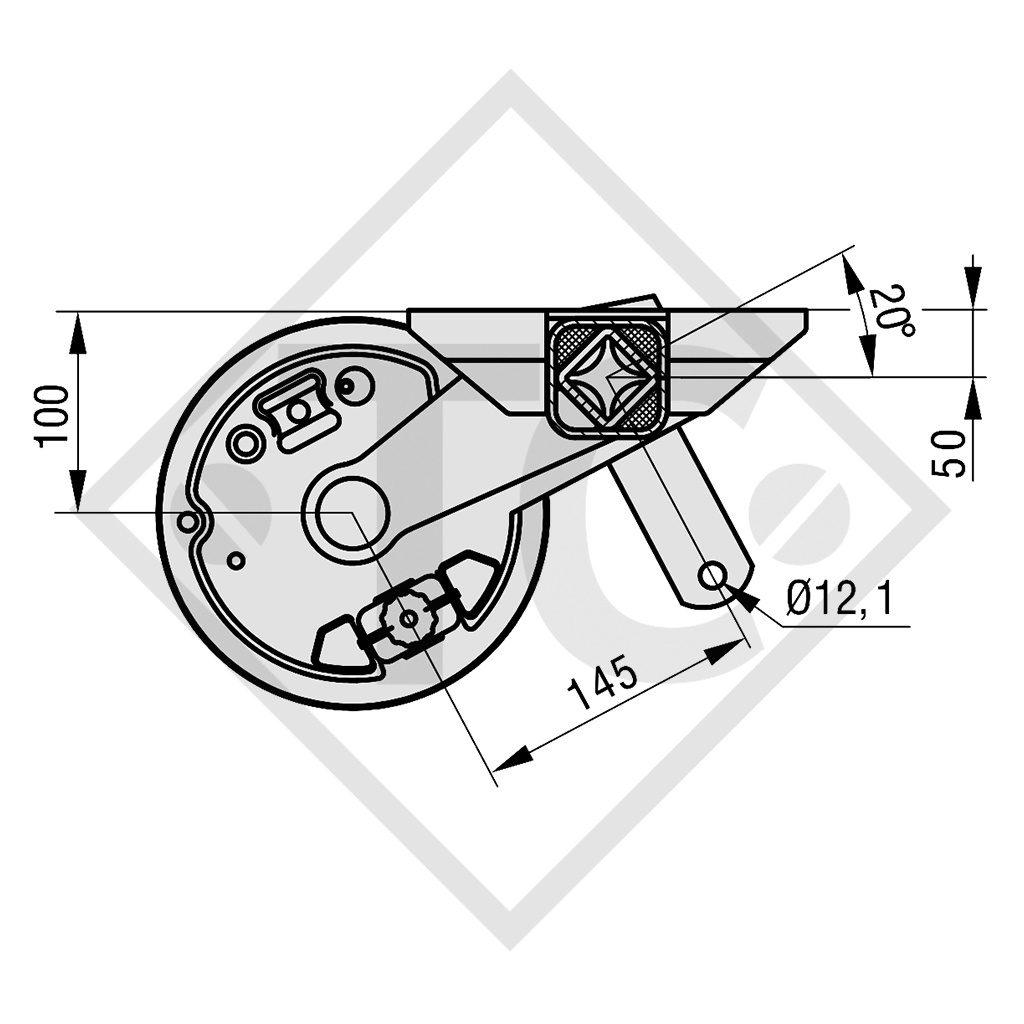

| Wheel brake |
S 1704-7 RASK |
| Suspension |
Square rubber suspension |
| Wheel bearing |
Compact bearings |

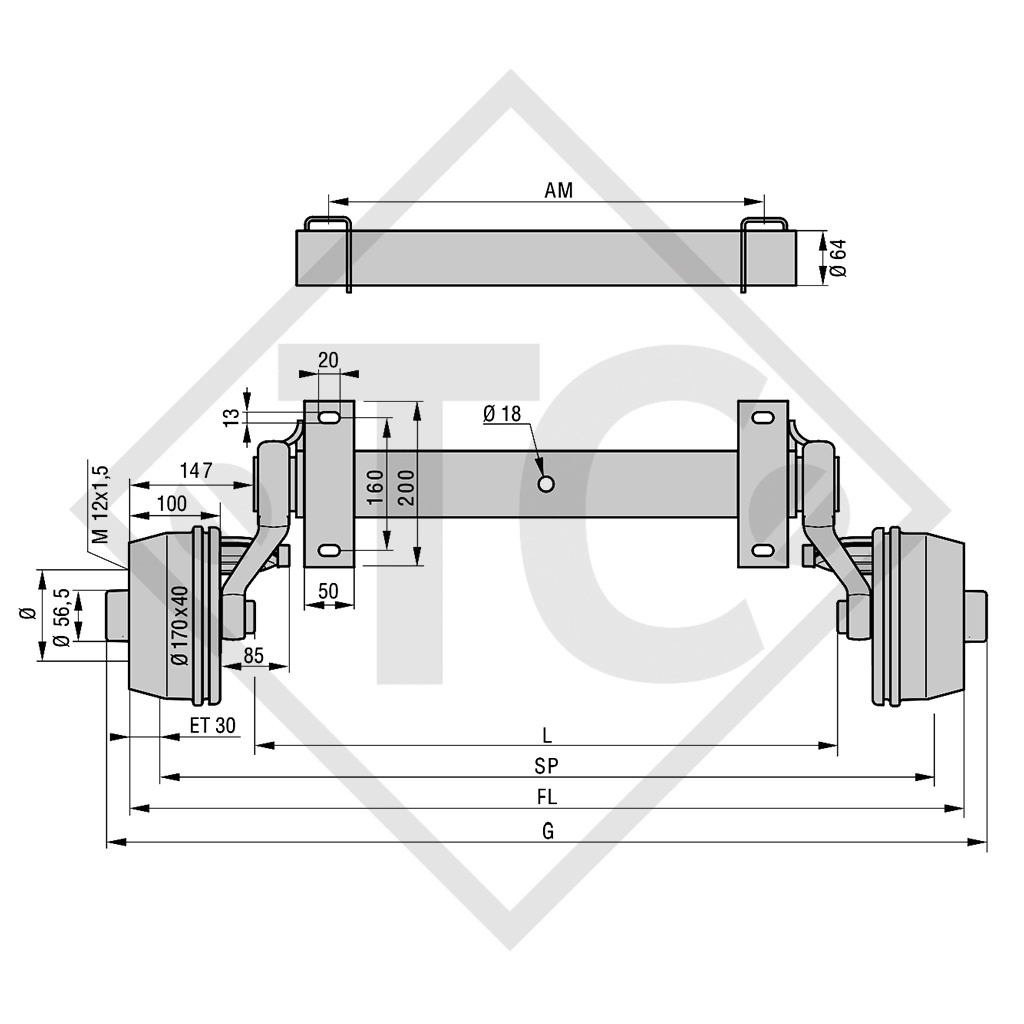

| Centre hole rim |
min. 56.5mm |
Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.382.XXX
Replacement part identification number (ETI) NEW 827032
SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Taper-head wheel bolts M12x1.5 loose
DETAILS
- Speed up to 140 km/h
- Drawbar connection: Clamping shells see Accessories
- Axle shock absorber see Accessories
- Wheel connections: 4x98; 4x130 on demand
- Special axle mounts and drawbar connections on demand
- Also available with watertight bearings
- Axle body fully hop-dip galvanised: Permanent surface protection
- Independent wheel suspension: Optimum compensation of uneven road surfaces
- Maintenance-free suspension: Lower maintenance costs
- Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
- Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
- Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
- Incl. shock absorber bracket
