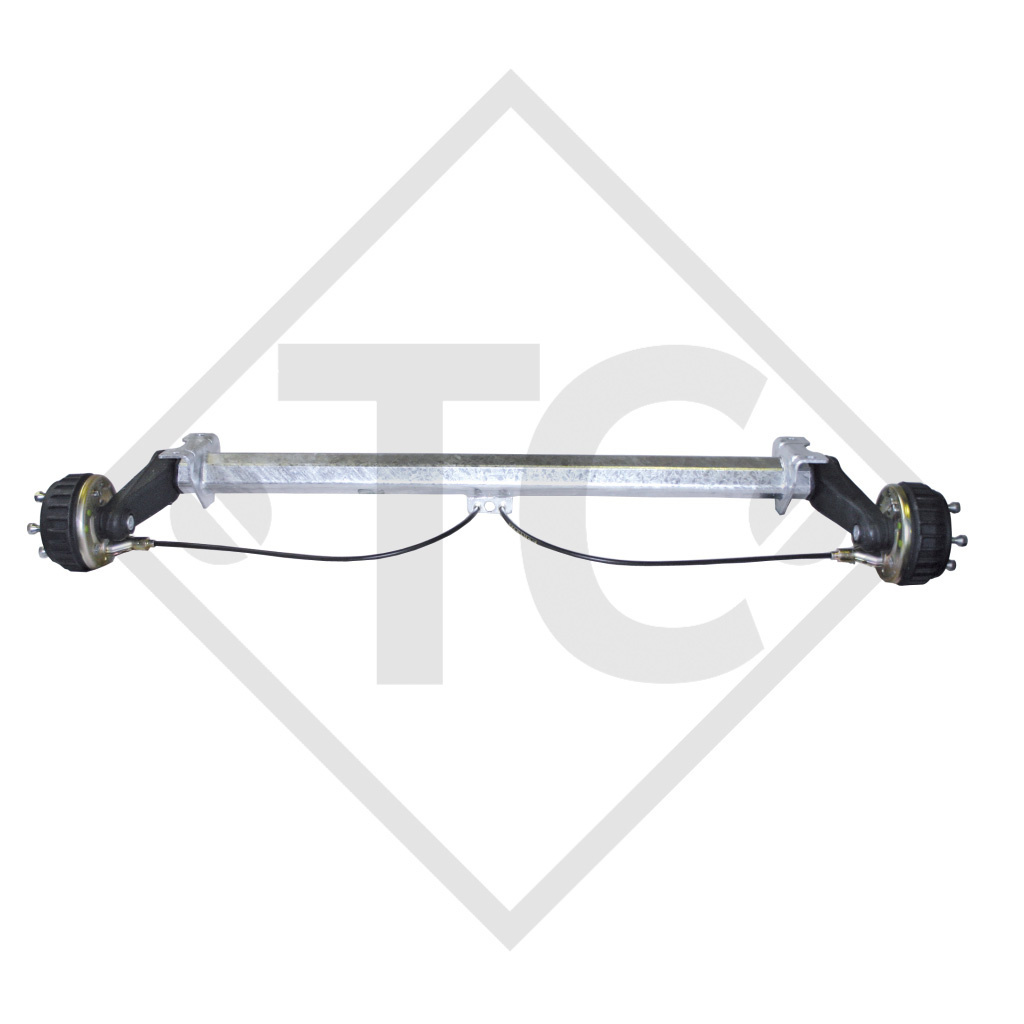

Braked axle 850kg EURO COMPACT axle type B 850-4 Brenderup HUMER

Braked axle 850kg EURO COMPACT axle type B 850-4, HUMER, Brenderup

BC: dimension A 1420mm, OHF: dimension C 1785mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 765,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1211076 (1322543)

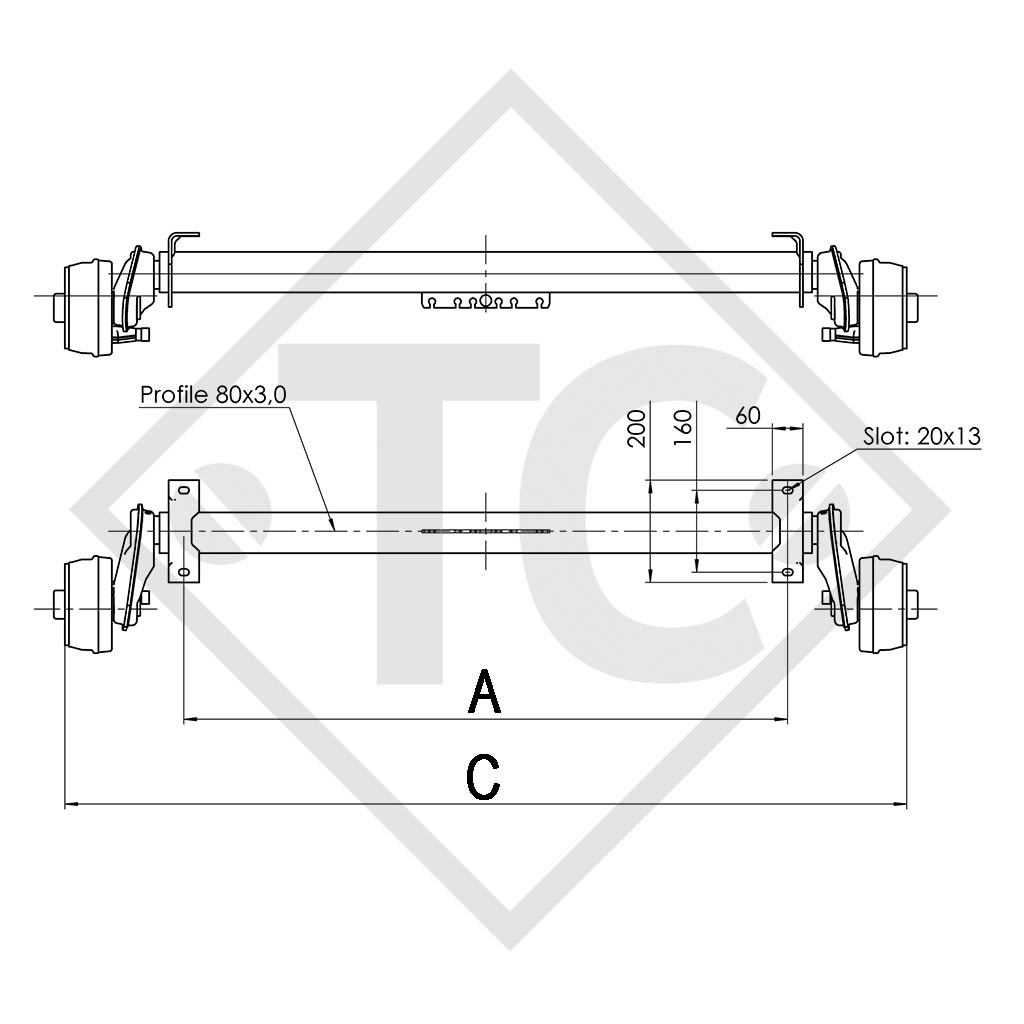

BC: dimension A 1420mm
OHF: dimension C 1785mm
Wheel connection 100x4
Offset (ET) 27-33mm

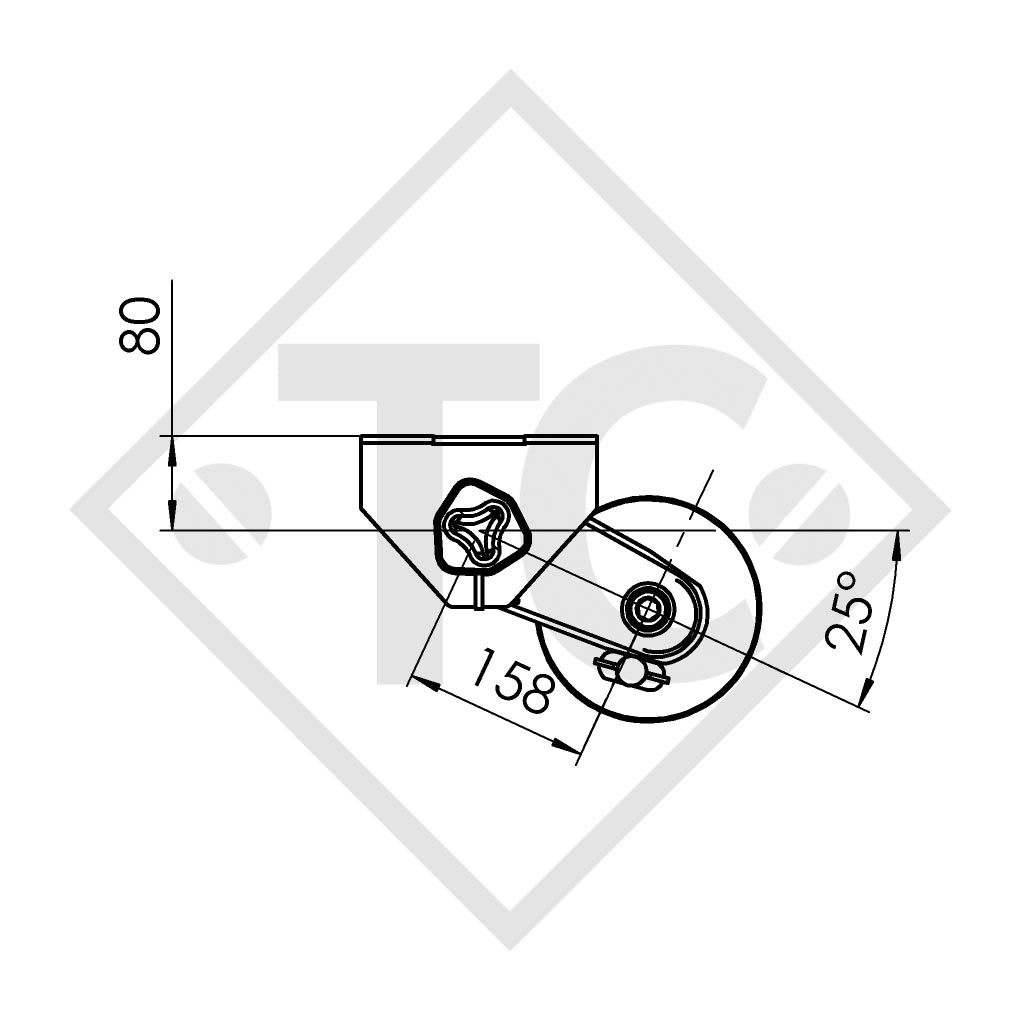

Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811156
Replacement part identification number (ETI) NEW 811973

TECHNOLOGY
Model: EURO COMPACT
Axle type: B 850-4
Axle load: Single axle 850kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 850kg EURO COMPACT axle type B 850-4, HUMER, Brenderup
