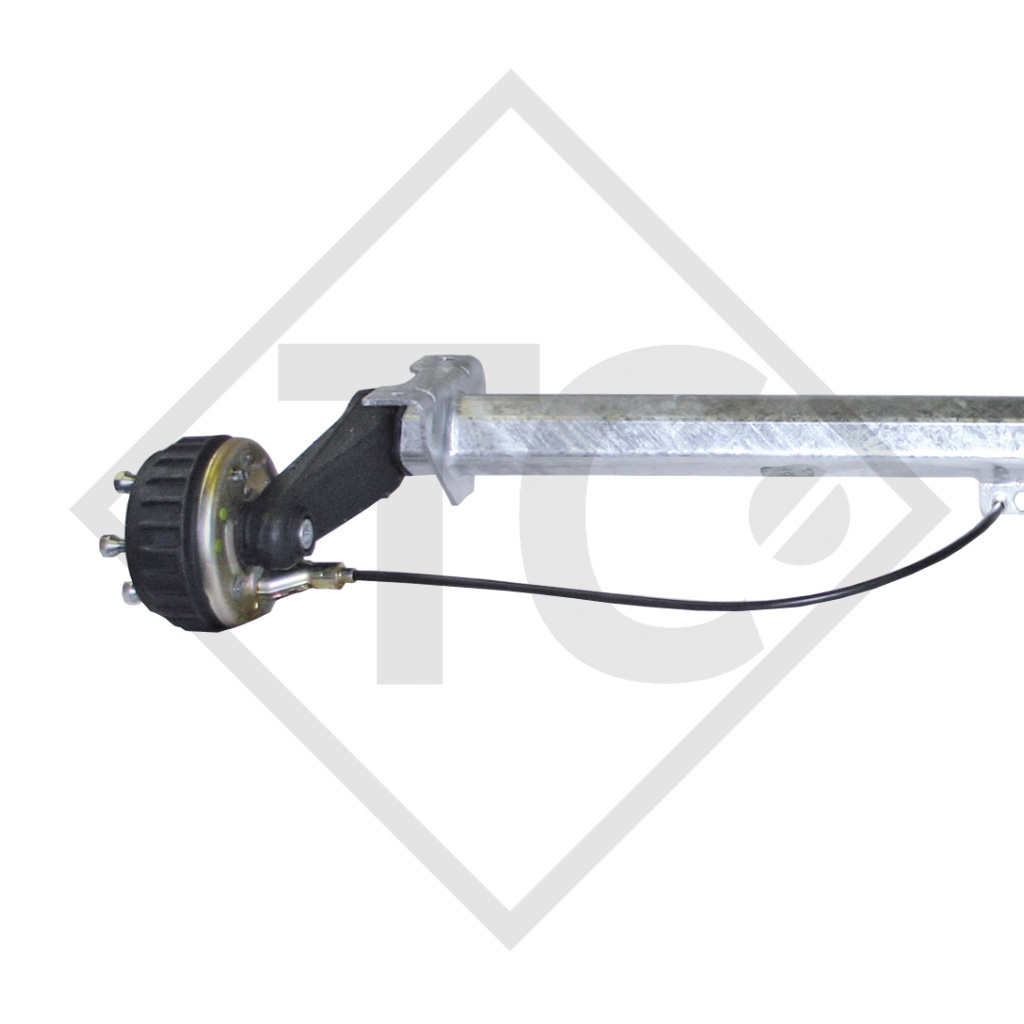

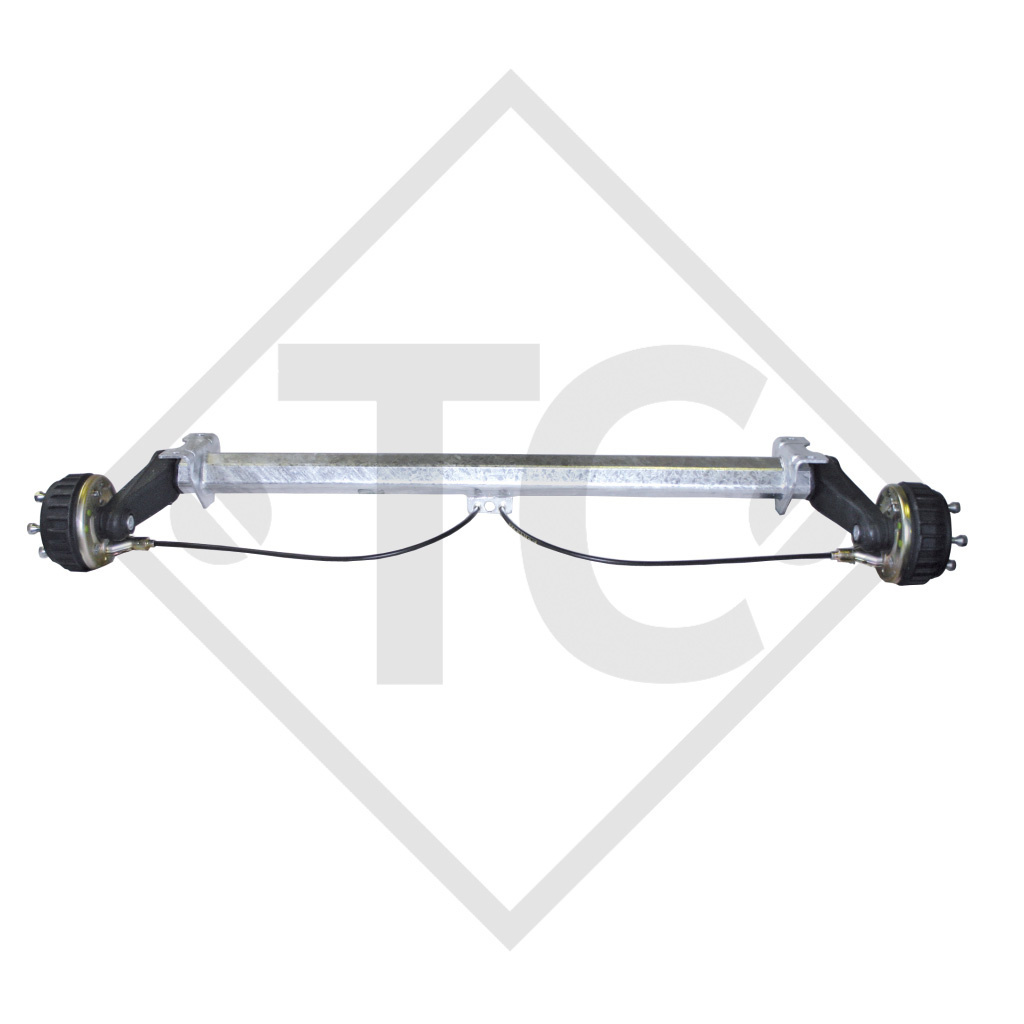

Home / Braked axle 850kg Euro-Compact axle type B 850-4 - Mecanorem

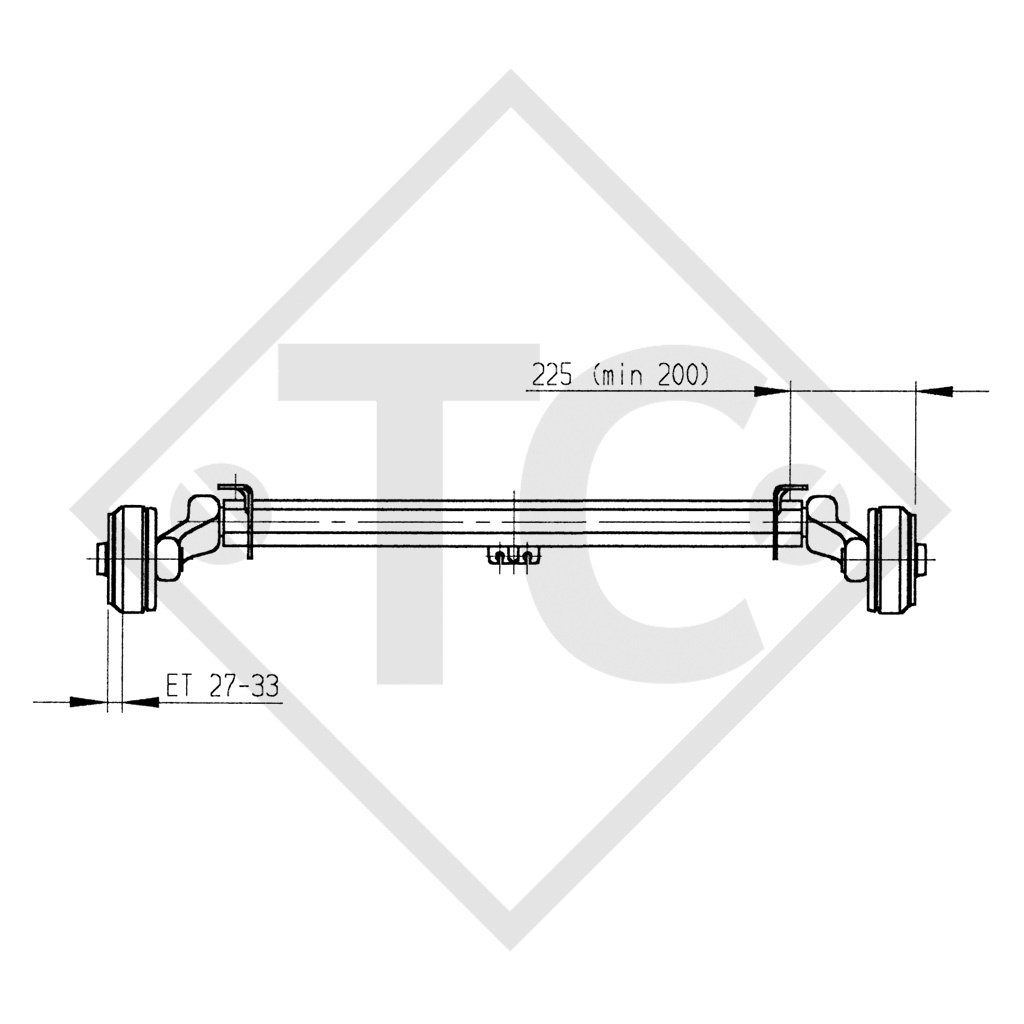

BC: dimension A 1320mm, OHF: dimension C 1820mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm. Read more...
Part no. 662384
BC: dimension A 1320mm
OHF: dimension C 1820mm
Wheel connection 130x4
Offset (ET) 27-33mm
Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) 812026
TECHNOLOGY
Model: Euro-Compact
Axle type: B 850-4
Axle load: Single axle 850kg
Axle load: Tandem axle 1700kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
